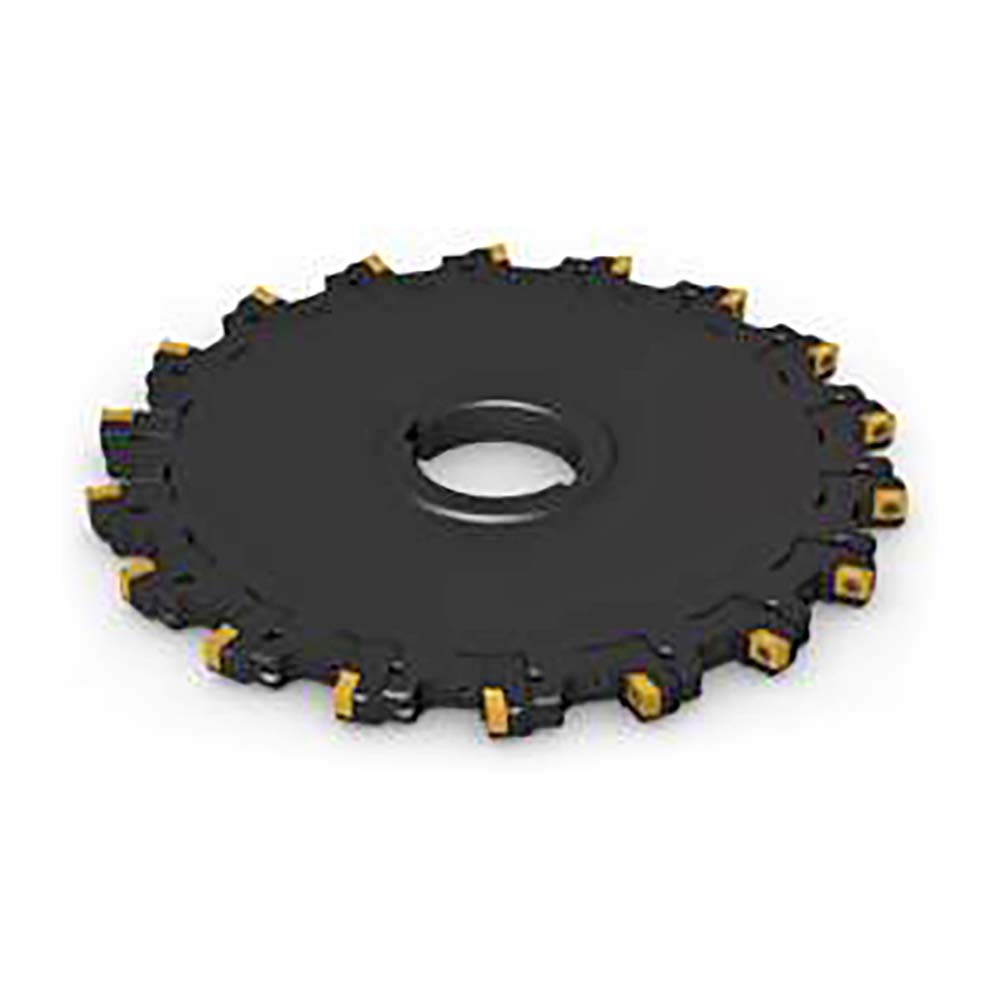

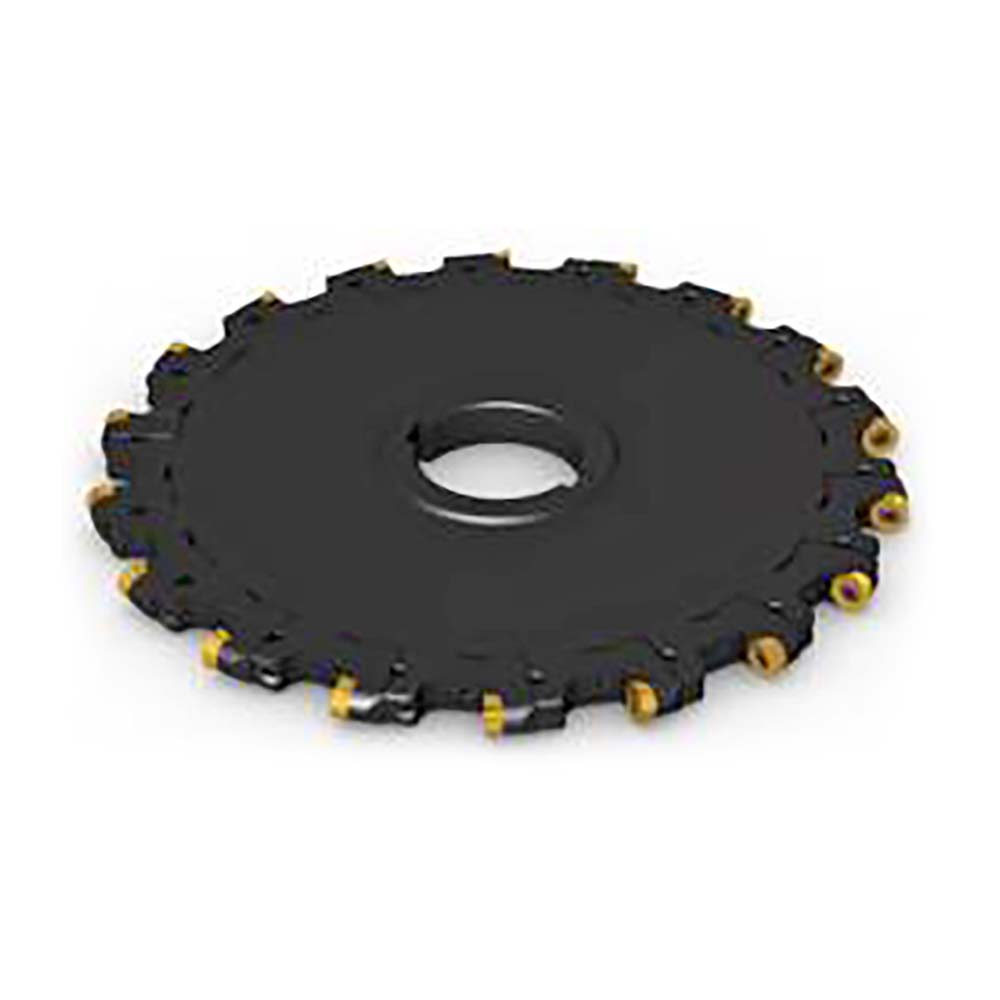

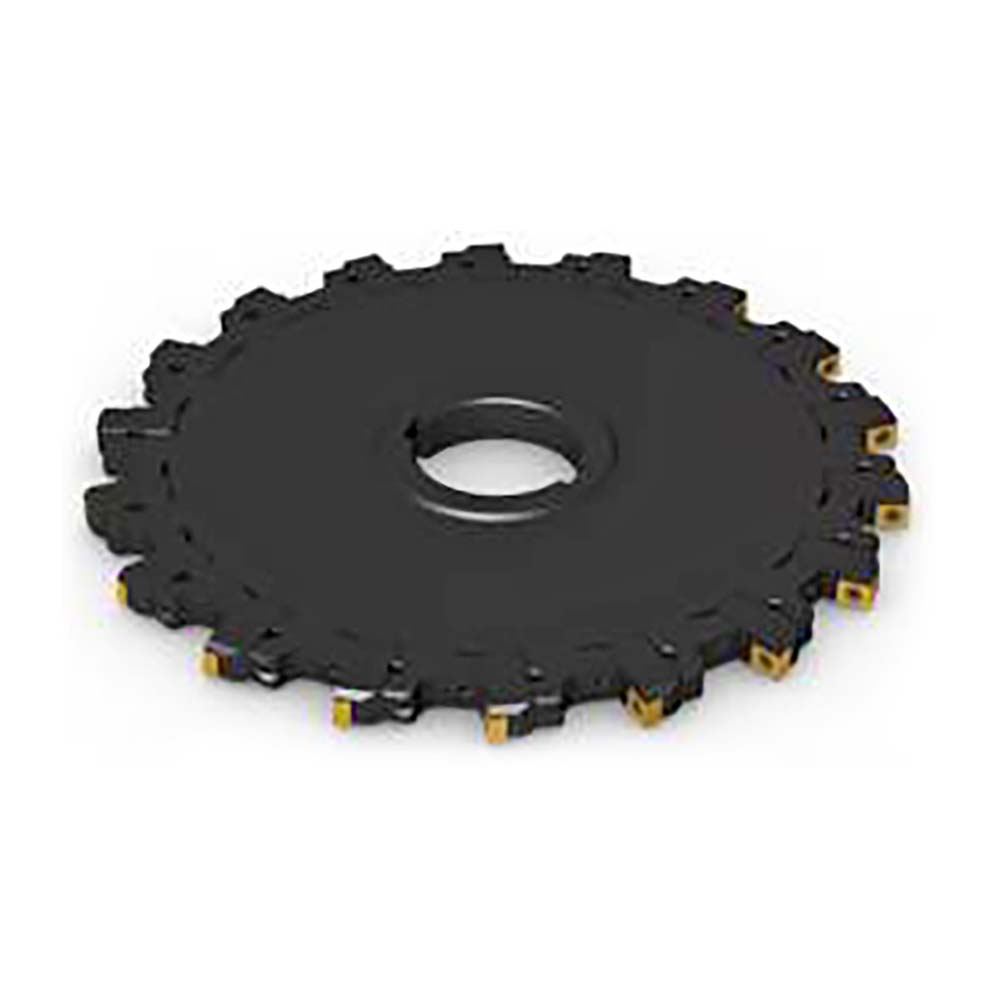

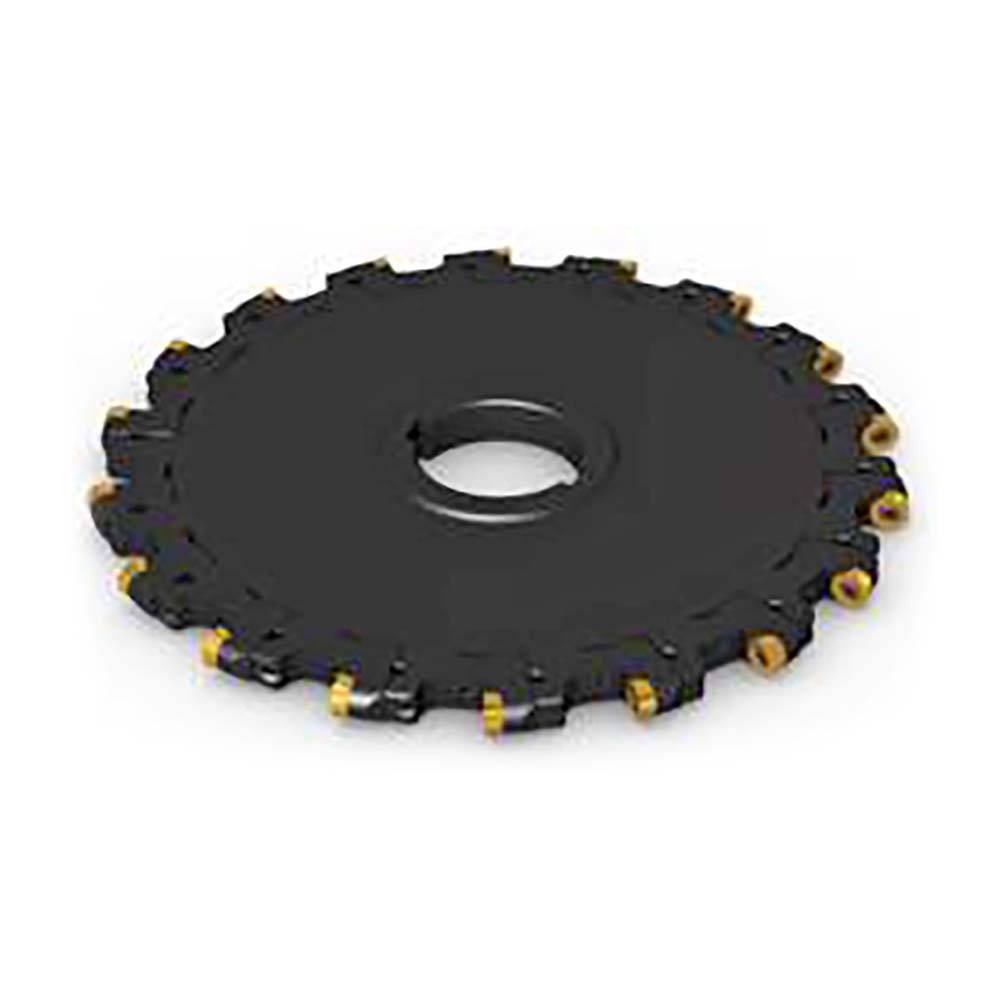

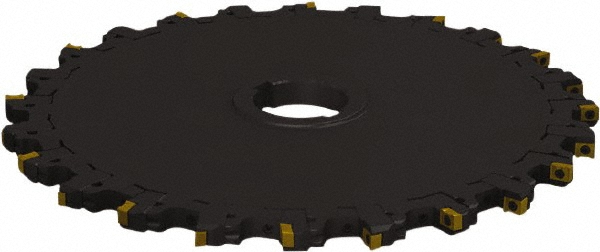

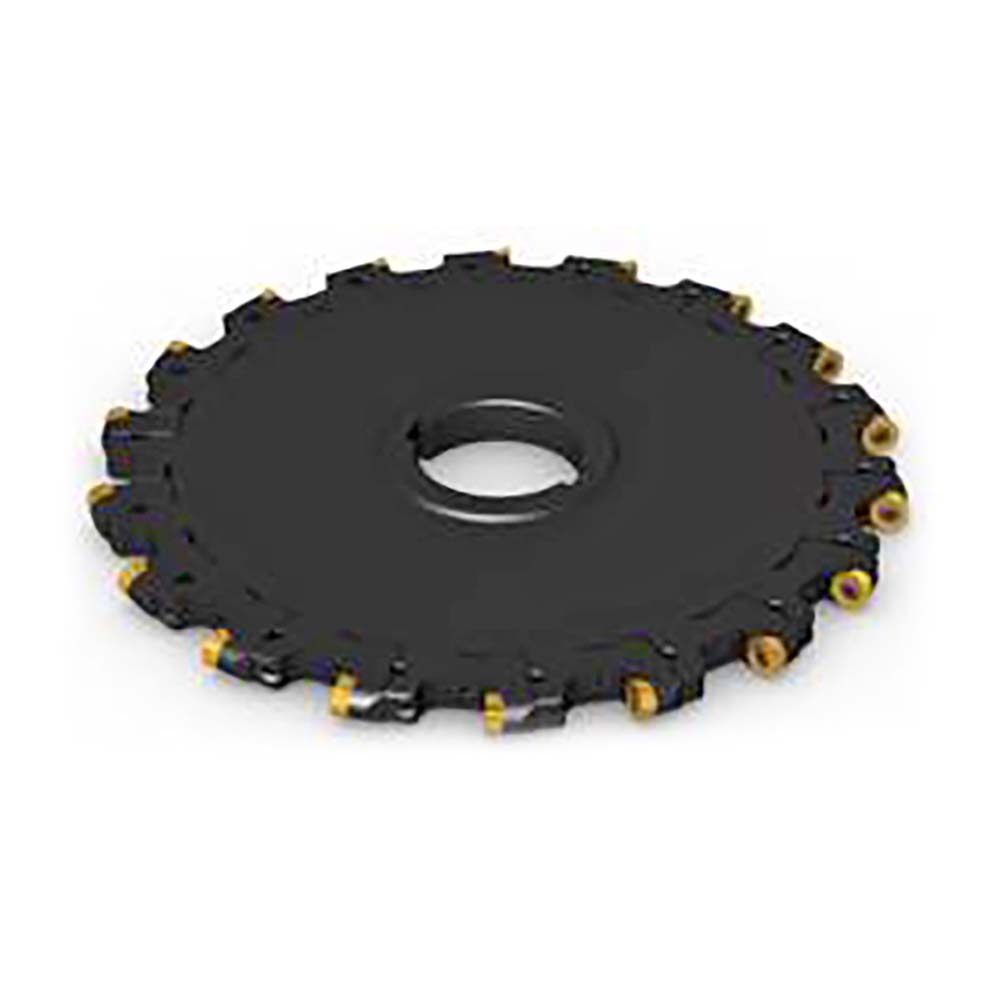

Screw, Uses 11 Inserts, RD 0803 Inserts, 22 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 4.3900 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Cutter Diameter (Inch) | 12 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 11 |
| Compatible Insert Style | RD 0803 |
| Compatible Insert Size Code | 0803 |
| Tooth Type | Staggered |
| Rake | Neutral (Axial); Positive (Radial) |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Hub Diameter (Inch) | 3 |
| Keyway Width (Inch) | 1/2 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum RPM | 5300 |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3940 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | 335.18-12.00-XL0506N-R4 |
| Number Of Teeth | 22 |
| Coolant Through | No |
| Complete Insert Compatibility | RD..0803 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 42716217 |
