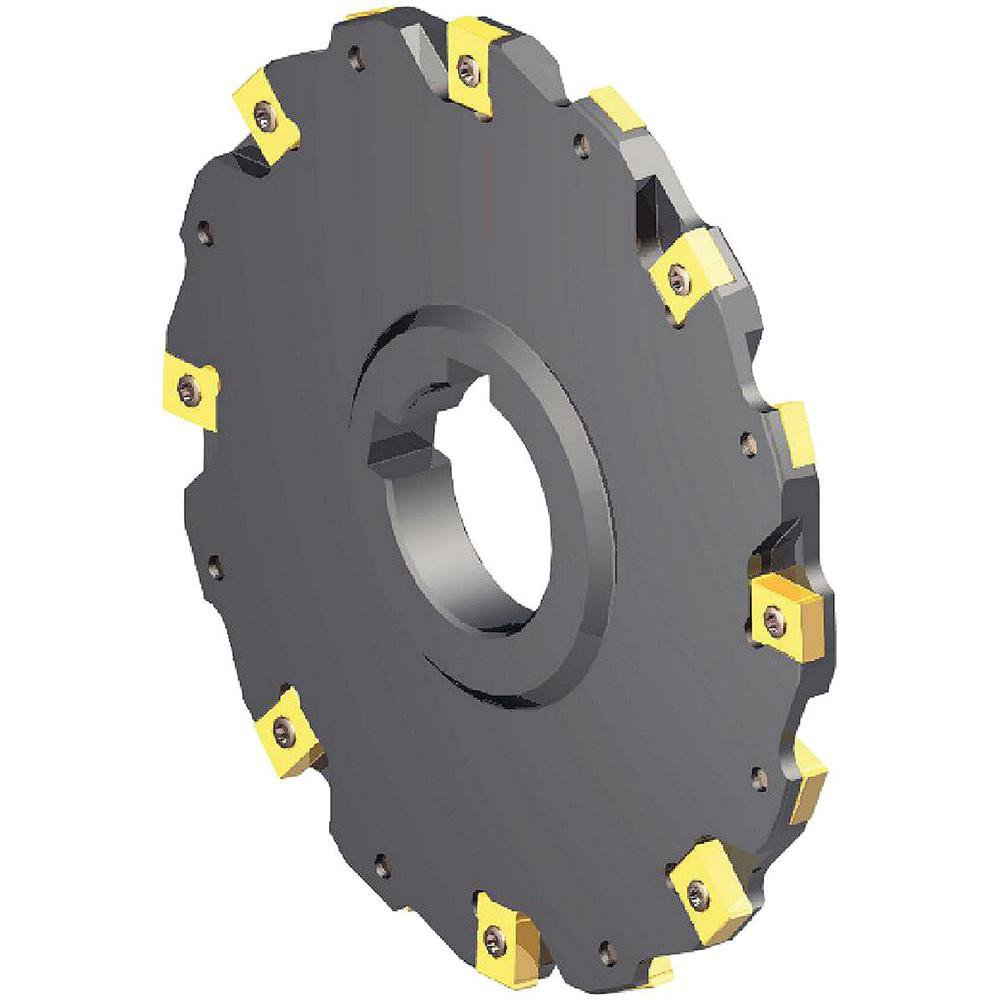

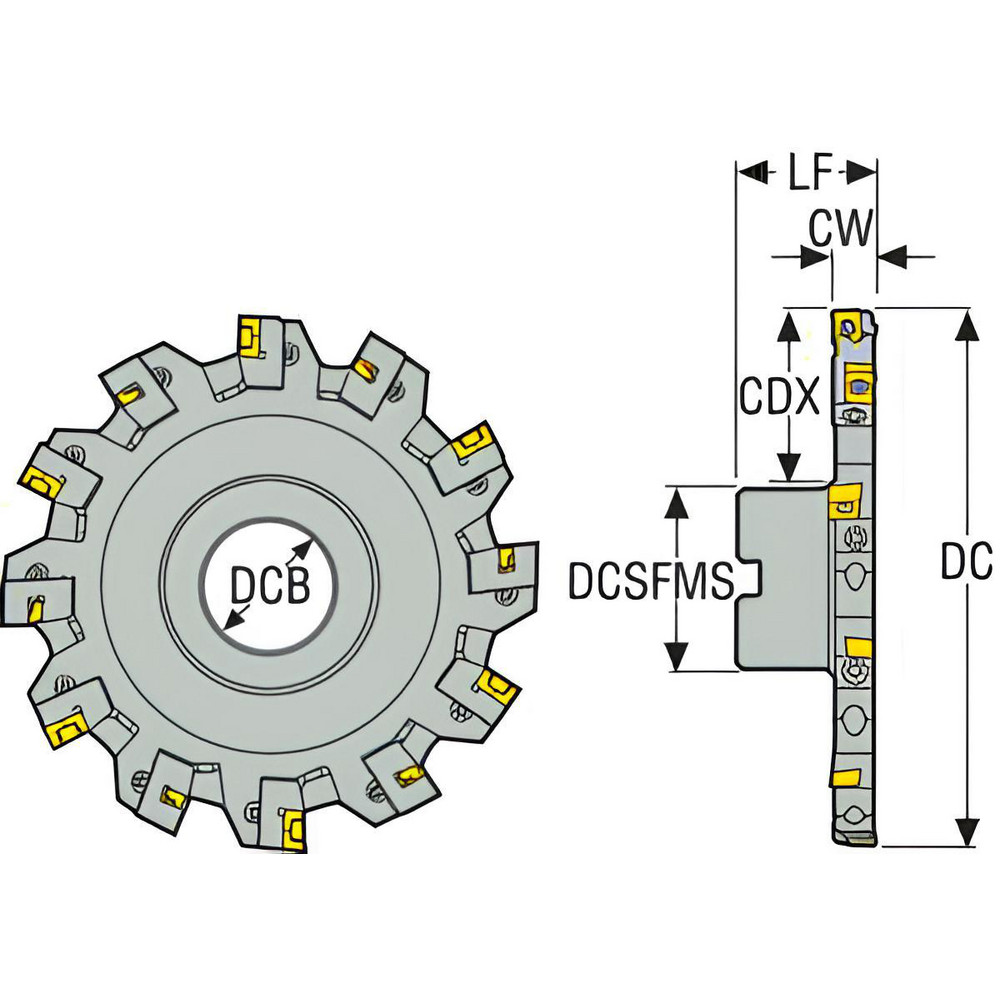

Screw, Uses 7 Inserts, LNK 08 Inserts, 14 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 2.2240 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 7 |
| Compatible Insert Style | LNK 08 |
| Compatible Insert Size Code | 0605..; 080524; 080520 |
| Tooth Type | Staggered |
| Rake | Positive (Axial); Negative (Radial) |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 6700 |
| Tool Application | Side Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (Decimal Inch) | 0.5910 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.5910 |
| Manufacturers Catalog Number | R335.18-08.00-XL0809N |
| Number Of Teeth | 14 |
| Coolant Through | No |
| Complete Insert Compatibility | LNK.080520; LNK.0605..; LNK.080524 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 42719153 |
