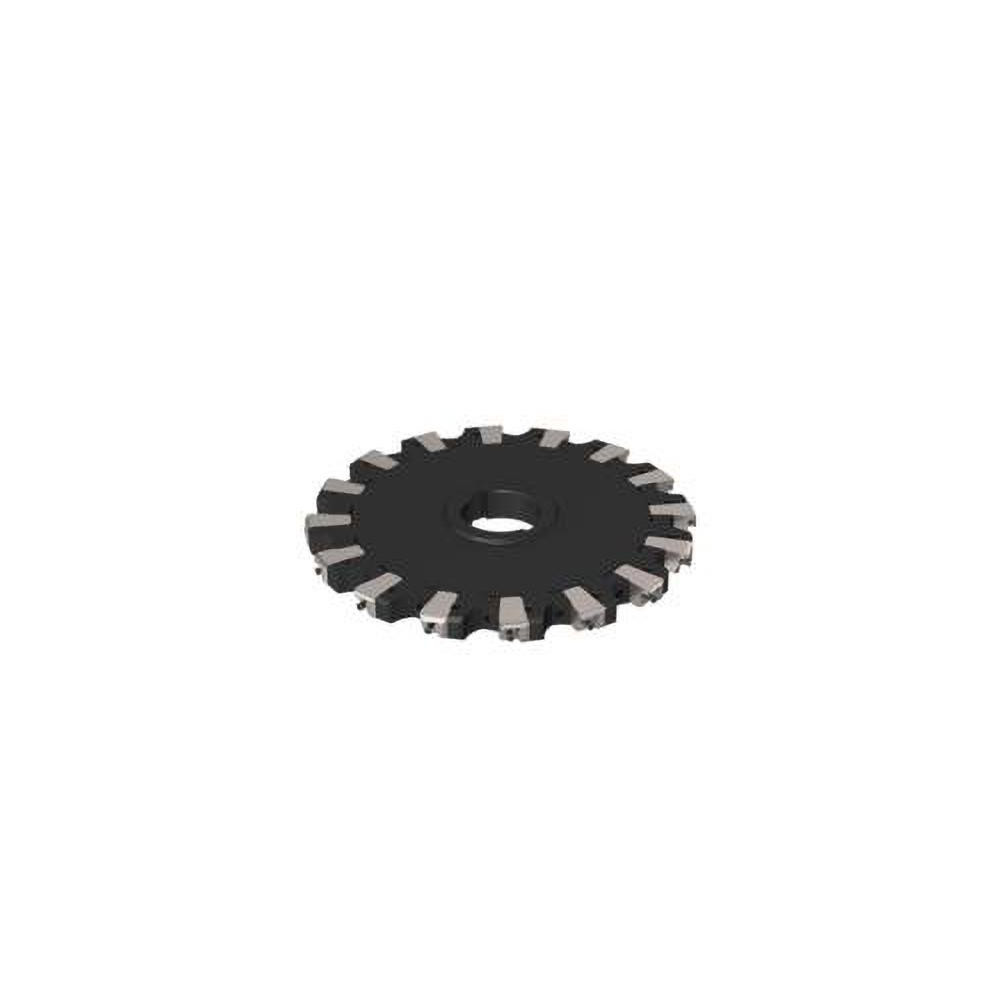

Screw, Uses 9 Inserts, RD 10T3 Inserts, 18 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.4840 |
| Maximum Depth of Cut (mm) | 88.49 |
| Hole Diameter (Inch) | 1-31/32 |
| Hole Diameter (Mm) ( - 0 Decimals) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9690 |
| Cutter Diameter (Decimal Inch) | 9.8430 |
| Cutter Diameter (Inch) | 9-27/32 |
| Cutter Diameter (mm) | 250.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 9 |
| Compatible Insert Style | RD 10T3 |
| Compatible Insert Size Code | 10T3 |
| Tooth Type | Staggered |
| Rake | Positive (Radial); Positive (Axial) |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 2.7170 |
| Keyway Width (Decimal Inch) | 0.4720 |
| Maximum RPM | 6000 |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (mm) | 12.00 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.4720 |
| Cutter Body Width (mm) | 15.00 |
| Manufacturers Catalog Number | 335.18-250.1012XL.50-9N-R5 |
| Insert Inscribed Circle (mm) | 10.00 |
| Number Of Teeth | 18 |
| Coolant Through | No |
| Complete Insert Compatibility | RD..10T3 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 57491524 |
