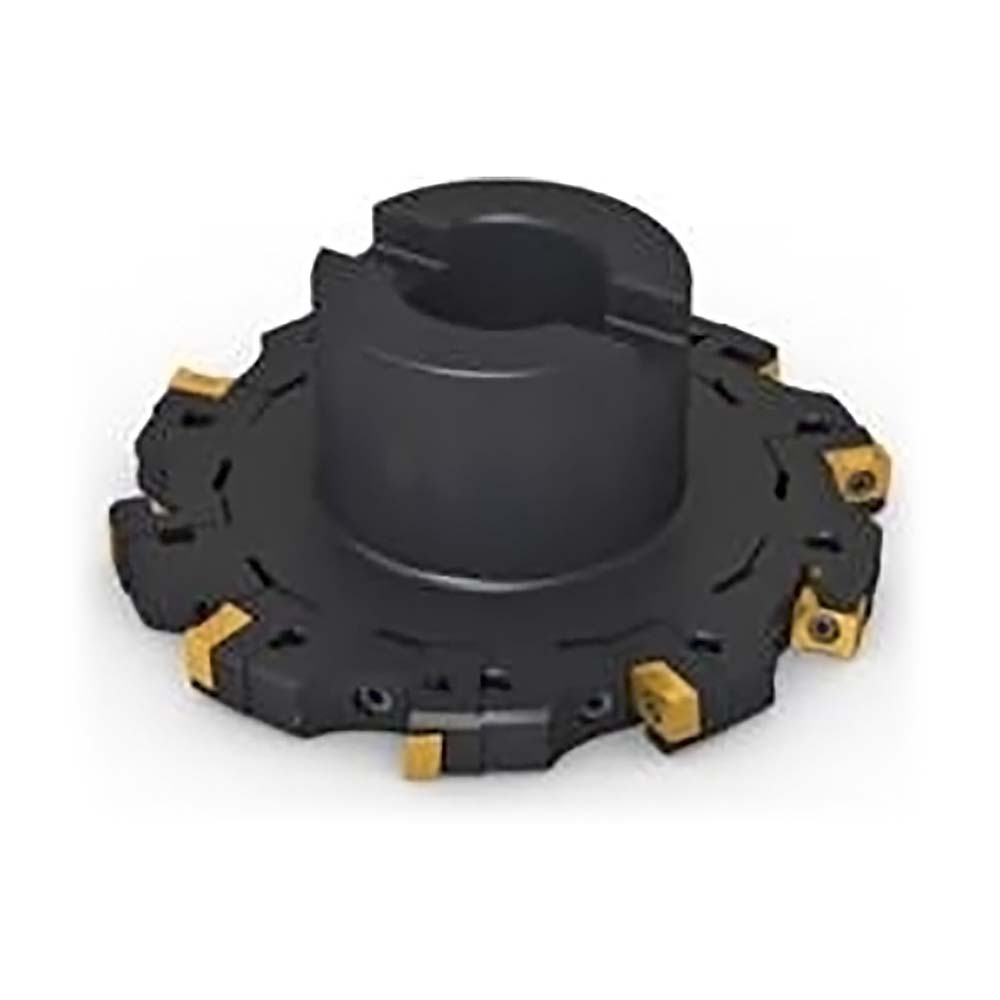

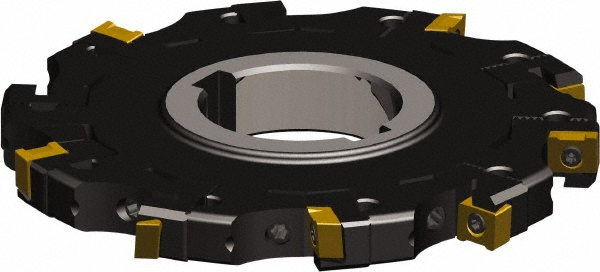

Screw, Uses 5 Inserts, SNHQ Inserts, 10 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Depth of Cut (mm) | 22.00 |
| Hole Diameter (Inch) | 1-1/16 |
| Hole Diameter (Mm) ( - 0 Decimals) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Cutter Diameter (Inch) | 3-15/16 |
| Cutter Diameter (mm) | 100.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | SNHQ |
| Compatible Insert Size Code | 1207.. |
| Tooth Type | Staggered |
| Rake | Negative (Axial); Negative (Radial) |
| Series | R335.19 |
| Toolholder Style | R335.19 |
| Hub Diameter (Decimal Inch) | 1.8900 |
| Hub Diameter (mm) | 48.00 |
| Hub Diameter (Inch) | 1-57/64 |
| Keyway Width (Decimal Inch) | 0.4880 |
| Maximum RPM | 6000 |
| Tool Application | Side Milling; Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (mm) | 12.00 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.4720 |
| Manufacturers Catalog Number | R335.19-100.12.27-5 |
| Insert Inscribed Circle (mm) | 0.50 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | SNHQ1207..L+R; 335.19-1207 |
| Country of Origin | France |
| MSC Number | MSC# 04135703 |
