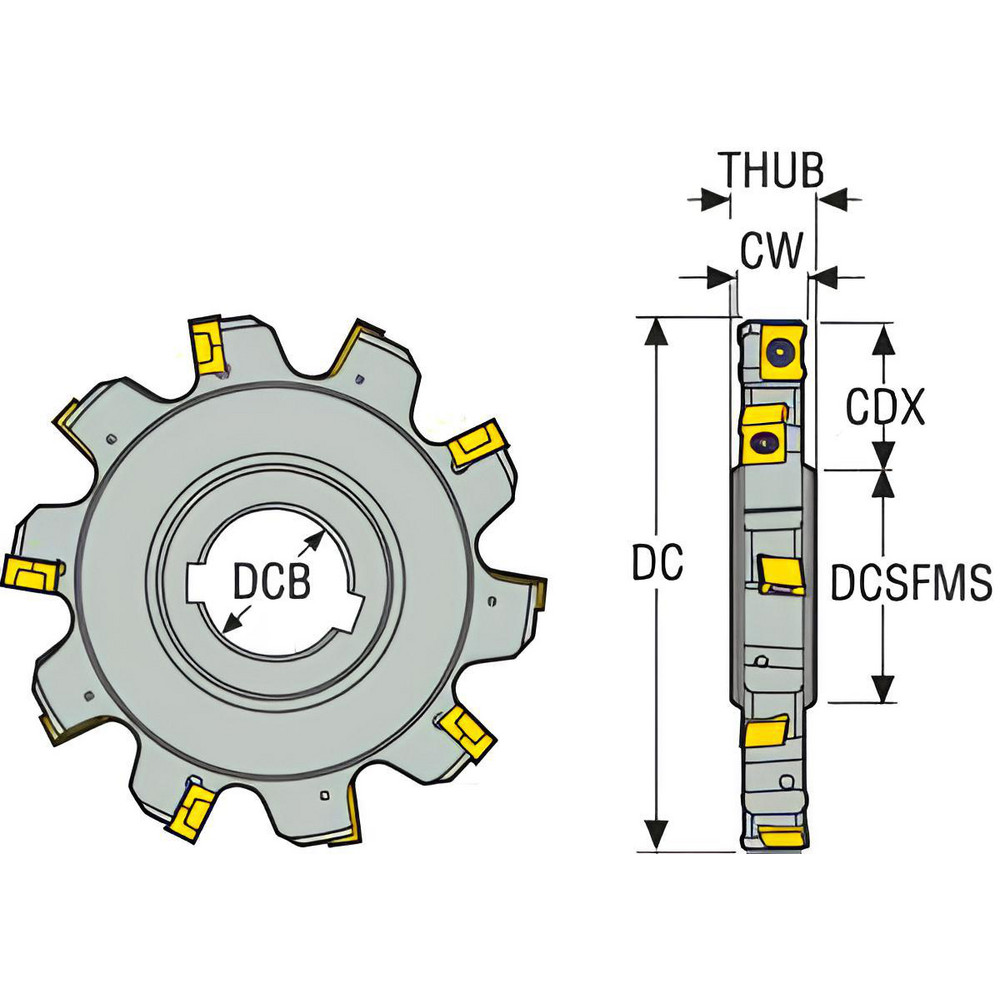

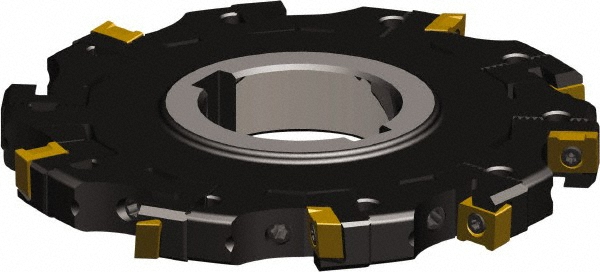

Screw, Uses 5 Inserts, LNK 06 Inserts, 10 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1020 |
| Maximum Depth of Cut (mm) | 28.00 |
| Hole Diameter (Inch) | 1-1/16 |
| Hole Diameter (Mm) ( - 0 Decimals) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Cutter Diameter (Inch) | 3-15/16 |
| Cutter Diameter (mm) | 100.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | LNK 06 |
| Compatible Insert Size Code | 0605..; 080524; 080520 |
| Tooth Type | Staggered |
| Rake | Positive (Axial); Negative (Radial) |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 1.6140 |
| Keyway Width (Decimal Inch) | 0.2760 |
| Maximum RPM | 9400 |
| Tool Application | Disc Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (mm) | 12.00 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.4720 |
| Cutter Body Width (mm) | 15.00 |
| Manufacturers Catalog Number | 335.18-100.12.27-5N |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | LNK.080520; LNK.0605..; LNK.080524 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 43658145 |
