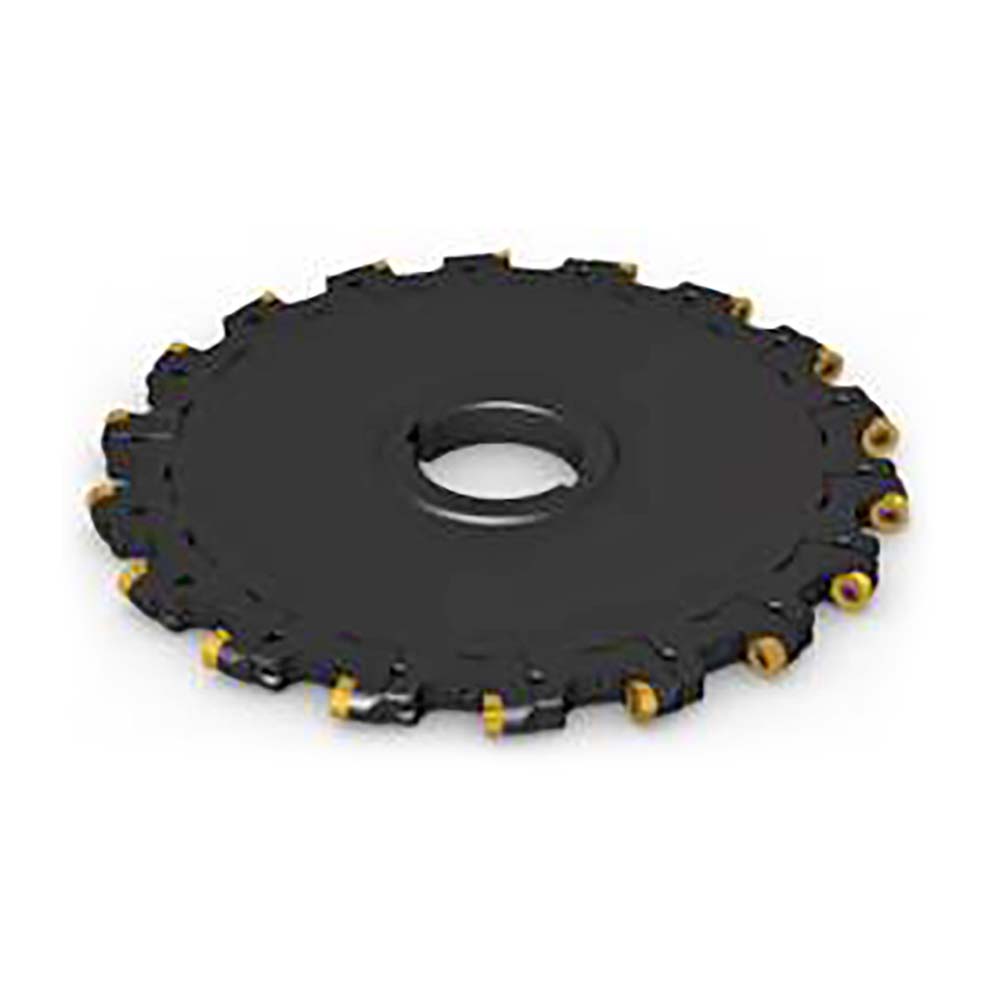

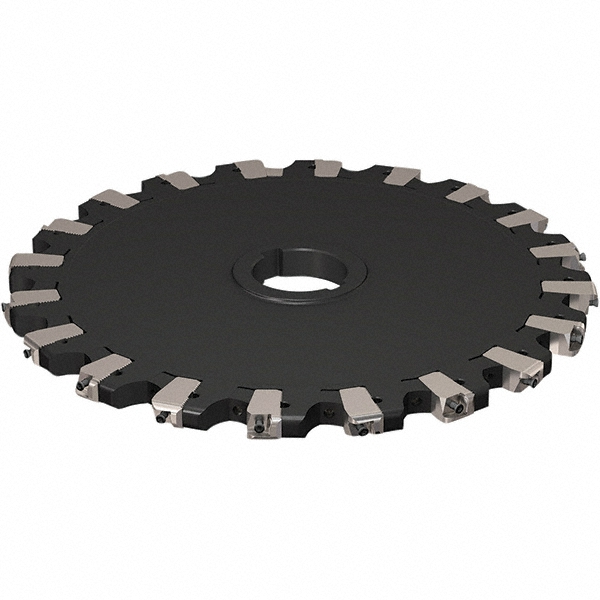

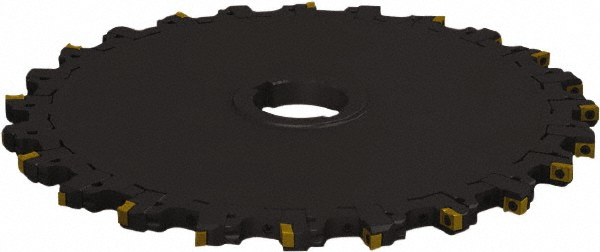

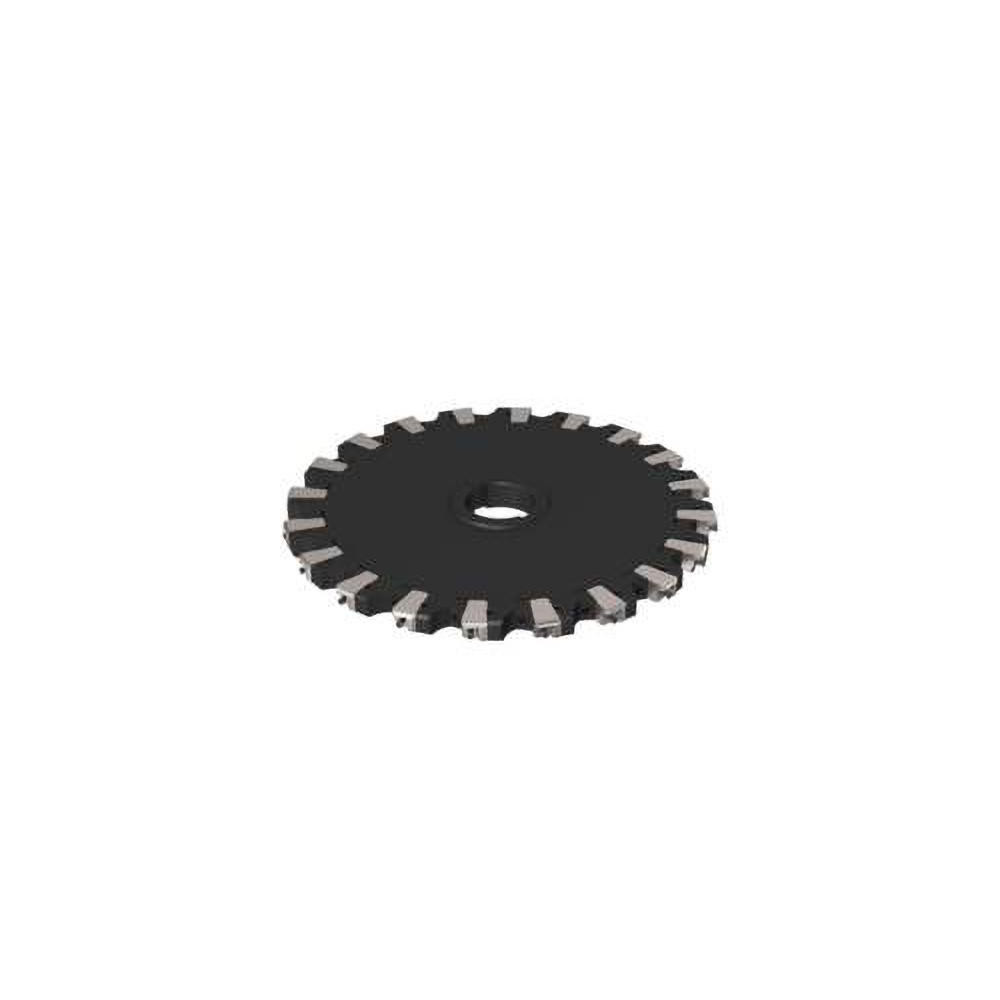

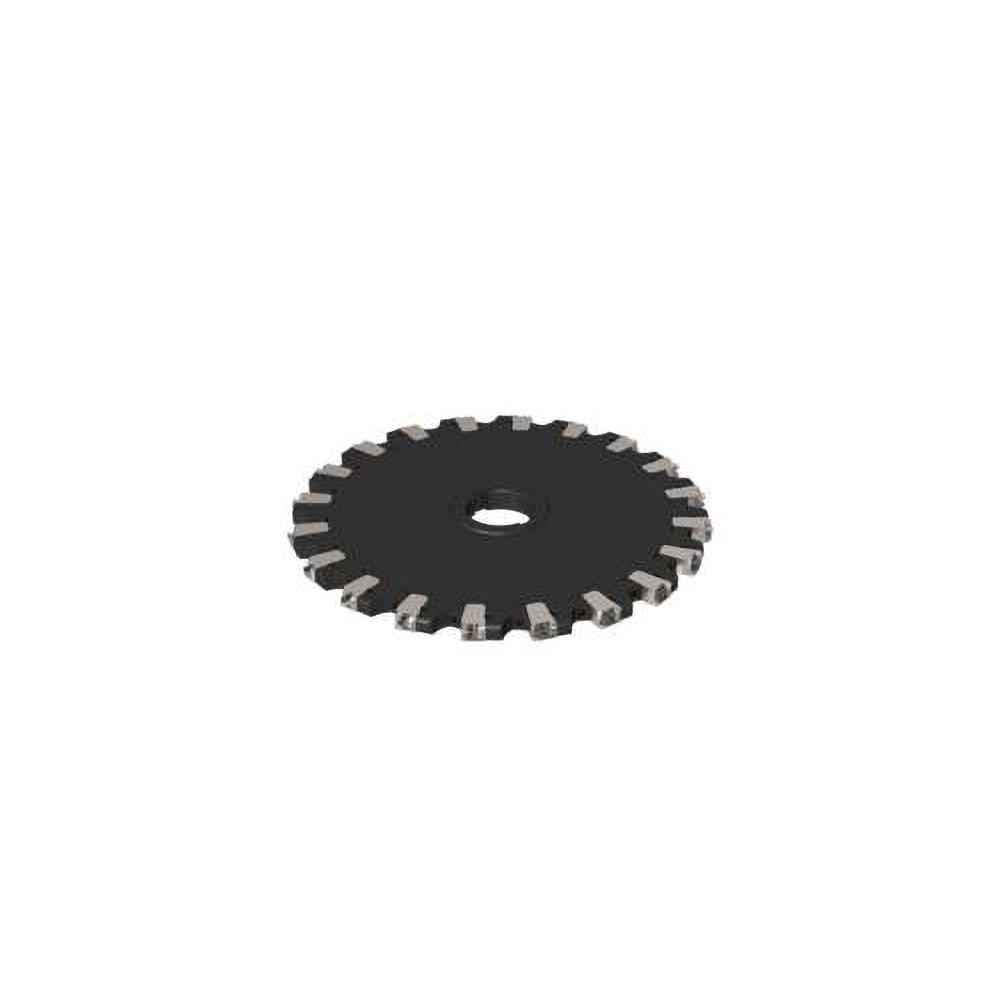

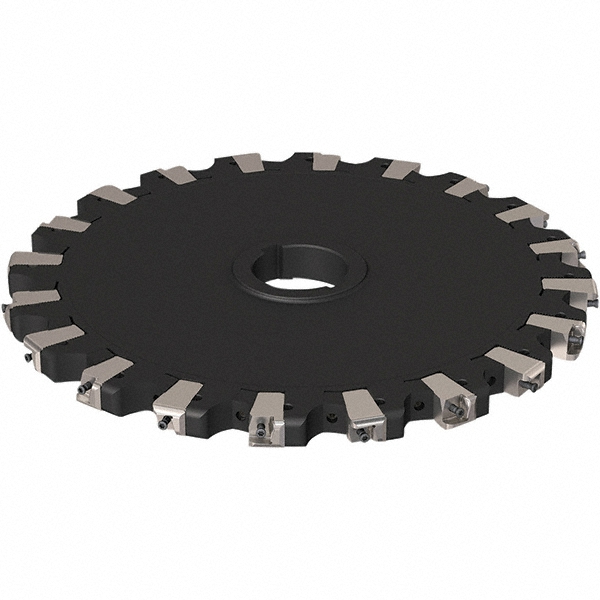

Screw, Uses 12 Inserts, RP 1204 Inserts, 24 Tooth, Staggered Teeth

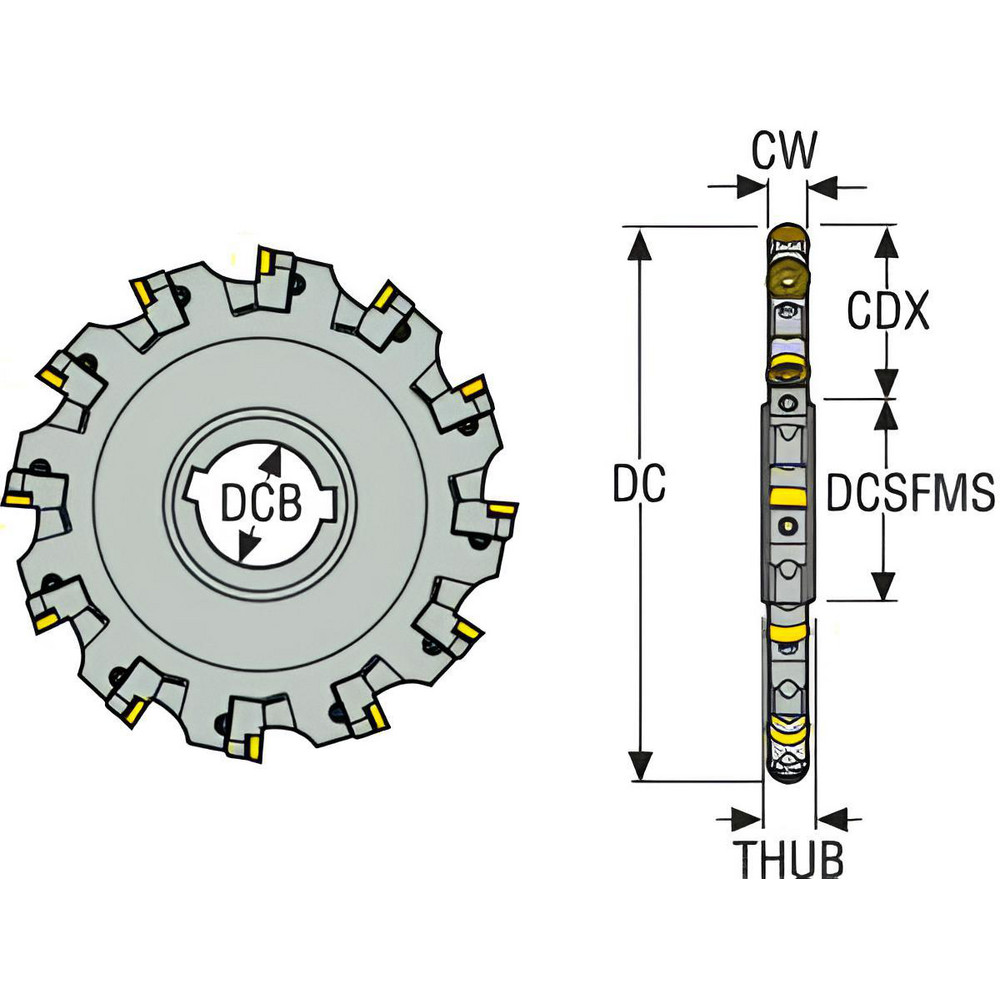

| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.7640 |
| Maximum Depth of Cut (mm) | 118.50 |
| Hole Diameter (Inch) | 1-31/32 |
| Hole Diameter (Mm) ( - 0 Decimals) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9690 |
| Cutter Diameter (Decimal Inch) | 12.4020 |
| Cutter Diameter (mm) | 315.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | RP 1204 |
| Compatible Insert Size Code | 1204 |
| Tooth Type | Staggered |
| Rake | Neutral (Radial); Positive (Axial) |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 2.7170 |
| Keyway Width (Decimal Inch) | 0.4720 |
| Maximum RPM | 5300 |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (Decimal Inch) | 0.5910 |
| Maximum Cutting Width (mm) | 15.00 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.5910 |
| Cutter Body Width (mm) | 15.00 |
| Manufacturers Catalog Number | 335.18-315.1215XL.50-12N-R6 |
| Insert Inscribed Circle (mm) | 12.00 |
| Number Of Teeth | 24 |
| Coolant Through | No |
| Complete Insert Compatibility | RP..1204 |
| Country of Origin | France |
| MSC Number | MSC# 57491482 |
