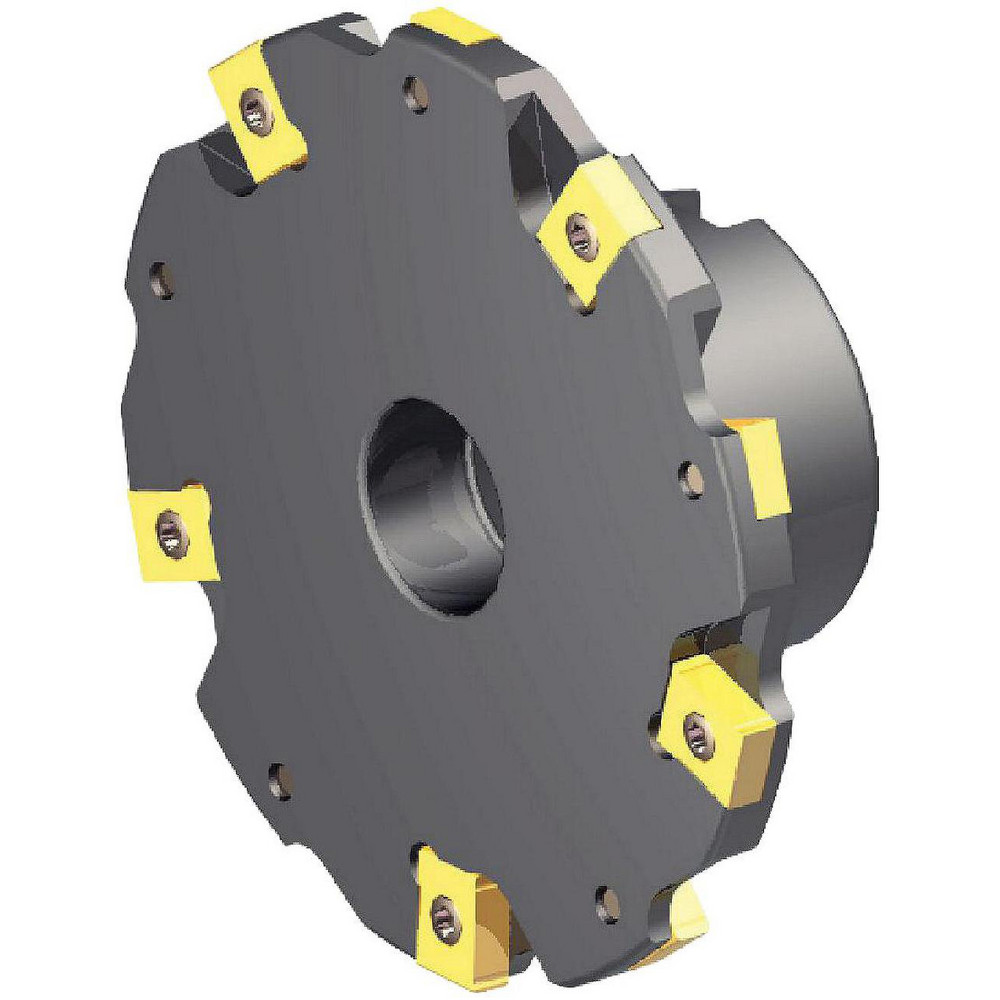

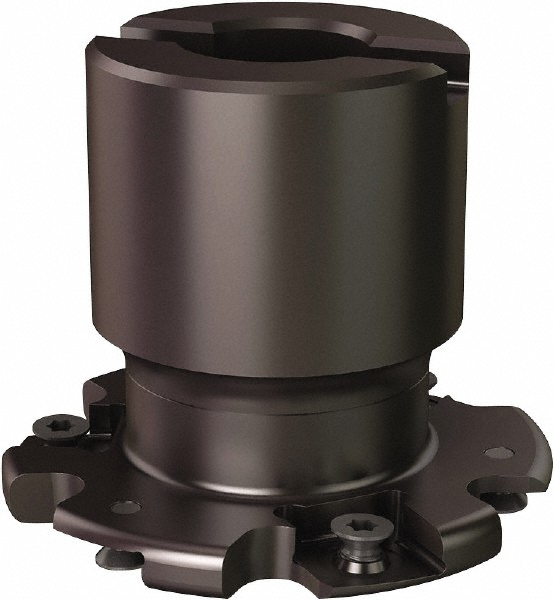

Screw, Uses 5 Inserts, R335.15-18 Inserts, 5 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|

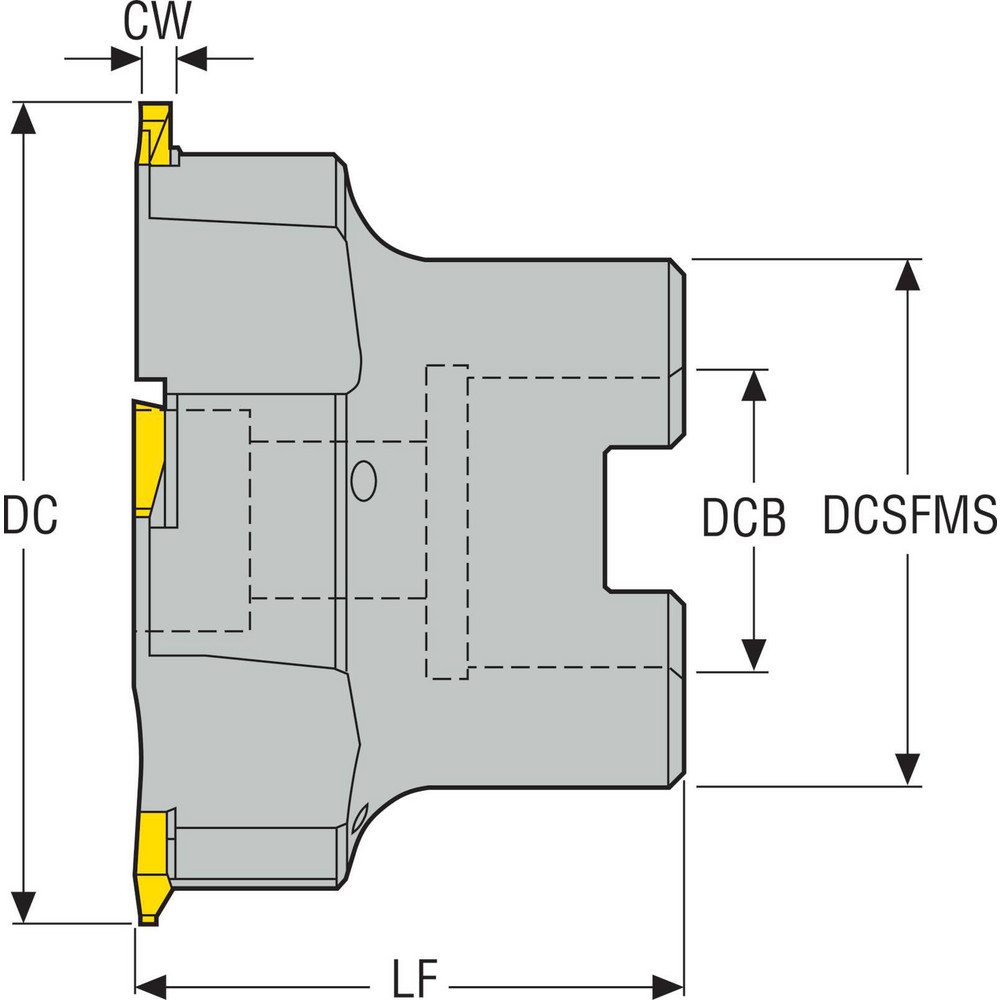

| Cutting Width (Inch) | 13/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |

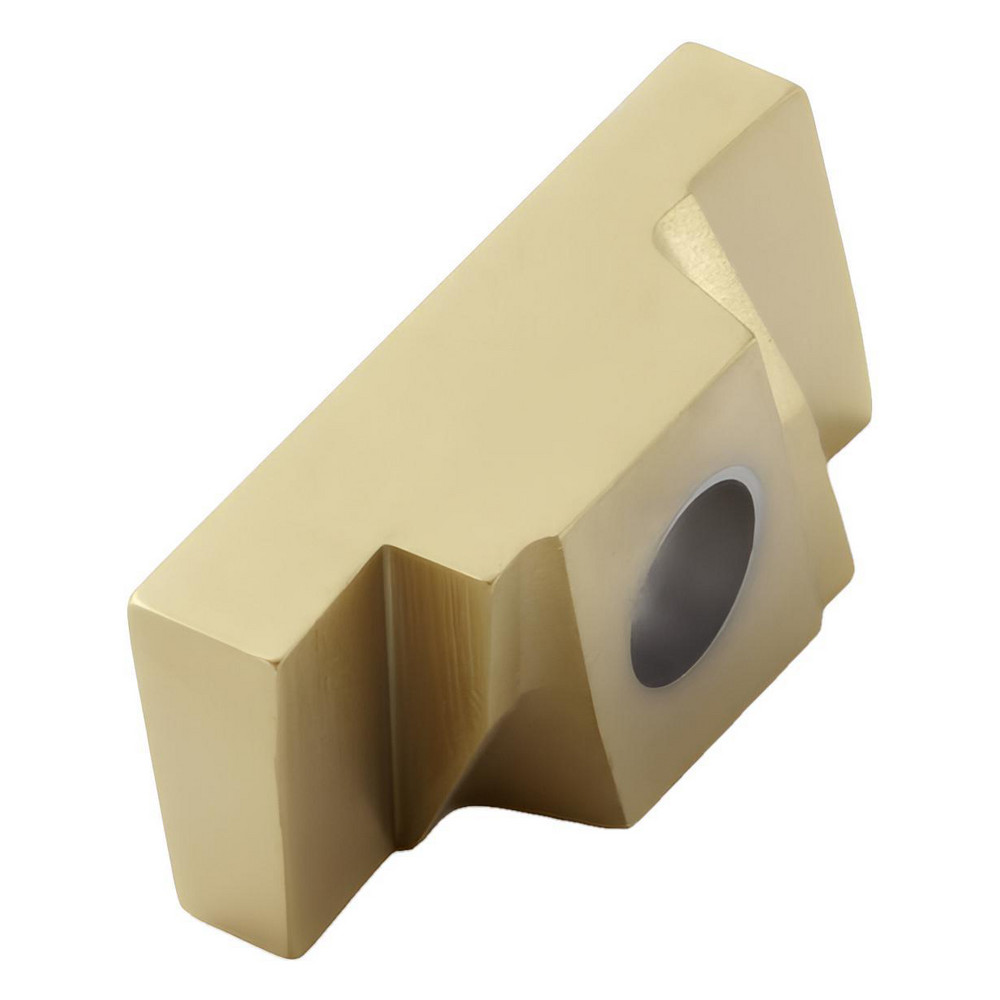

| Compatible Insert Style | R335.15-18 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Neutral (Radial) |
| Series | R335.15 |
| Toolholder Style | R335.15 |
| Hub Diameter (Decimal Inch) | 1.5710 |
| Keyway Width (Decimal Inch) | 0.3210 |
| Maximum RPM | 17300 |
| Tool Application | Side Milling; Disc Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.1240 |
| Maximum Cutting Width (Decimal Inch) | 0.2030 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.2030 |
| Manufacturers Catalog Number | R335.15-02.50-18 |
| Number Of Teeth | 5 |
| Coolant Through | No |
| Complete Insert Compatibility | R335.15-18 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 57059073 |
