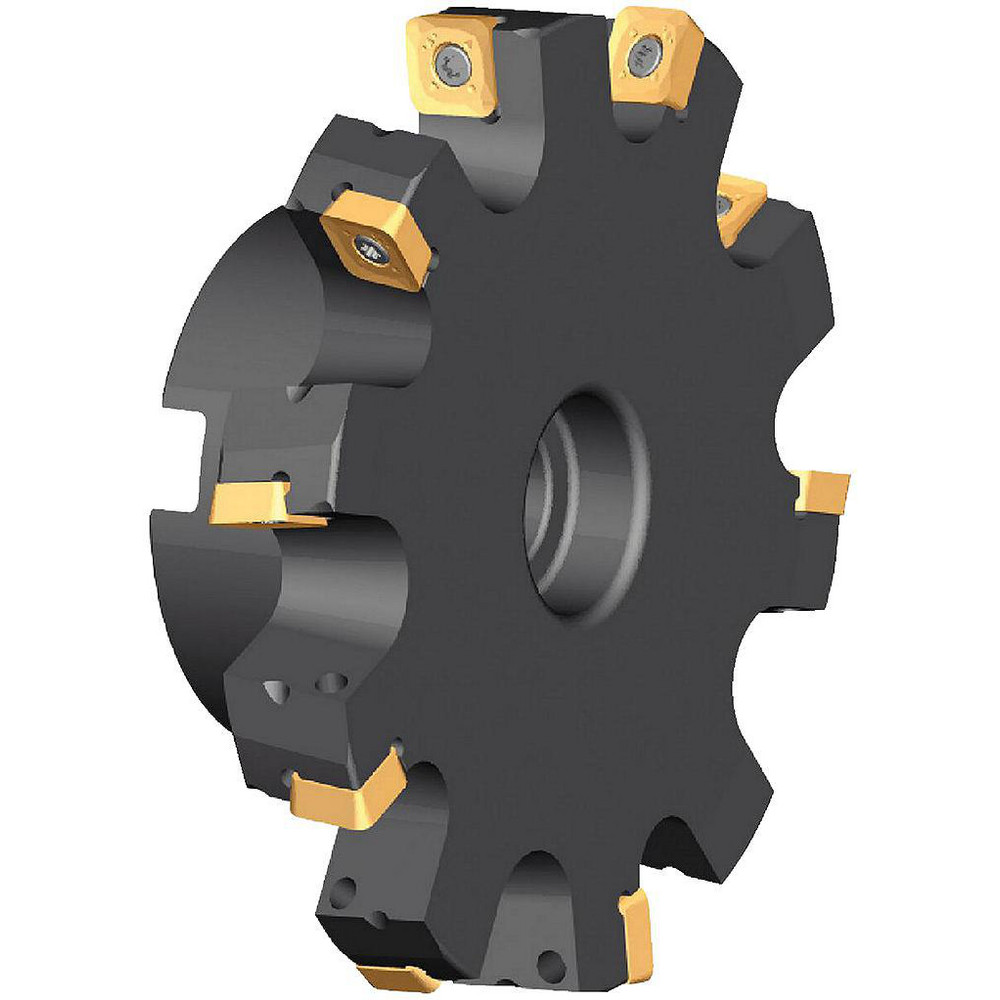

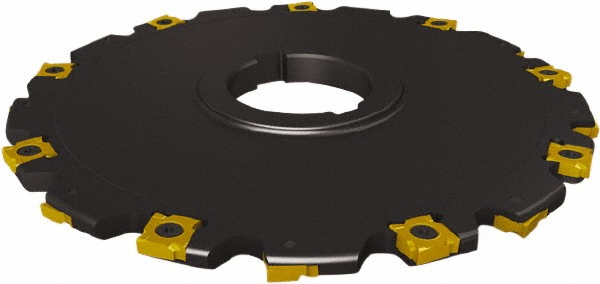

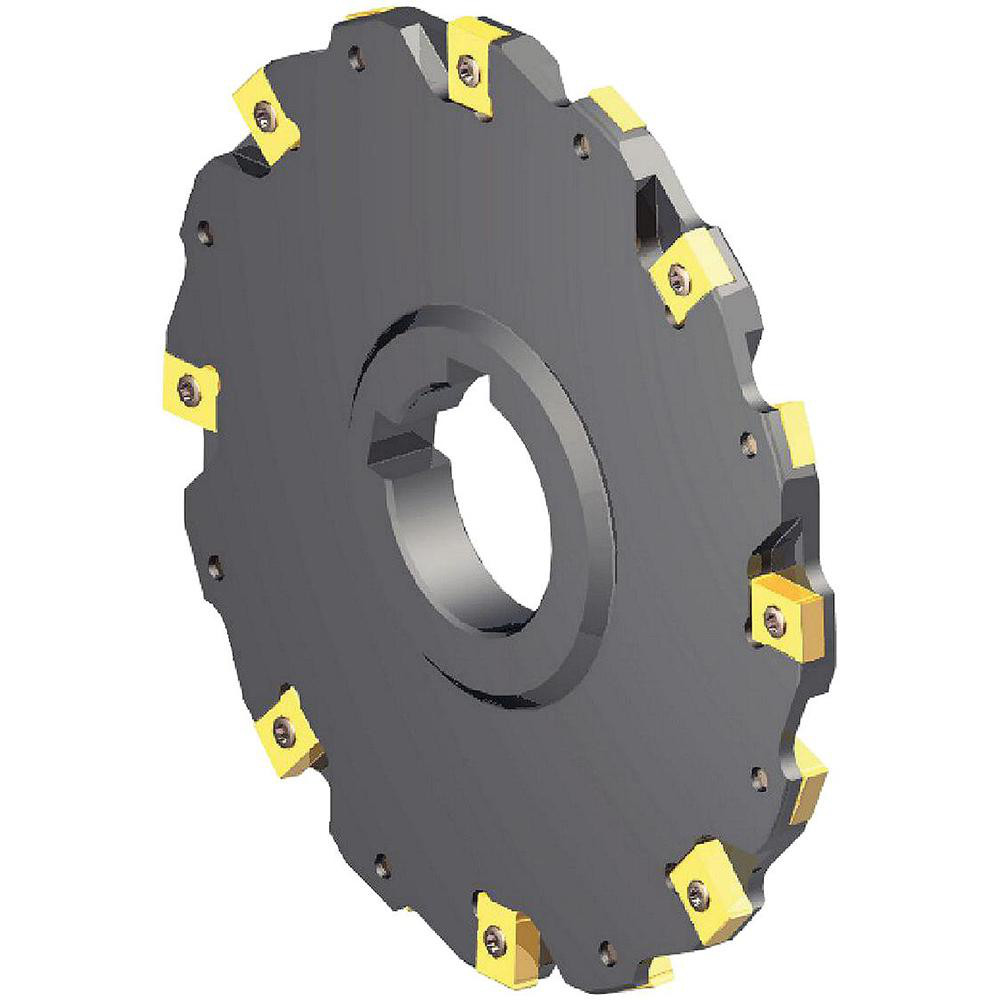

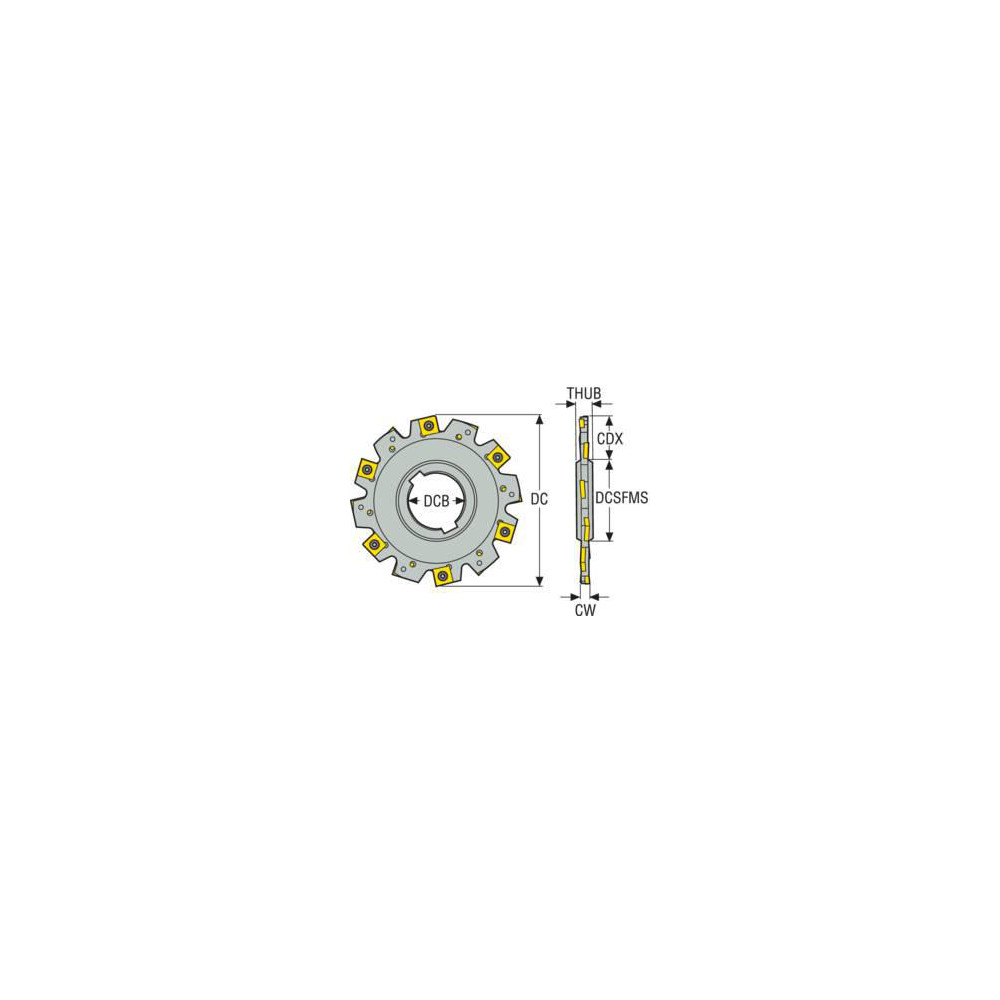

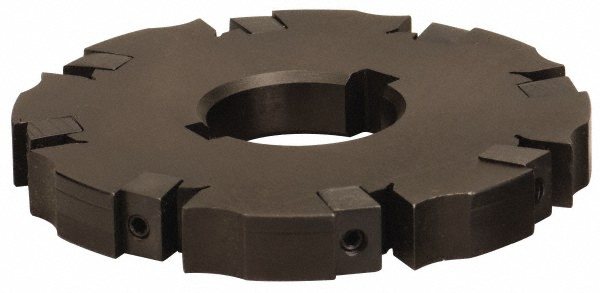

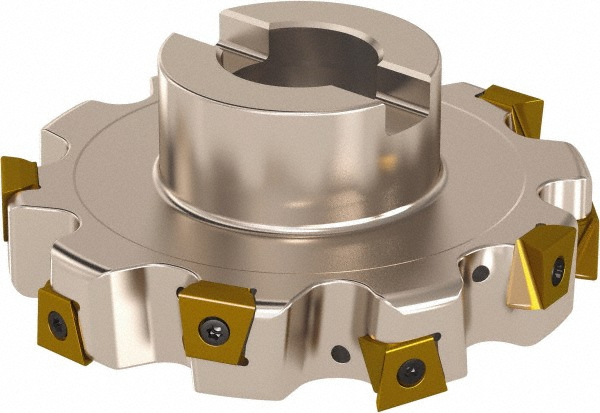

Screw, Uses 9 Inserts, SNHQ Inserts, 18 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 6.35 |
| Cutting Width (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 2.5120 |
| Maximum Depth of Cut (mm) | 63.75 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Mm) ( - 0 Decimals) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Cutter Diameter (mm) | 203.20 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 9 |
| Compatible Insert Style | SNHQ |
| Compatible Insert Size Code | 1204.. |
| Tooth Type | Staggered |
| Rake | Negative (Axial); Negative (Radial) |
| Series | 335.19 |
| Toolholder Style | 335.19 |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Hub Diameter (mm) | 69.85 |
| Hub Diameter (Inch) | 2-3/4 |
| Keyway Width (Inch) | 3/8 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Maximum RPM | 8000 |
| Tool Application | Disc Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P |
| Minimum Cutting Width (Decimal Inch) | 0.2500 |
| Minimum Cutting Width (Inch) | 1/4 |
| Maximum Cutting Width (Decimal Inch) | 0.2890 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.2890 |
| Cutter Body Width (mm) | 12.70 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.19-08.00-0.25-9 |
| Insert Inscribed Circle (mm) | 0.50 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Number Of Teeth | 18 |
| Coolant Through | No |
| Complete Insert Compatibility | SNHQ1204..L+R; 335.19-1204 |
| Country of Origin | France |
| MSC Number | MSC# 53095485 |
