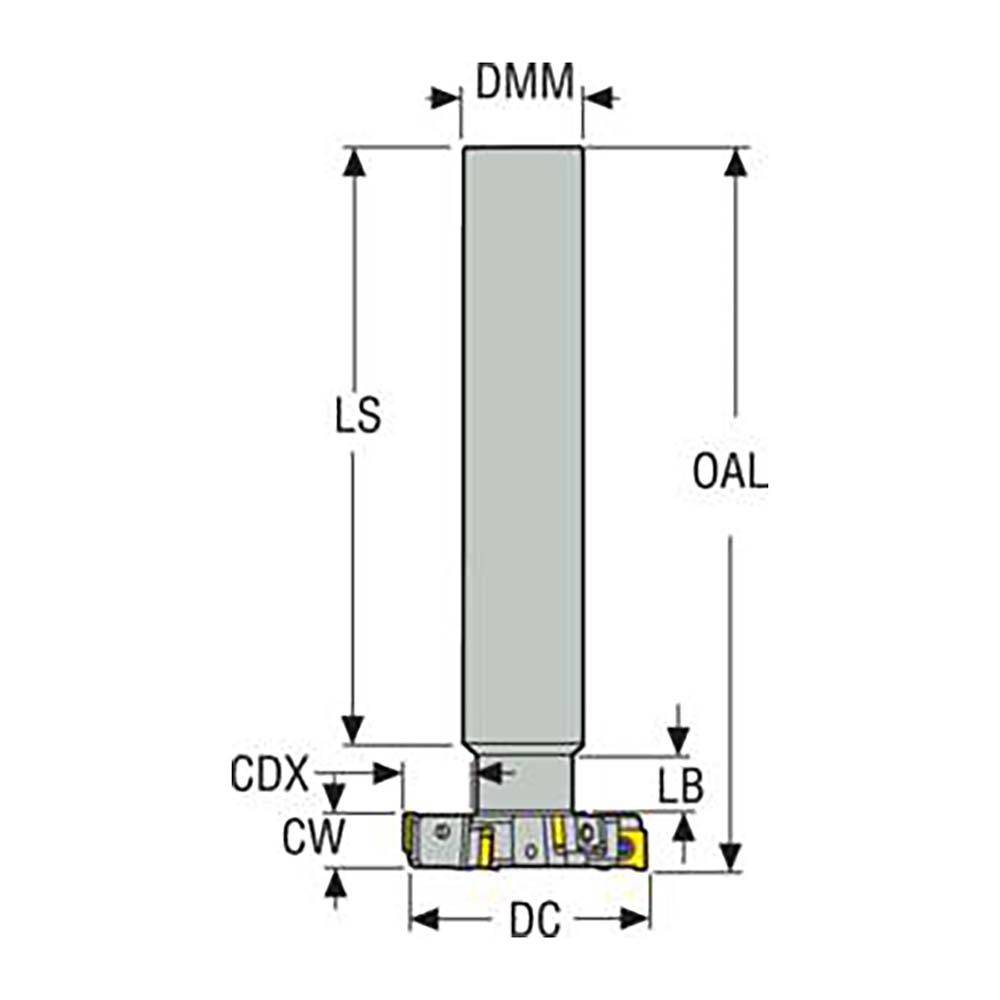

Self Clamping, Uses 5 Inserts, 15010-2 Inserts, 5 Tooth, Straight Teeth
| Connection Type | Weldon |
|---|---|
| Cutting Width (mm) | 2.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Maximum Depth of Cut (mm) | 15.01 |
| Cutter Diameter (Decimal Inch) | 2.4800 |
| Cutter Diameter (mm) | 63.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | 15010-2 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Maximum RPM | 4000 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.0890 |
| Maximum Cutting Width (Decimal Inch) | 0.0980 |
| Maximum Cutting Width (mm) | 2.50 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.0980 |
| Cutter Body Width (mm) | 1.90 |
| Weldon Flat | Yes |
| Manufacturers Catalog Number | R335.10-25063.3-02-5 |
| Number Of Teeth | 5 |
| Coolant Through | No |
| Complete Insert Compatibility | 150.10-2.5N; 150.10-2.25N |
| Country of Origin | Sweden |
| MSC Number | MSC# 60151990 |
