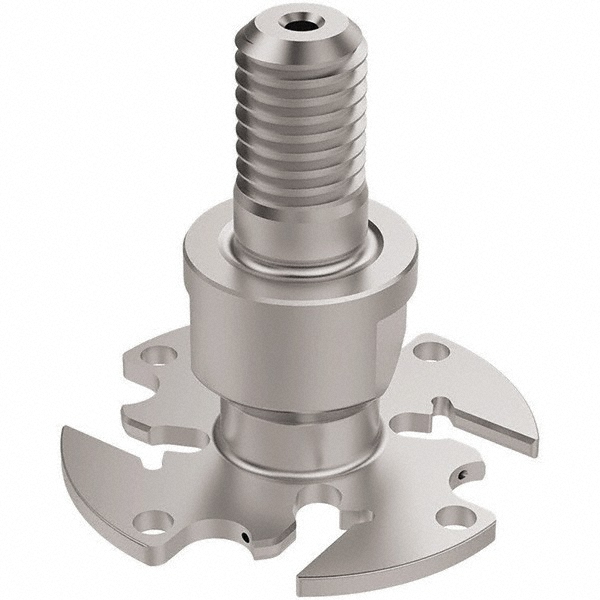

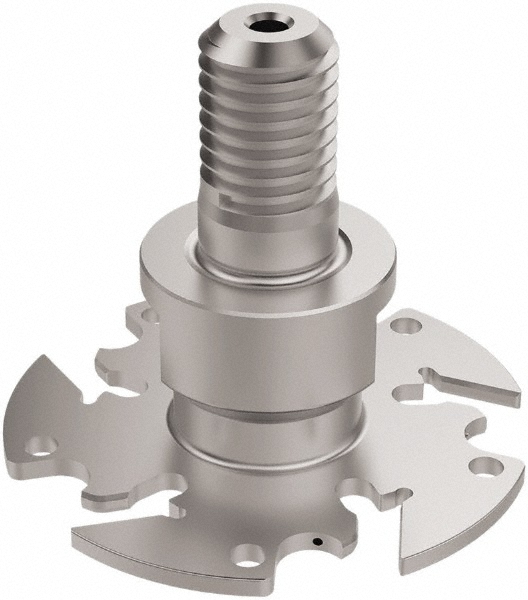

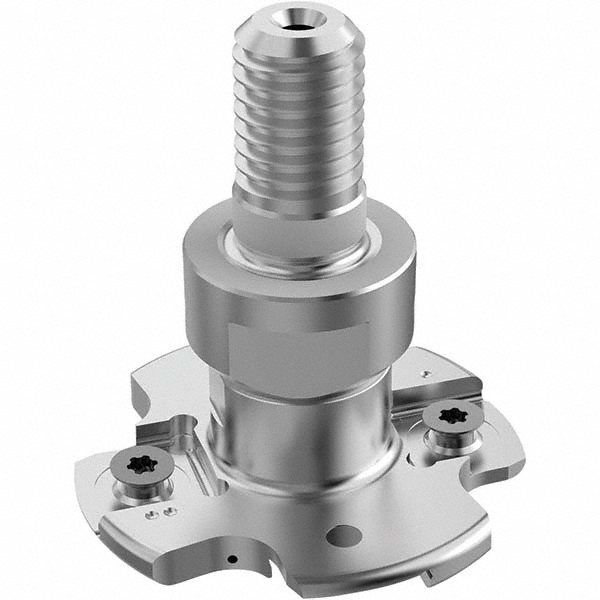

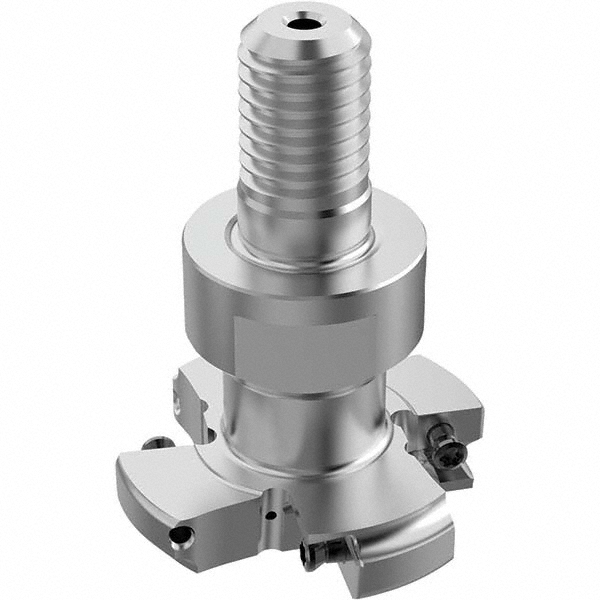

Clamp, Uses 4 Inserts, 150.10 Inserts, 4 Tooth, Straight Teeth, Coolant Through

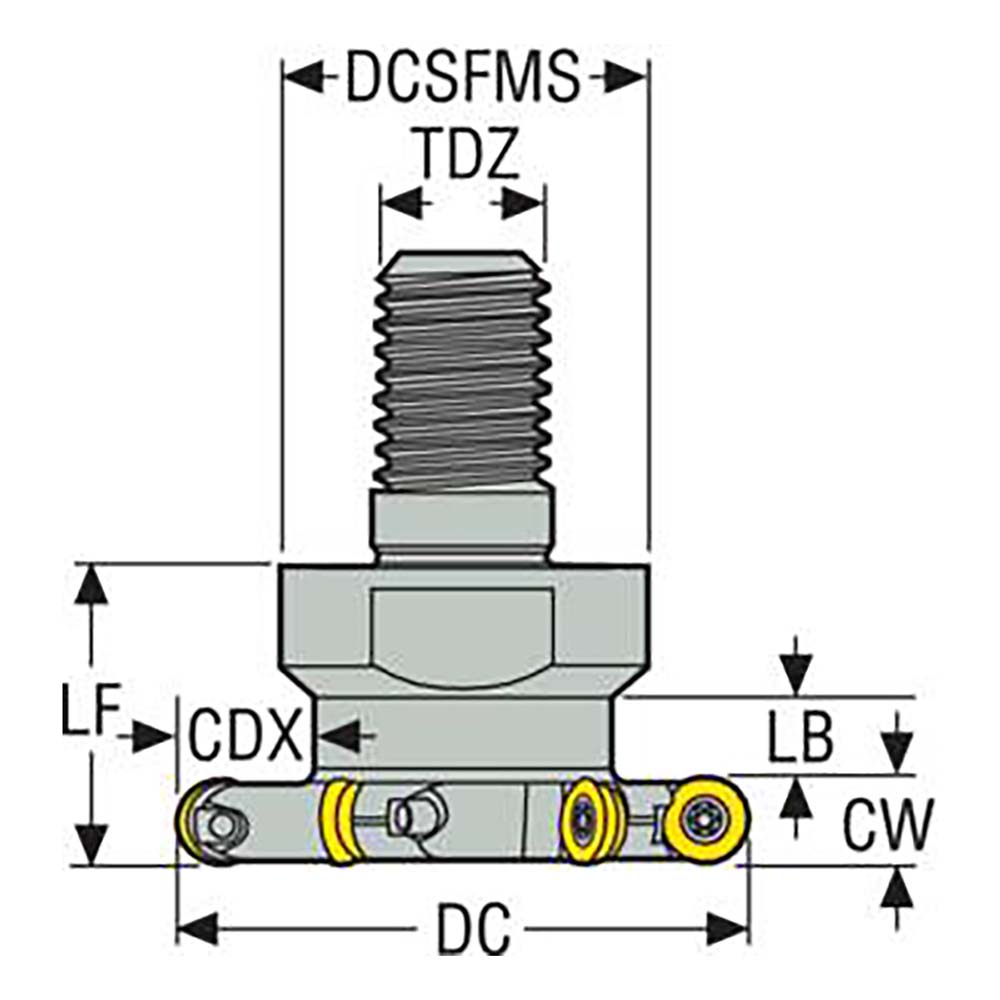

| Connection Type | Combimaster |
|---|---|
| Cutting Width (mm) | 3.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Maximum Depth of Cut (mm) | 12.90 |
| Cutter Diameter (Decimal Inch) | 1.5750 |
| Cutter Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 4 |
| Compatible Insert Style | 150.10 |
| Compatible Insert Size Code | 150.10 |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Positive (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Modular Connection Size | M10 |
| Hub Diameter (Decimal Inch) | 0.7280 |
| Hub Diameter (mm) | 18.50 |
| Maximum RPM | 3970 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Minimum Cutting Width (Decimal Inch) | 0.1220 |
| Maximum Cutting Width (Decimal Inch) | 0.1220 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 0.5120 |
| Cutter Body Width (Decimal Inch) | 0.1220 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.10-1040.RE-03-4A |
| Number Of Teeth | 4 |
| Coolant Through | Yes |
| Complete Insert Compatibility | 150.10-3N |
| Overall Height (Decimal Inch) | 20.00 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 33746652 |
