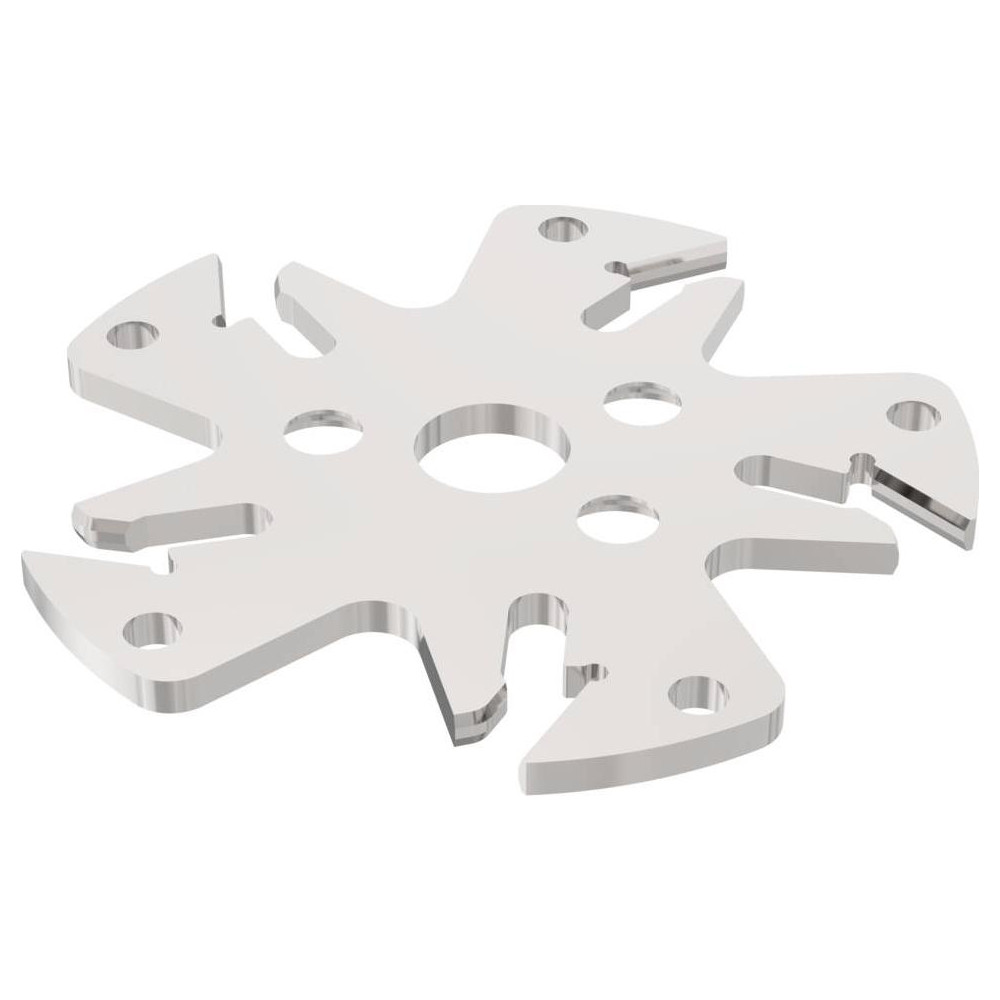

Self Clamping, Uses 5 Inserts, 150.10-3N Inserts, 5 Tooth, Straight Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 3.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Maximum Depth of Cut (mm) | 15.01 |
| Hole Diameter (Mm) ( - 0 Decimals) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8660 |
| Cutter Diameter (Decimal Inch) | 2.4800 |
| Cutter Diameter (mm) | 63.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | 150.10-3N |
| Tooth Type | Straight |
| Rake | Neutral (Axial); Negative (Radial) |
| Series | R335.10 |
| Toolholder Style | R335.10 |
| Hub Diameter (Decimal Inch) | 1.2600 |
| Hub Diameter (mm) | 40.00 |
| Keyway Width (Decimal Inch) | 0.4090 |
| Maximum RPM | 4000 |
| Tool Application | Disc Milling; Slotting |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.1220 |
| Maximum Cutting Width (Decimal Inch) | 0.1220 |
| Maximum Cutting Width (mm) | 3.10 |
| Radius | No |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.1220 |
| Cutter Body Width (mm) | 2.40 |
| Manufacturers Catalog Number | R335.10-063-03.22-5 |
| Number Of Teeth | 5 |
| Coolant Through | No |
| Complete Insert Compatibility | 150.10-3N |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 60151958 |
