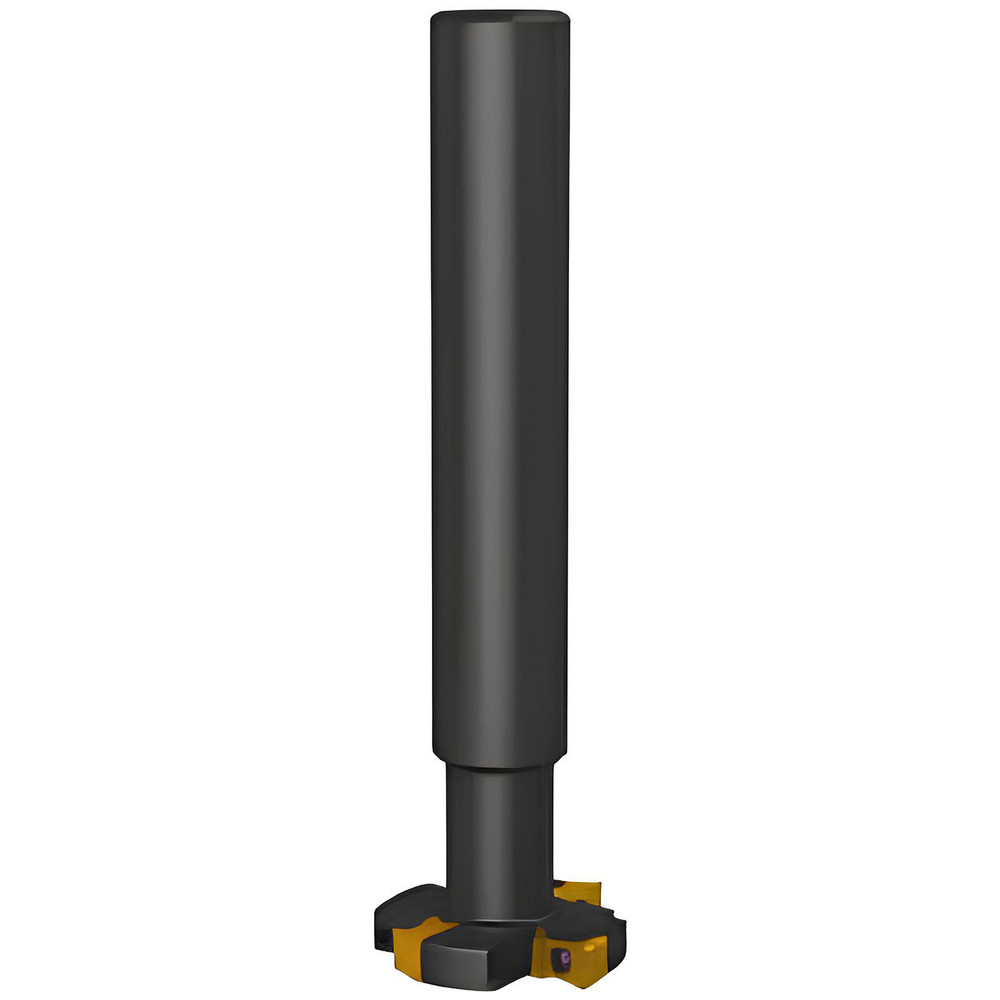

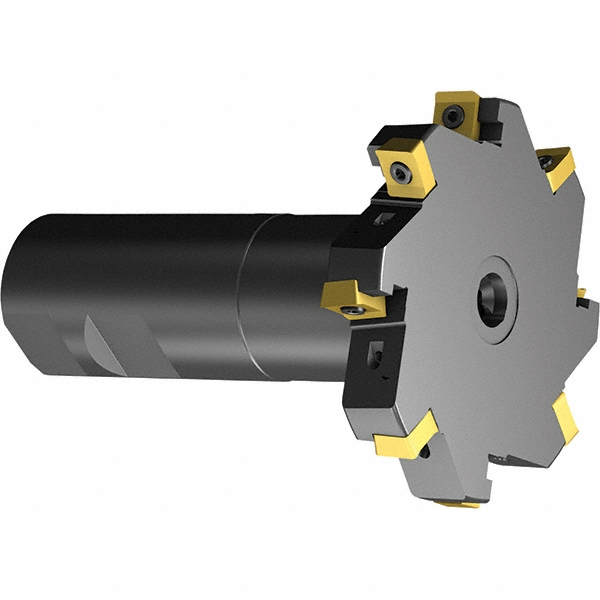

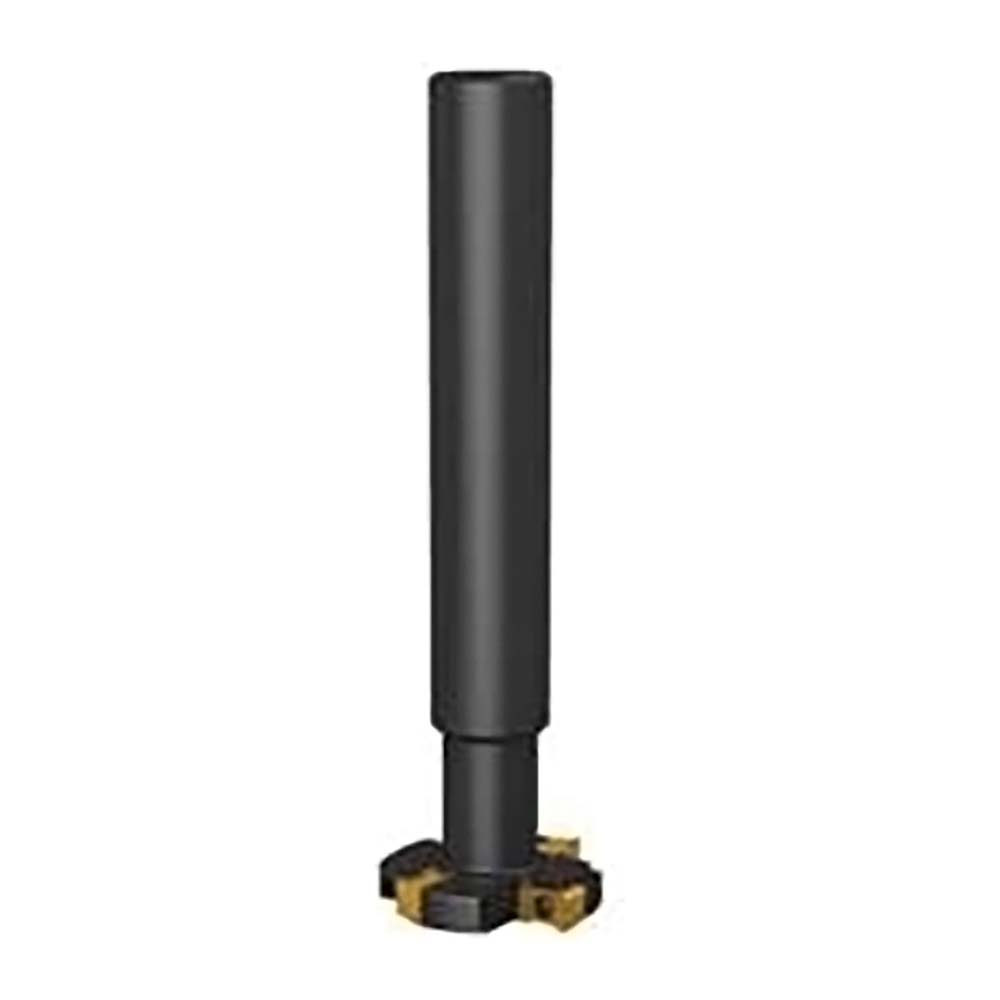

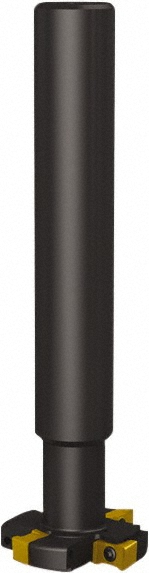

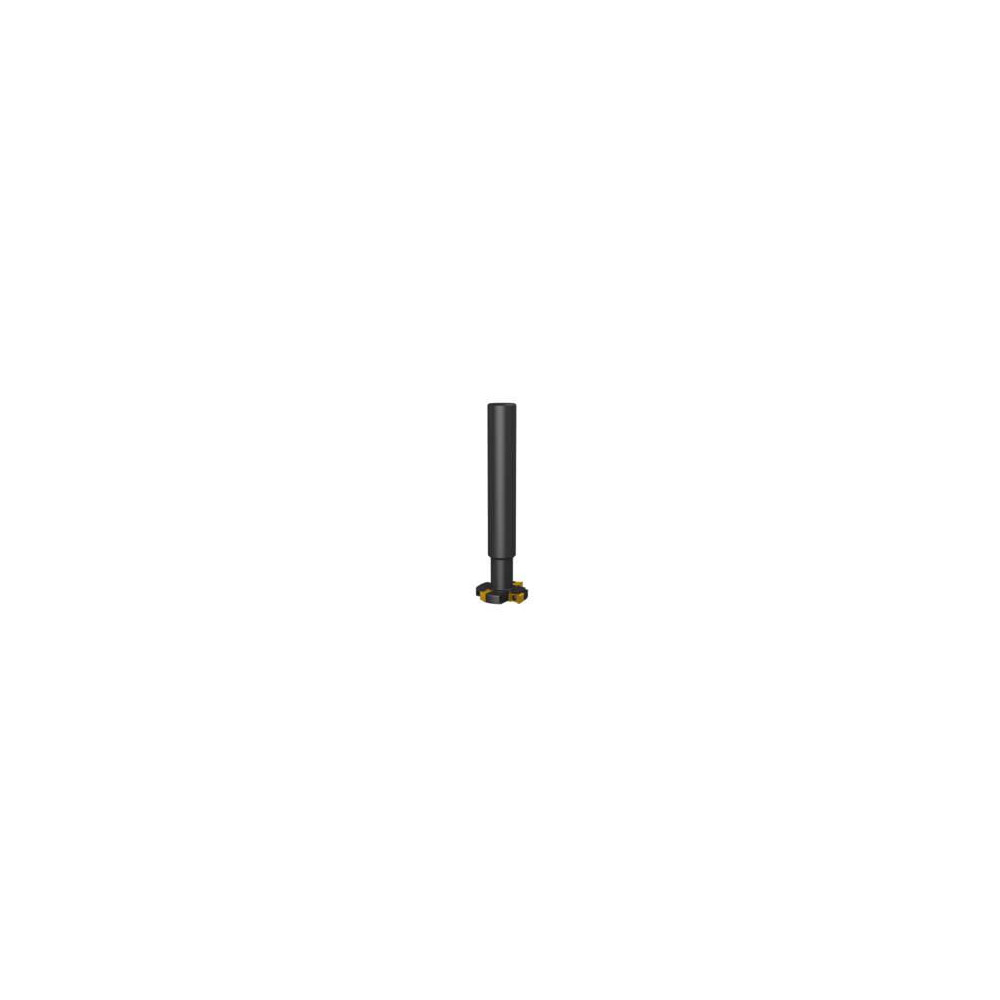

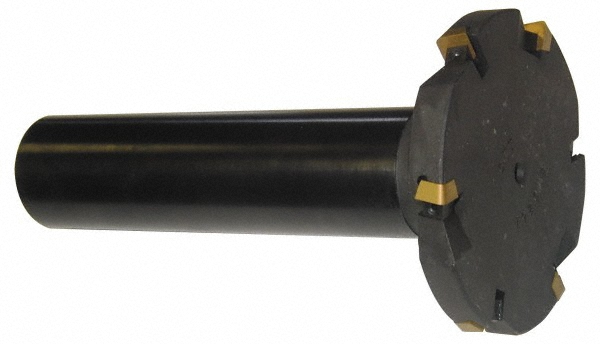

Uses 3 Inserts, 6 Tooth

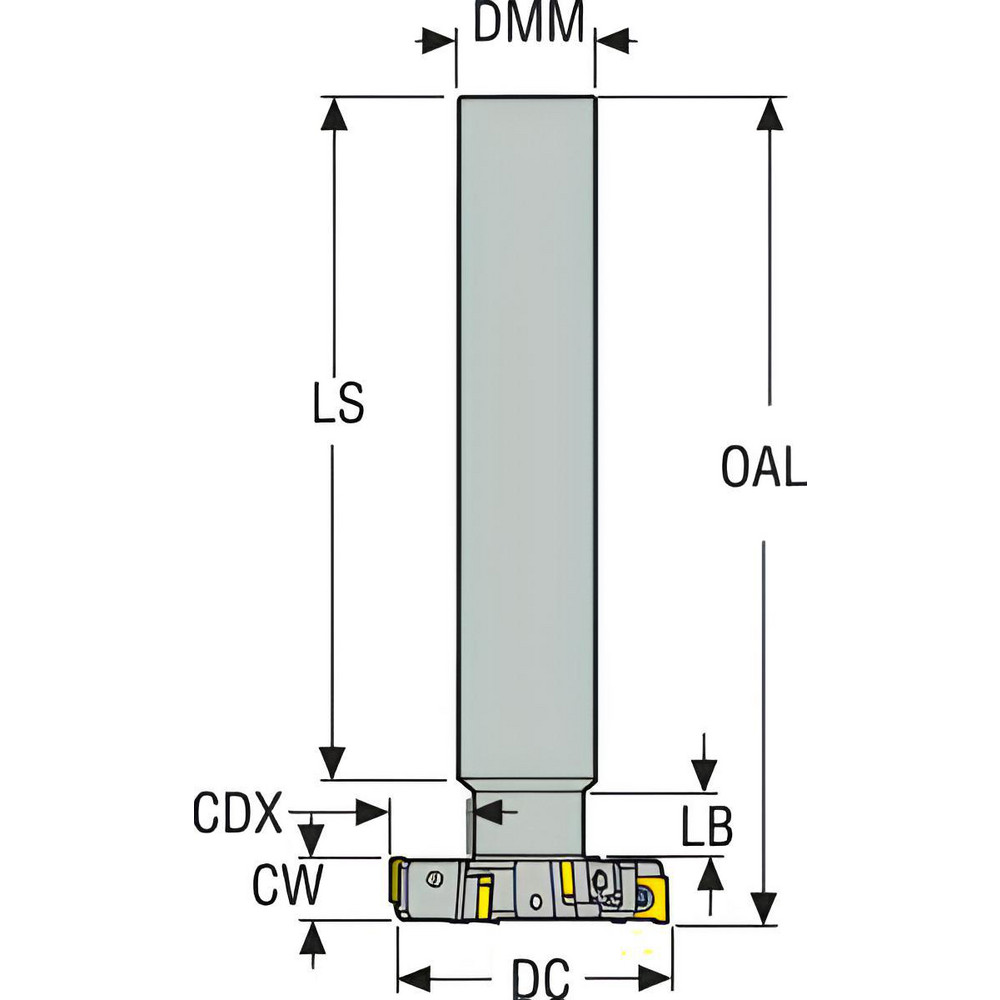

| Connection Type | Shank |
|---|---|
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.6260 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 6.4370 |
| Cutting Direction | Right Hand |
| Number Of Cutter Inserts | 3 |
| Compatible Insert Size Code | 0505.. |
| Rake | Positive (Axial); Negative (Radial) |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Tool Application | Side Milling; Disc Milling |
| Tool Performance | General Purpose |
| Maximum Cutting Width (Decimal Inch) | 0.3120 |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.3120 |
| Manufacturers Catalog Number | R335.18-02.50-0-0.31F-3N |
| Overall Height (Decimal Inch) | 6.7500 |
| Number Of Teeth | 6 |
| Coolant Through | No |

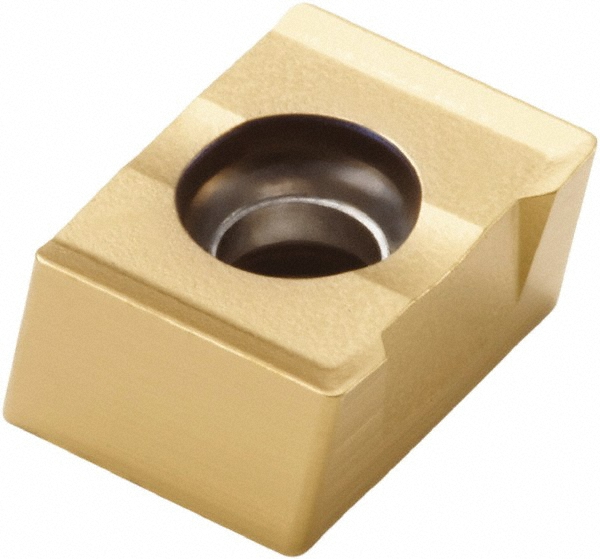

| Complete Insert Compatibility | LNK.0504.. |
| Country of Origin | France |
| MSC Number | MSC# 56978141 |
