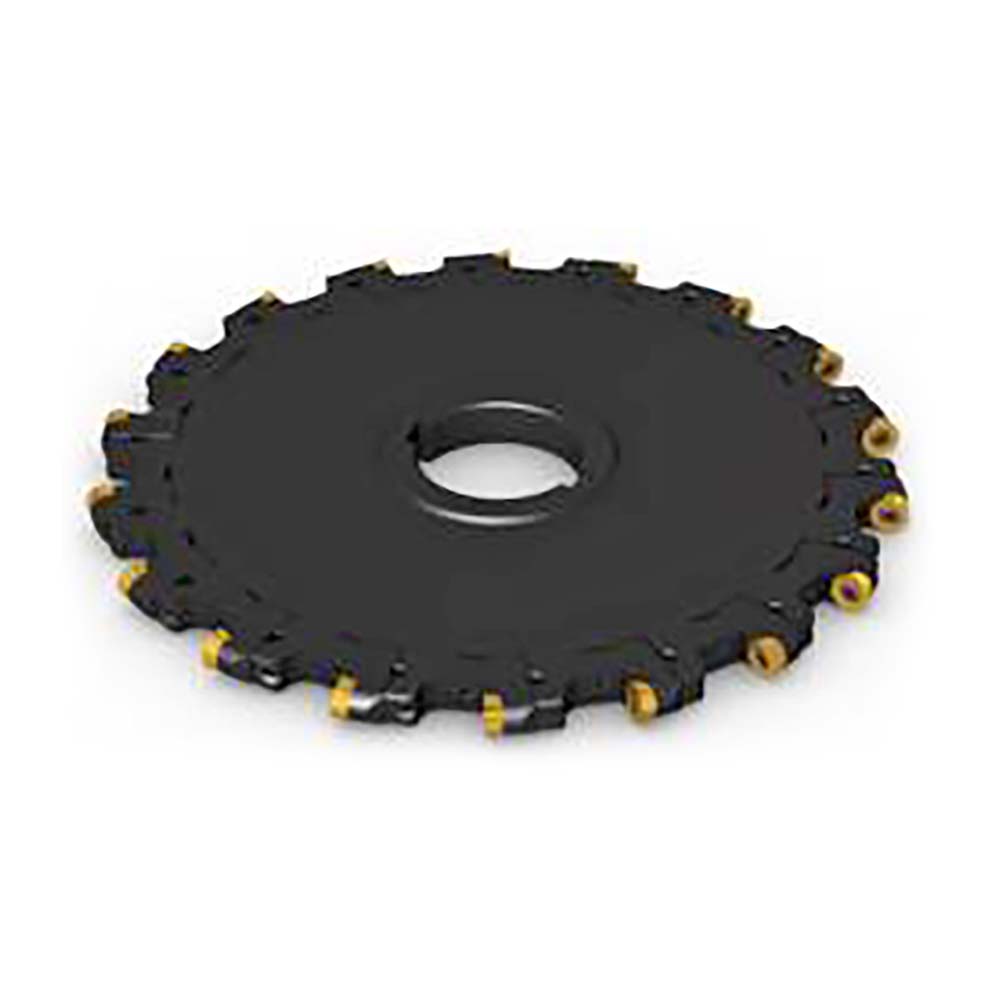

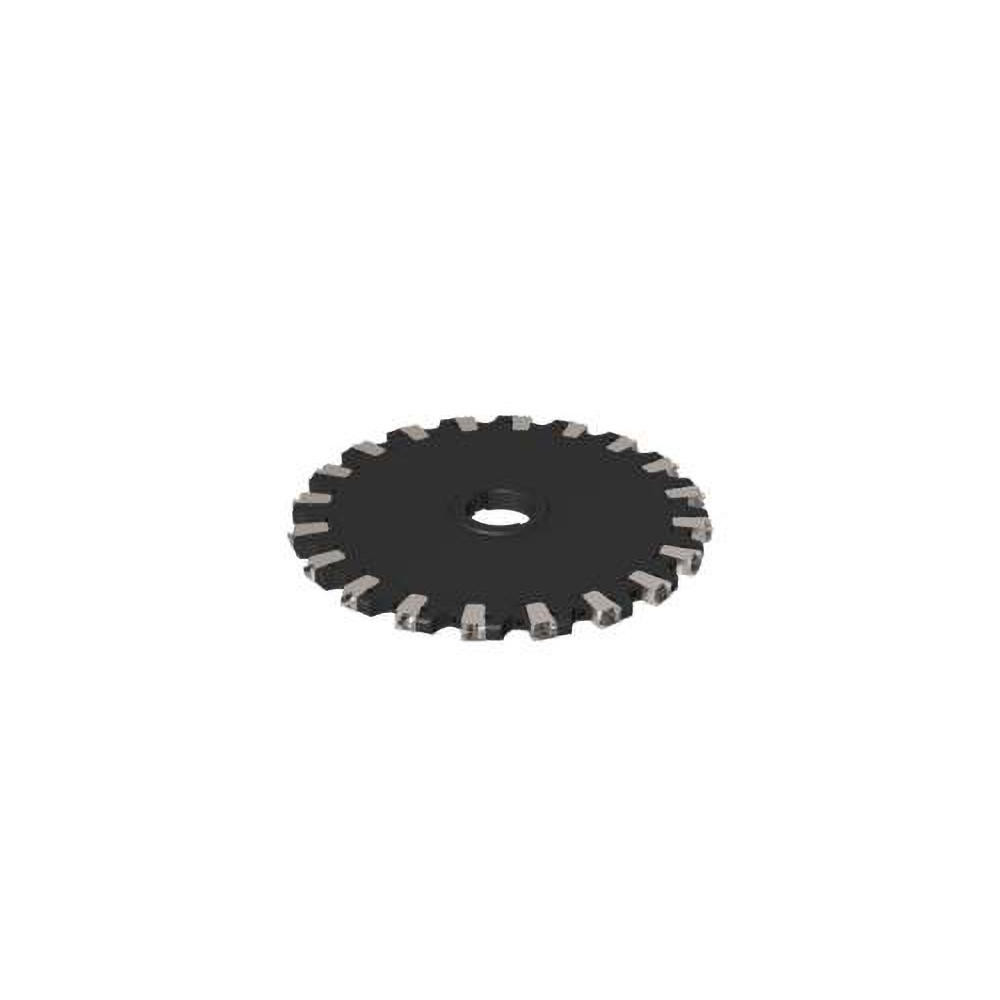

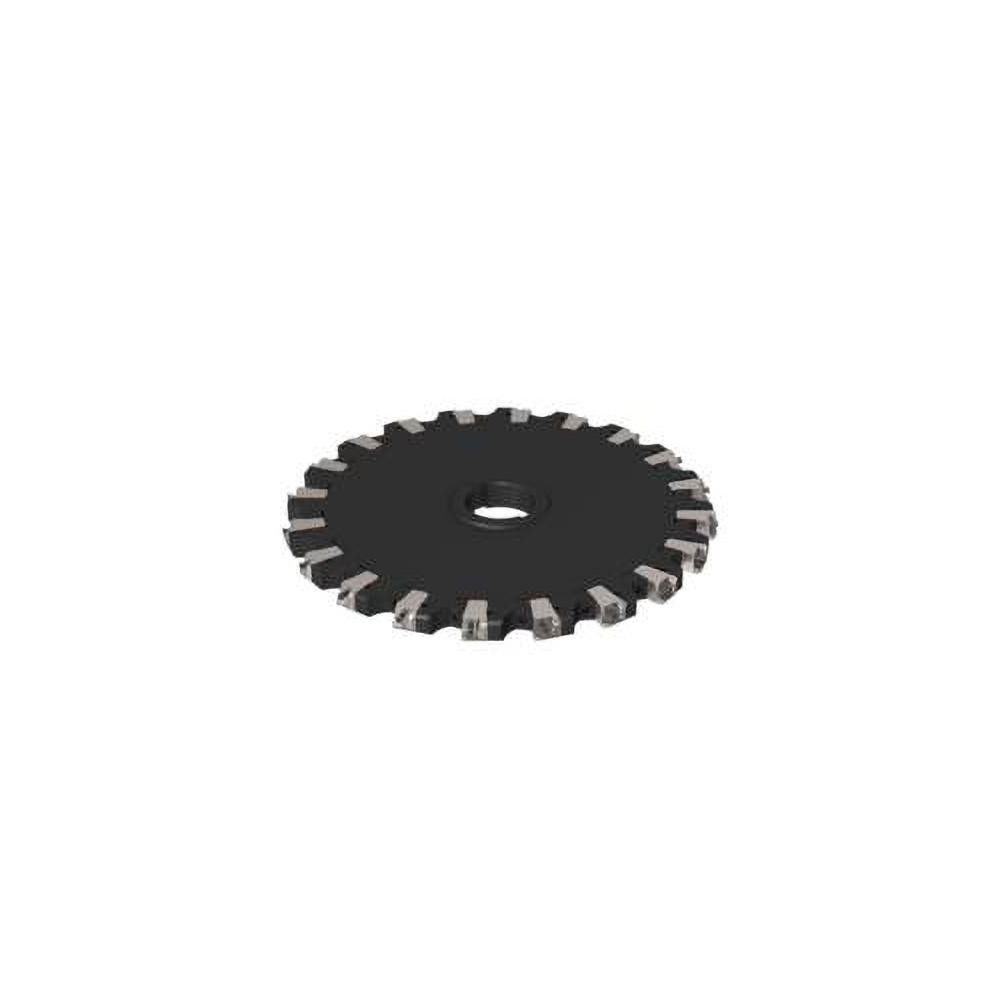

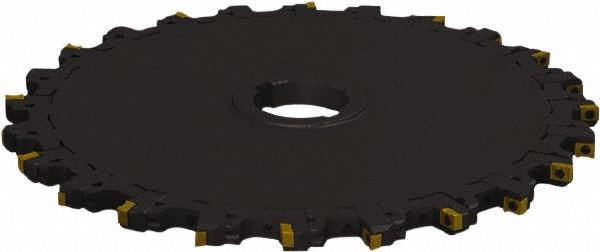

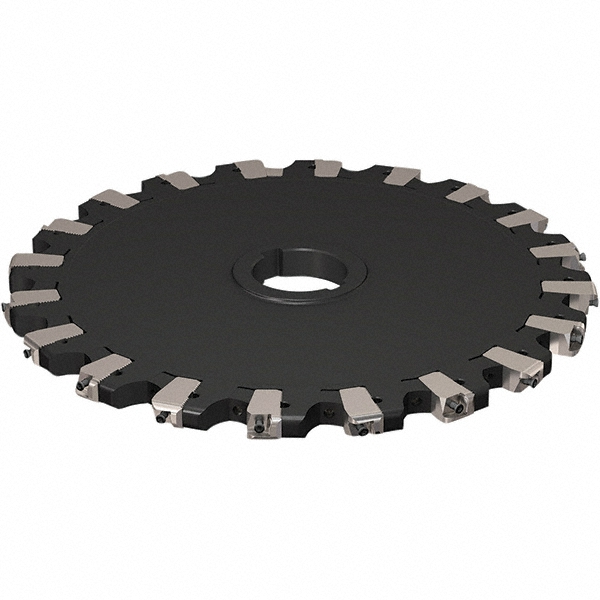

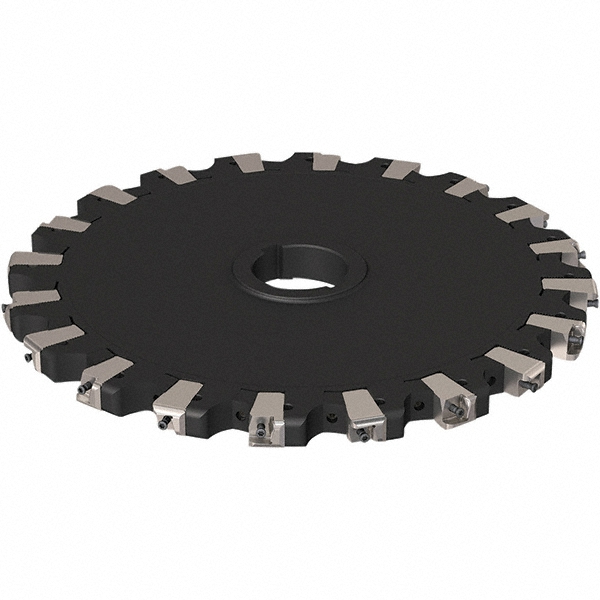

Screw, Uses 24 Inserts, RD 08 Inserts, 24 Tooth, Staggered Teeth
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.7640 |
| Maximum Depth of Cut (mm) | 118.50 |
| Hole Diameter (Inch) | 1-31/32 |
| Hole Diameter (Mm) ( - 0 Decimals) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9690 |
| Cutter Diameter (Decimal Inch) | 12.4020 |
| Cutter Diameter (mm) | 315.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 24 |
| Compatible Insert Style | RD 08 |
| Compatible Insert Size Code | 0803 |
| Tooth Type | Staggered |
| Rake | Neutral (Axial); Positive (Radial) |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 2.7170 |
| Keyway Width (Decimal Inch) | 0.4720 |
| Maximum RPM | 5300 |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Cutting Width (mm) | 10.00 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.3940 |
| Cutter Body Width (mm) | 15.00 |
| Manufacturers Catalog Number | 335.18-315.0810XL.50-24N-R4 |
| Insert Inscribed Circle (mm) | 8.00 |
| Number Of Teeth | 24 |
| Coolant Through | No |
| Complete Insert Compatibility | RD..0803 |
| Country of Origin | France |
| MSC Number | MSC# 57491458 |
