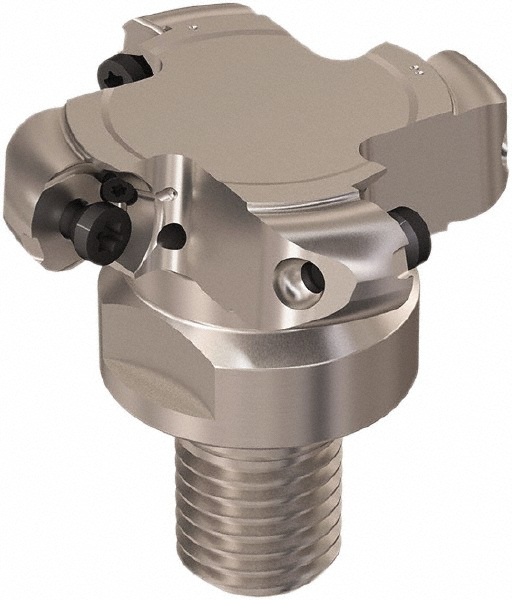

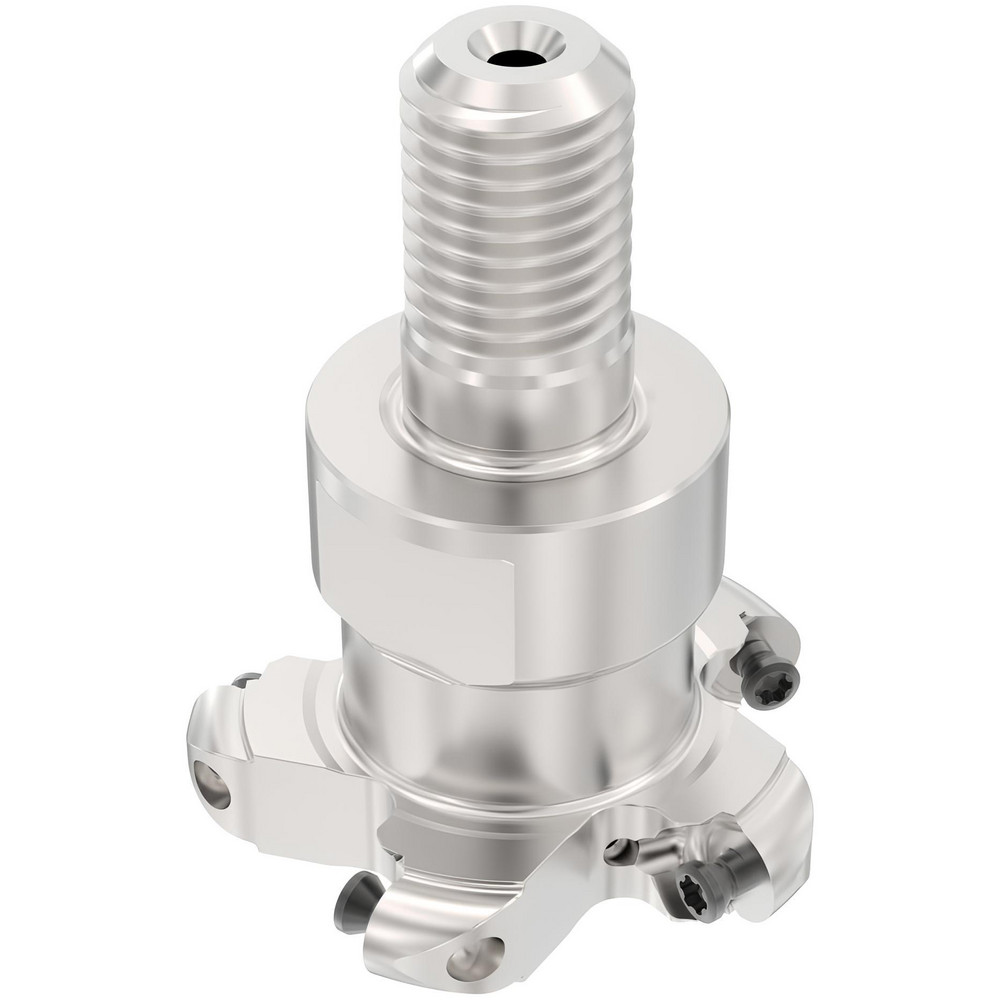

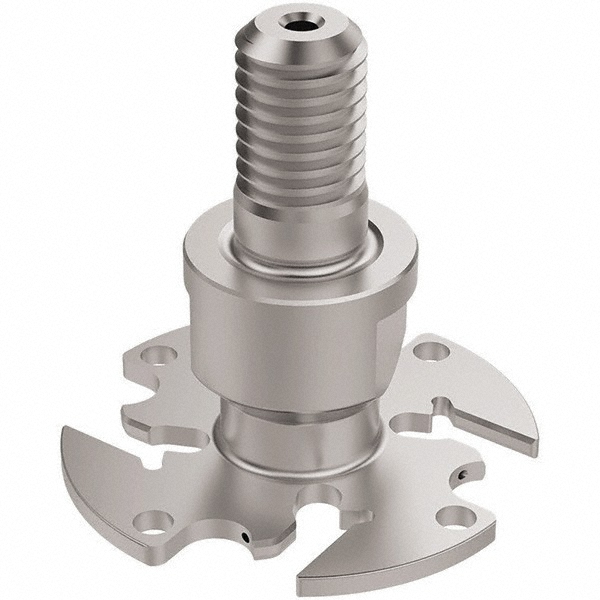

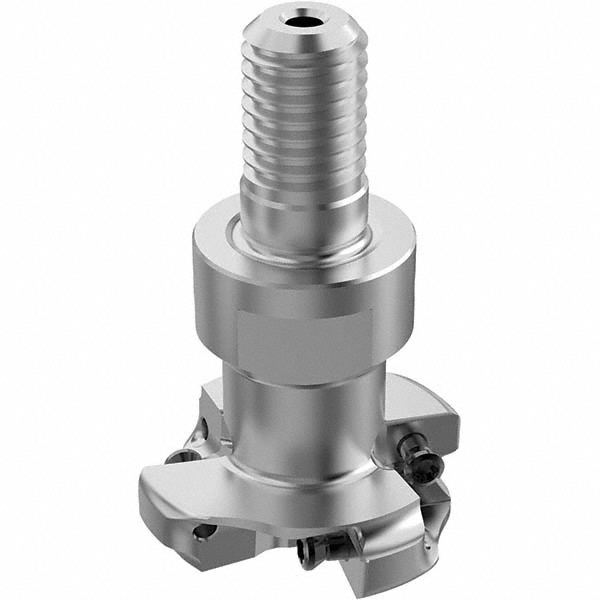

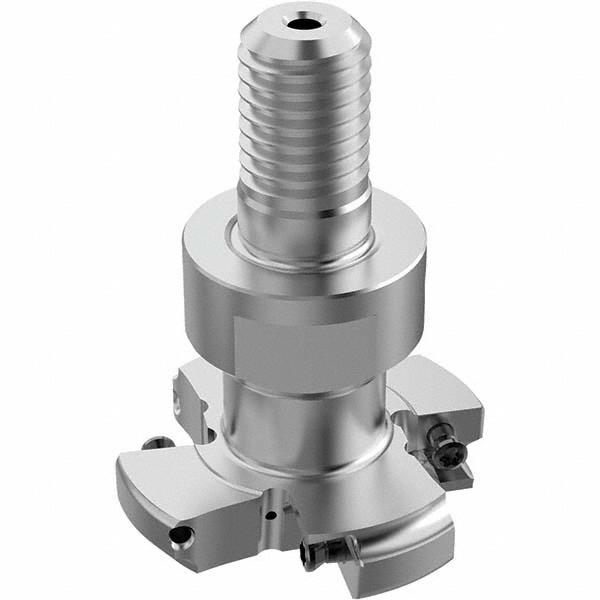

Screw, Uses 5 Inserts, RD 08 Inserts, 5 Tooth, Staggered Teeth, Coolant Through
| Connection Type | Combimaster |
|---|---|
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutter Diameter (Decimal Inch) | 1.5750 |
| Cutter Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | RD 08 |
| Compatible Insert Size Code | 0803 |
| Tooth Type | Staggered |
| Rake | Neutral (Axial); Neutral (Radial) |
| Series | R335.29 |
| Toolholder Style | R335.29 |
| Modular Connection Size | M12 |
| Hub Diameter (Decimal Inch) | 0.9060 |
| Hub Diameter (Inch) | 29/32 |
| Maximum RPM | 18800 |
| Tool Application | Side Milling; Disc Milling |
| Tool Performance | General Purpose |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (mm) | 8.00 |
| Radius | Yes |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Cutter Body Width (Decimal Inch) | 0.3150 |
| Manufacturers Catalog Number | R335.29-1240.RE-08.5N-R4A |
| Insert Inscribed Circle (mm) | 8.00 |
| Number Of Teeth | 5 |
| Coolant Through | Yes |
| Complete Insert Compatibility | RD..0803 |
| Country of Origin | France |
| MSC Number | MSC# 77891059 |
