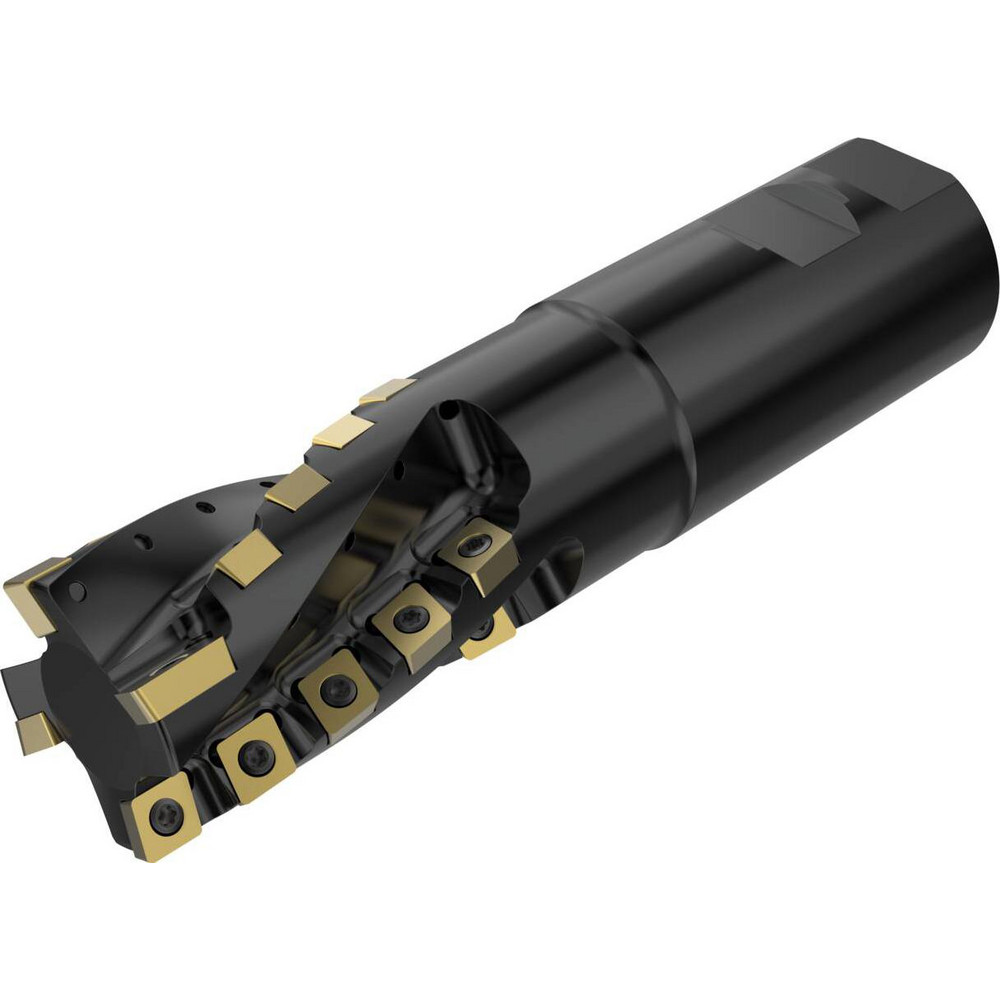

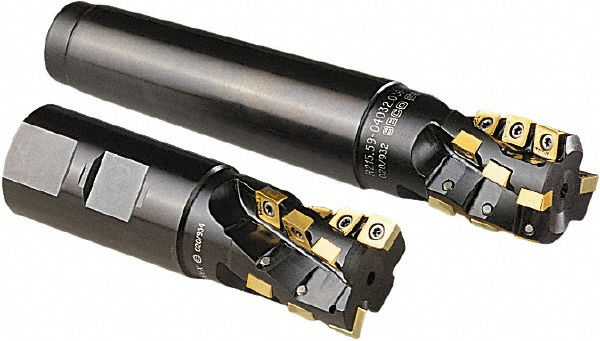

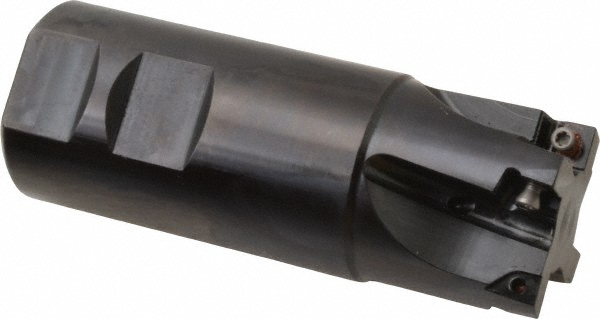

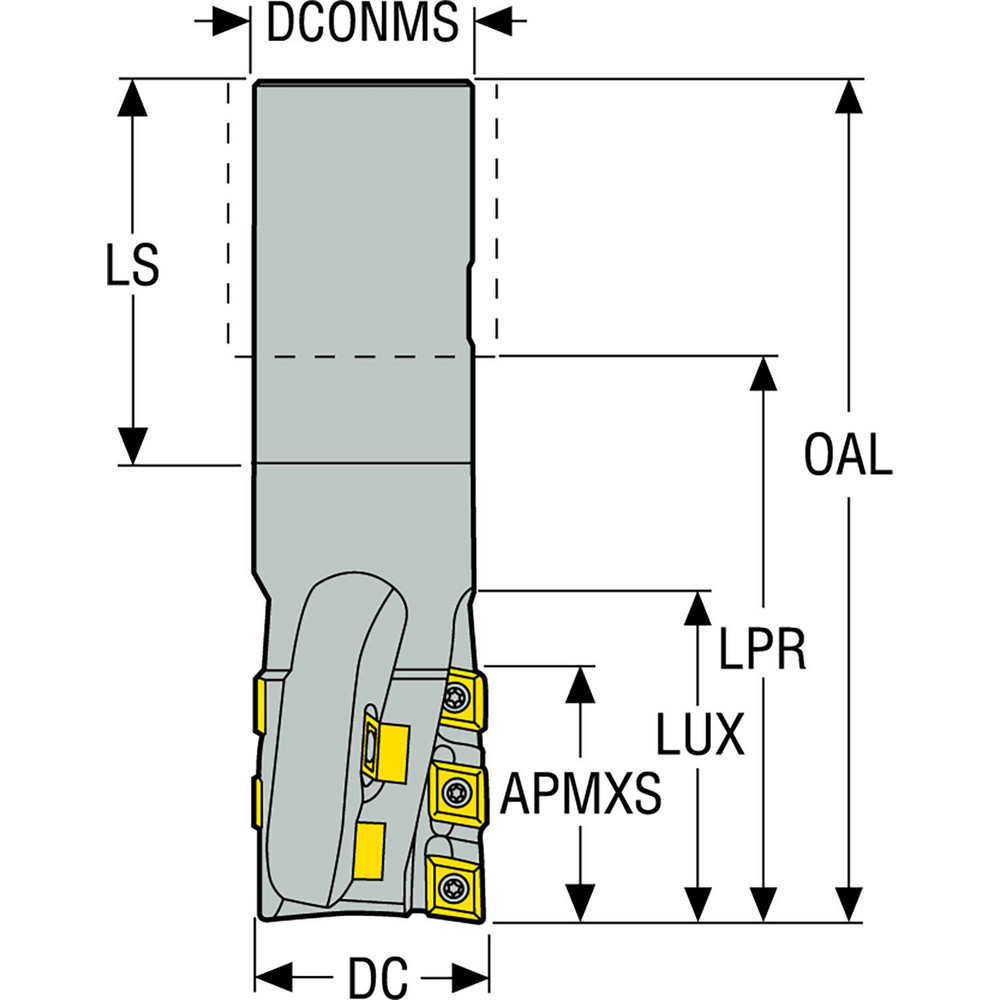

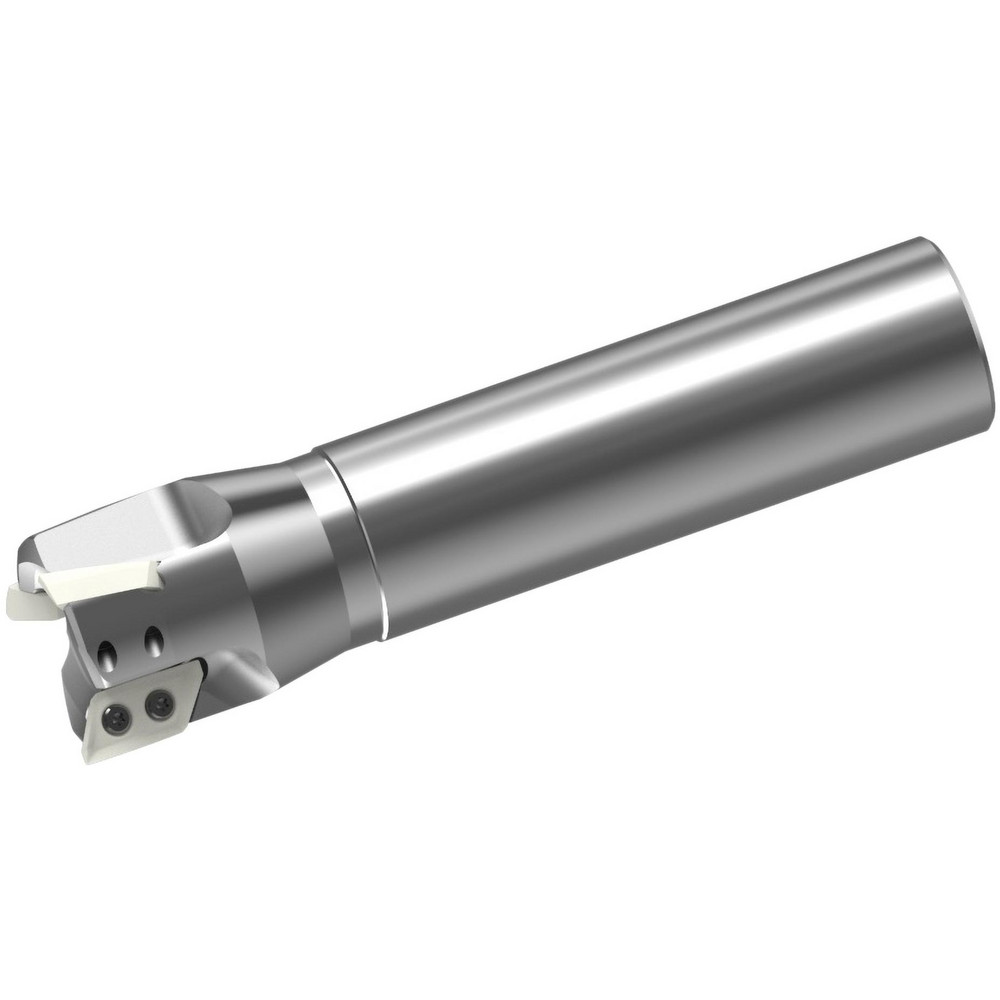

Uses (20) CCMX 08T3;XC.X 13T3 Inserts, 6.19" OAL
| Cutting Diameter | 1-1/2 |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Overall Length (Decimal Inch) | 6.1900 |
| Maximum Depth of Cut (Decimal Inch) | 2.2500 |
| Cutter Style | R215.59-08.4 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.6900 |
| Maximum RPM | 11900 |
| Tool Application | Milling |
| Insert Compatibility | XC.X 13T3; CCMX 08T3 |
| UNSPSC Code | 27112803 |
| ISO Number | R215.59-01.50-3-08.4 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 3.7800 |
| Number Of Cutter Inserts | 20 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 57042392 |
