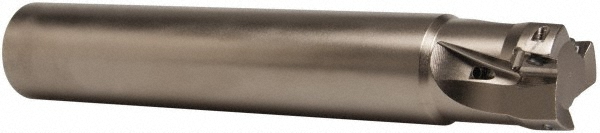

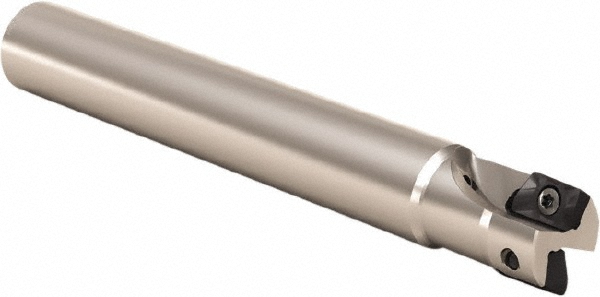

Uses (2) XO.X 1204.. Inserts, Through Coolant, 5.91" OAL

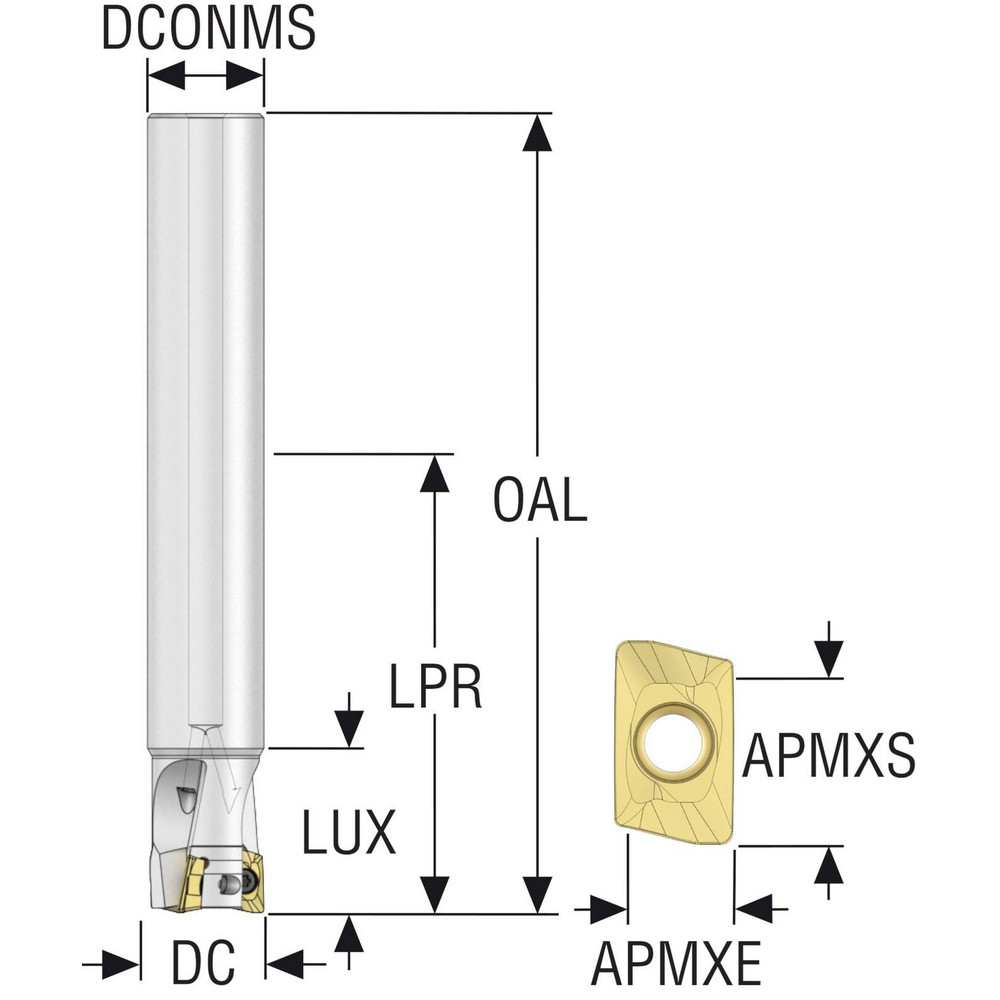

| Cutting Diameter | 3/4 |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Overall Length (Decimal Inch) | 5.9100 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Cutter Style | R217.69-12A |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Series | Super Turbo |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 4.7200 |
| Head Length (Decimal Inch) | 1.18 |
| Maximum RPM | 23200 |
| Tool Application | Milling |

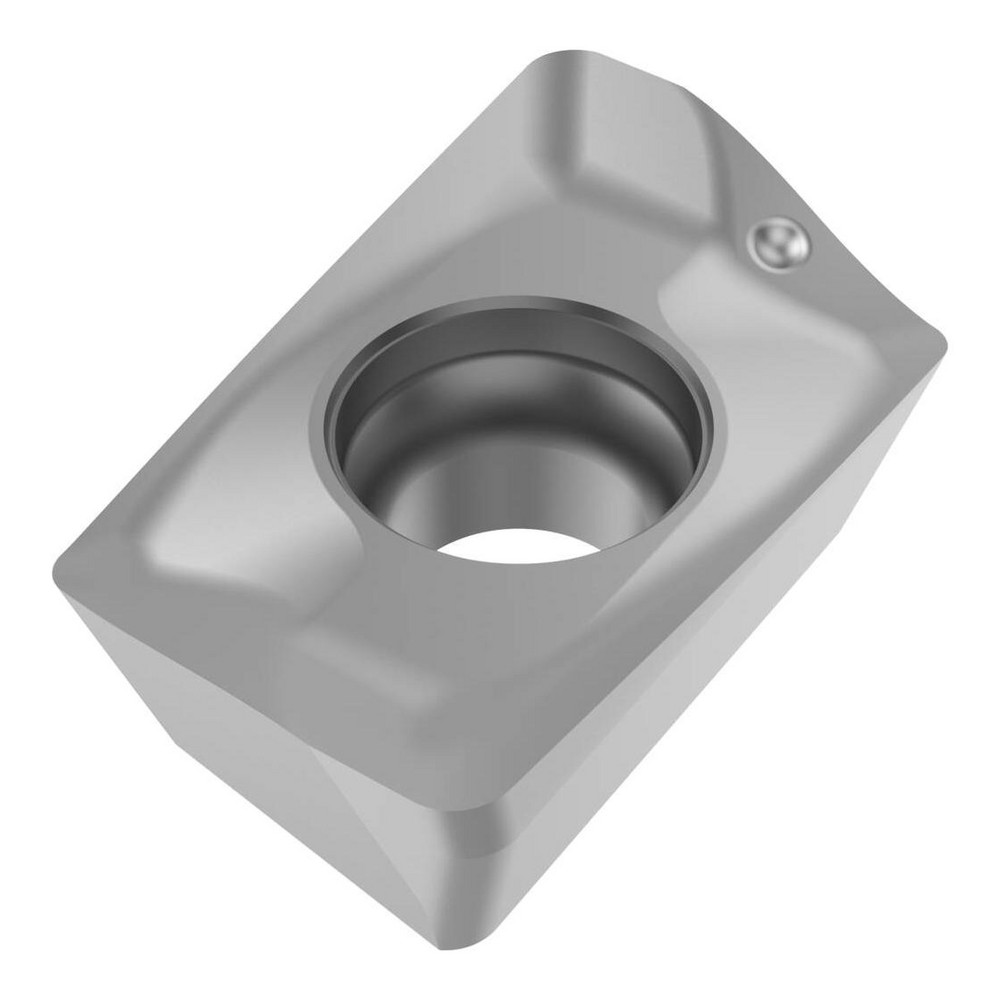

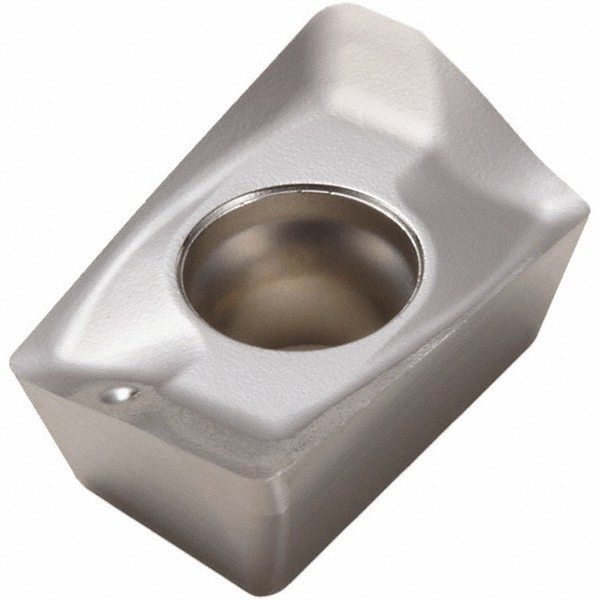

| Insert Compatibility | XO.X 1204.. |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-00.75-0-12-2AN |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 83251249 |
