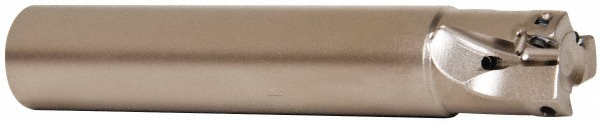

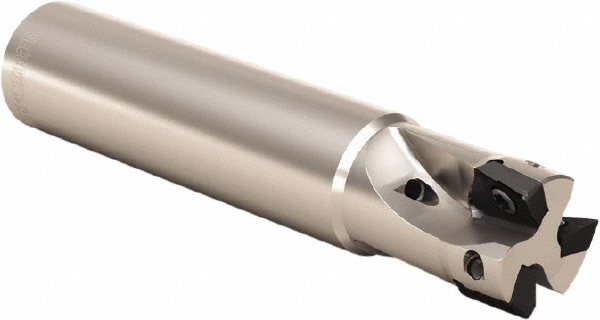

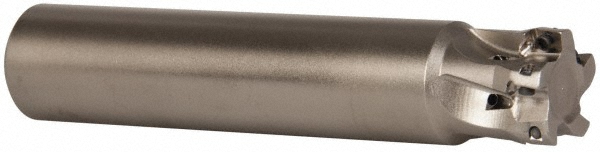

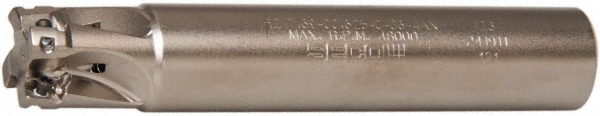

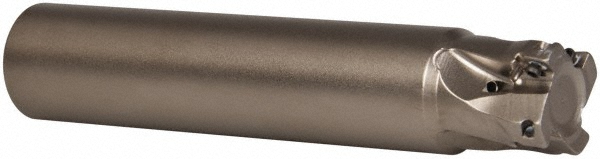

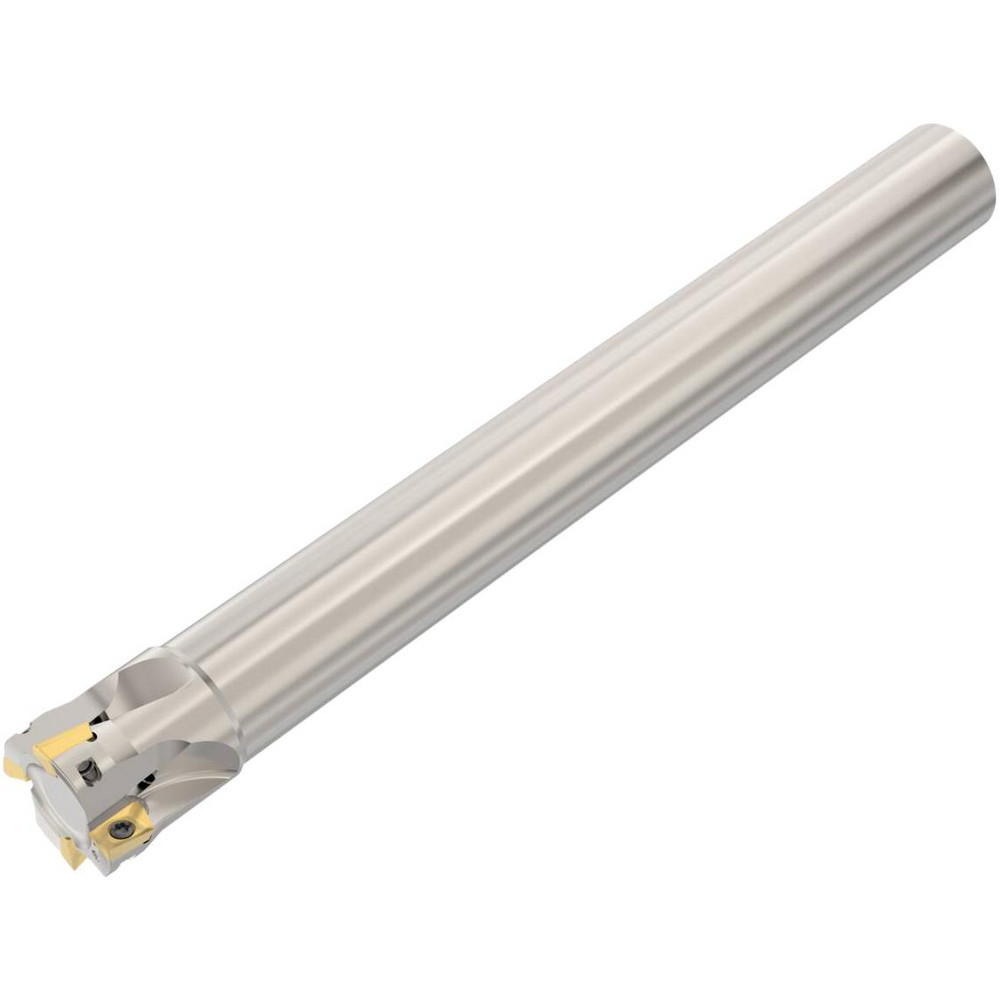

Uses (4) XO.X 0602 Inserts, Through Coolant, 5.905" OAL
| Cutting Diameter | 3/4 |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Overall Length (Decimal Inch) | 5.9050 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Cutter Style | R217.69-06 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Series | Nano Turbo |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 5.1180 |
| Head Length (Decimal Inch) | 0.787 |
| Maximum RPM | 44000 |
| Tool Application | Milling |
| Rake | Negative |

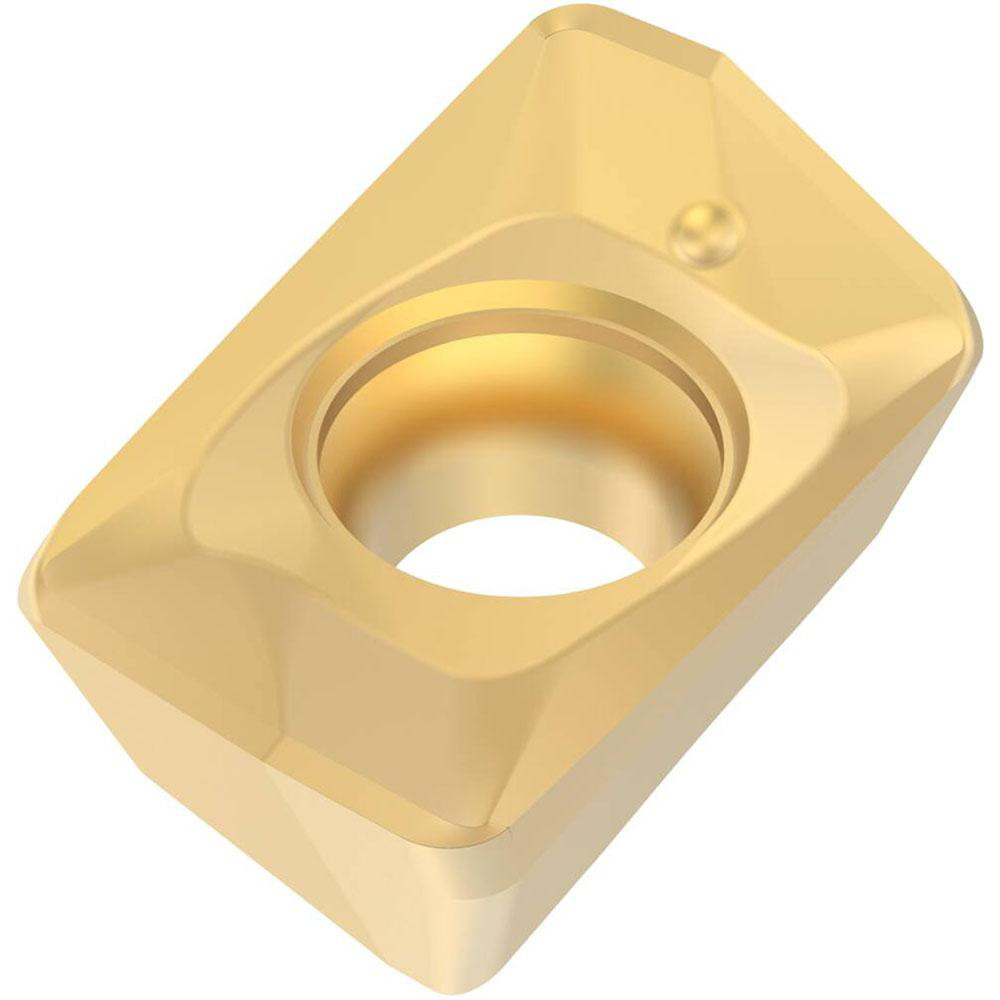

| Insert Compatibility | XO.X 0602 |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-00.750-0064LAN |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 66516725 |
