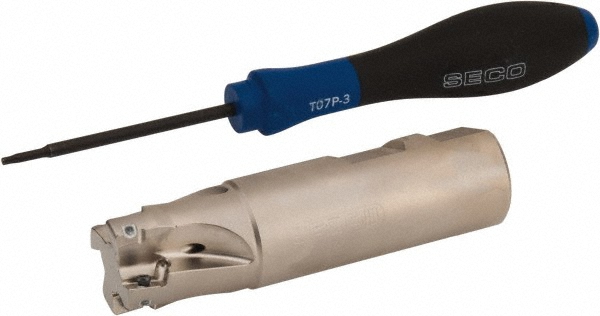

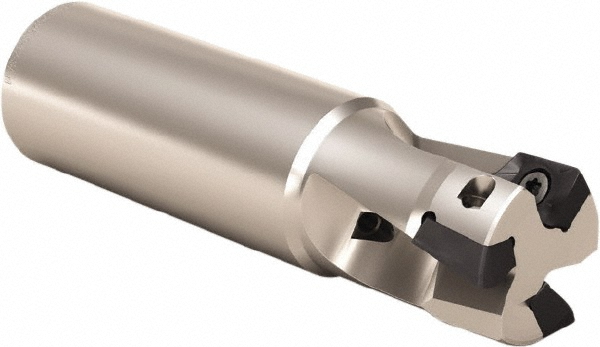

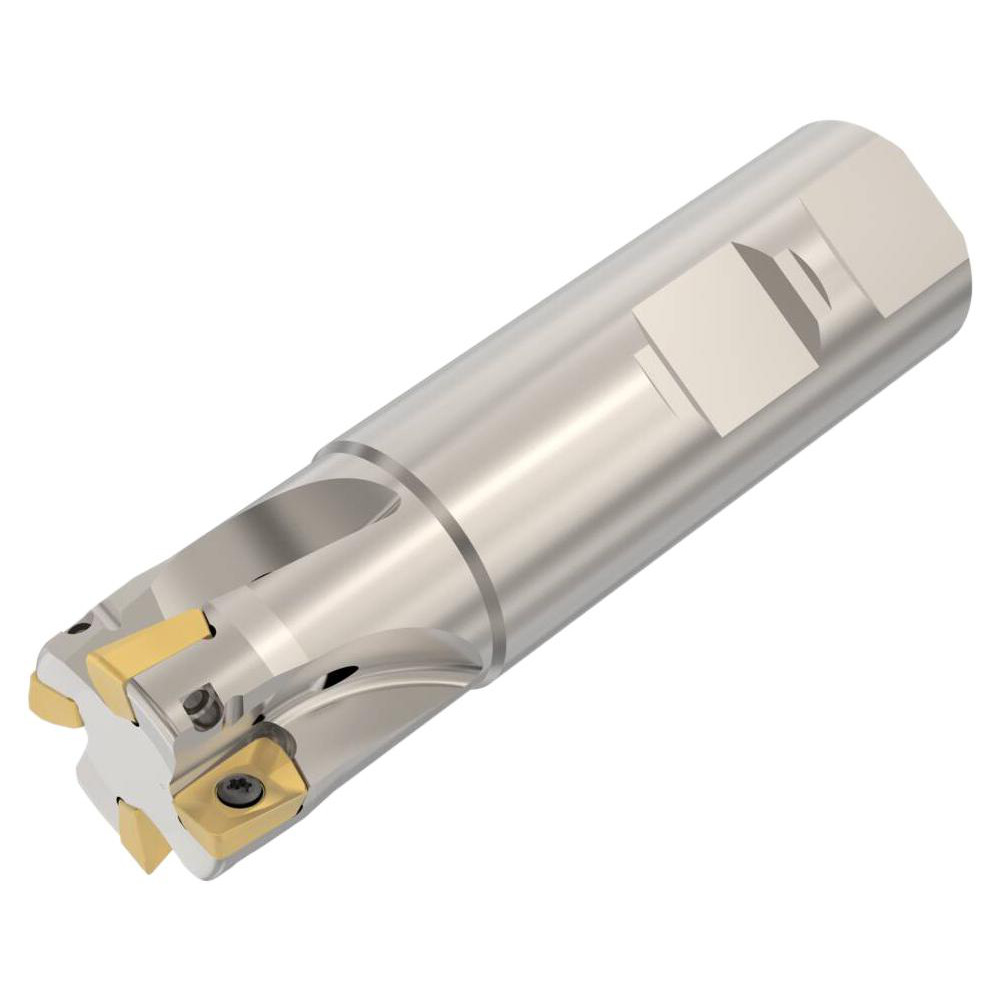

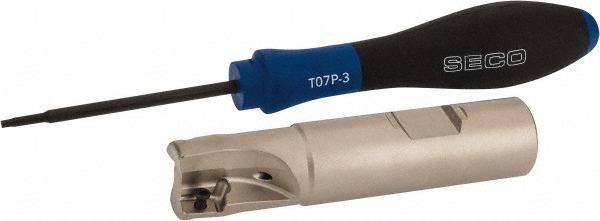

Uses (4) XO.X 10T3.. Inserts, Through Coolant, 3.78" OAL

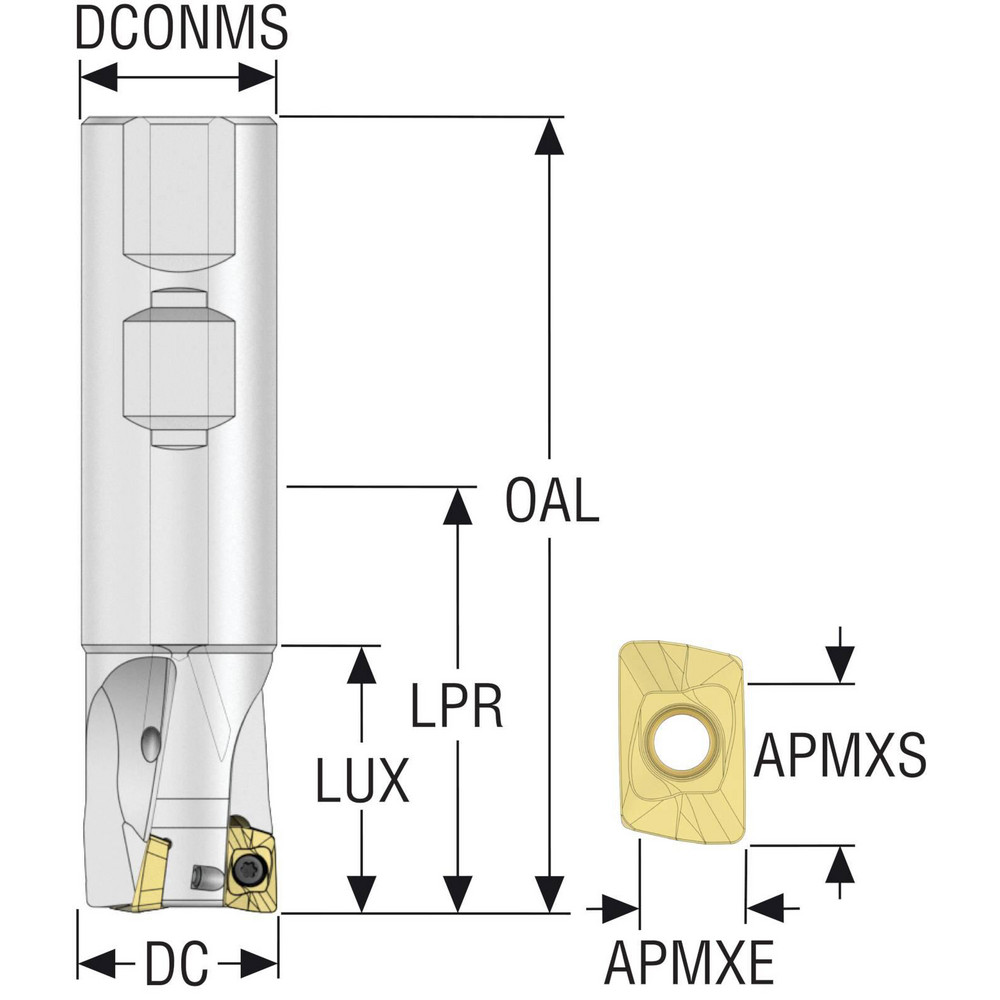

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.7800 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Cutter Style | R217.69-10 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | Turbo 10 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.5000 |
| Head Length (Decimal Inch) | 1.28 |
| Maximum RPM | 23500 |
| Tool Application | Milling |
| Rake | Negative |
| Complete Insert Compatibility | XOEX; XOMX |

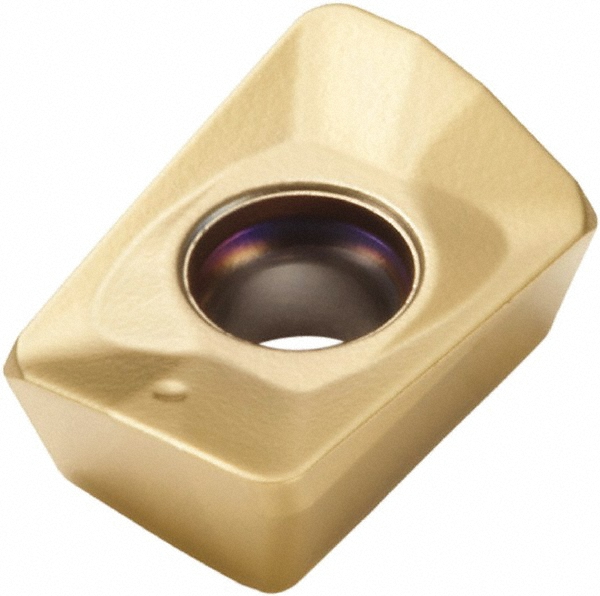

| Insert Compatibility | XO.X 10T3.. |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-01.00-3-10-4A |
| Manufacturers Catalog Number | R217.69-01.00-3-10-4A |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 2.6380 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 70665187 |
