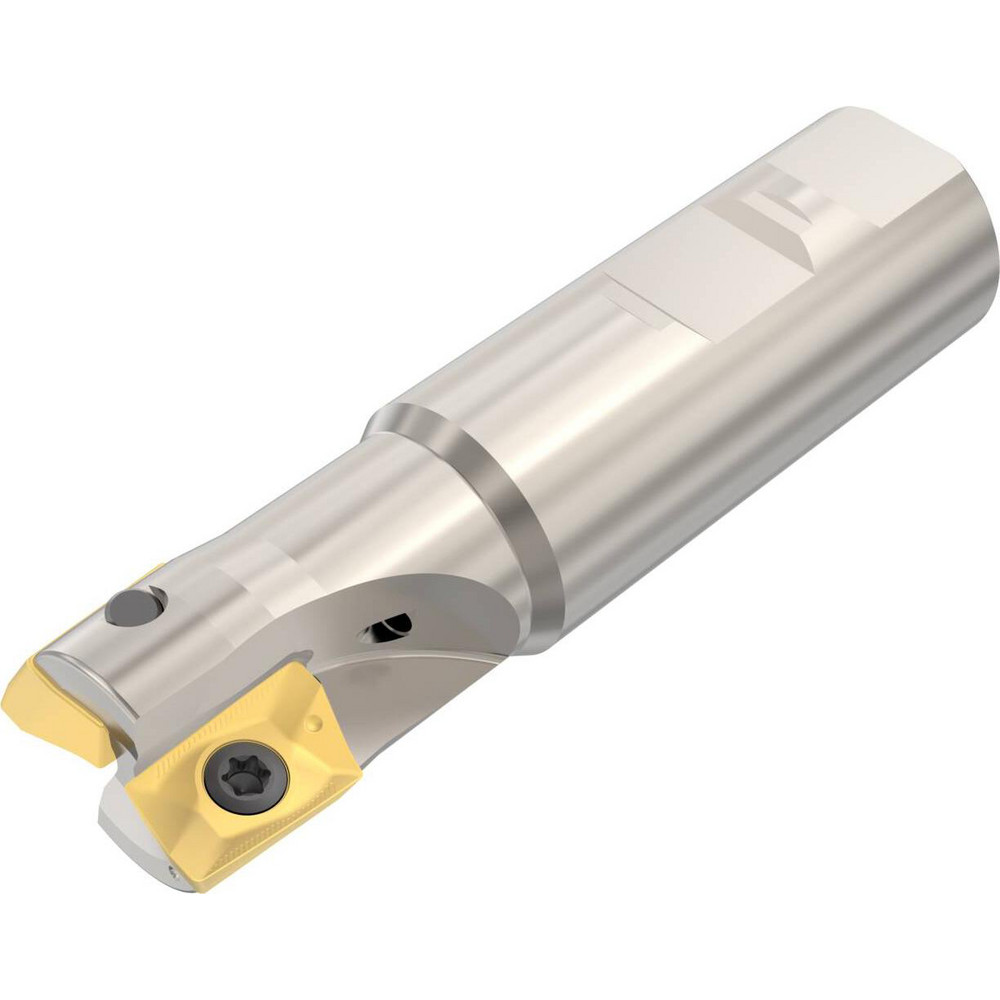

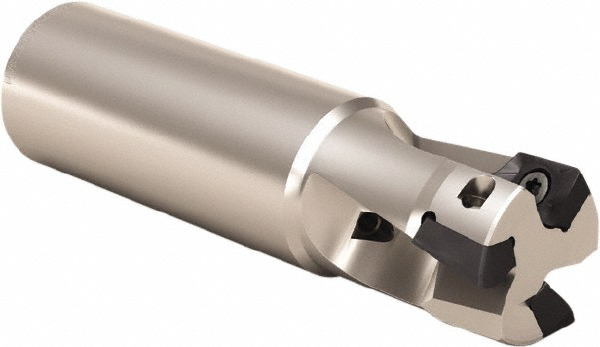

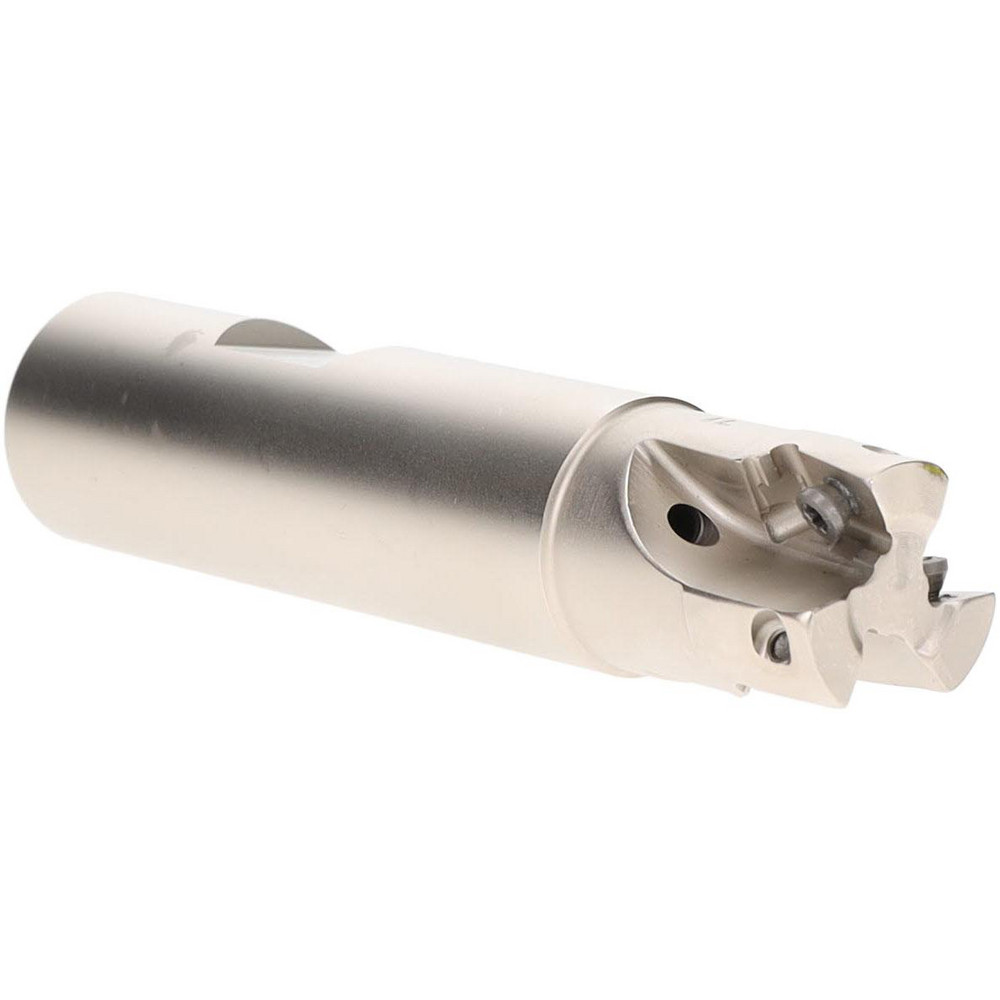

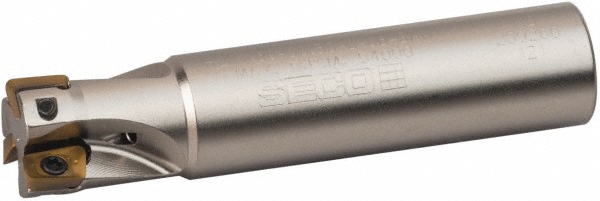

Uses (2) XO.X 1806 Inserts, Through Coolant, 3.94" OAL

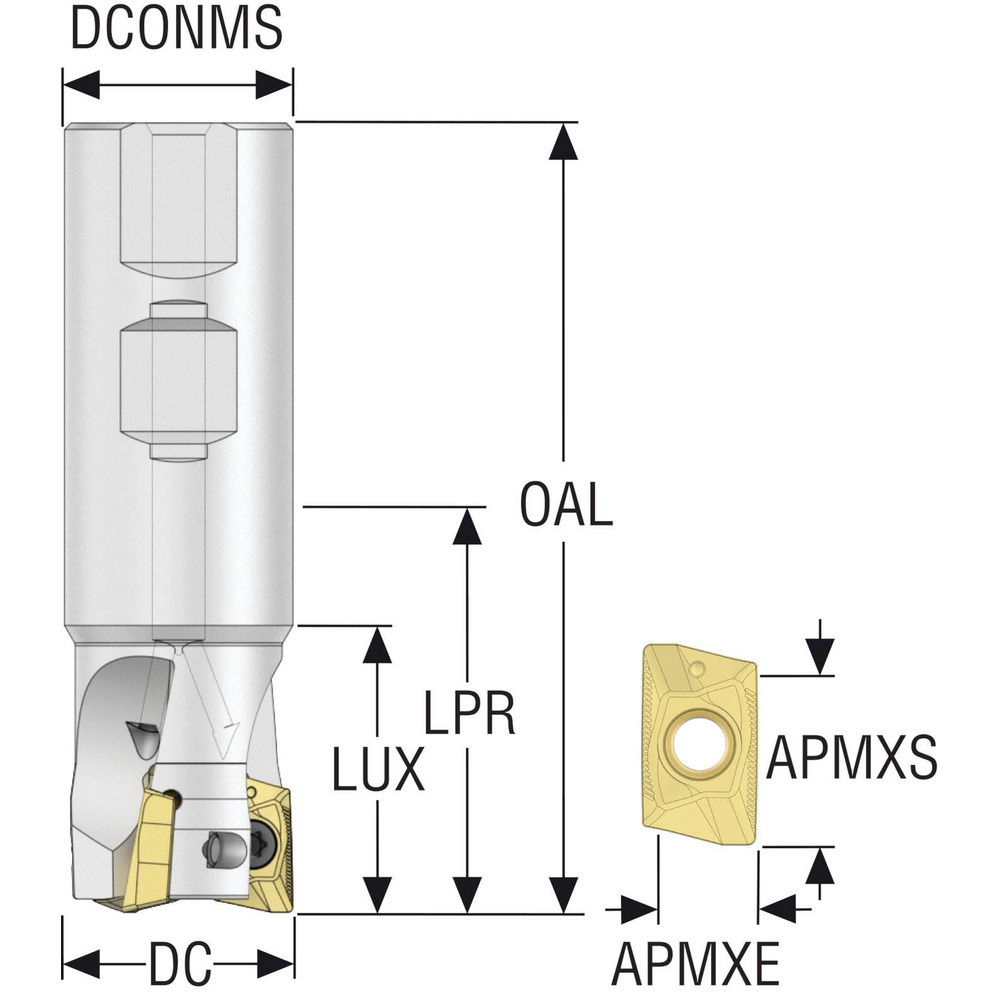

| Cutting Diameter | 1 |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Overall Length (Decimal Inch) | 3.9400 |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Cutter Style | R217.69-18 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Series | Power Turbo |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3600 |
| Head Length (Decimal Inch) | 1.57 |
| Maximum RPM | 13800 |
| Tool Application | Milling |
| Rake | Negative |
| Insert Compatibility | XO.X 1806 |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-01.00-3-18-2AN |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 2.7950 |
| Number Of Cutter Inserts | 2 |

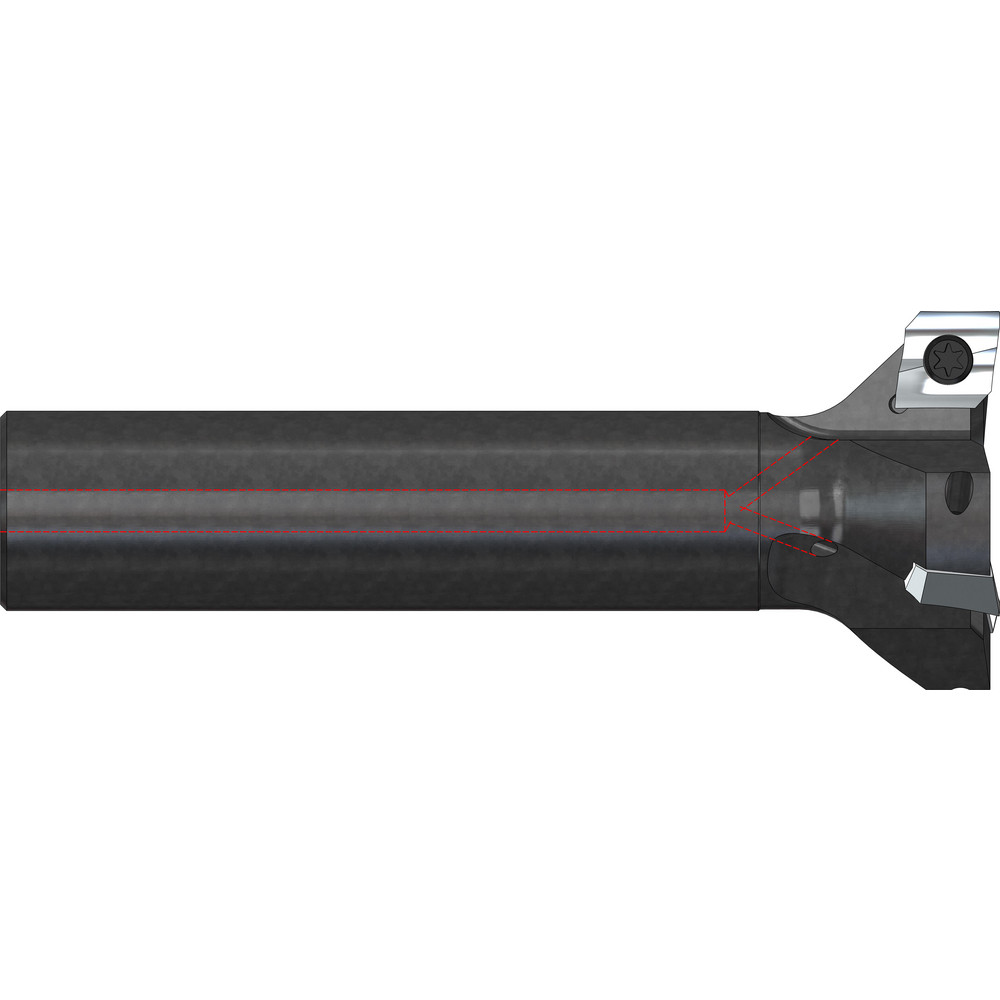

| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 84125285 |
