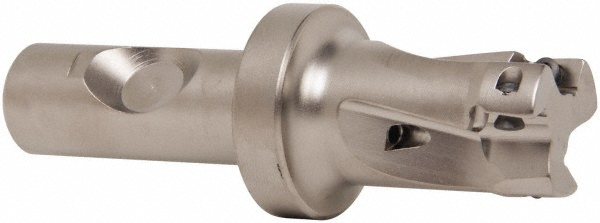

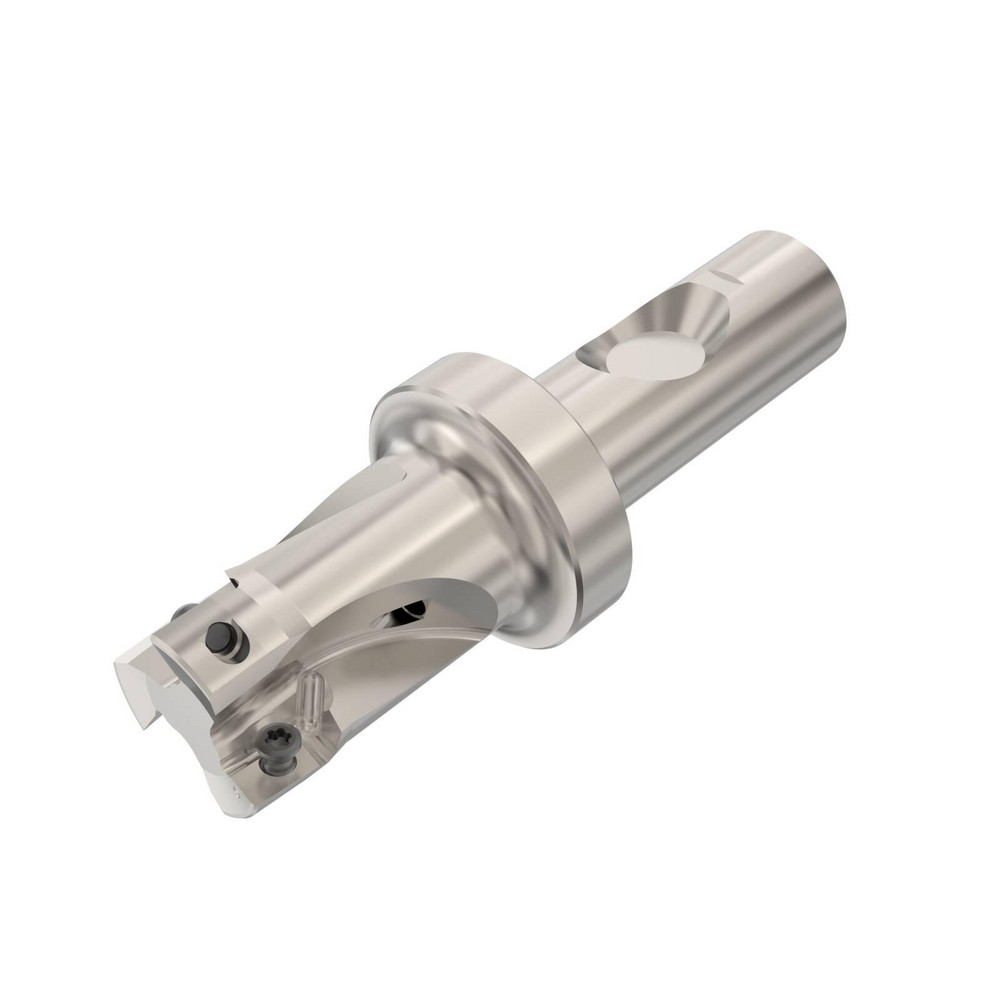

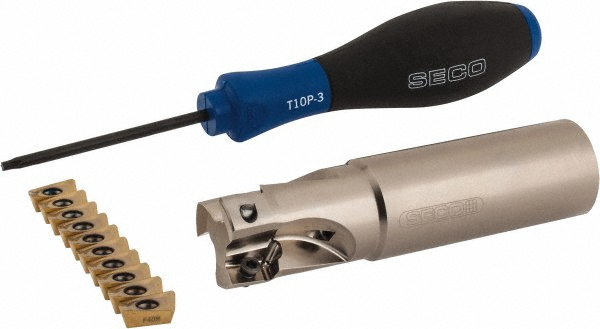

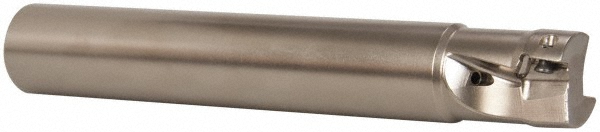

Uses (3) XO.X 1204.. Inserts, Through Coolant, 4" OAL
| Cutting Diameter | 1 |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Cutter Style | R217.69-12A |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Series | Super Turbo |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.9500 |
| Head Length (Decimal Inch) | 1.5 |
| Maximum RPM | 20800 |
| Tool Application | Milling |

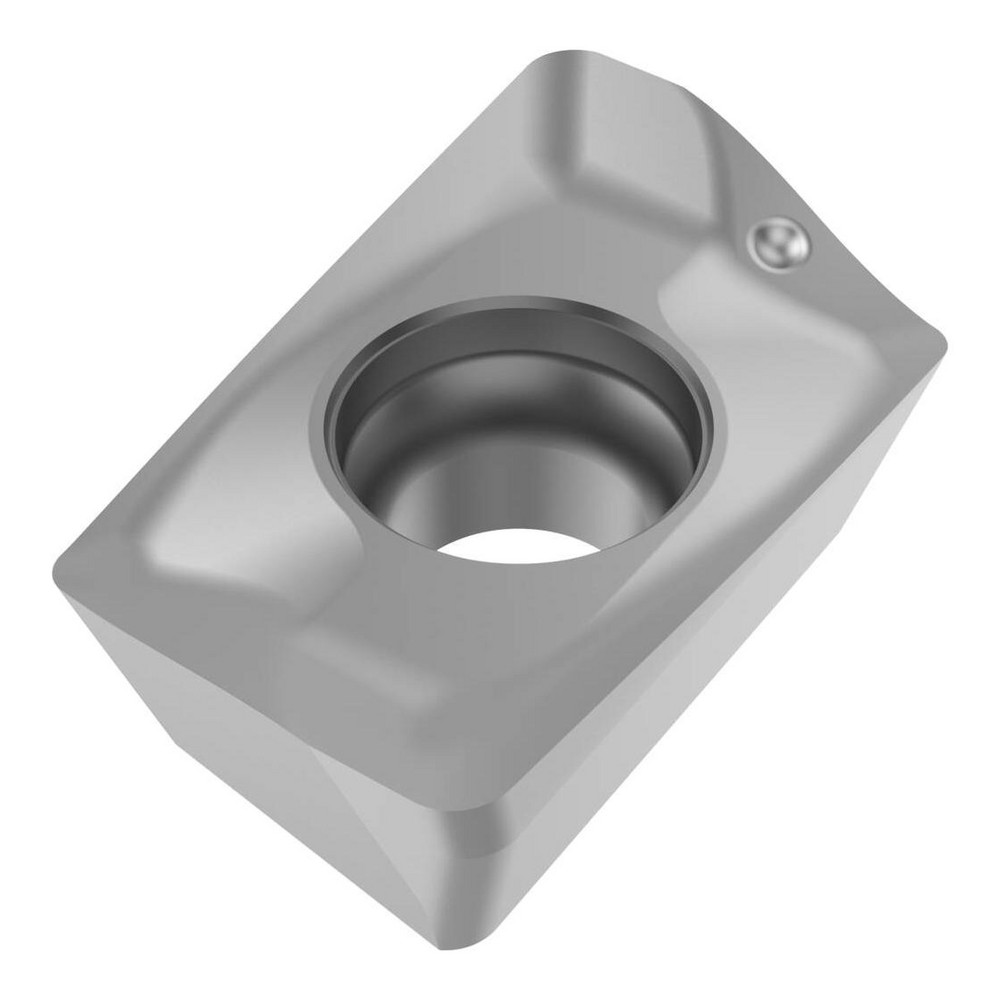

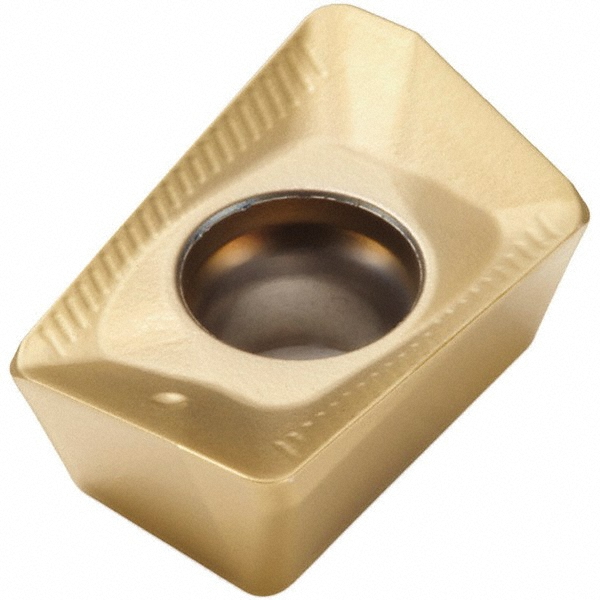

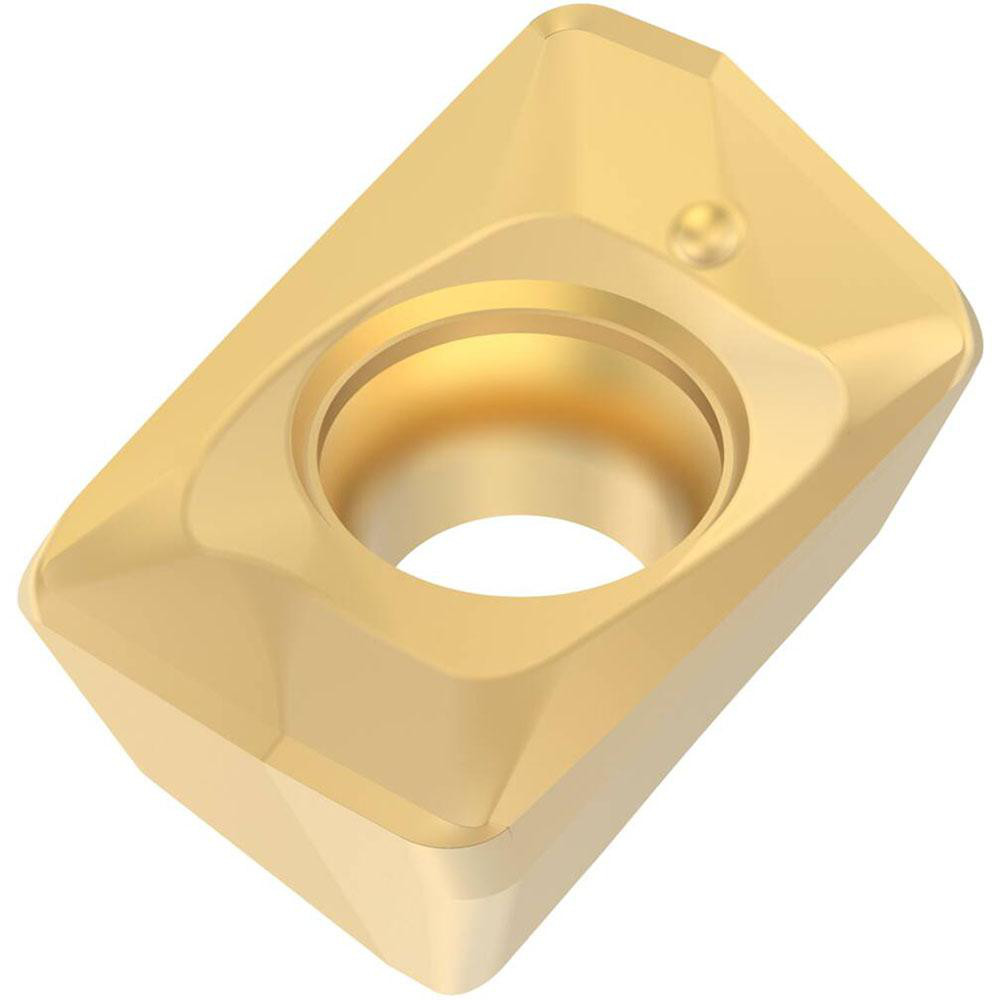

| Insert Compatibility | XO.X 1204.. |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-01.00-3S12-3AN |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 83251314 |
