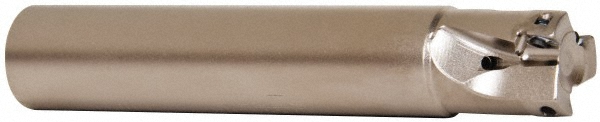

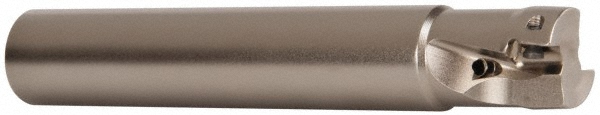

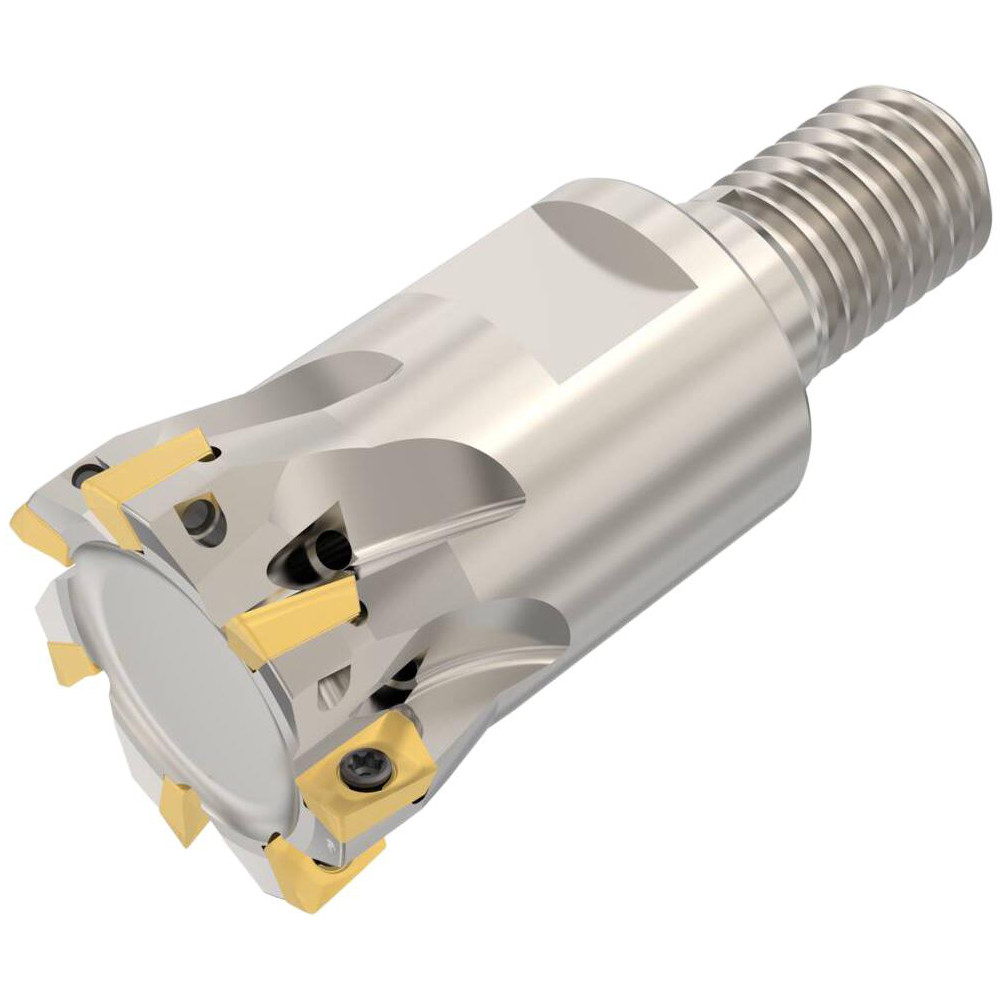

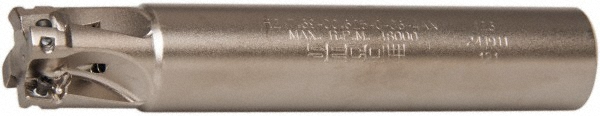

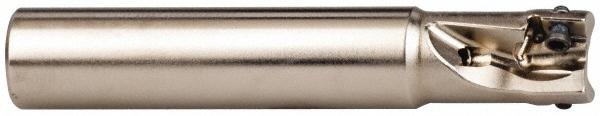

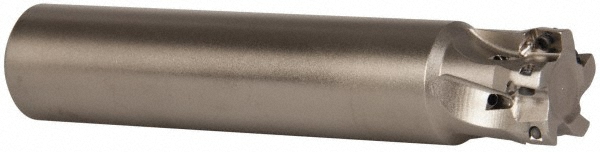

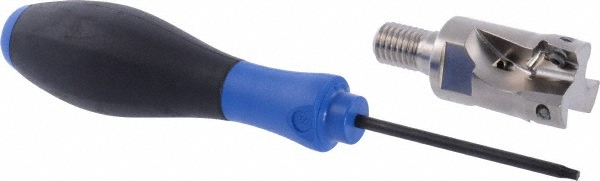

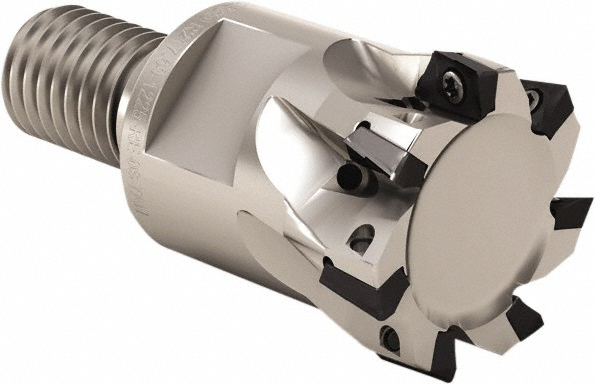

Uses (7) XO.X 0602 Inserts, Through Coolant, 1.378" OAL

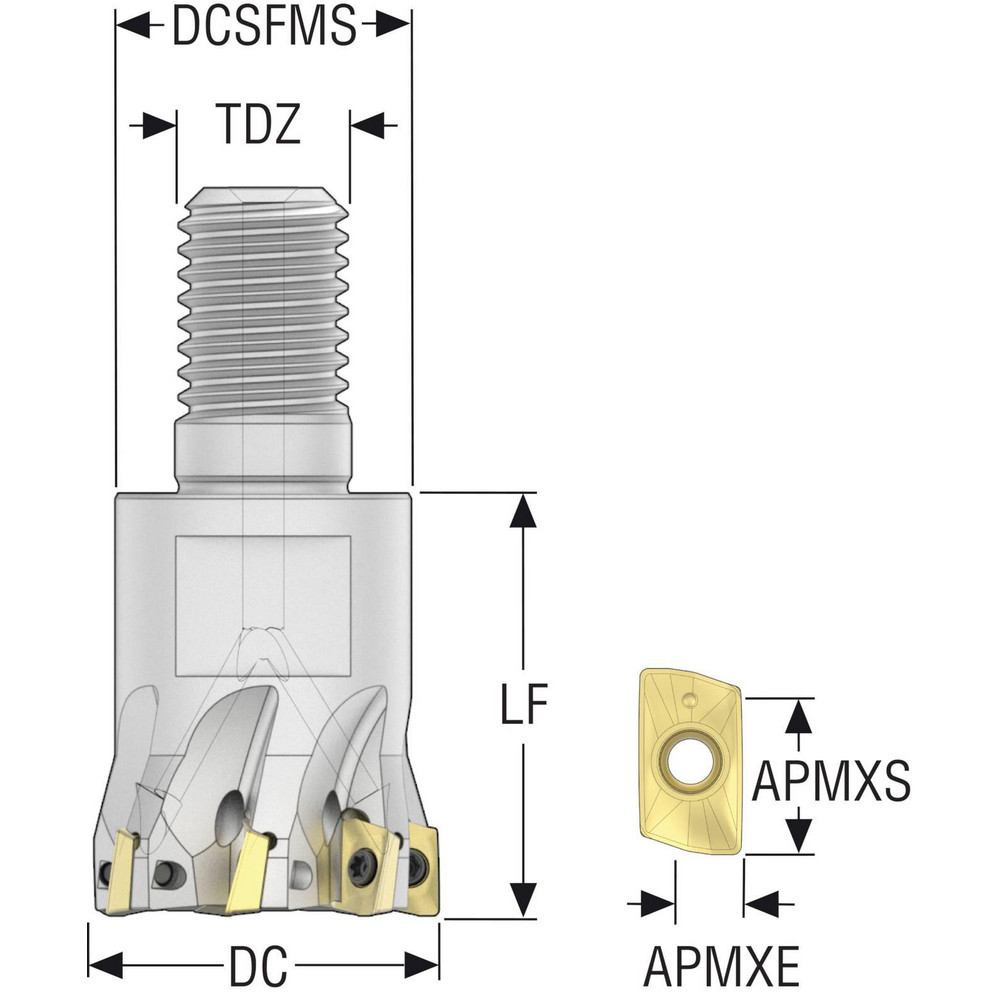

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Cutter Style | R217.69-06A |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Series | Nano Turbo |
| Lead Angle | 90 |
| Modular Connection Size | M12 |
| Maximum RPM | 37600 |
| Insert Compatibility | XO.X 0602 |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-01.0012RE067AN |
| Number Of Flutes | 7 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 83251009 |
