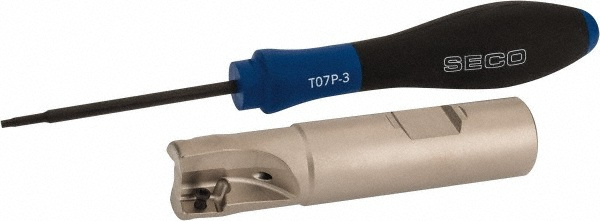

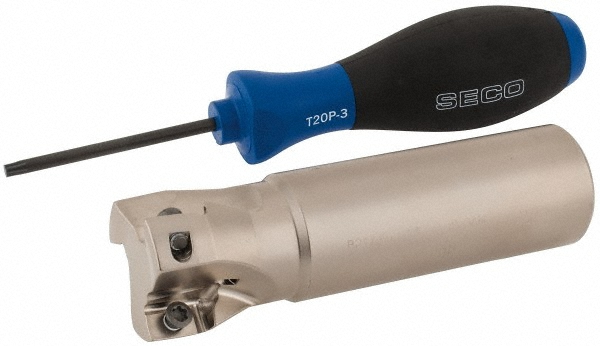

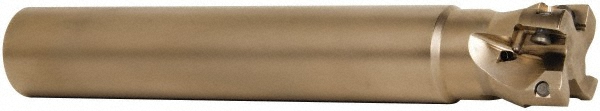

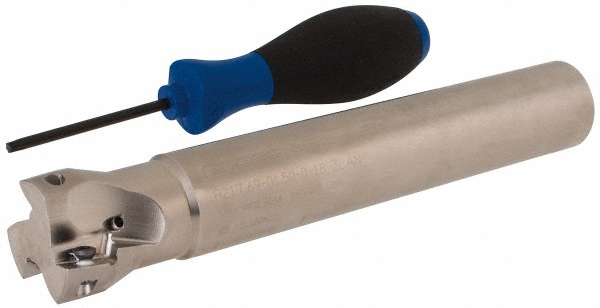

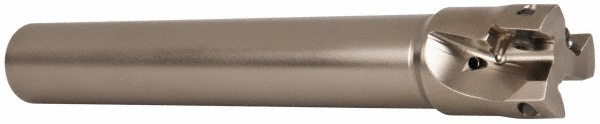

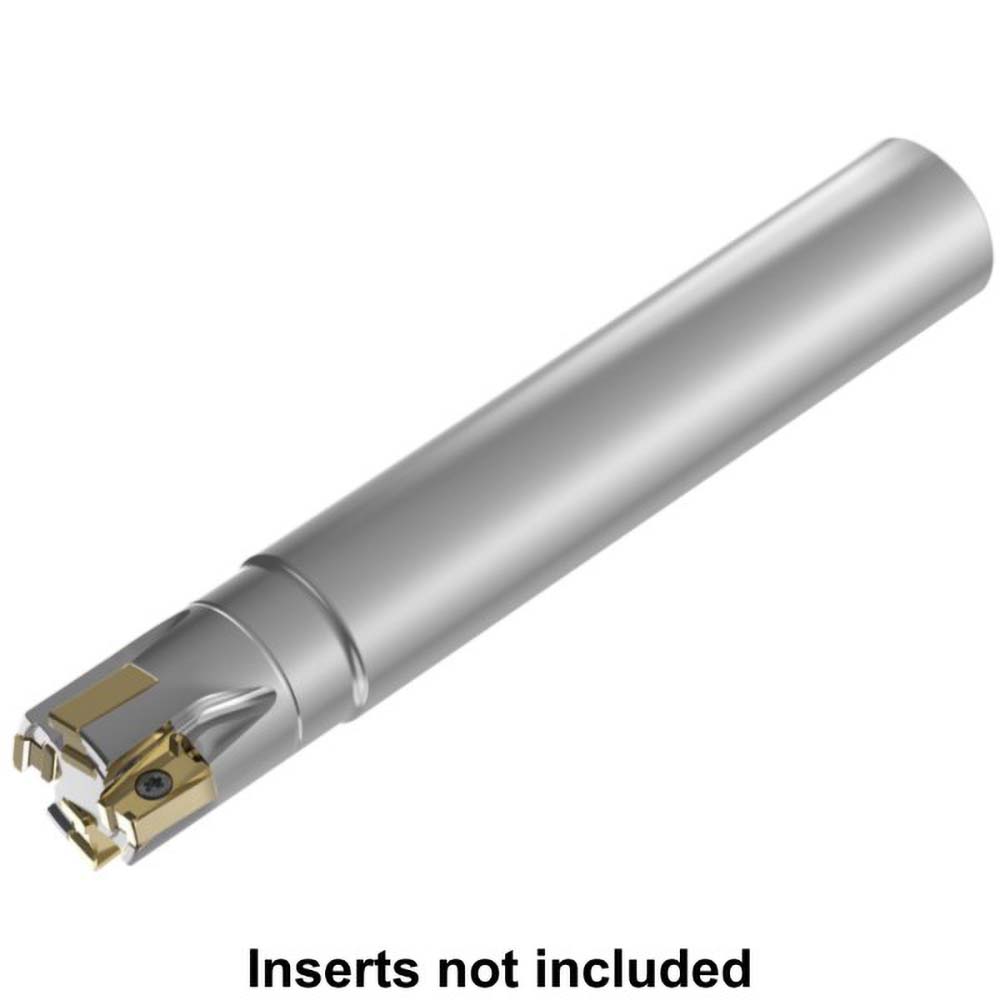

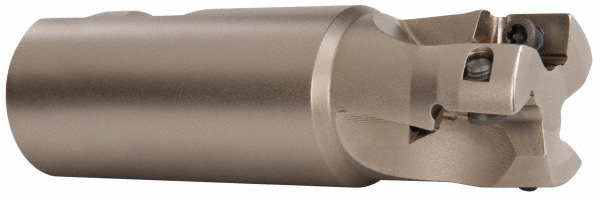

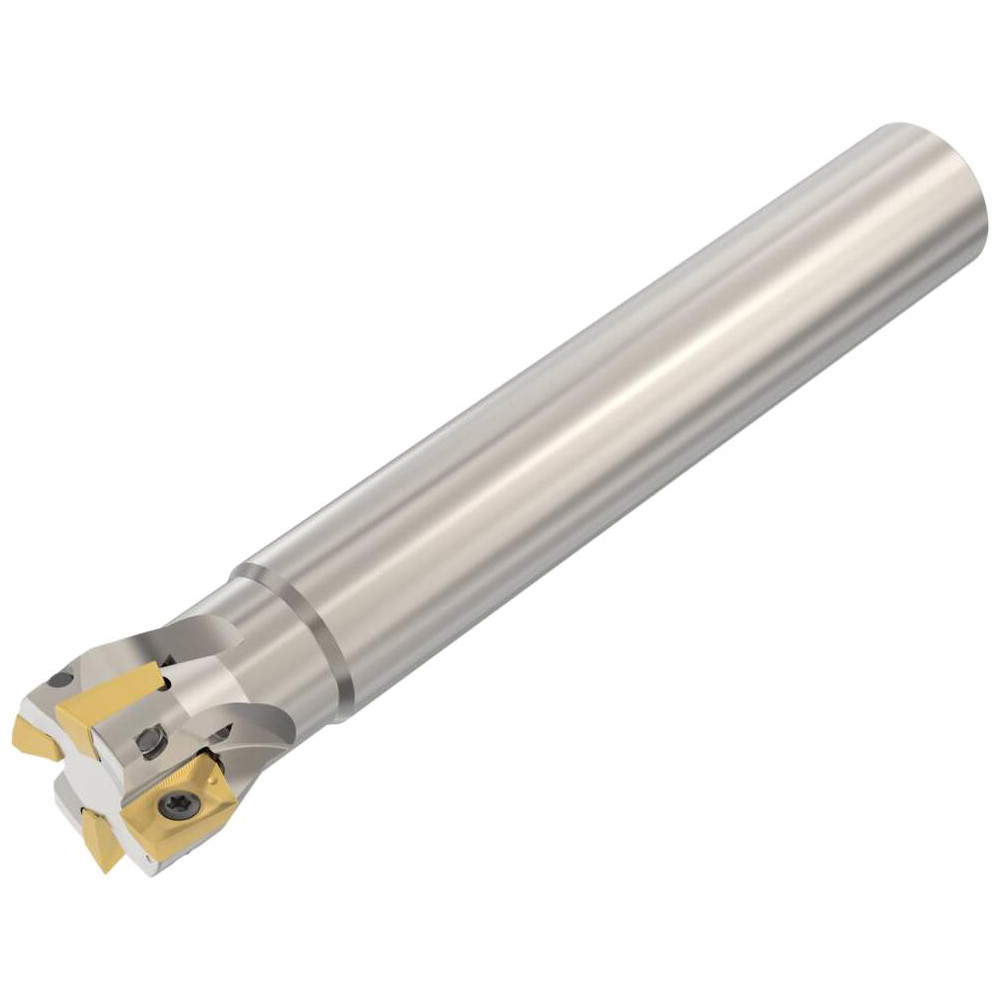

Uses (4) XO.X 1806.. Inserts, Through Coolant, 8.27" OAL

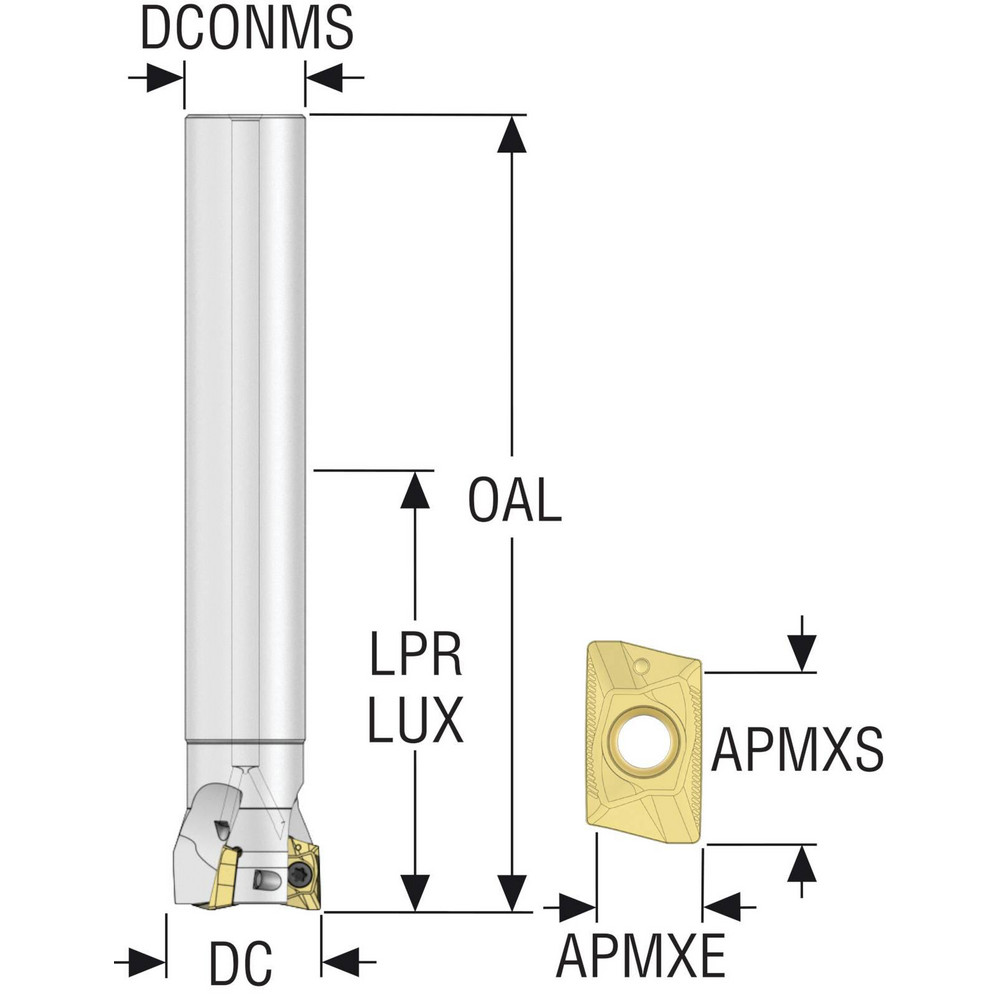

| Cutting Diameter | 1-1/2 |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Overall Length (Decimal Inch) | 8.2700 |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Cutter Style | R217.69-18A |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |

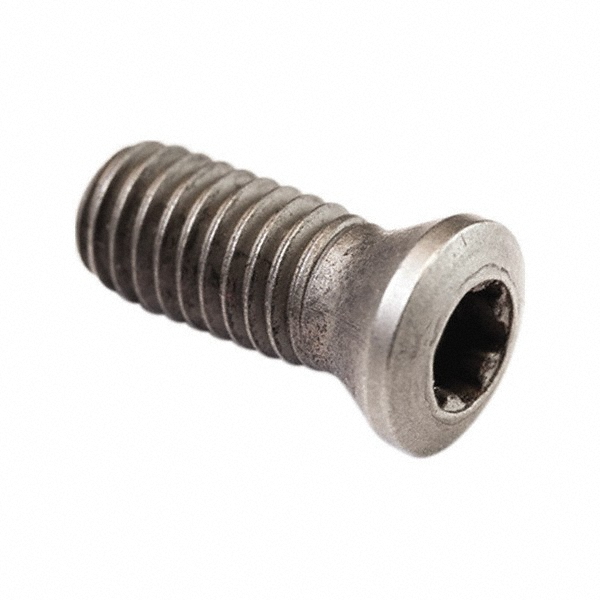

| Insert Holding Method | Screw |
| Series | Power Turbo |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 6.5000 |
| Head Length (Decimal Inch) | 1.77 |
| Maximum RPM | 9900 |
| Tool Application | Milling |

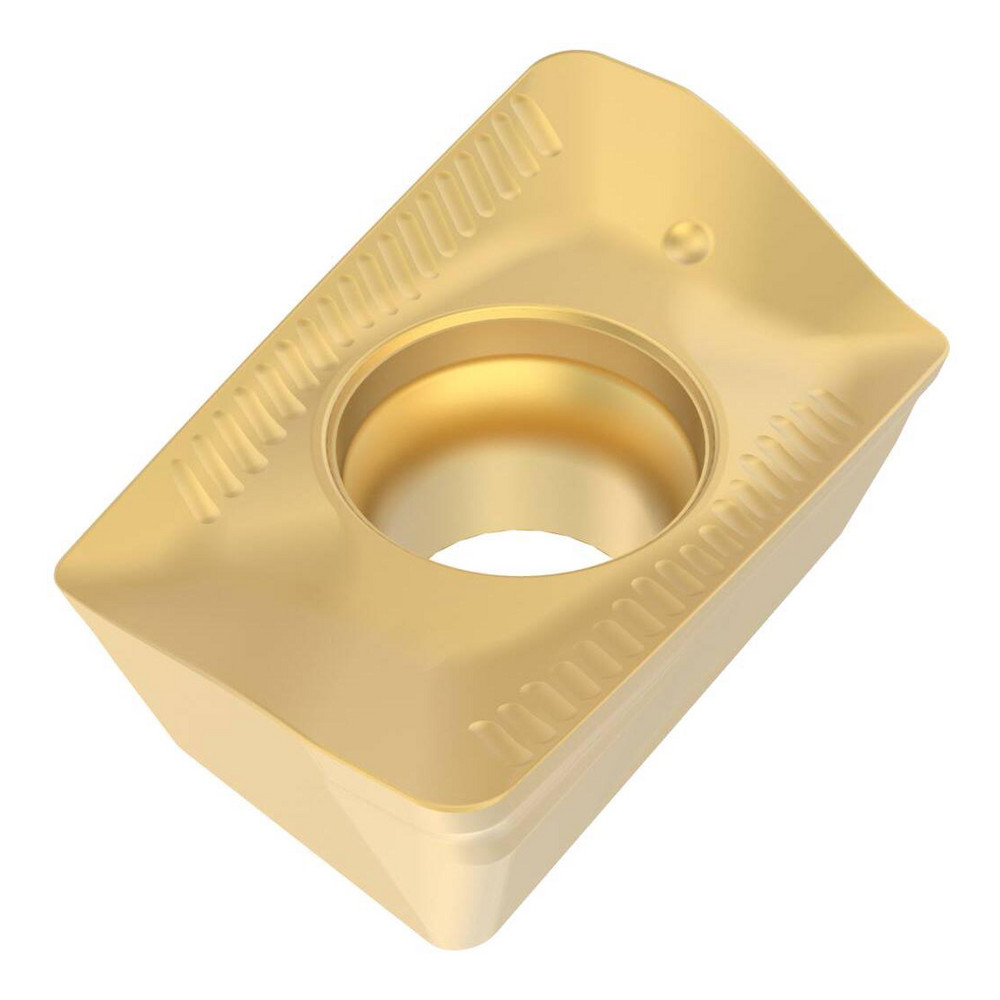

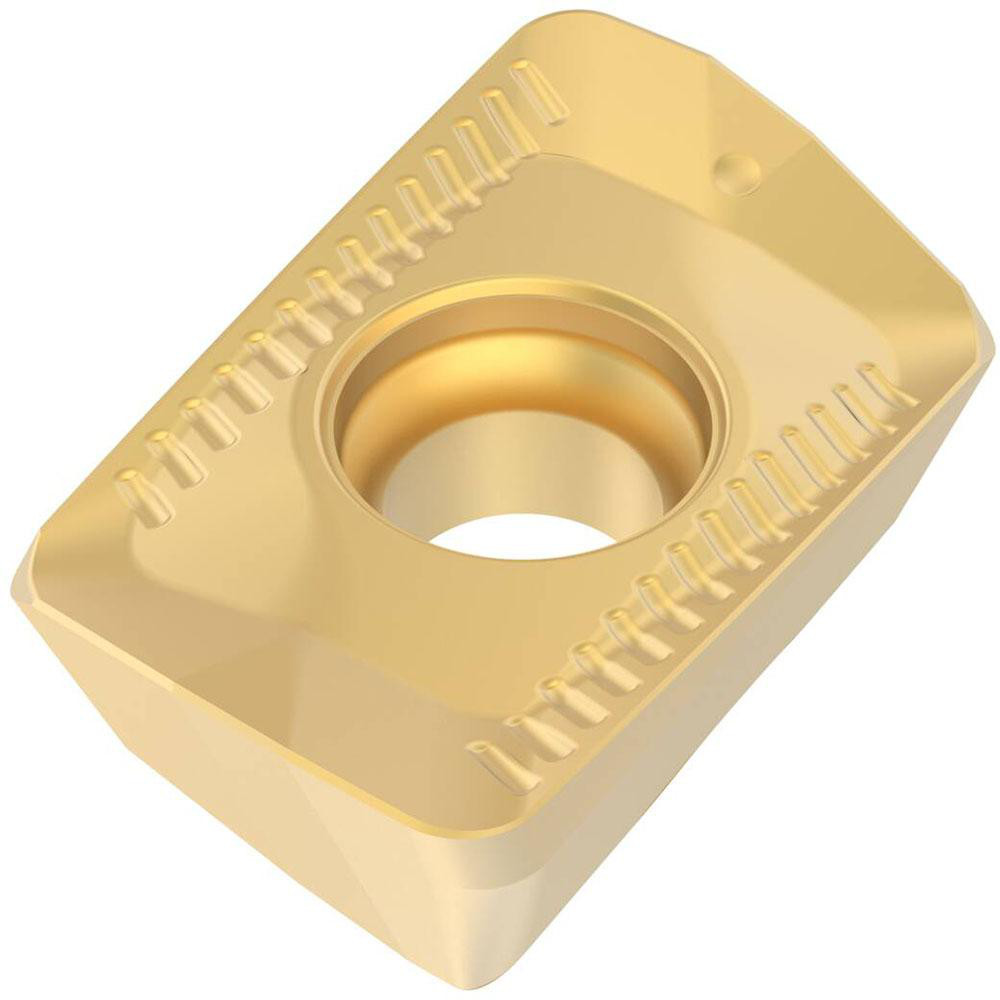

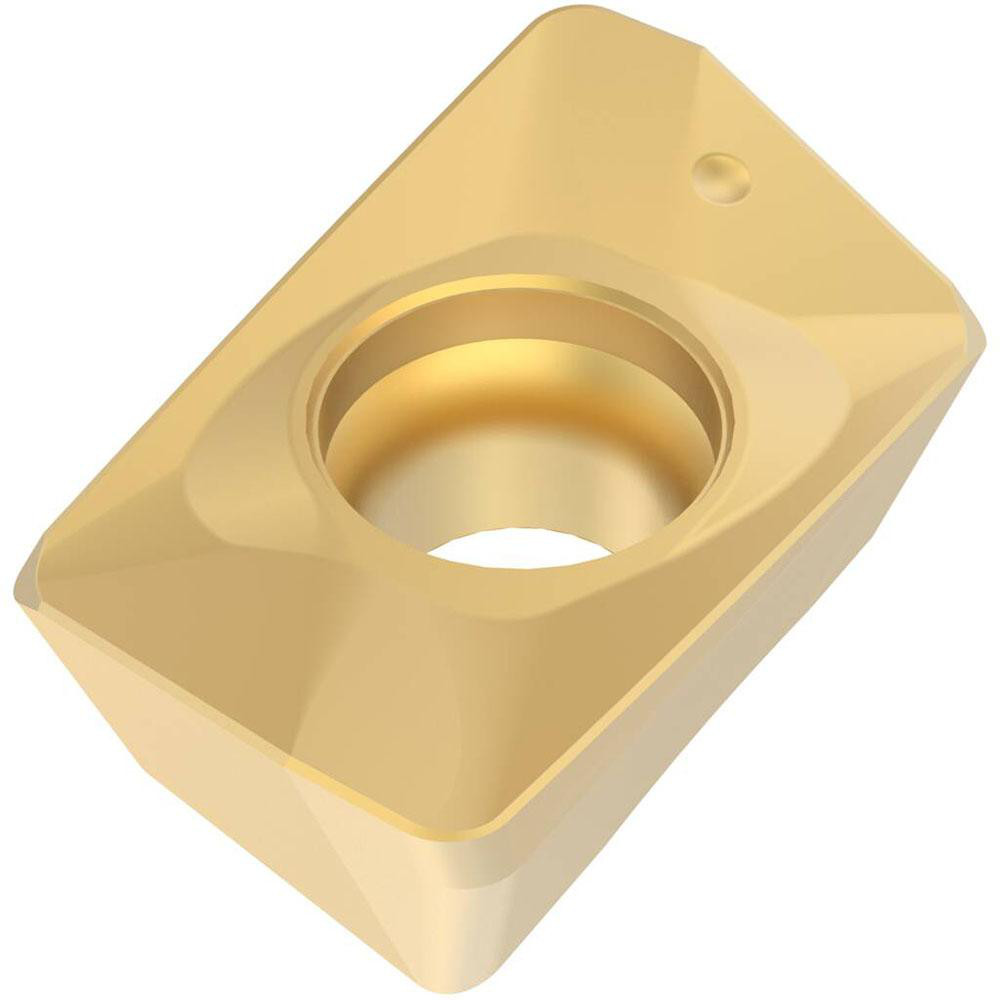

| Insert Compatibility | XO.X 1806.. |
| UNSPSC Code | 27112803 |
| ISO Number | R217.69-01.50-0-184LAN |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 83250654 |
