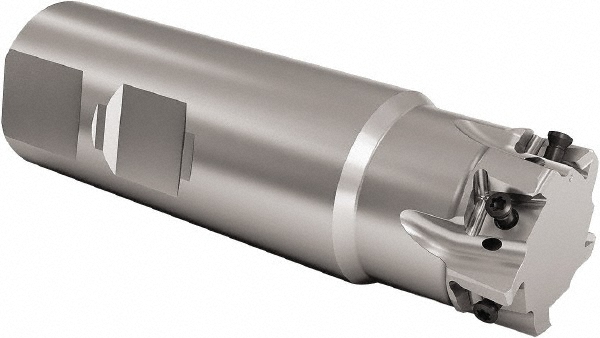

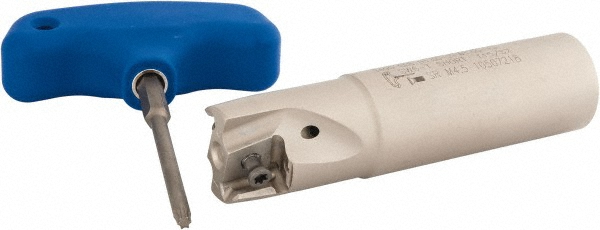

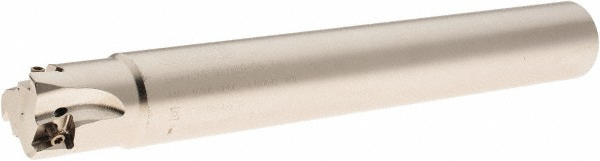

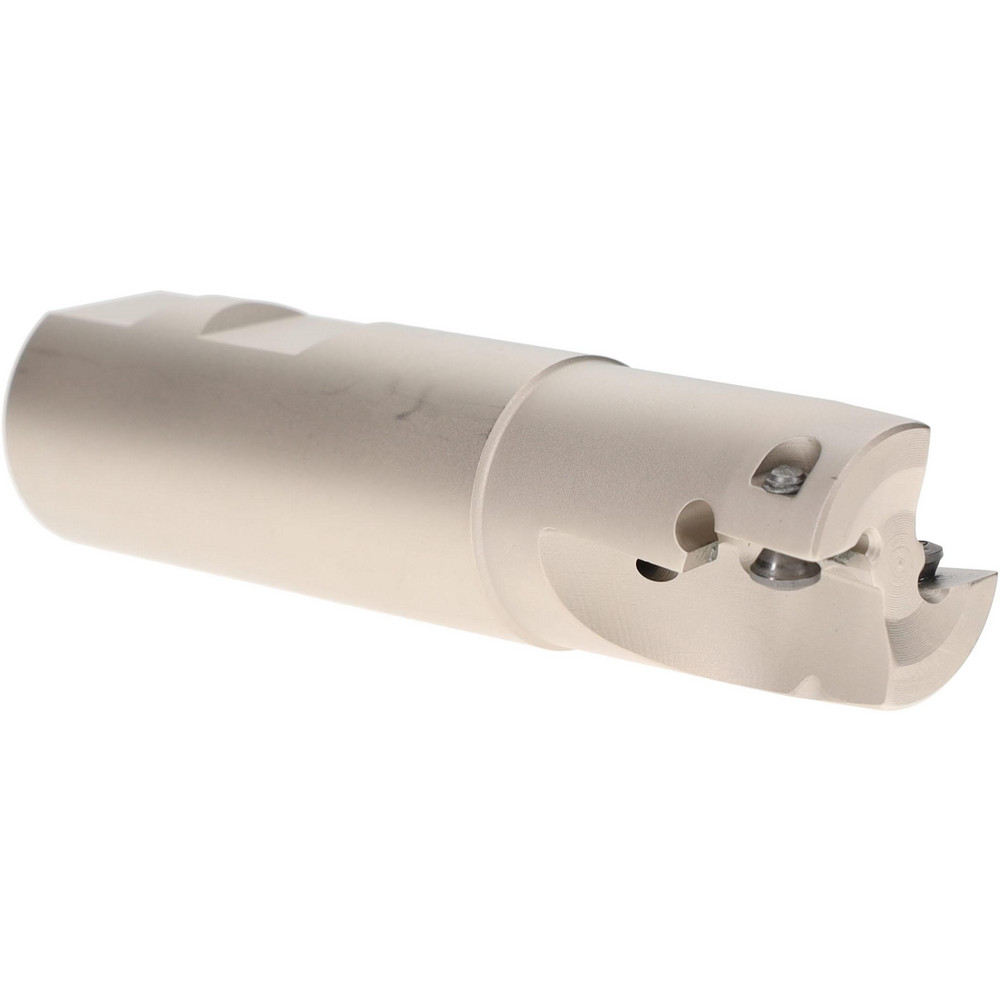

Uses (3) LOEX Inserts, Through Coolant, 4" OAL

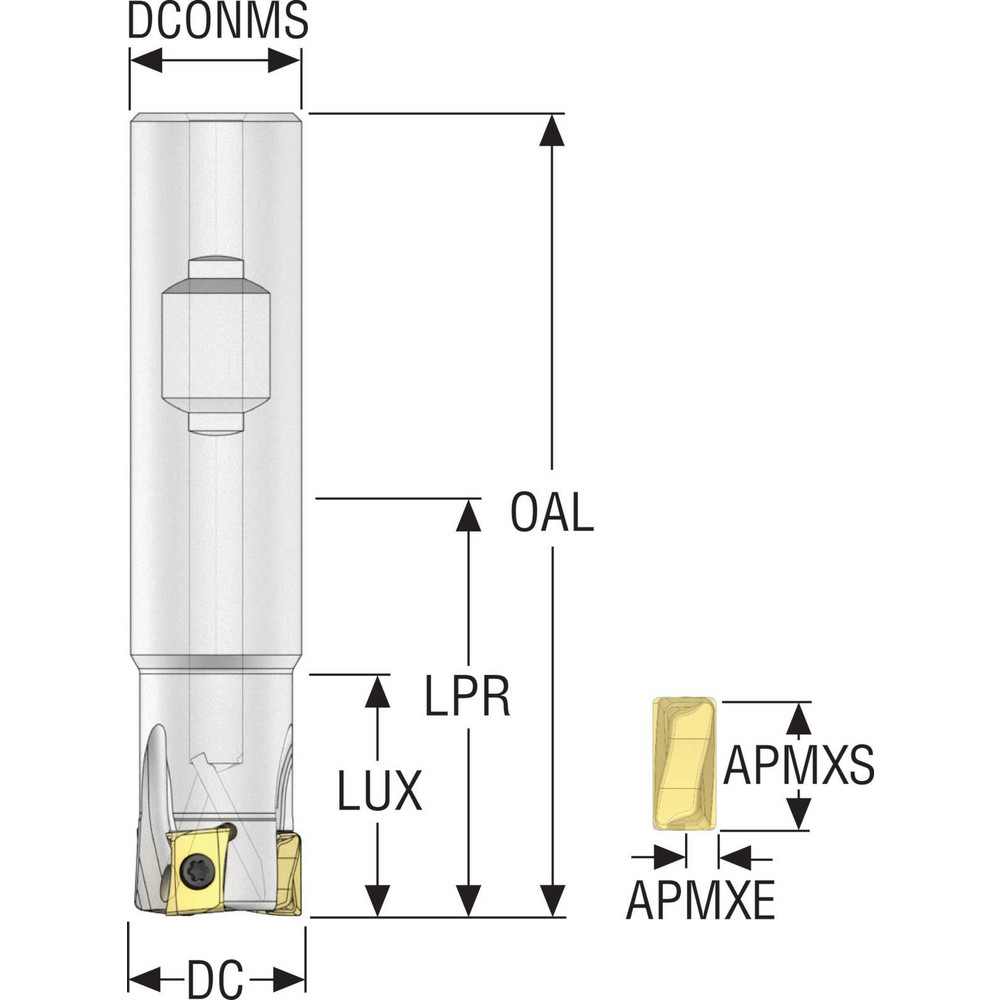

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutter Style | R217.94 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | Square T4-08 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.7950 |
| Shank Length (mm) | 71.00 |
| Head Length (Decimal Inch) | 1.137 |
| Maximum RPM | 16500 |
| Tool Application | Milling |
| Insert Compatibility | LOEX |
| UNSPSC Code | 27112803 |
| ISO Number | R217.94-01.00-3-08-3A |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.8580 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 42863175 |
