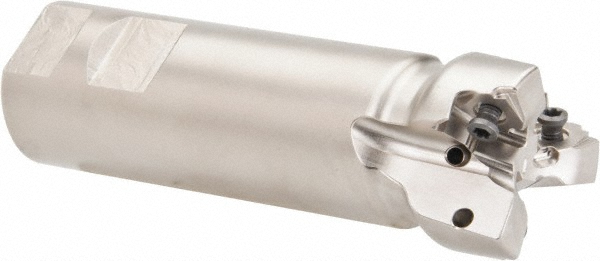

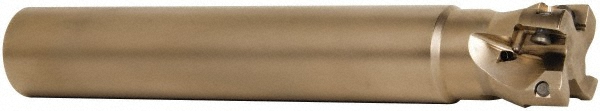

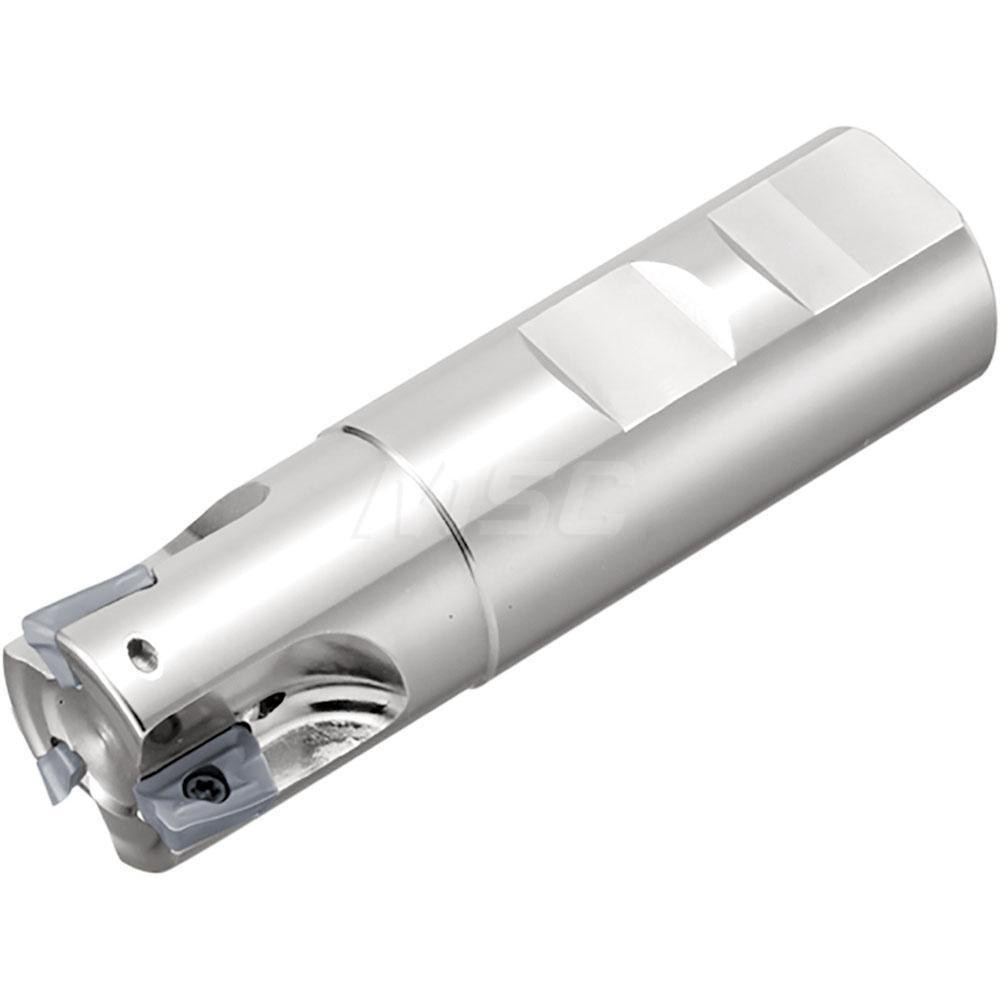

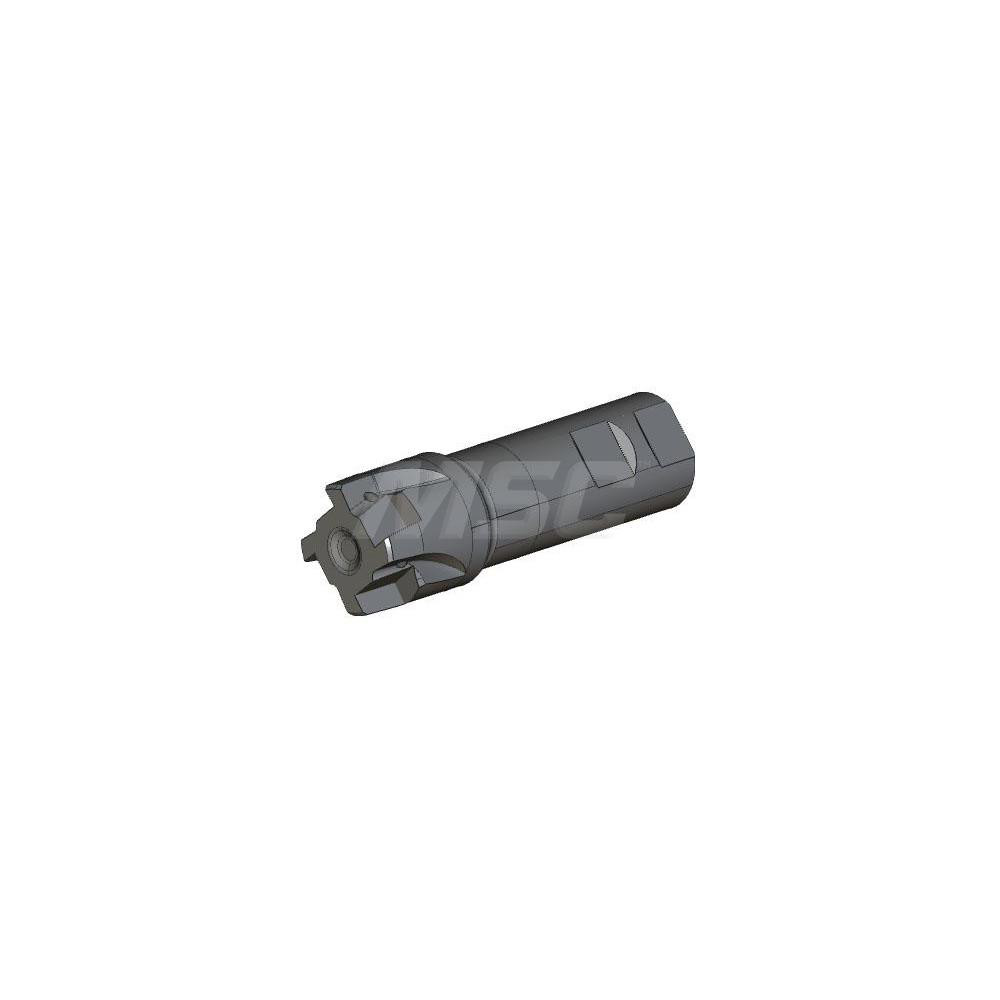

Uses (3) XNEX 0806.. Inserts, Through Coolant, 4-1/2" OAL
| Cutting Diameter | 1-1/2 |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Cutter Style | R217.96 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Series | Square 6 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.3500 |
| Head Length (Decimal Inch) | 1.15 |
| Maximum RPM | 11800 |
| Tool Application | Milling |

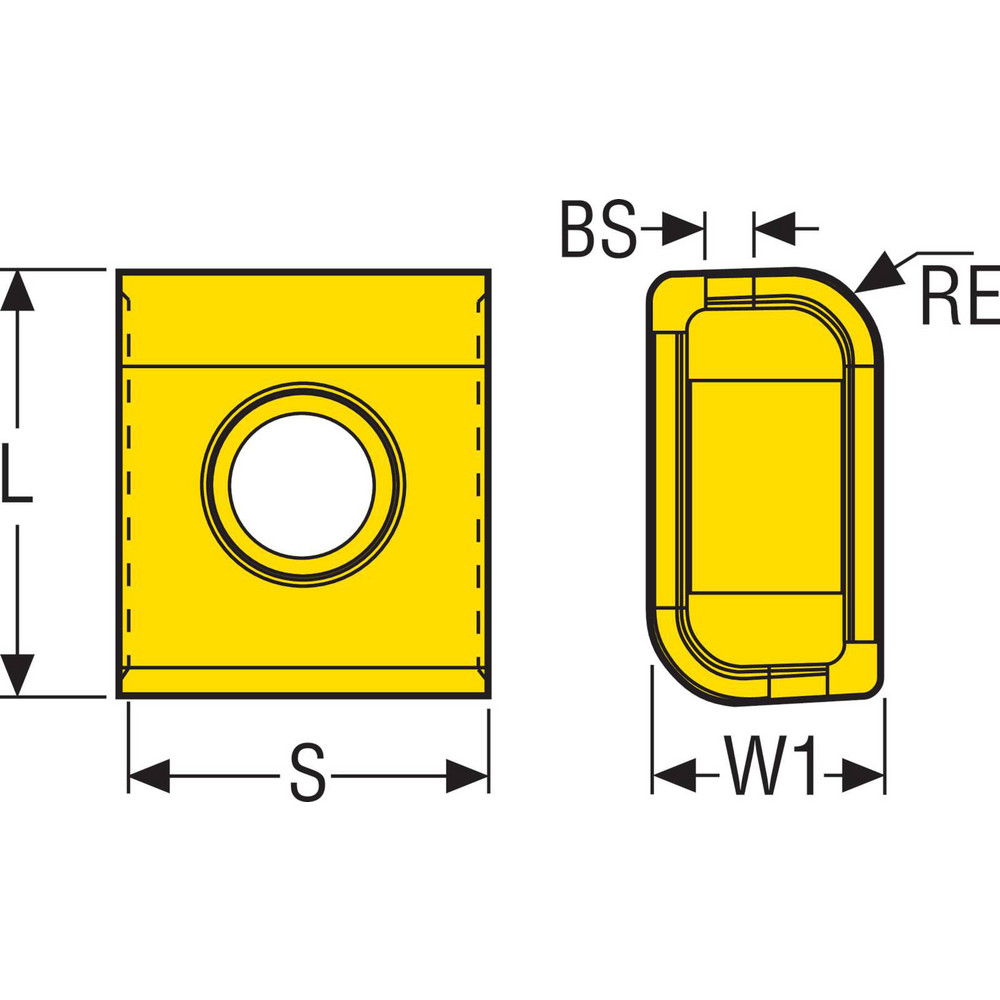

| Insert Compatibility | XNEX 0806.. |
| UNSPSC Code | 27112803 |
| ISO Number | R217.96-01.50-3-08-3A |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 3.3580 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 75790568 |
