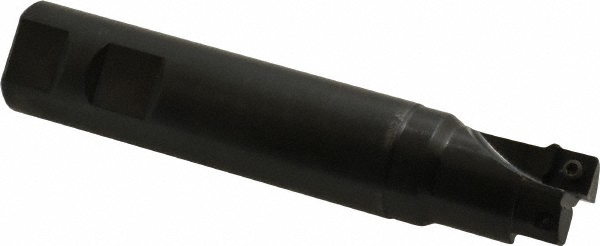

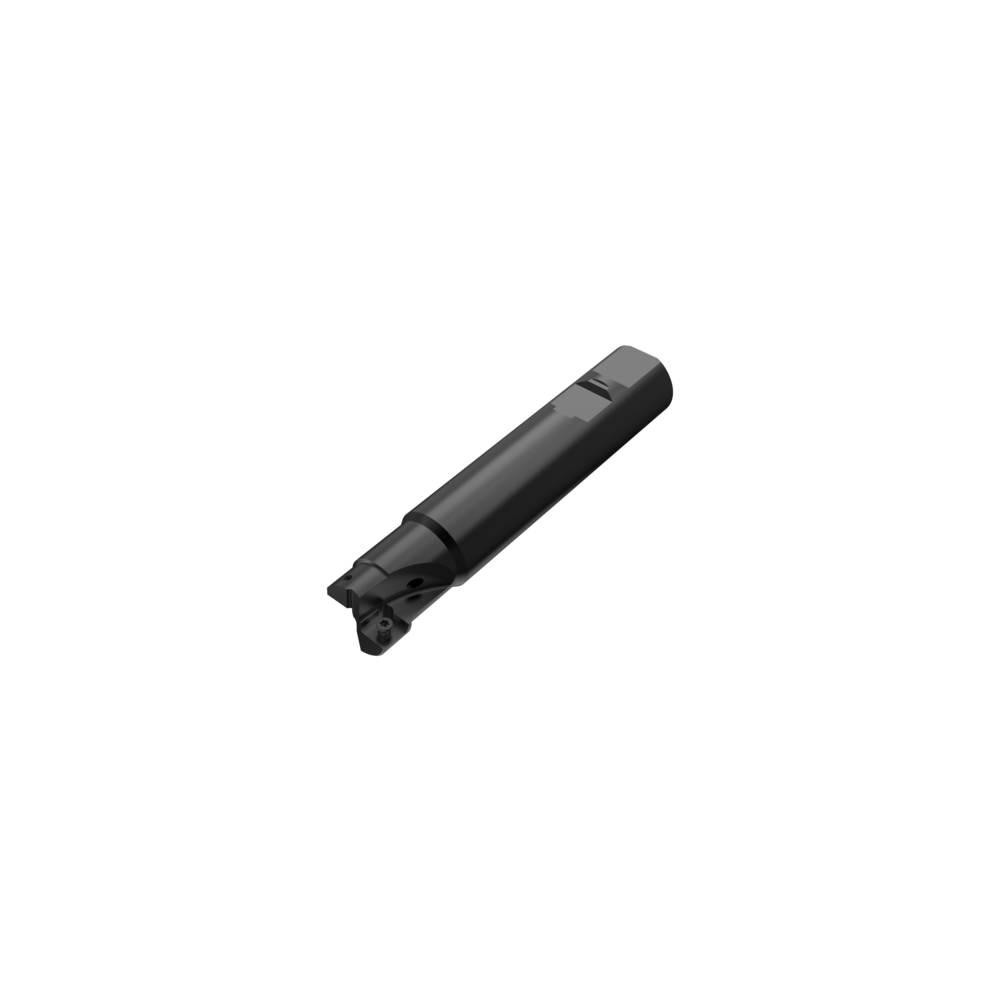

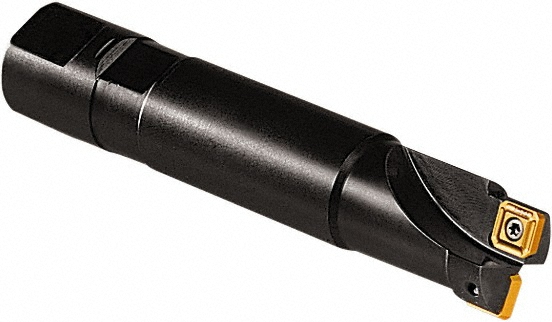

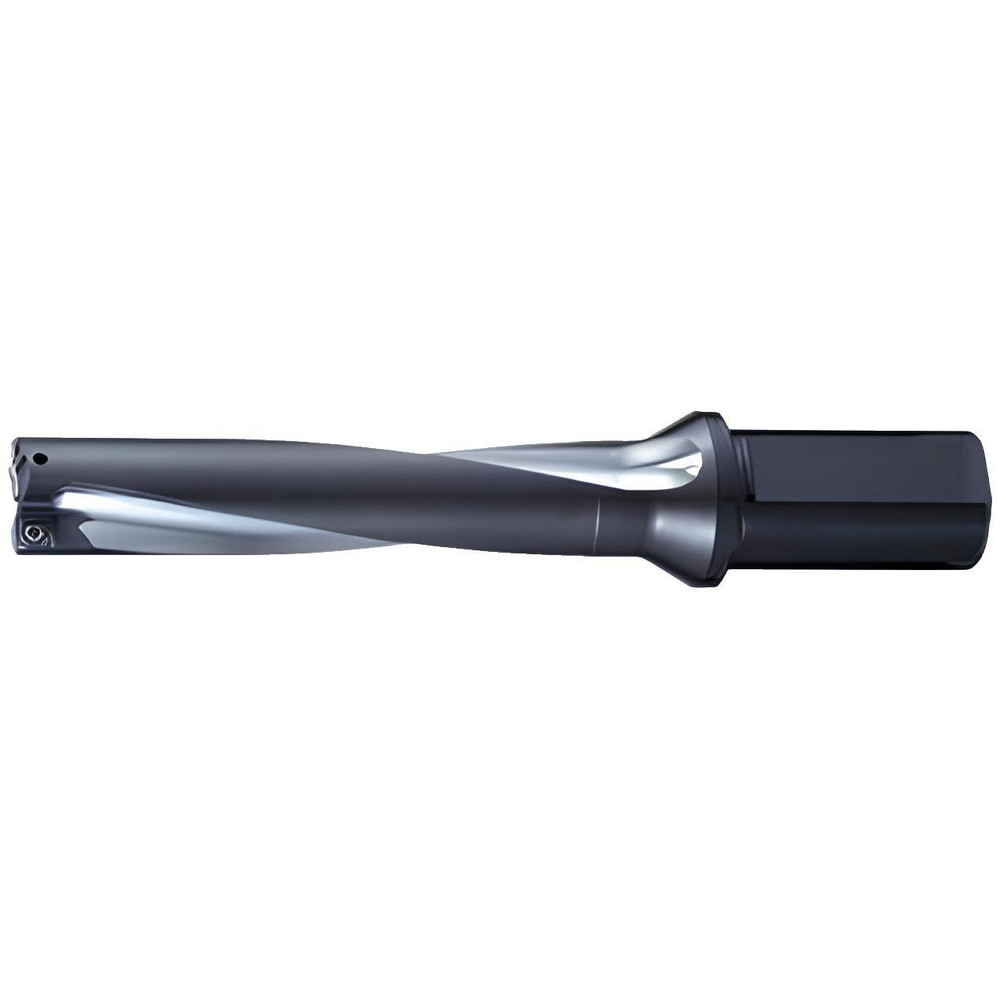

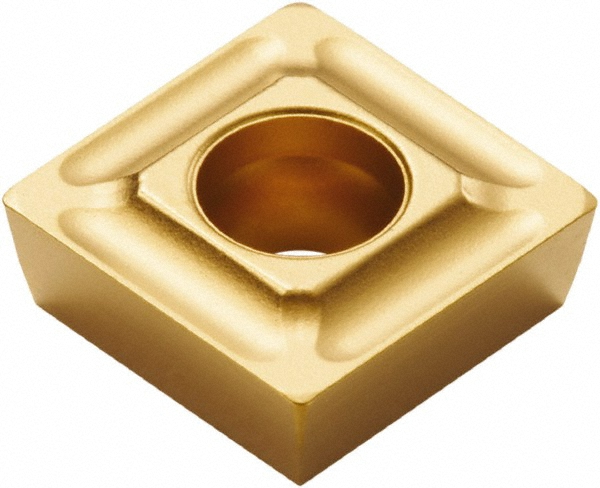

Uses (1) SPMX 0903 Insert, 5.12" OAL

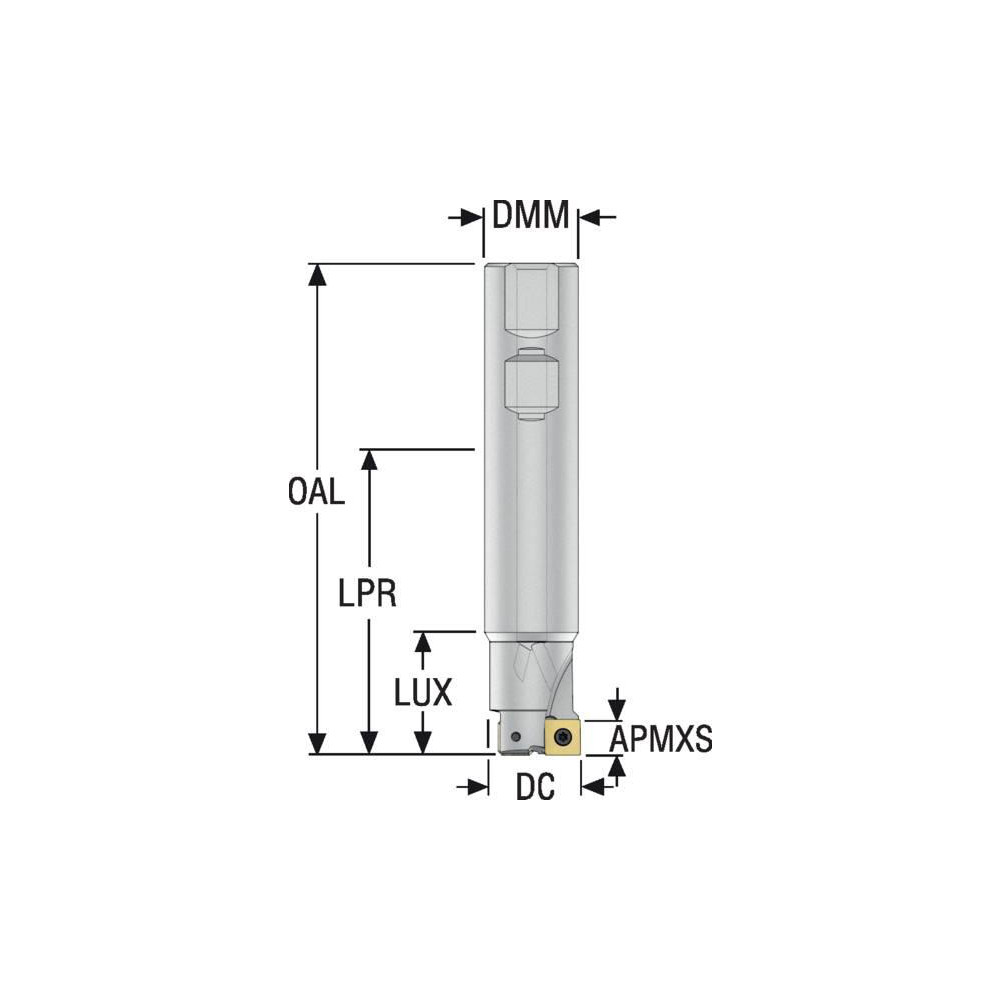

| Cutting Diameter | 1 |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Overall Length (Decimal Inch) | 5.1200 |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Cutter Style | R417.19 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.5400 |
| Maximum RPM | 22500 |
| Tool Application | Milling |

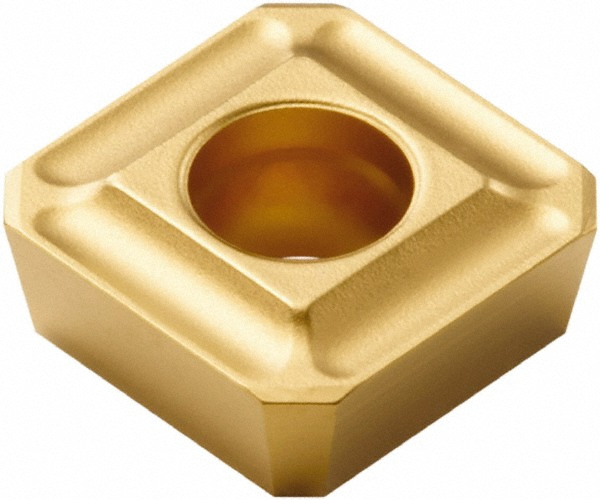

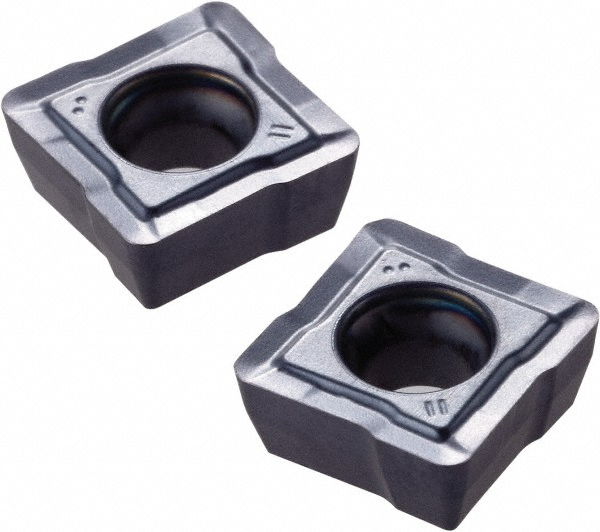

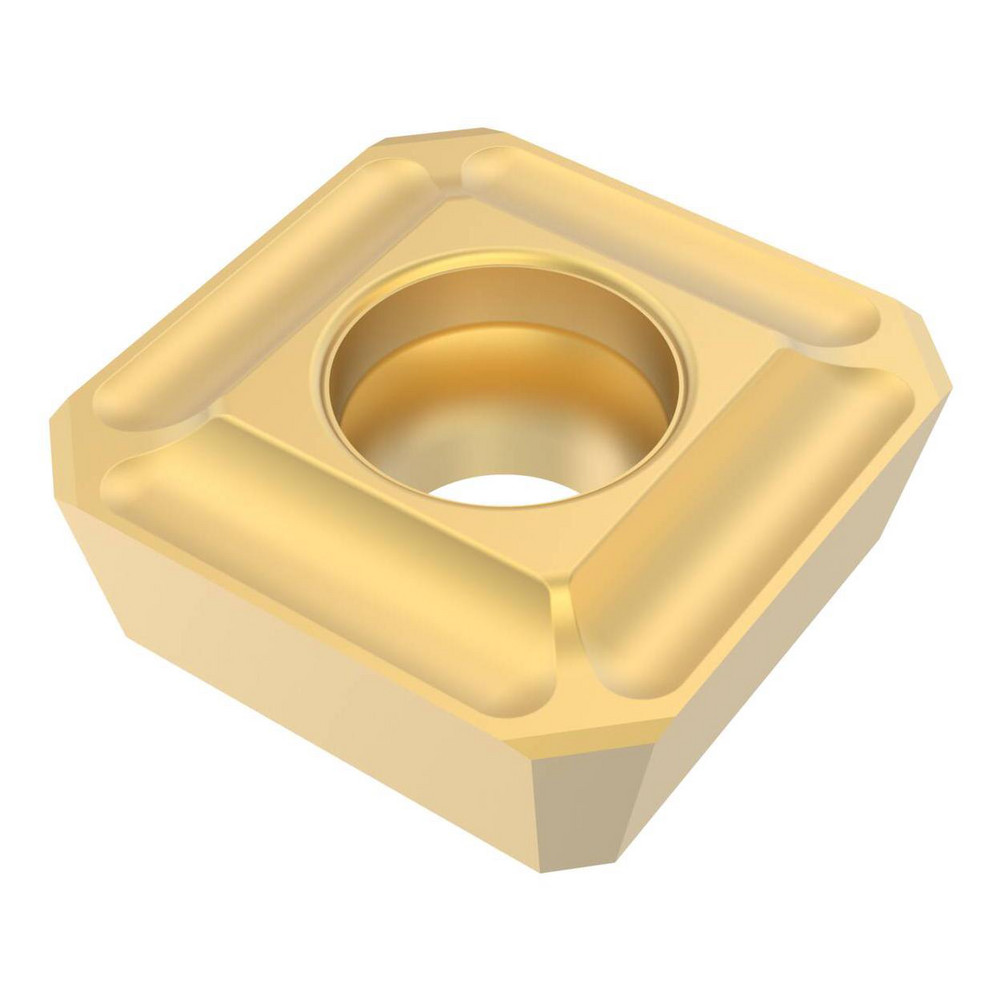

| Complete Insert Compatibility | APT; SPMX 090304; SPMX 0903AP |
| Insert Compatibility | SPMX 0903 |
| UNSPSC Code | 27112803 |
| ISO Number | R417.19-01.00-3 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | No |
| Country of Origin | China |
| MSC Number | MSC# 57062911 |
