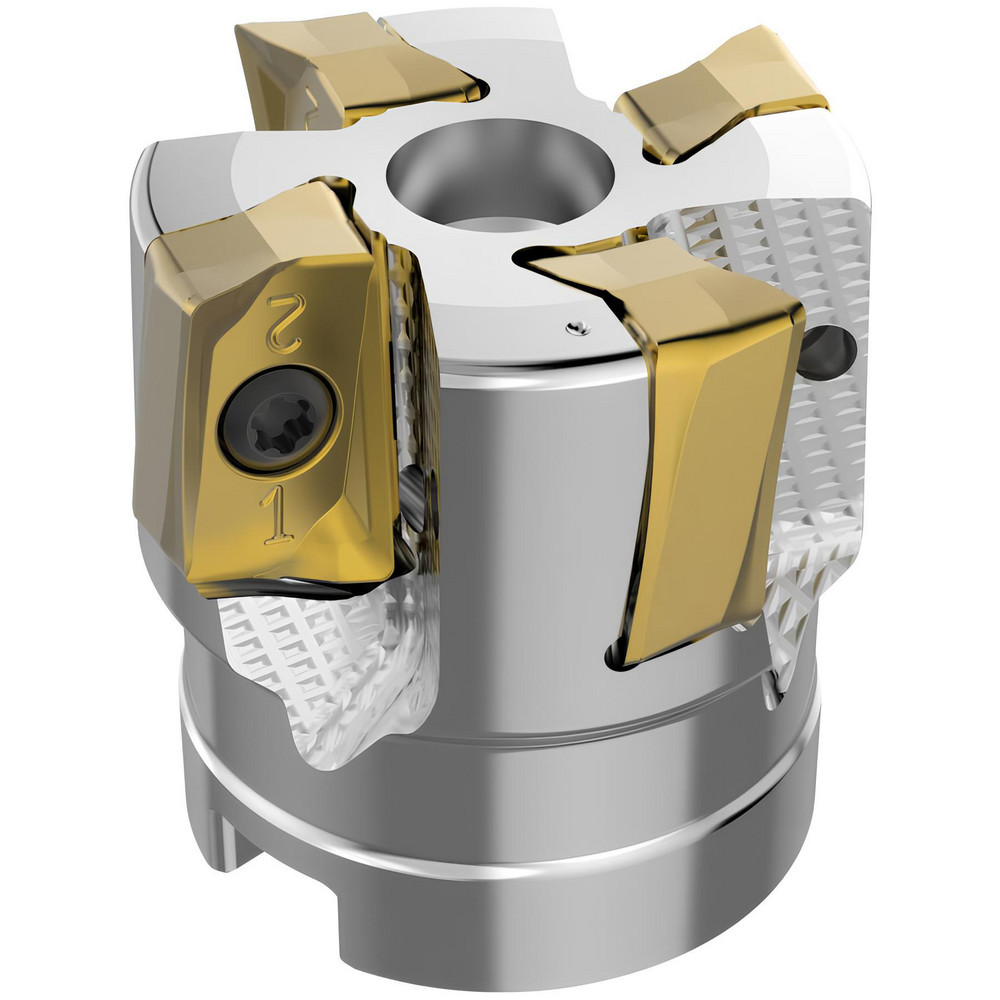

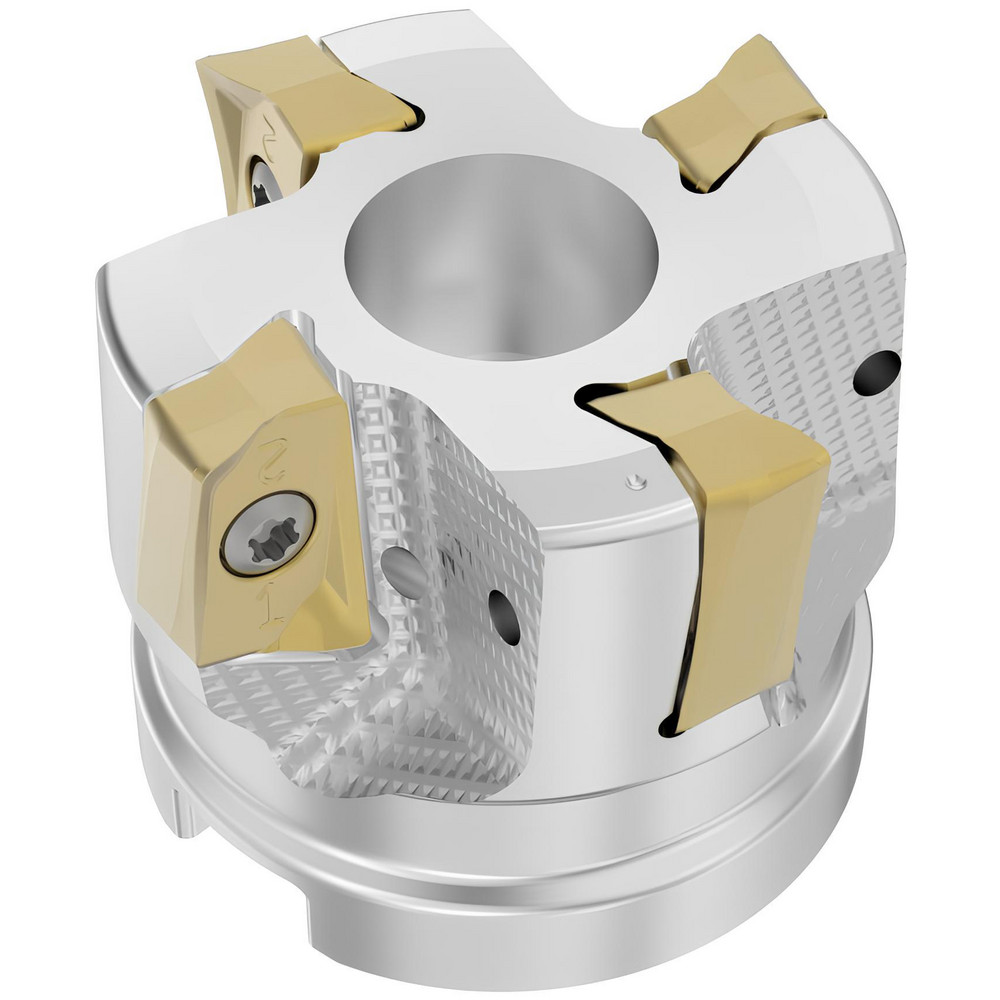

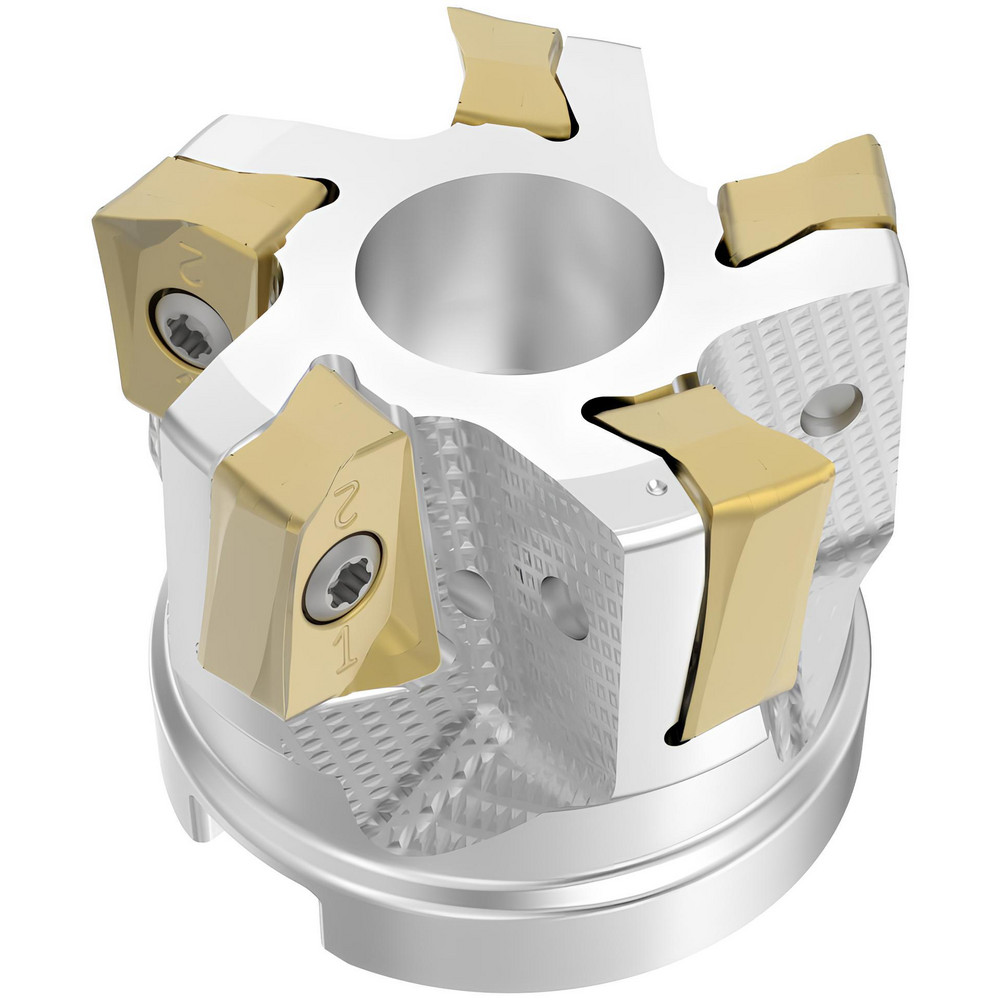

Uses 3 ZOMX1607 Inserts, Through Coolant, Series R220.64

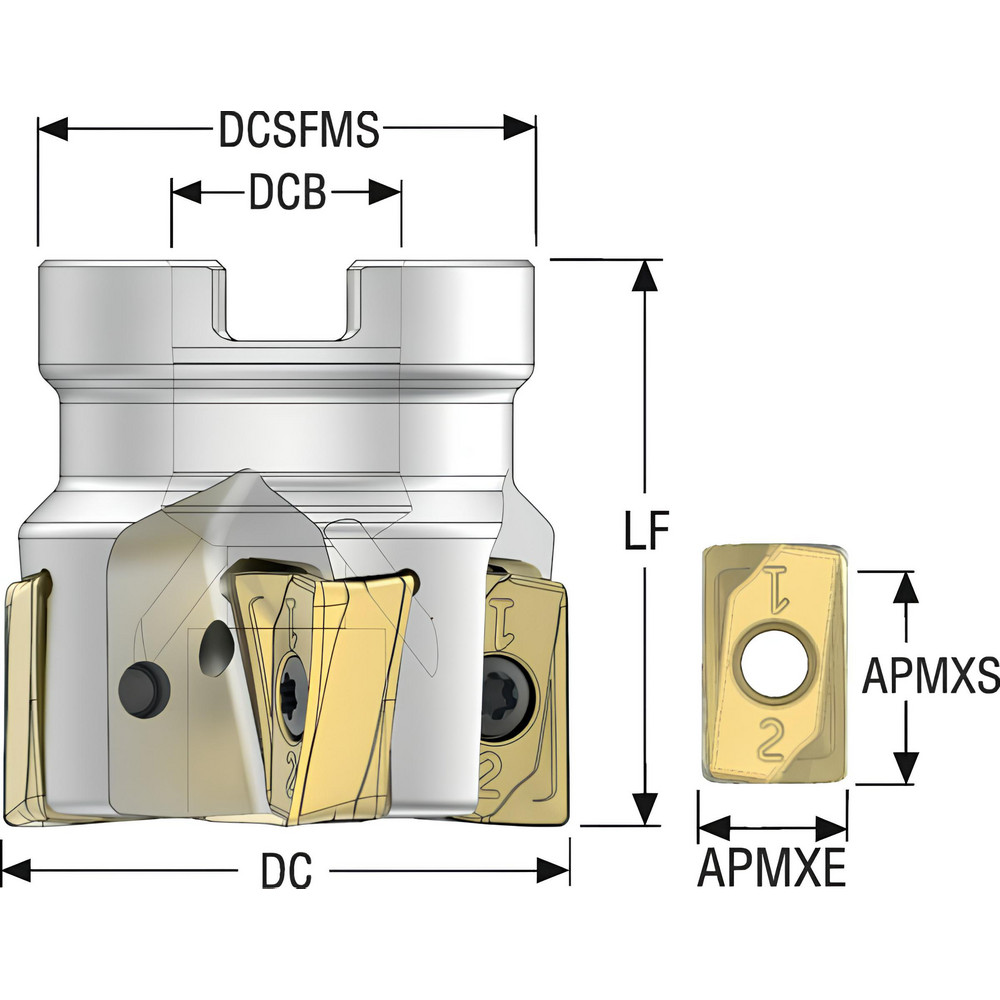

| Minimum Cutting Diameter (mm) | 40.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | ZOMX1607 |
| Cutter Style | R220.64 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | -20.60 |
| Series | R220.64 |
| Maximum Ramping Angle | 0.25 |
| Overall Height (Decimal Inch) | 40.00 |
| Keyway Width (mm) | 10.40 |
| Hub Diameter (mm) | 35.00 |
| Pitch Type | Medium |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Keyway Depth (mm) | 6.30 |
| Complete Insert Compatibility | ZOMX1607 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Stainless Steel |
| Manufacturers Catalog Number | R220.64-0040-ZO16-3A |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 40062911 |
