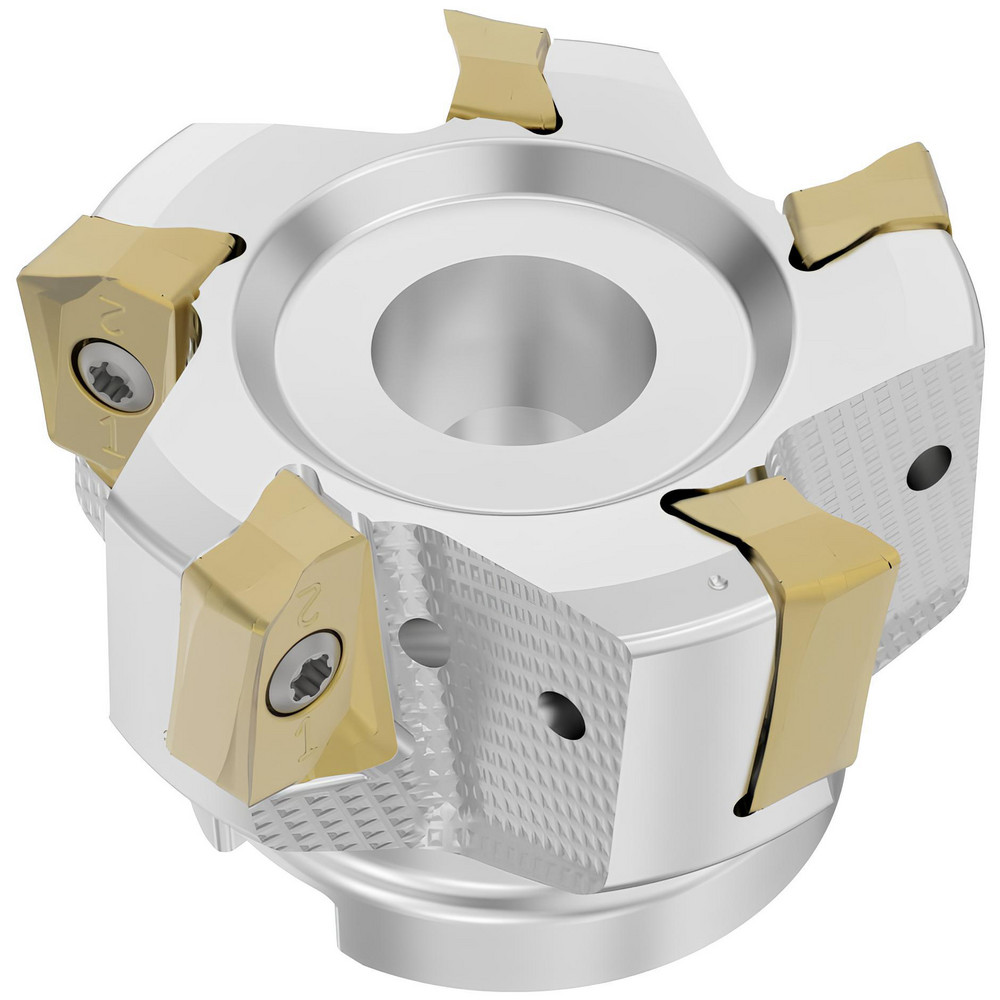

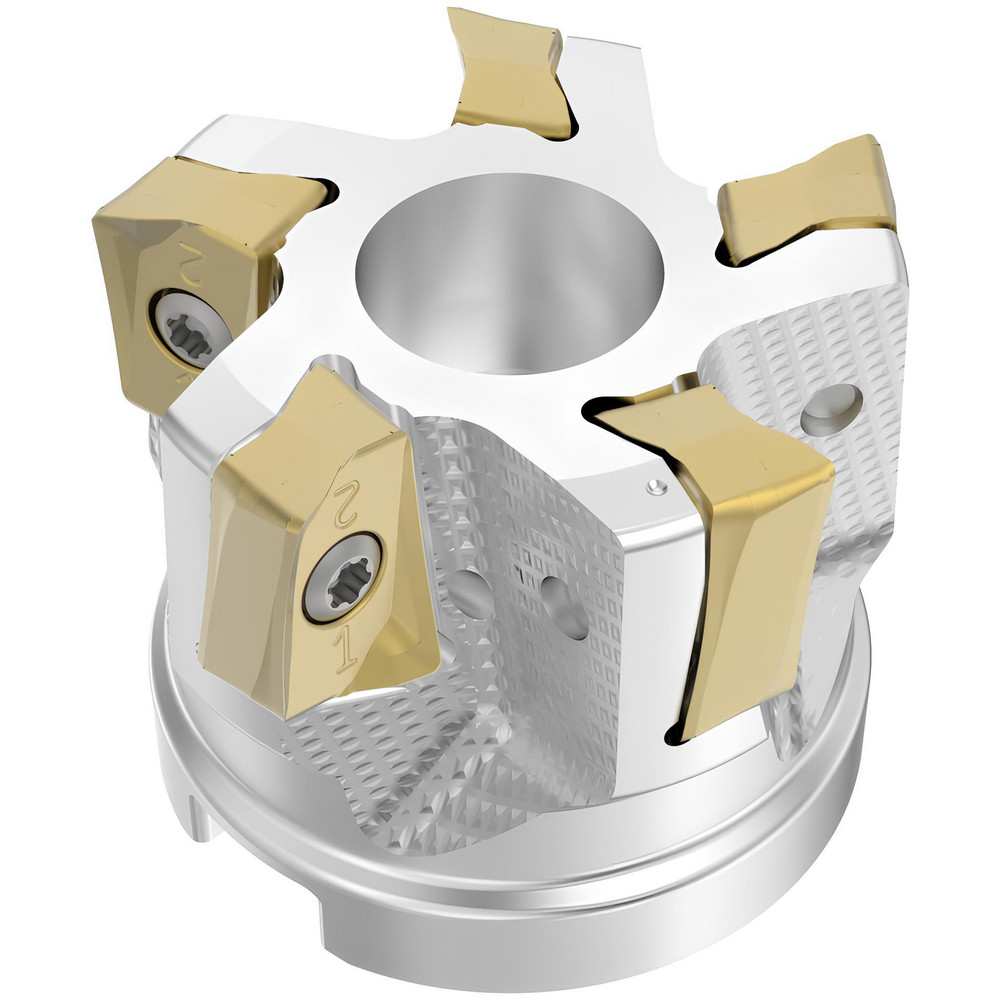

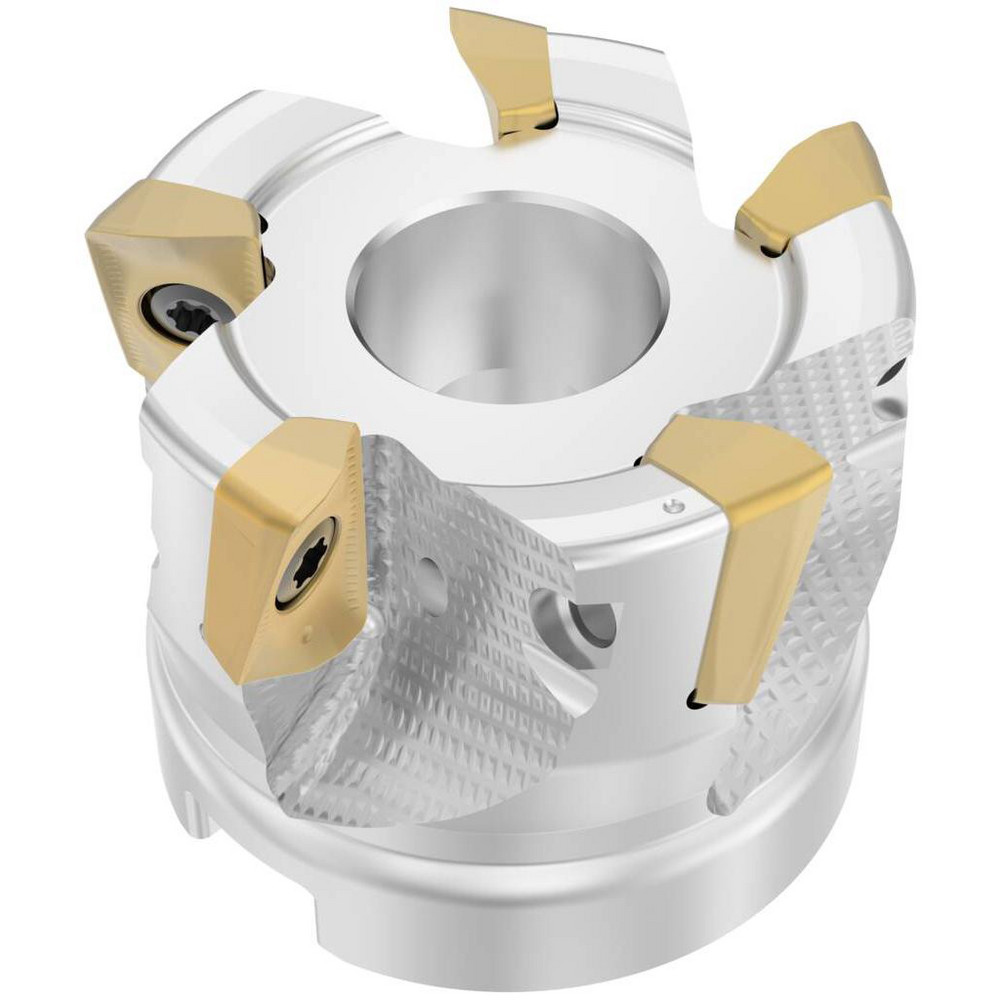

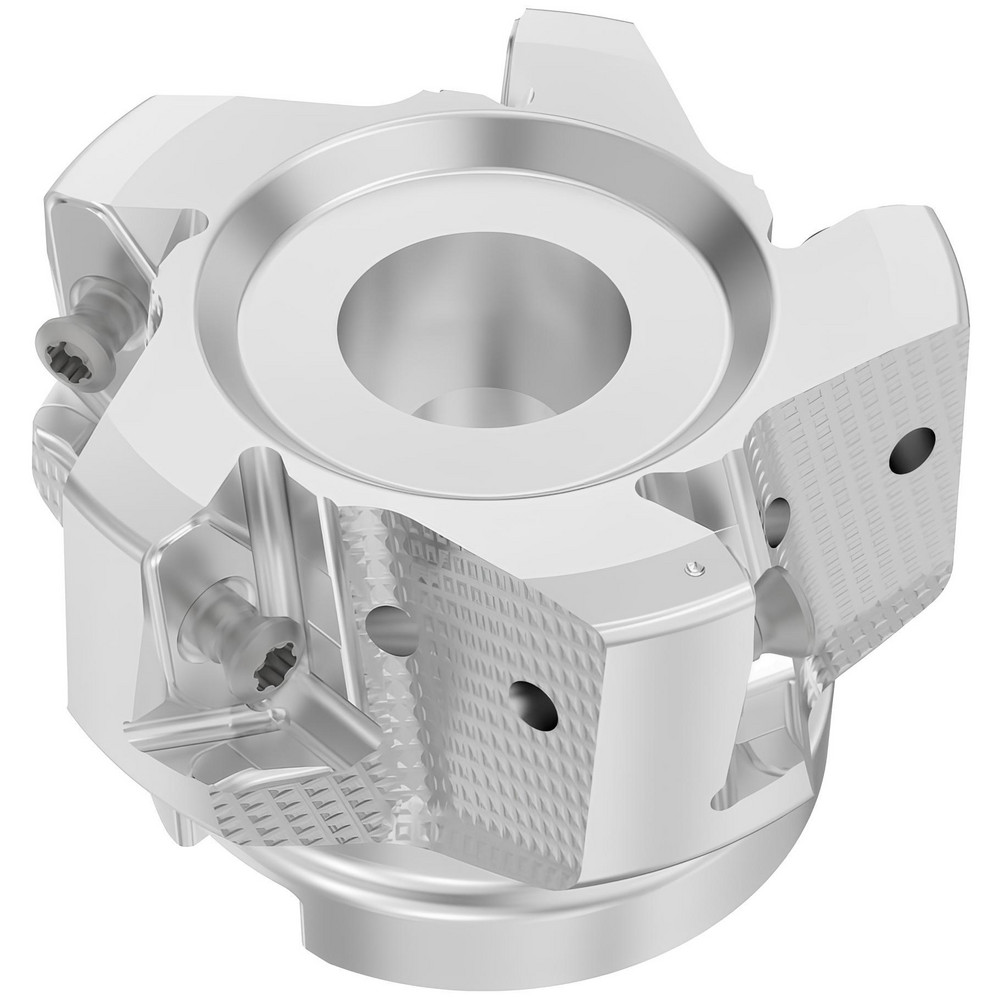

Uses 5, ZOMX16 Inserts, Through Coolant, Series R220.64

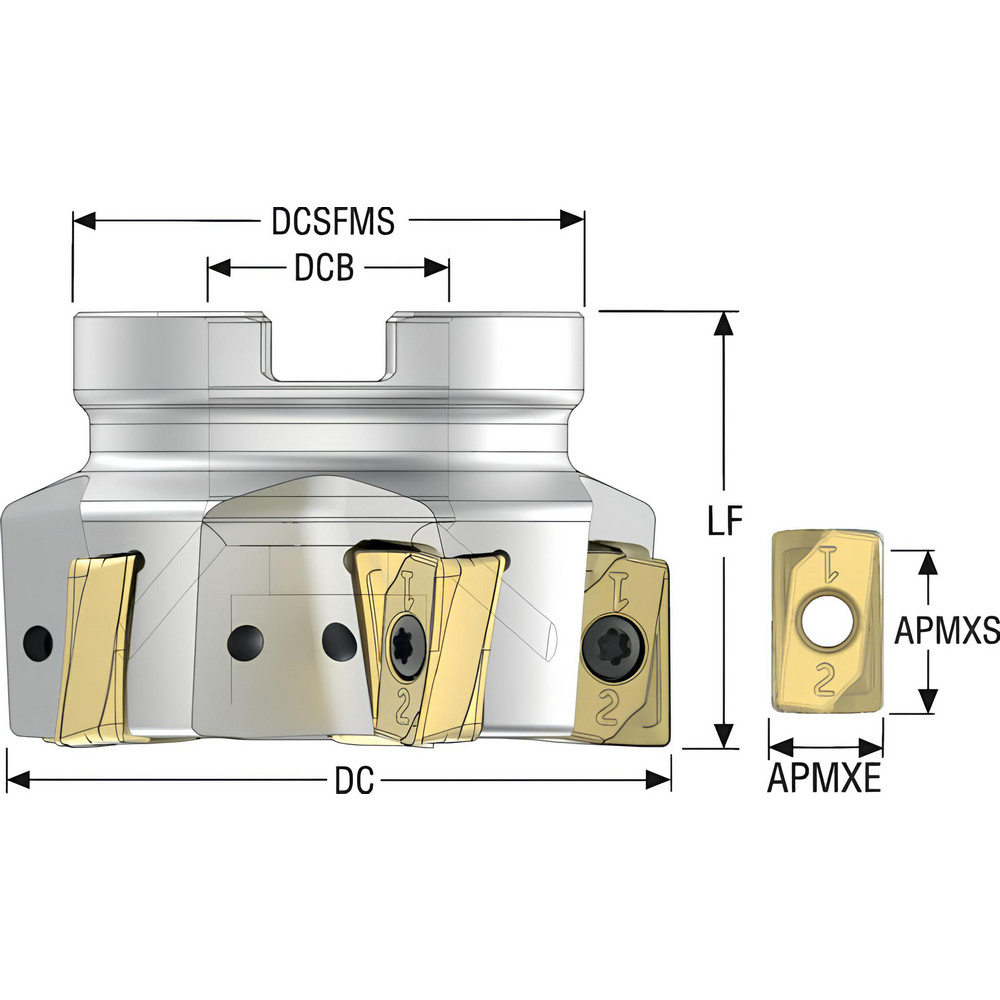

| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Compatible Insert Size Code | ZOMX16 |
| Cutter Style | R220.64 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R220.64 |
| Maximum Ramping Angle | 0.15 |
| Overall Height (Decimal Inch) | 40.00 |
| Keyway Width (mm) | 8.15 |
| Hub Diameter (mm) | 47.00 |
| Tool Application | Slotting |
| Cutting Edge Length (Decimal Inch) | 0.5910 |
| Minimum Insert Radius (Decimal Inch) | 0.0313 |
| Complete Insert Compatibility | ZOMX16 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Sweden |
| MSC Number | MSC# 18990887 |
