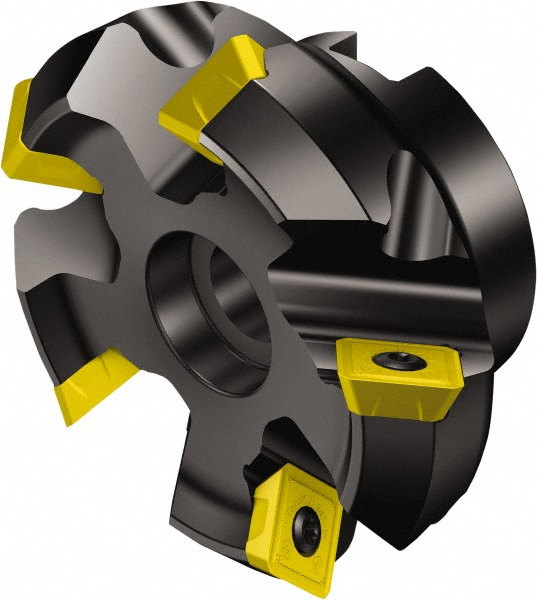

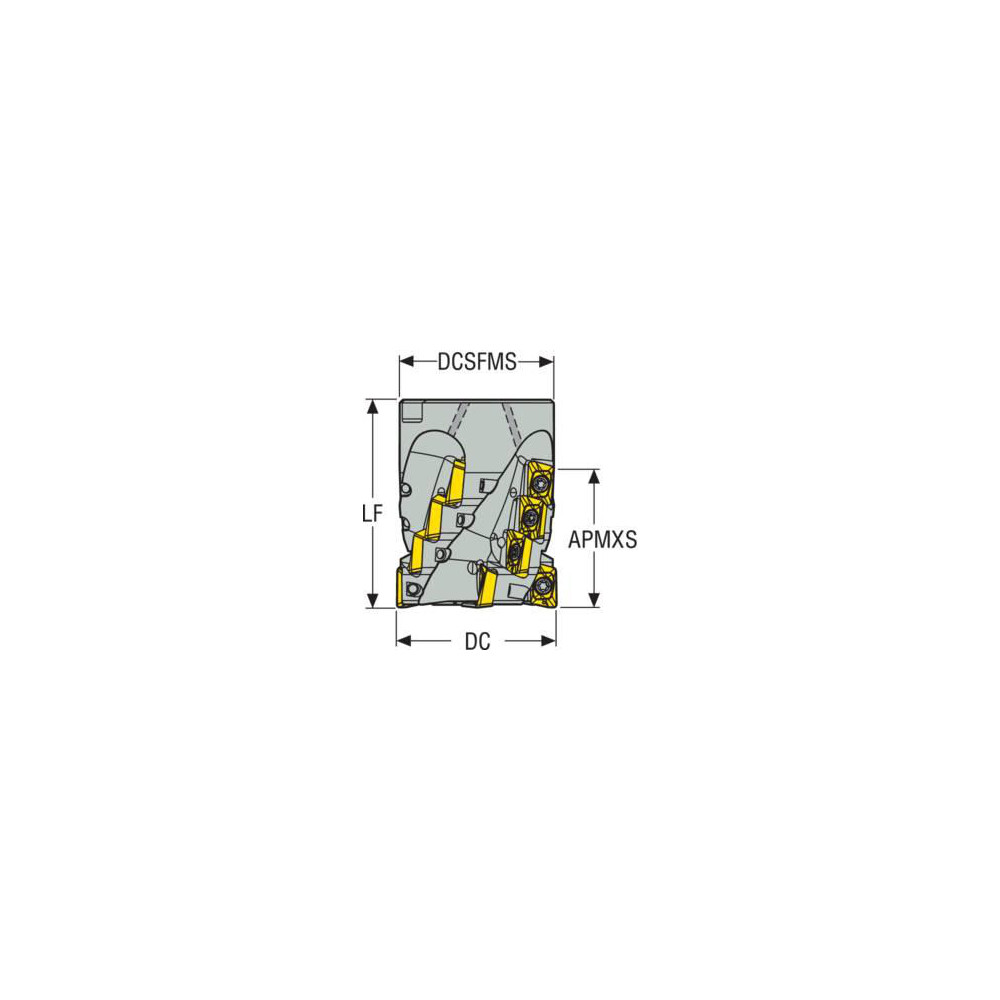

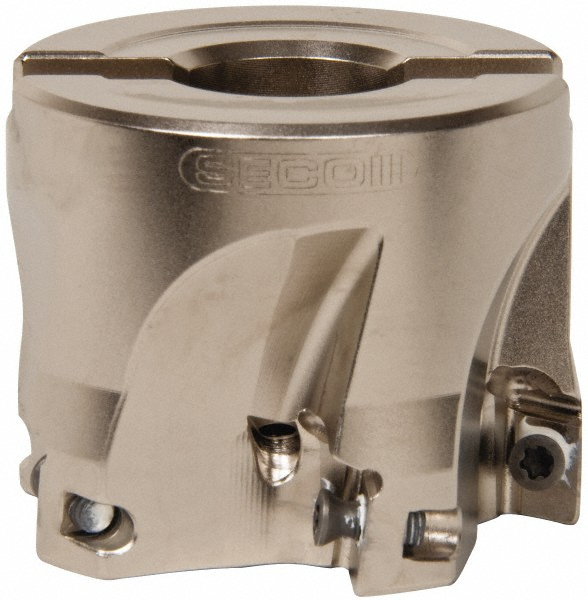

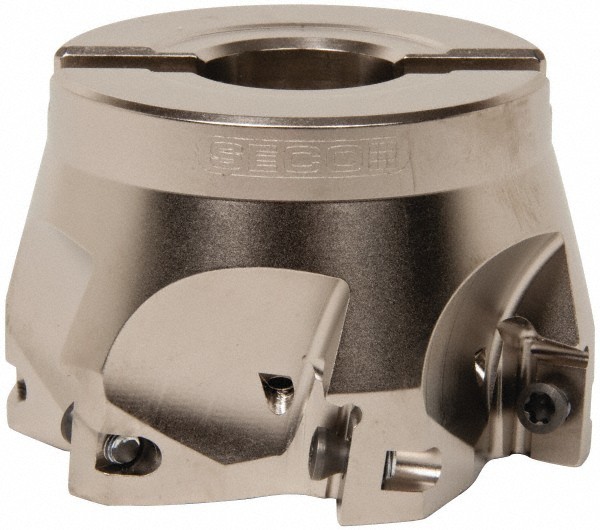

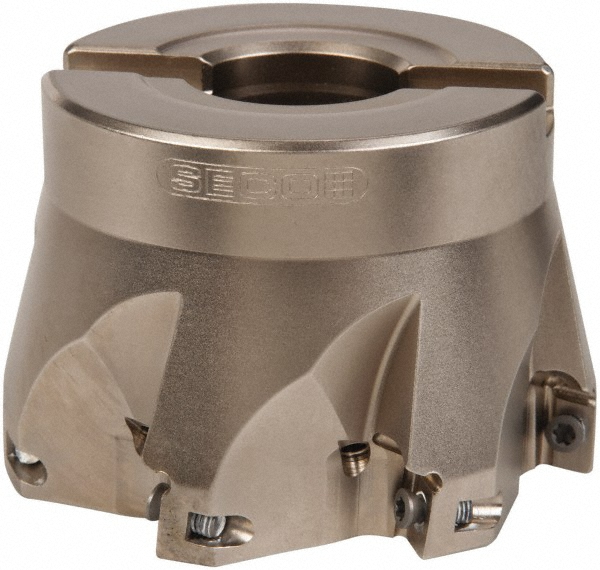

Uses 20 XO 1806 Inserts, Through Coolant, Series Power Turbo
| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.4800 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | XO 1806 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Rake | Negative |
| Rake Angle | -4.00 |
| Series | Power Turbo |
| Maximum Ramping Angle | 1.60 |
| Overall Height (Decimal Inch) | 3.5000 |
| Keyway Width (Decimal Inch) | 0.5100 |
| Hub Diameter (mm) | 73.40 |
| Pitch Type | Fine |
| Tool Application | Helical Interpolation; Ramping; Slotting |
| Cutting Edge Length (Decimal Inch) | 2.4800 |
| Counterbore Diameter (Decimal Inch) | 0.5100 |
| Complete Insert Compatibility | XOEX 180604FR-E10; XOEX 180608FR-E10; XOMX 180608TR-D16; XOEX 180663FR-E10; XOMX 180608TR-M14; XOMX 180608R-M10; XOMX 180604TR-ME13; XOEX 180616FR-E10; XOEX 180624FR-E10; XOEX 180640FR-E10; XOMX 180604R-M10; XOEX 180650FR-E10; XOEX 180631FR-E10; XOEX 180620FR-E10 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.69-03.00-18M5AN |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 20 |
| Number Of Flutes | 5 |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 74157686 |
