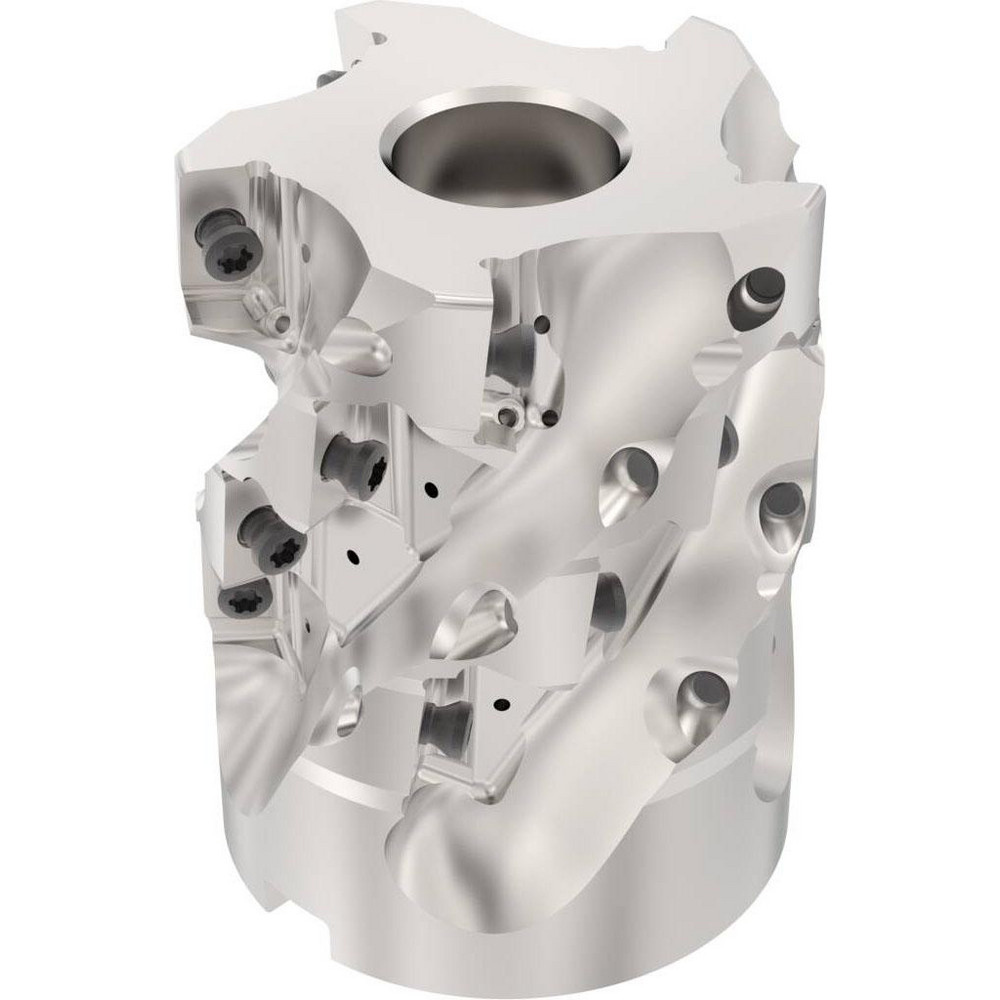

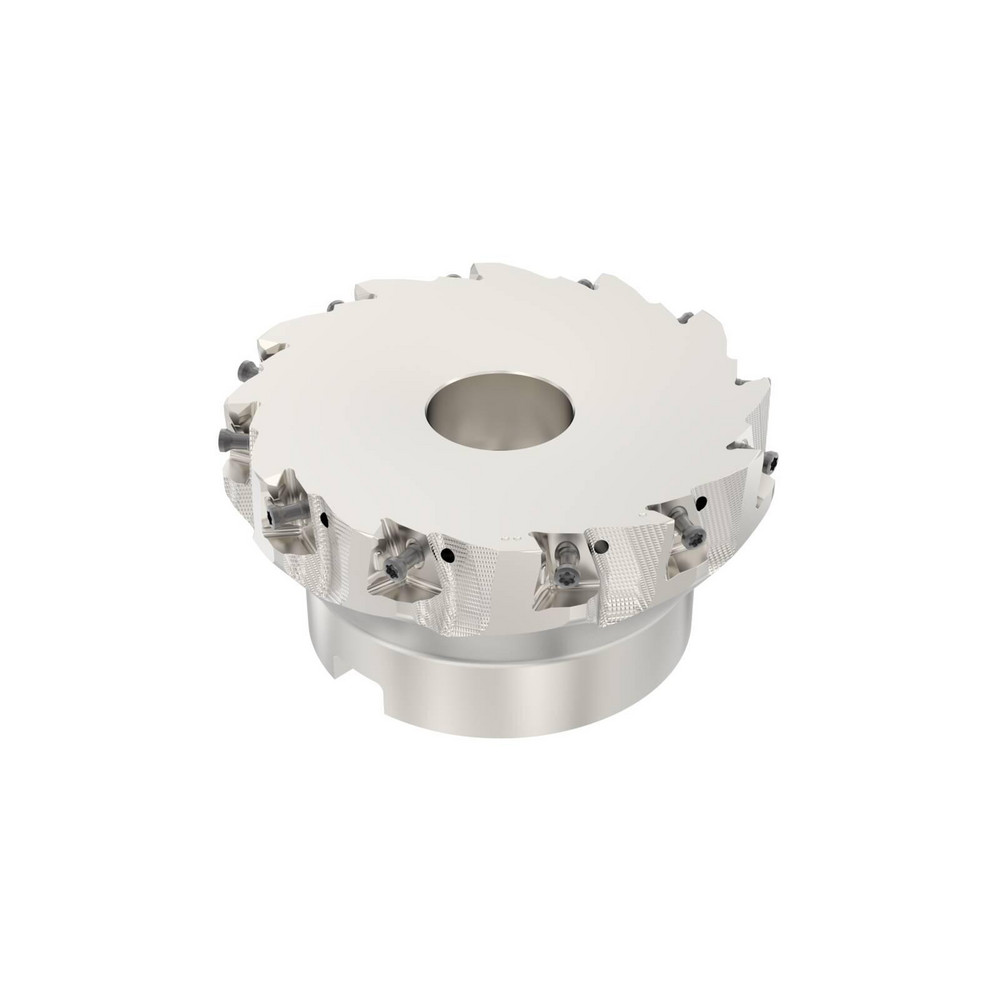

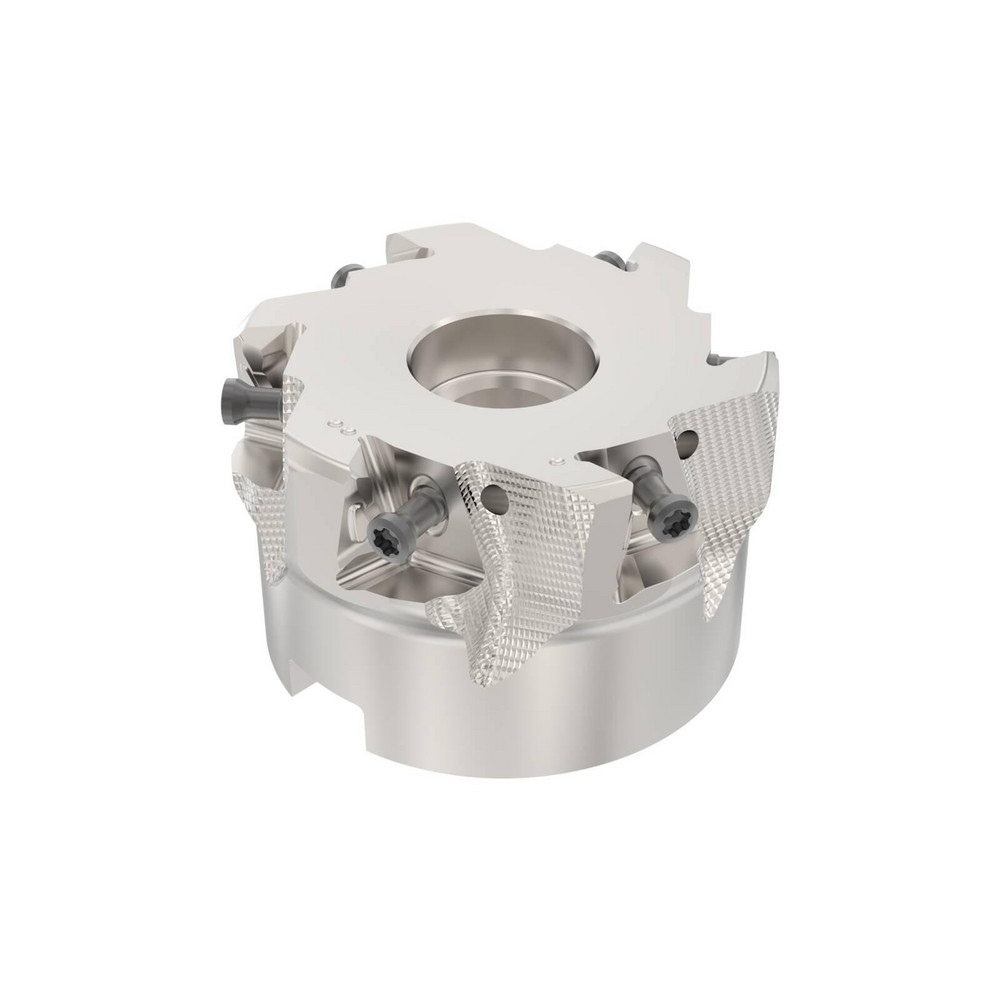

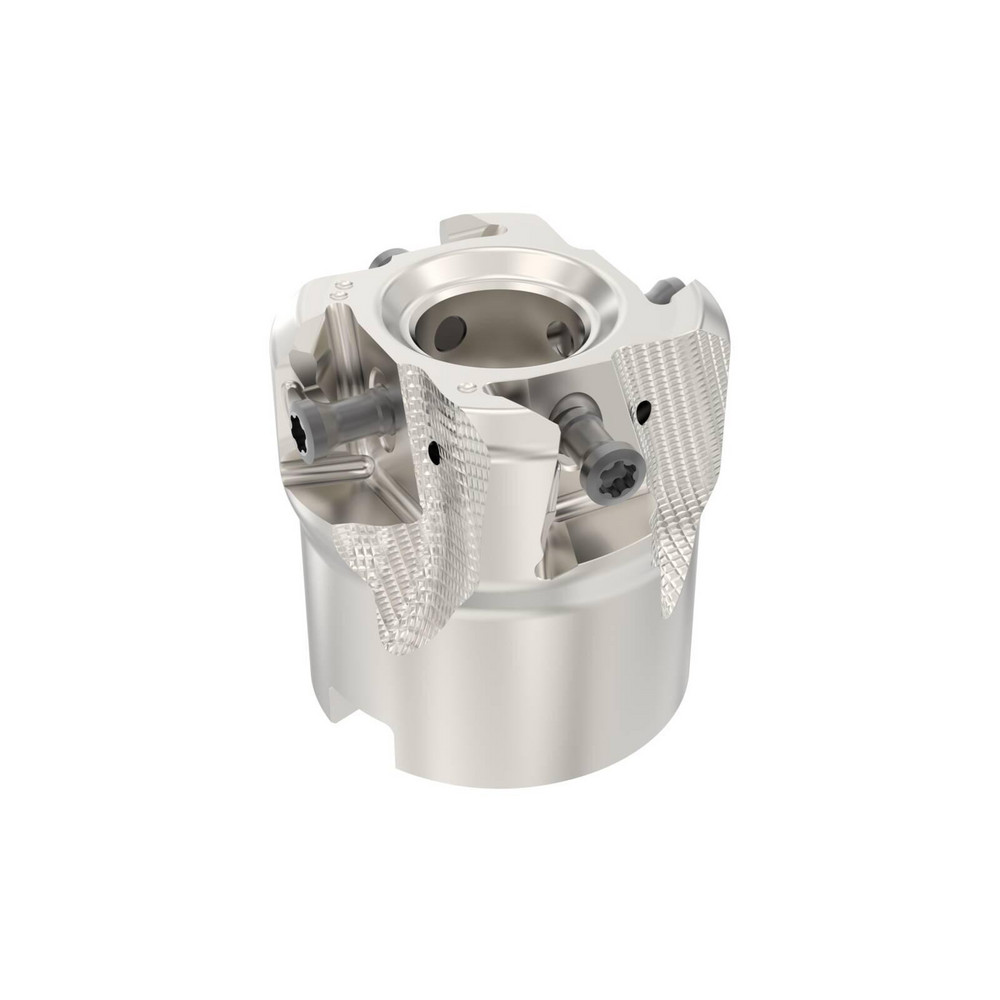

Uses 28 1207.. Inserts, Through Coolant, Series R220.94
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 3.1890 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 1207.. |
| Cutter Style | R220.94 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R220.94 |
| Maximum Ramping Angle | 0 |
| Maximum Body Diameter (Decimal Inch) | 2.5000 |
| Overall Height (Decimal Inch) | 3.6614 |
| Keyway Width (Decimal Inch) | 0.3819 |
| Hub Diameter (Decimal Inch) | 2.3661 |
| Pitch Type | Close |
| Maximum RPM | 8800.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Number of Adjustable Pockets | 0 |
| Cutting Edge Length (Decimal Inch) | 0.4720 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | LOEX1207 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 10215192 |
| Maximum Insert Radius (Decimal Inch) | 0.2480 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 28 |
| Number Of Flutes | 4 |
| Country of Origin | France |
| MSC Number | MSC# 87539904 |
