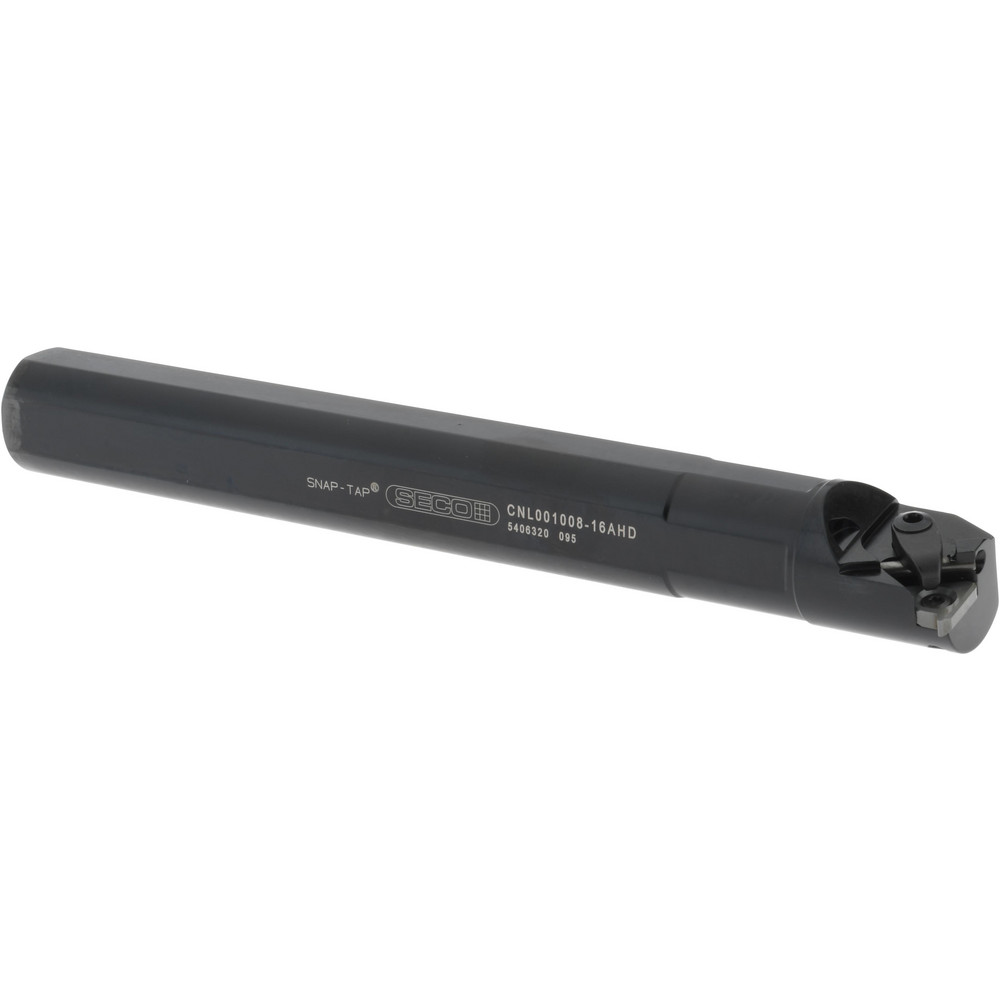

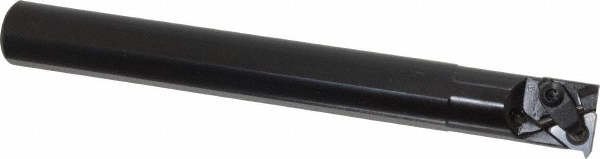

Steel, 35.56 mm Min Bore Dia, 3/8" Insert Inscribed Circle
| Thread Type | Internal |
|---|---|
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2090 |
| Compatible Insert Size Code | 1.5 |
| Toolholder Style | CN |
| Insert Compatibility | 16NL |
| Coolant Entry Style Code | 1 - Axial Concentric Entry |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 1.1500 |
| Shank Length (mm) | 204.00 |
| Shank Length (Decimal Inch) | 8.0320 |
| Overall Length (Inch) | 10 |
| Minimum Bore Diameter (Decimal Inch) | 1.4000 |
| Minimum Bore Diameter (mm) | 35.56 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Turning; Threading |
| Head Length (Decimal Inch) | 1.8110 |
| Head Length (mm) | 46.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.4000 |
| Center to Cutting Edge (Decimal Inch) | 0.7800 |
| Insert Inscribed Circle (Inch) | 3/8 |
| UNSPSC Code | 23291800 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Series | Snap Tap |
| Country of Origin | India |
| MSC Number | MSC# 65984932 |
