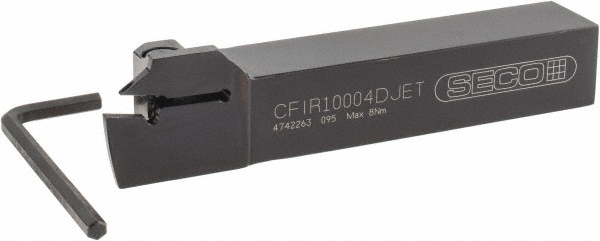

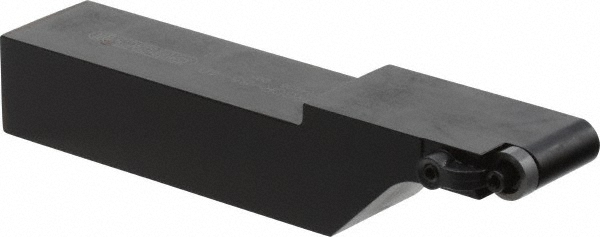

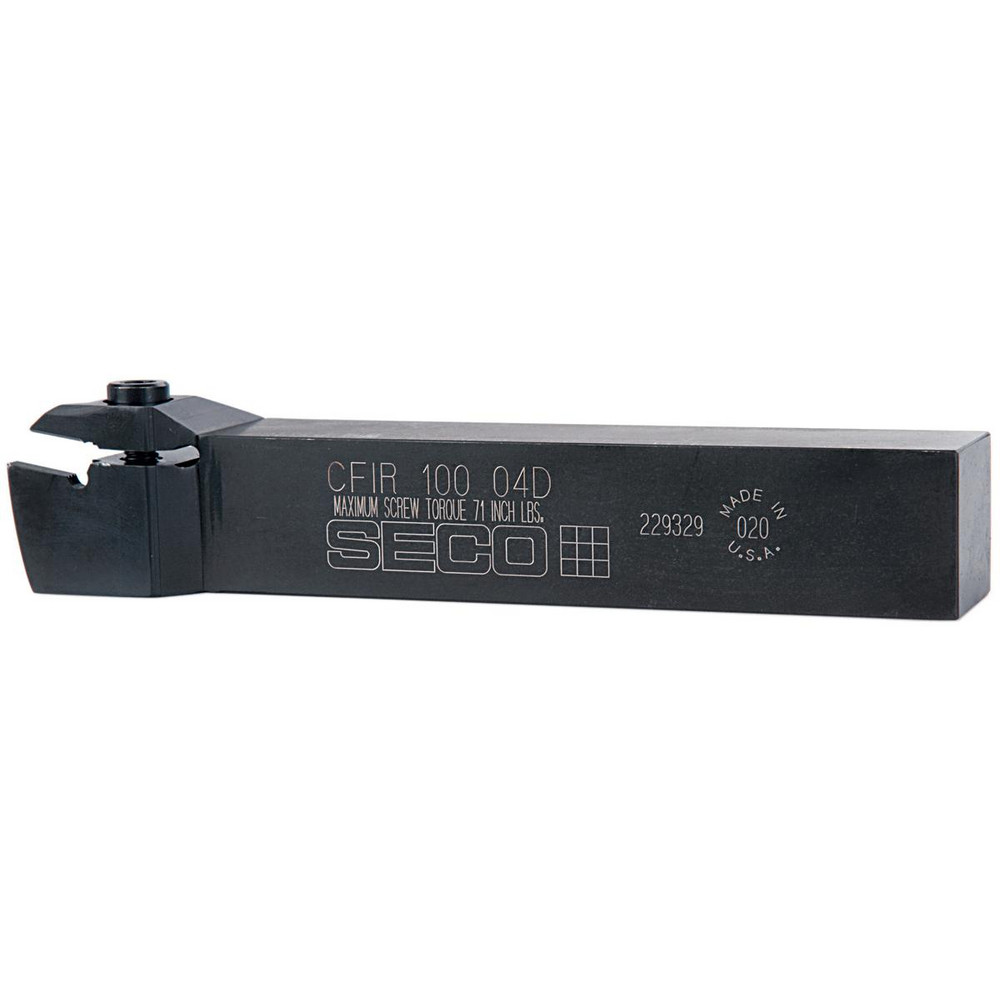

1-1/4" Shank
| Toolholder Style | CFI |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | LC.. |
| Insert Holding Method | Screw; Clamp |

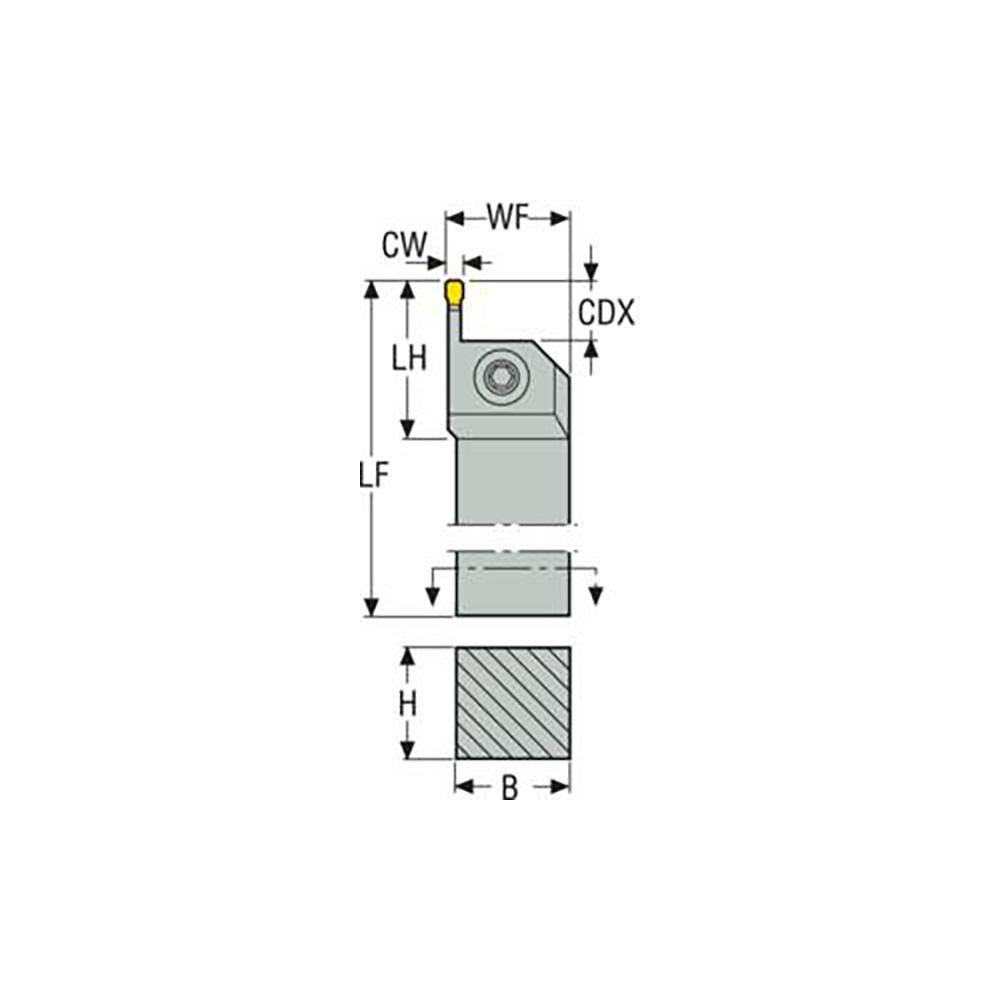

| Shank Width (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Cutting Direction | Right Hand |

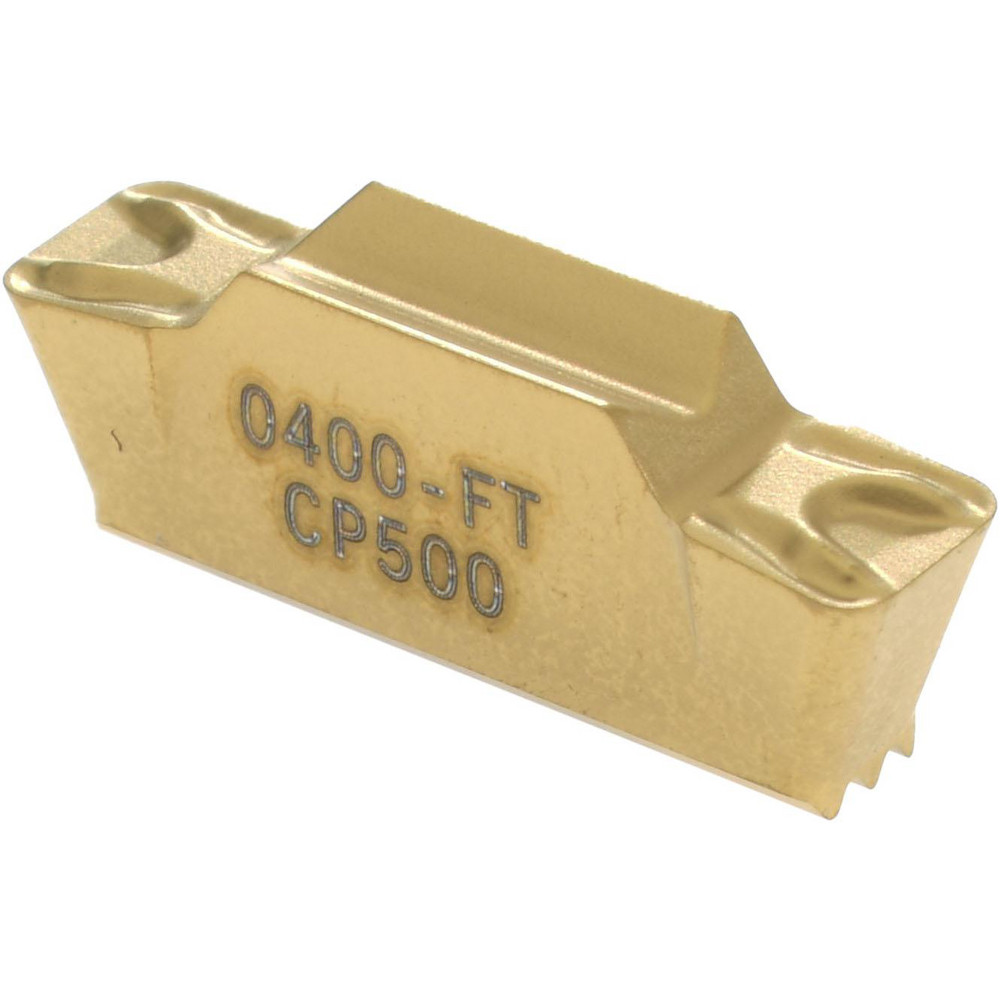

| Compatible Insert Size Code | LC1604 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Multi-Directional Turning (MDT) |
| Cutting Tool Application | Grooving; Milling; Turning; Parting; Threading |
| Head Length (Decimal Inch) | 1.6100 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Width (mm) | 3.99 |
| Insert Width (Decimal Inch) | 0.1570 |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 81254013 |
