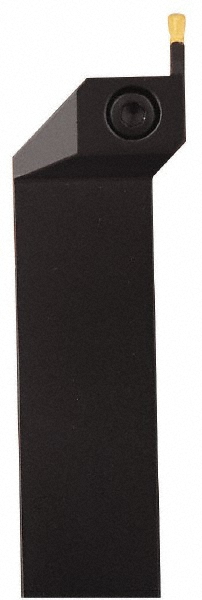

1-1/2 x 1-1/2" Shank, 7" OAL
| Toolholder Style | CFMR |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | LC..3008.. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1-1/2 |
| Shank Height (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 7.0000 |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | LC3008 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (Decimal Inch) | 1.5000 |
| Series | Multi-Directional Turning (MDT) |
| Overall Length (Inch) | 7 |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Length (Decimal Inch) | 3.2800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Width (mm) | 8.00 |
| Insert Width (Decimal Inch) | 0.3150 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.6200 |
| Complete Insert Compatibility | LCMF; LC.. 3008..; LCGN; LCMR |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | CFMR; L-150-08E |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 35419985 |
