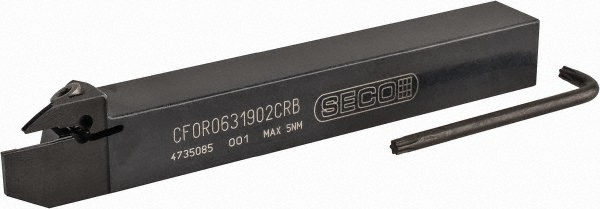

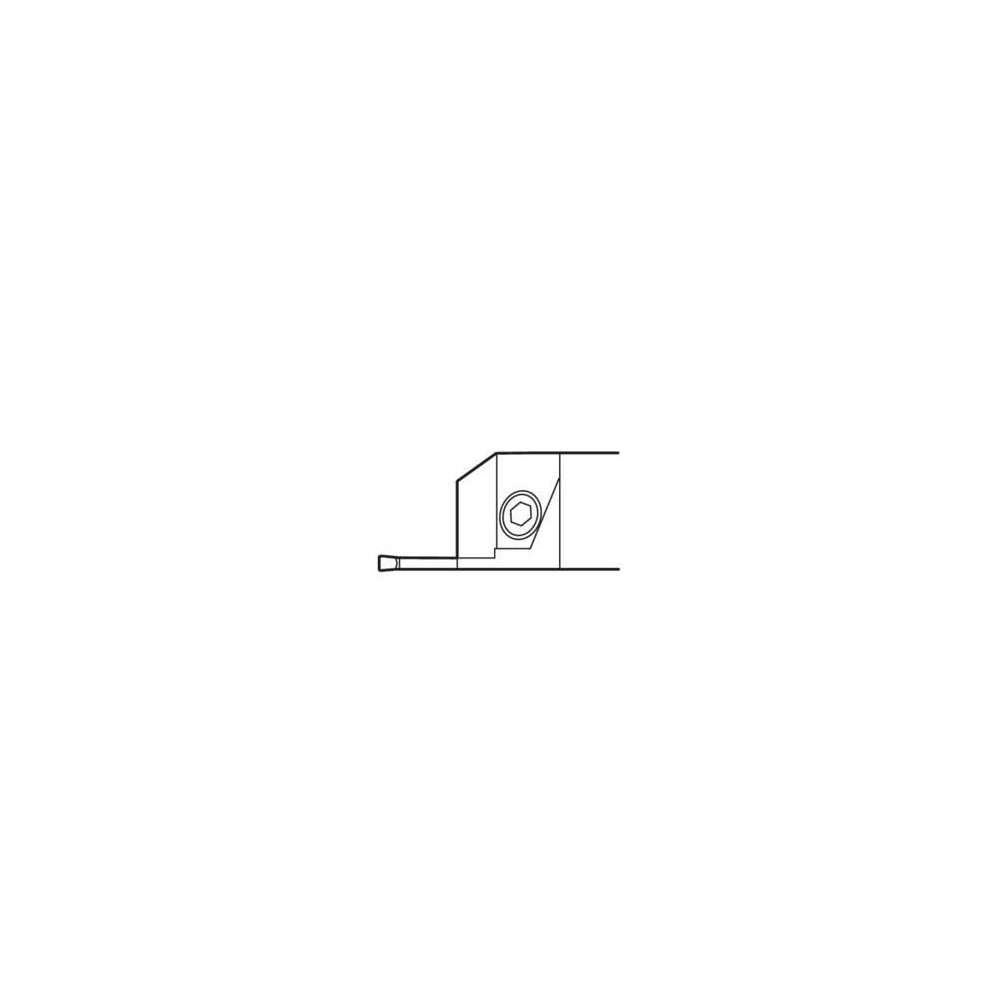

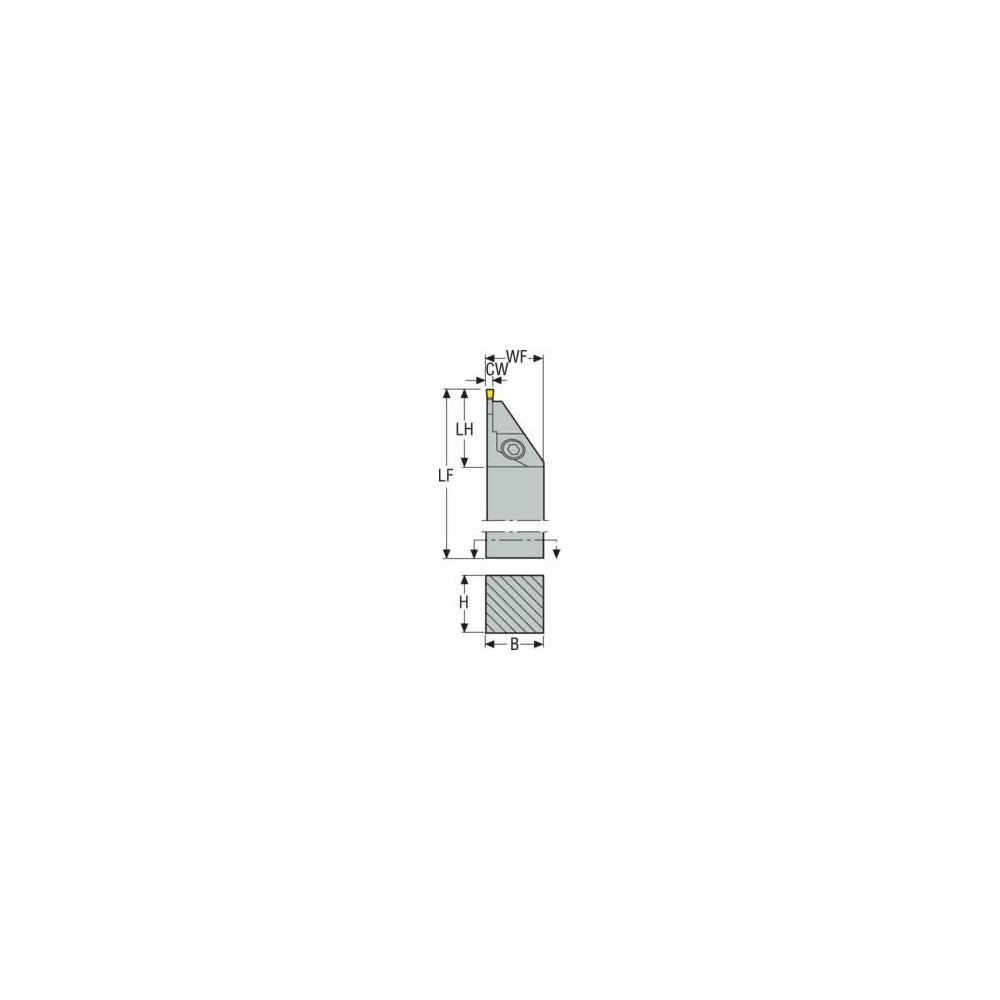

1/2 x 1/2" Shank, 5" OAL
| Toolholder Style | CFOR |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | LC.. 1902.. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | LC1902 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Multi-Directional Turning (MDT) |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Length (Decimal Inch) | 0.8600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Width (Decimal Inch) | 0.0790 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.0200 |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | L 050 1902C-RB; CFOR |
| Country of Origin | India |
| MSC Number | MSC# 51495638 |
