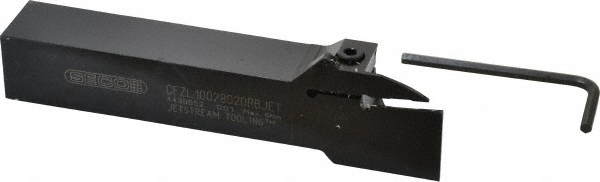

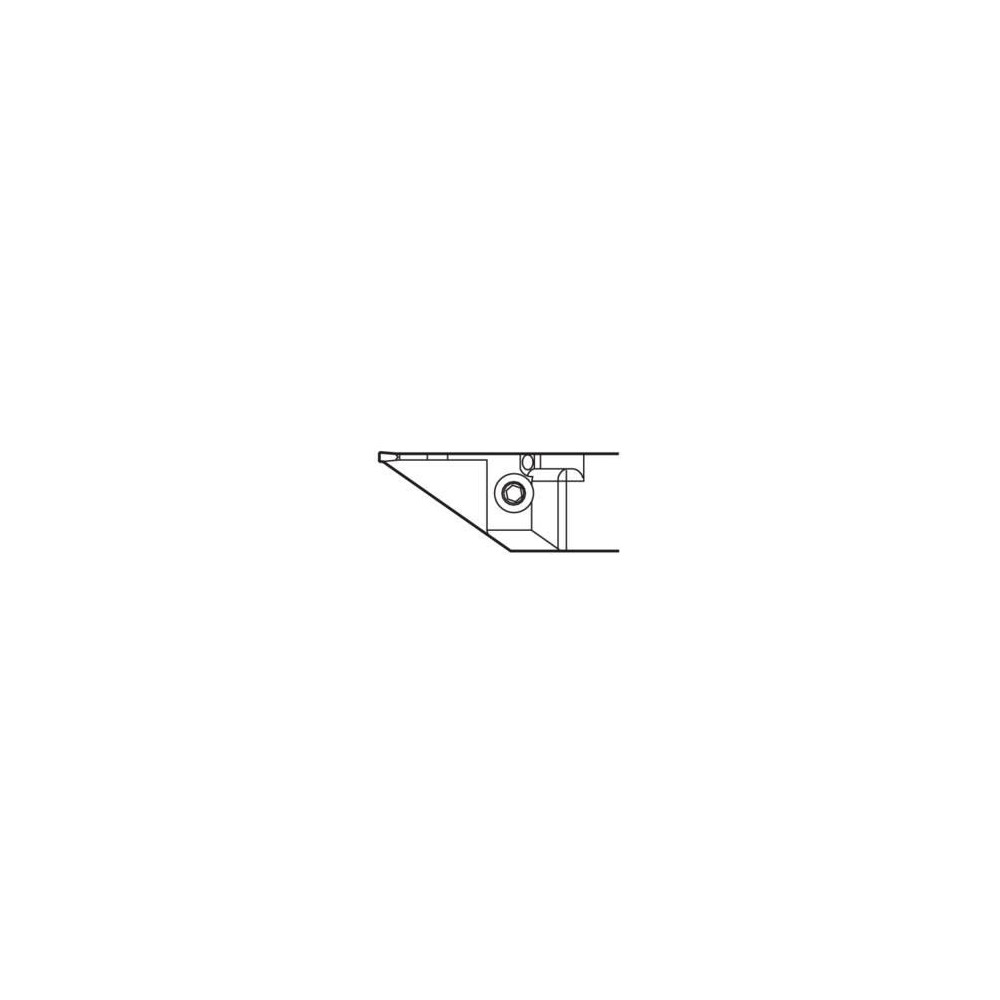

1 x 1" Shank, 6" OAL
| Toolholder Style | CFZL |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | LC.. 2802.. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | LC2802 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Multi-Directional Turning (MDT) |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Grooving; Cut-Off |

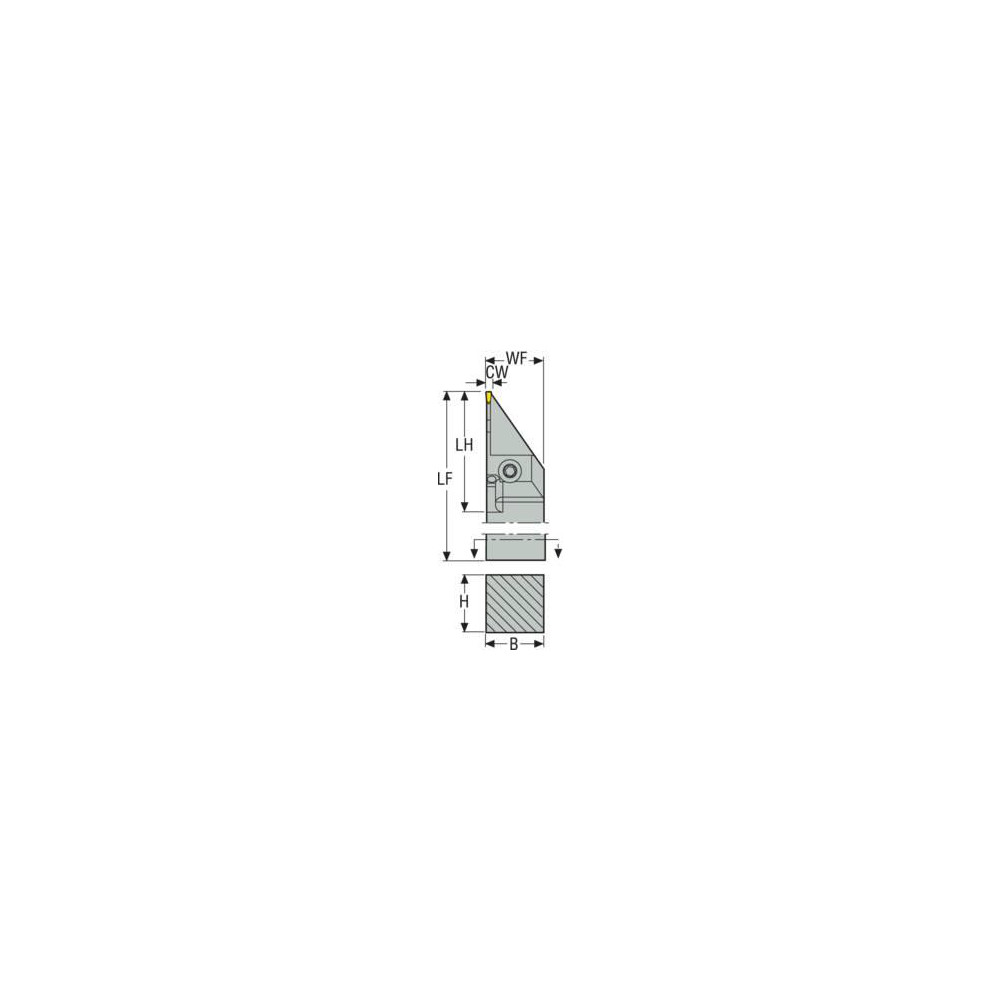

| Head Length (Decimal Inch) | 2.0300 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Width (Decimal Inch) | 0.0790 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 2.2100 |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | CFZL 100 2802DRBJET |
| Country of Origin | India |
| MSC Number | MSC# 51482354 |
