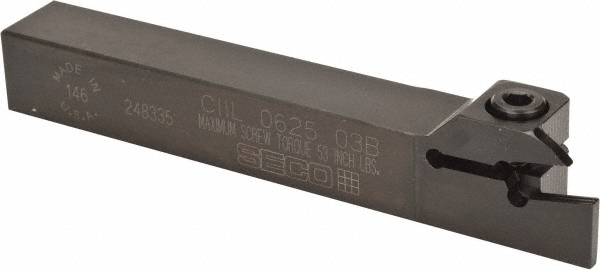

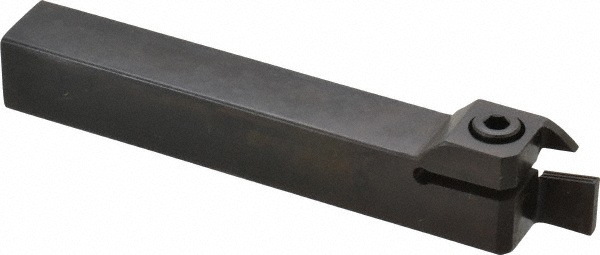

5/8 x 5/8" Shank, 4-1/2" OAL
| Toolholder Style | CIIL |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 90.0 |
| Insert Compatibility | LC..1603.. |
| Insert Holding Method | Clamp |

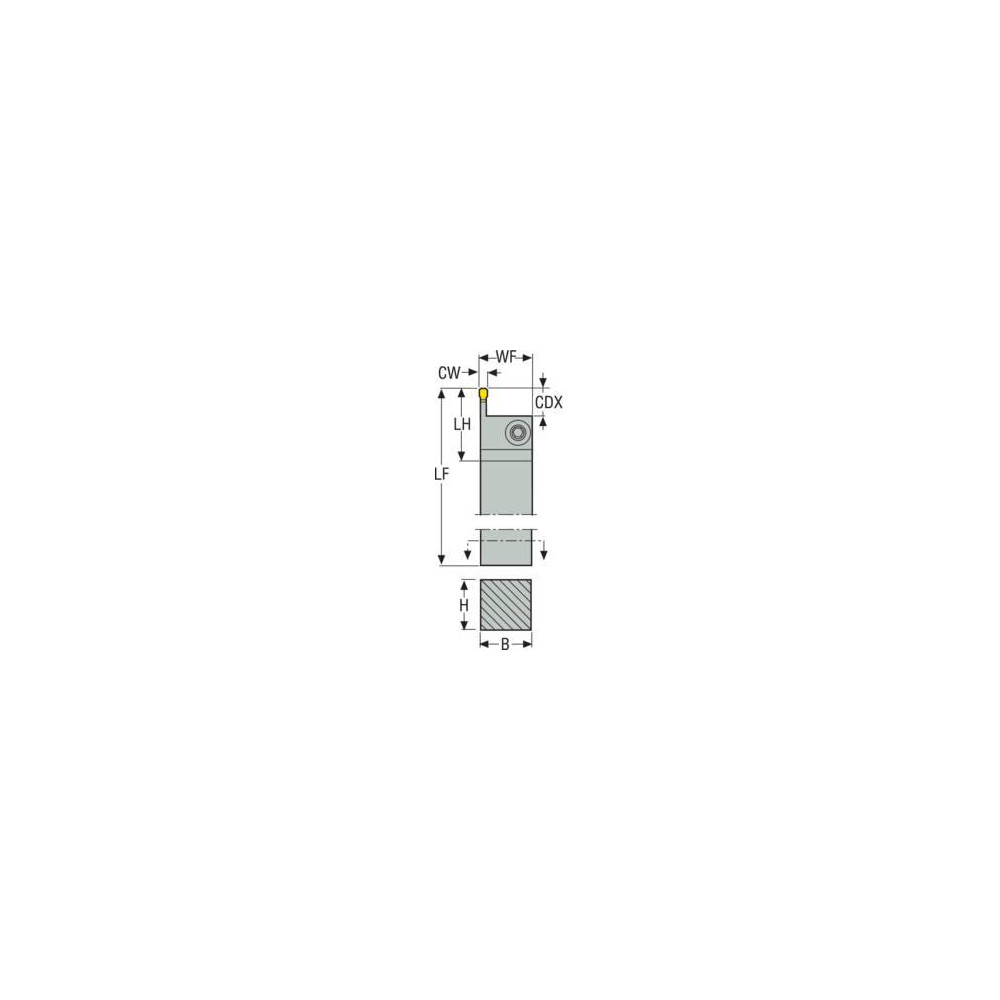

| Shank Width (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | LC1603 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | Multi-Directional Turning (MDT) |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Length (Decimal Inch) | 1.1420 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1250 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |

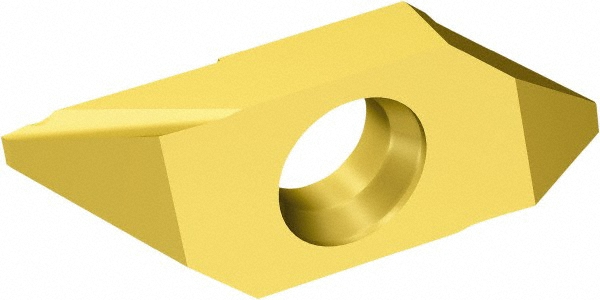

| Complete Insert Compatibility | LCMF; LC.. 1603..; LCGN; LCMR |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 35419795 |
