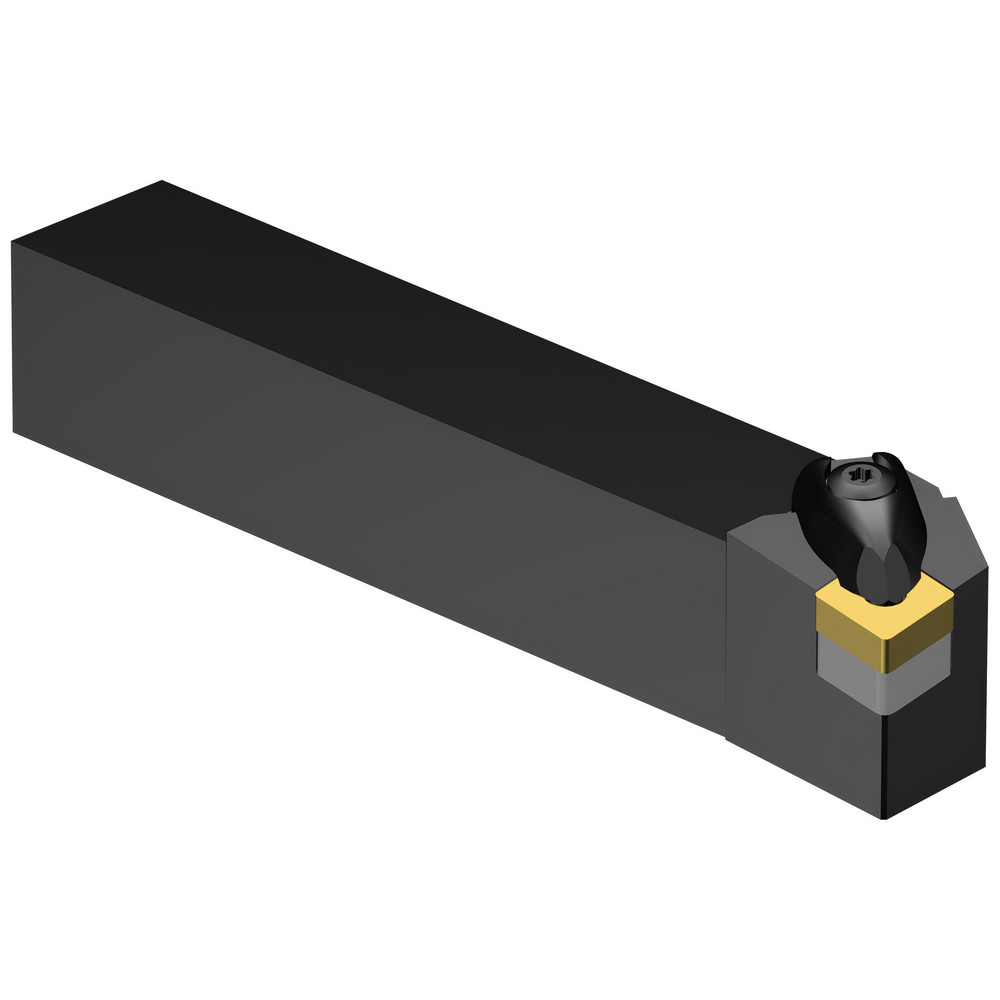

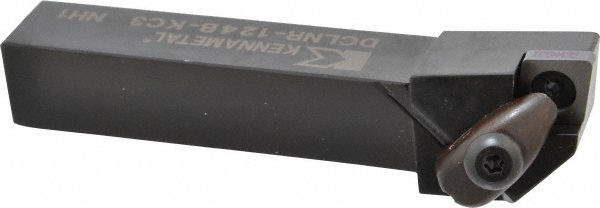

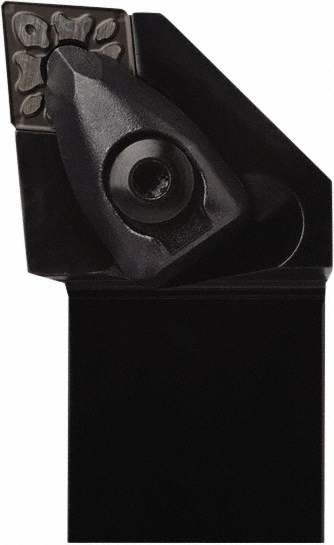

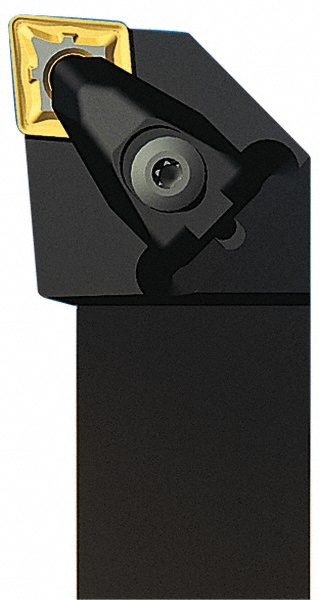

3/4 x 3/4" Shank
| Toolholder Style | DCLN |
|---|---|
| Hand of Holder | Left Hand |
| Insert Compatibility | CN..4 |

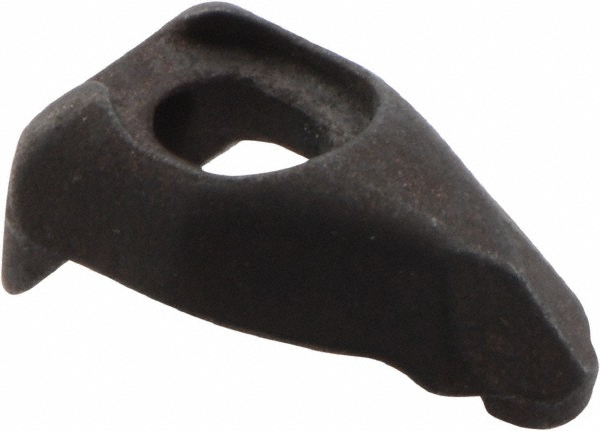

| Insert Holding Method | Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | CN43 |
| Rake Angle | -6.5 |
| Multi-use Tool | No |
| Series | JETI |
| Cutting Tool Application | Turning |
| Head Length (mm) | 45.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0591 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (Inch) | 3/16 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 96592621 |
