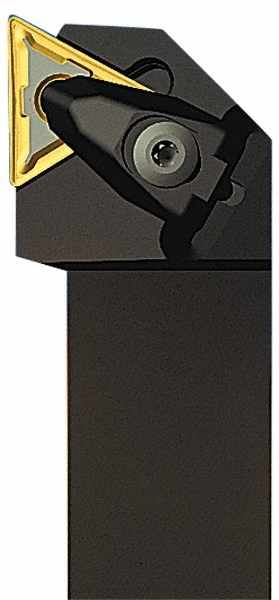

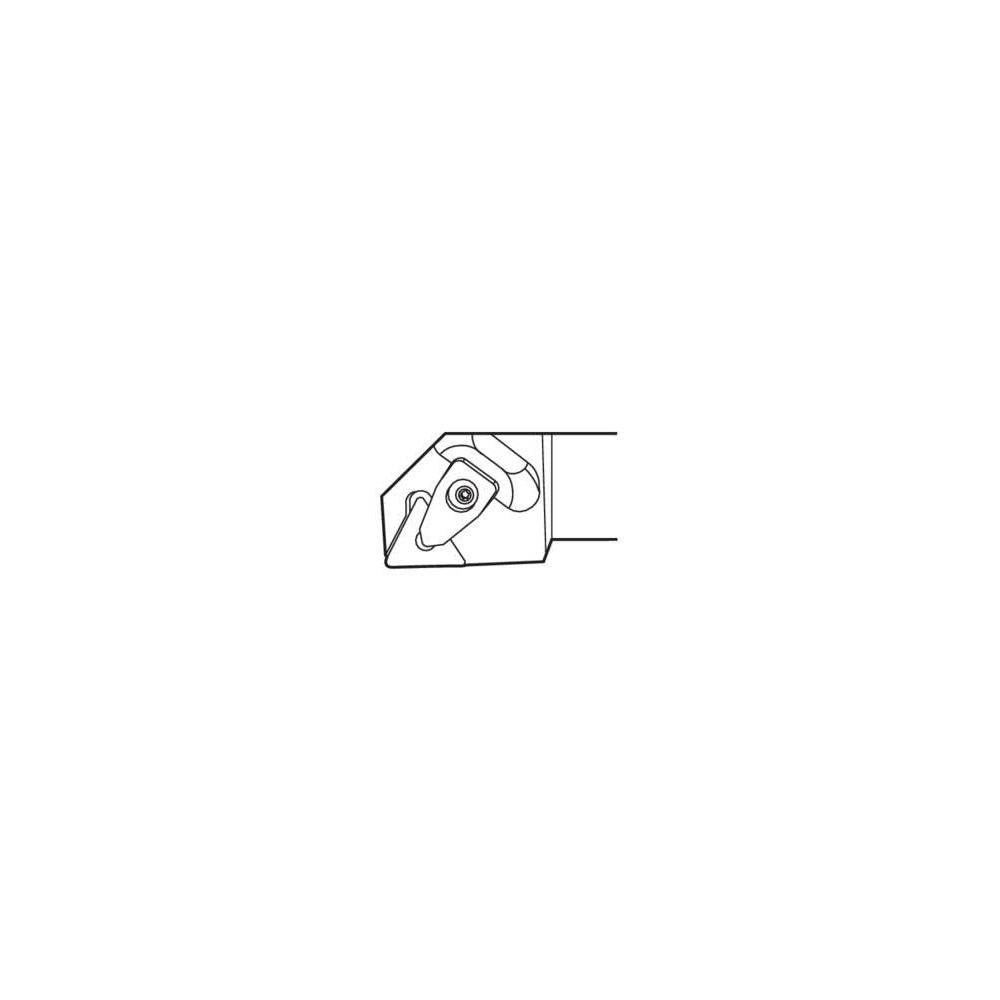

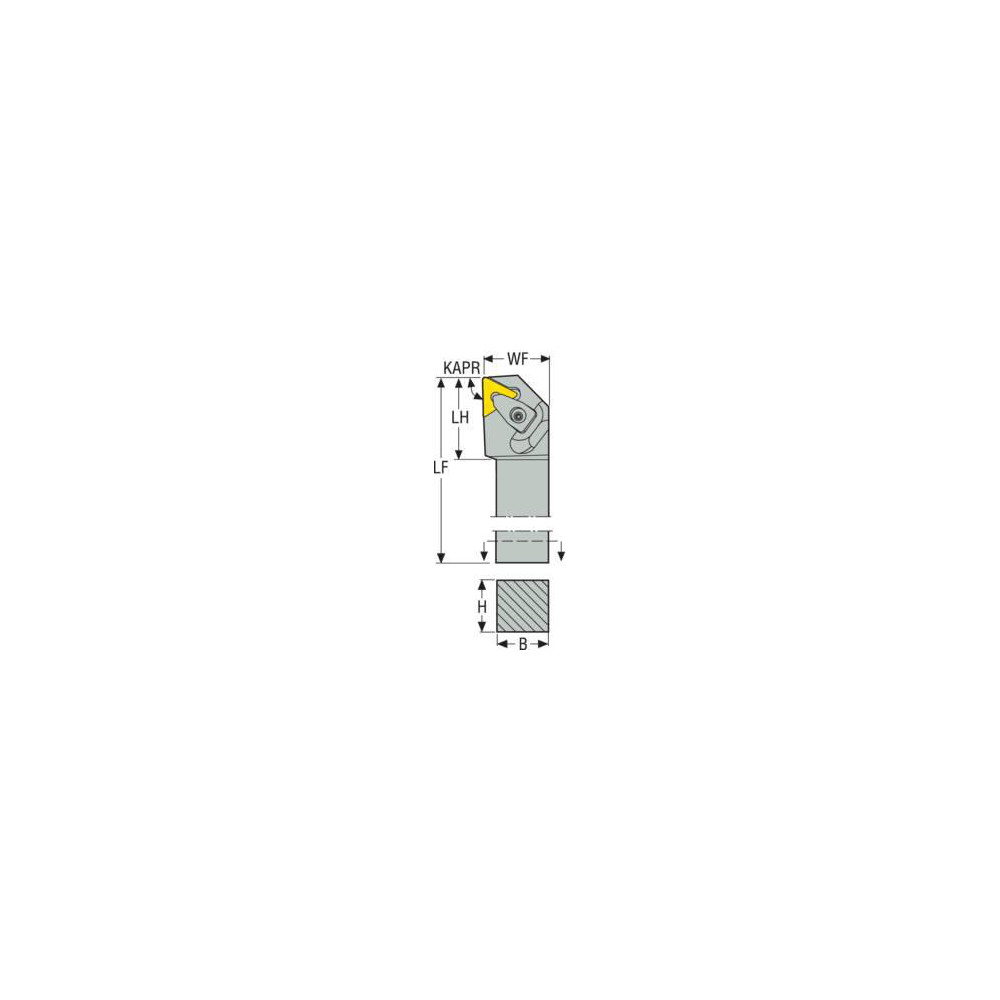

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | DTJN |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 93.0 |
| Insert Compatibility | TN..33. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | TN33 |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Clamp Lock |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.1800 |
| Back of Bar to Cutting Edge (Inch) | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TNMX; TNGA; TNMG; TNMA; TNMP; TNMM; TN.. 33.. |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 72489974 |
