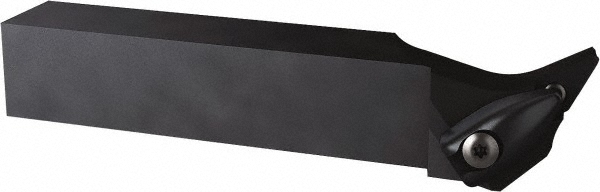

25.30 x 25.30 mm Shank, 152.40 mm OAL
| Toolholder Style | DVPN |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 117.5 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width (mm) | 25.30 |
| Shank Height (mm) | 25.30 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VN33 |
| Rake Angle | -4 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.9961 |
| Shank Height (Decimal Inch) | 0.9961 |
| Cutting Tool Application | Turning |

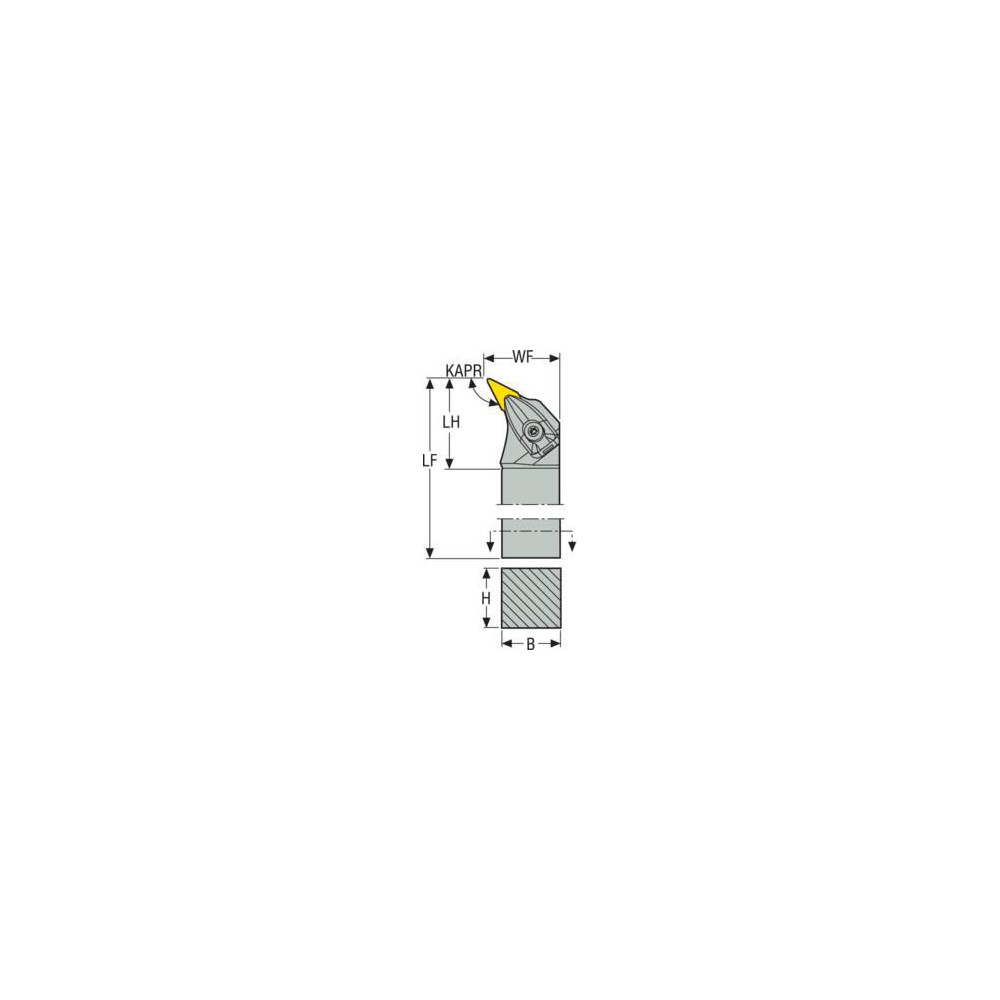

| Head Length (Decimal Inch) | 1.7717 |
| Head Length (mm) | 45.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2480 |
| Back of Bar to Cutting Edge (mm) | 31.70 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 81025694 |
