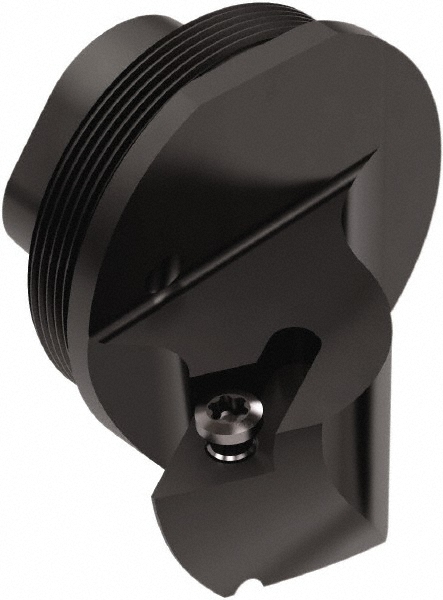

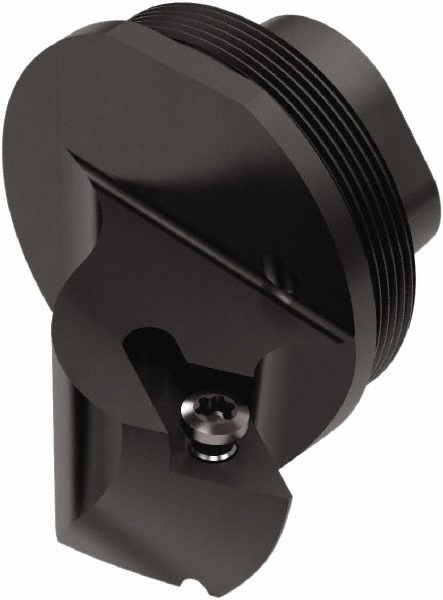

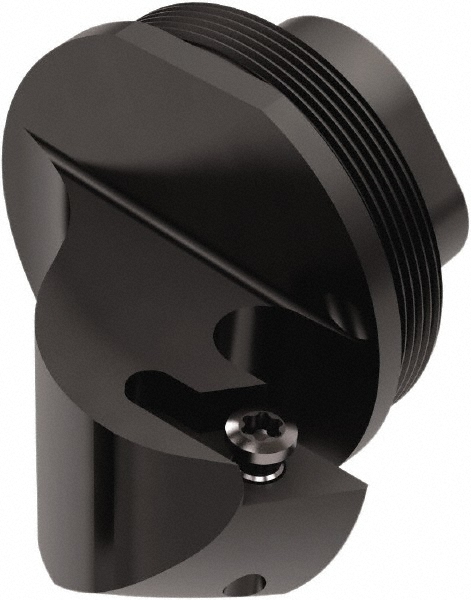

32.00 x 32.00 mm Shank, 25.00 mm OAL
| Toolholder Style | SDXCR |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | DC..11T3.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 0.9843 |
| Shank Width (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Coolant Through | Yes |
| Rake | Positive |
| Rake Angle | 7 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (Decimal Inch) | 1.2598 |
| Series | GL |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2362 |
| Back of Bar to Cutting Edge (mm) | 6.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/8 |
| Insert Width (mm) | 3.96 |
| Insert Width (Decimal Inch) | 0.1560 |
| Toolholder Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 37744075 |
