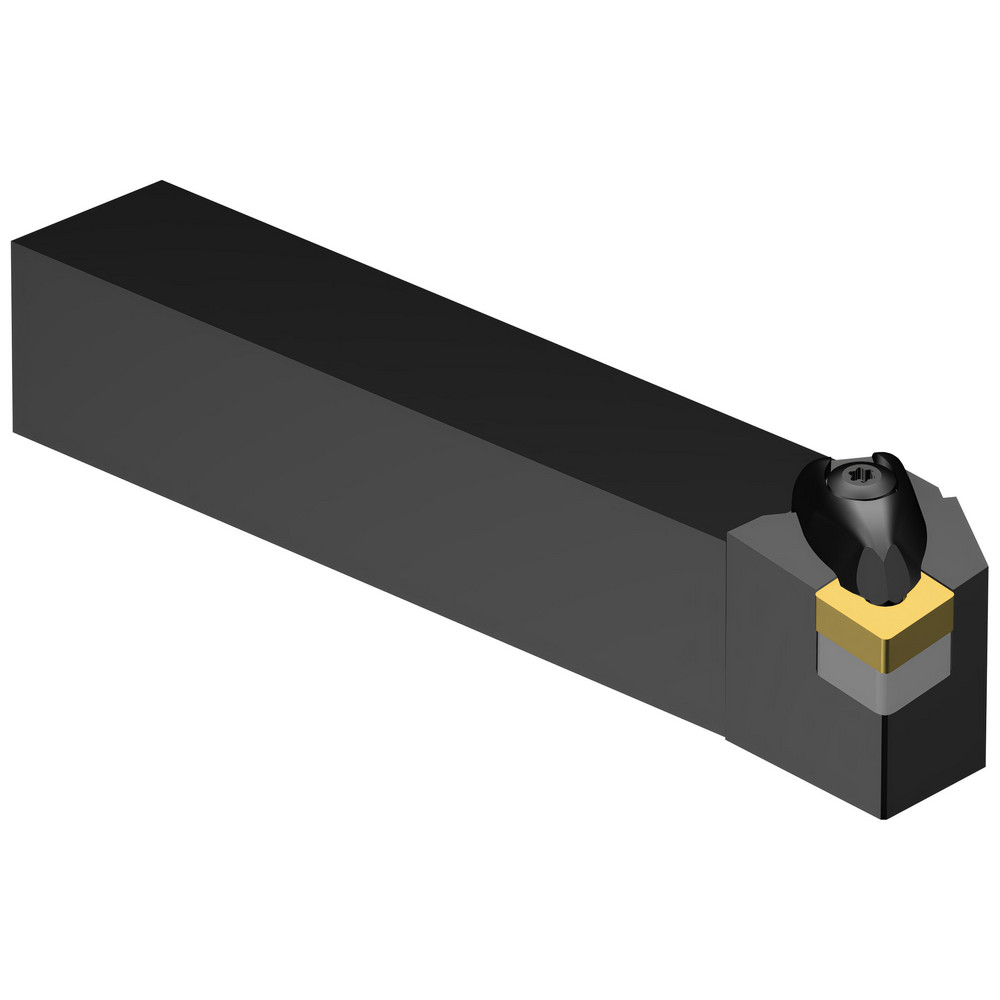

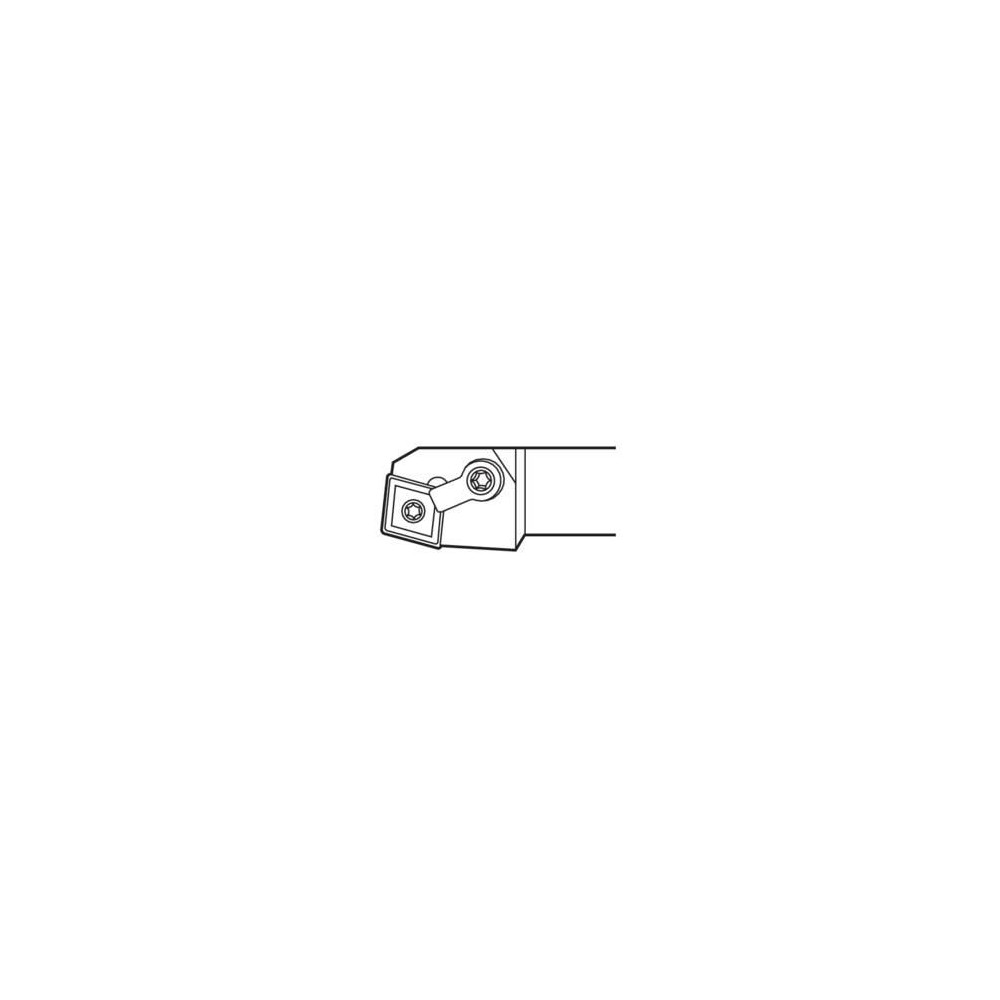

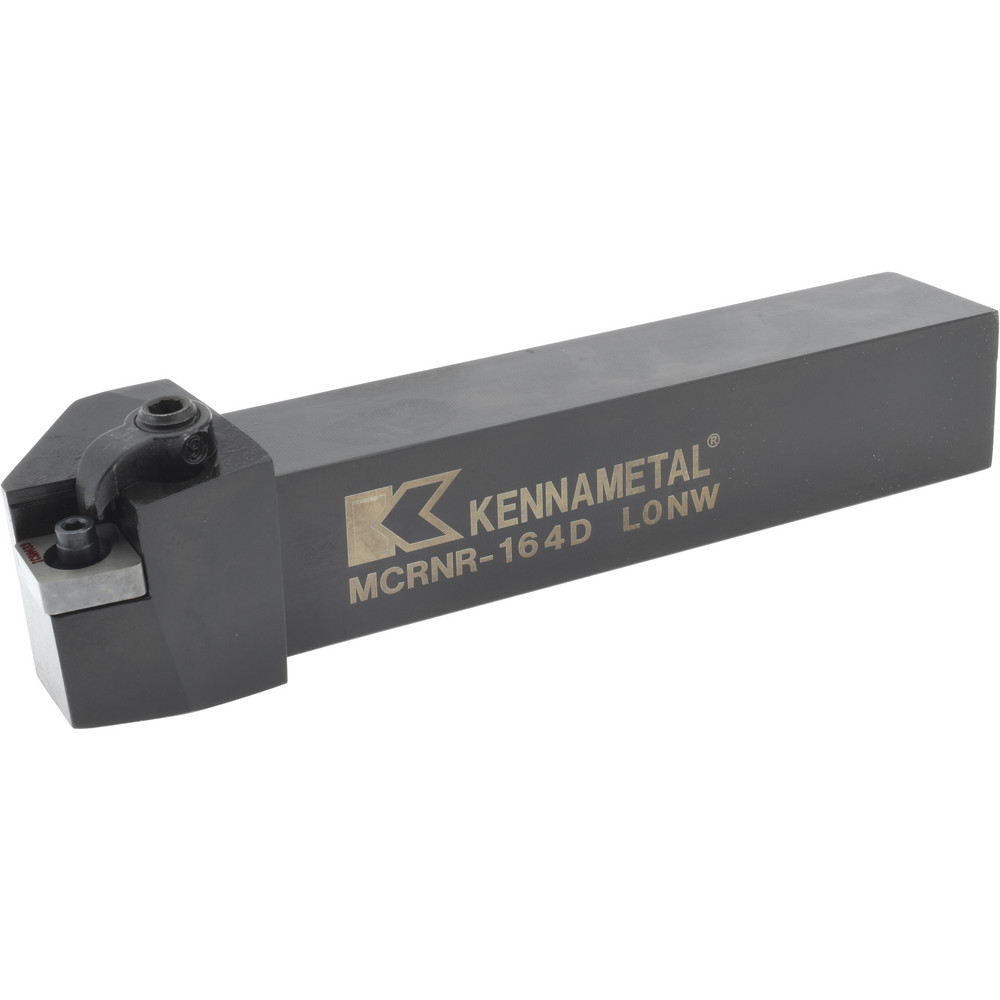

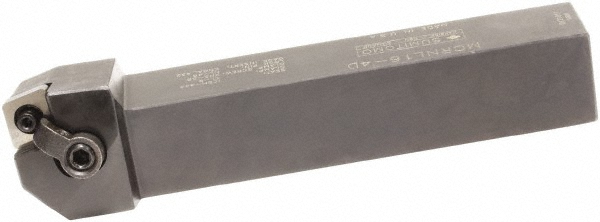

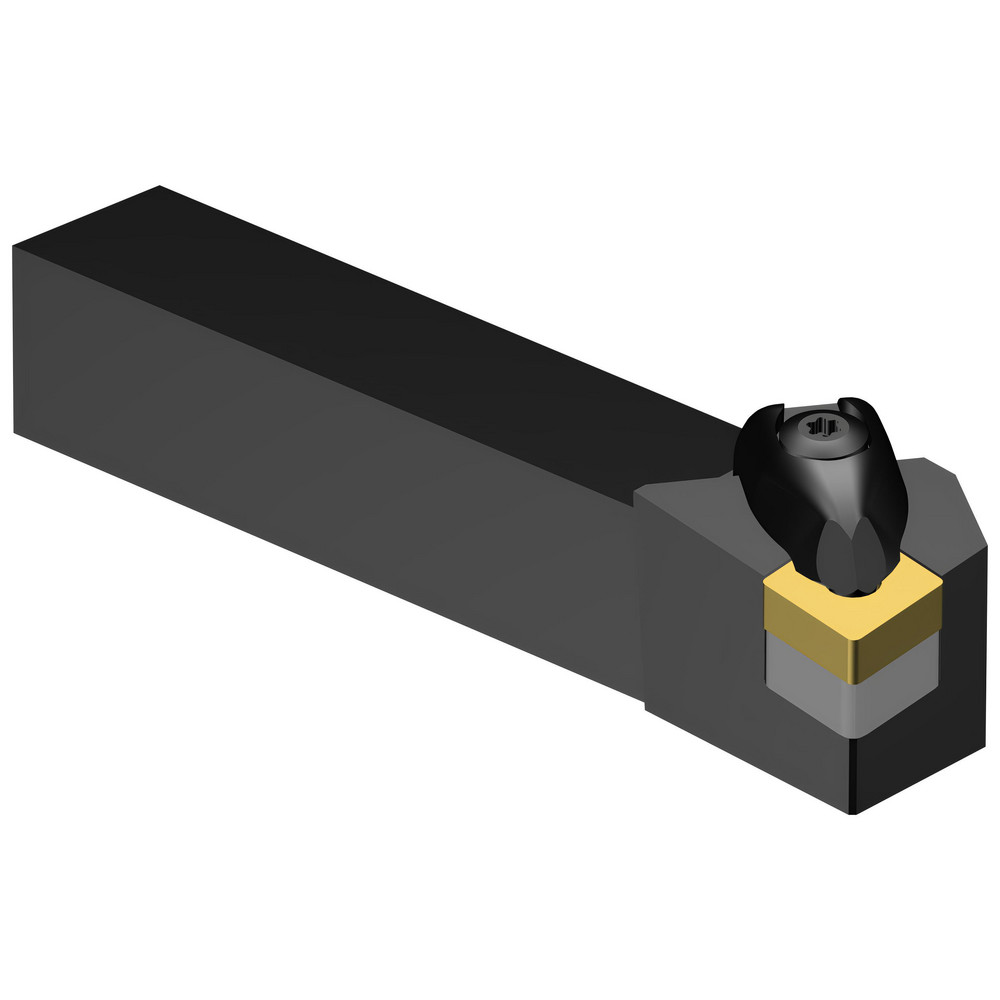

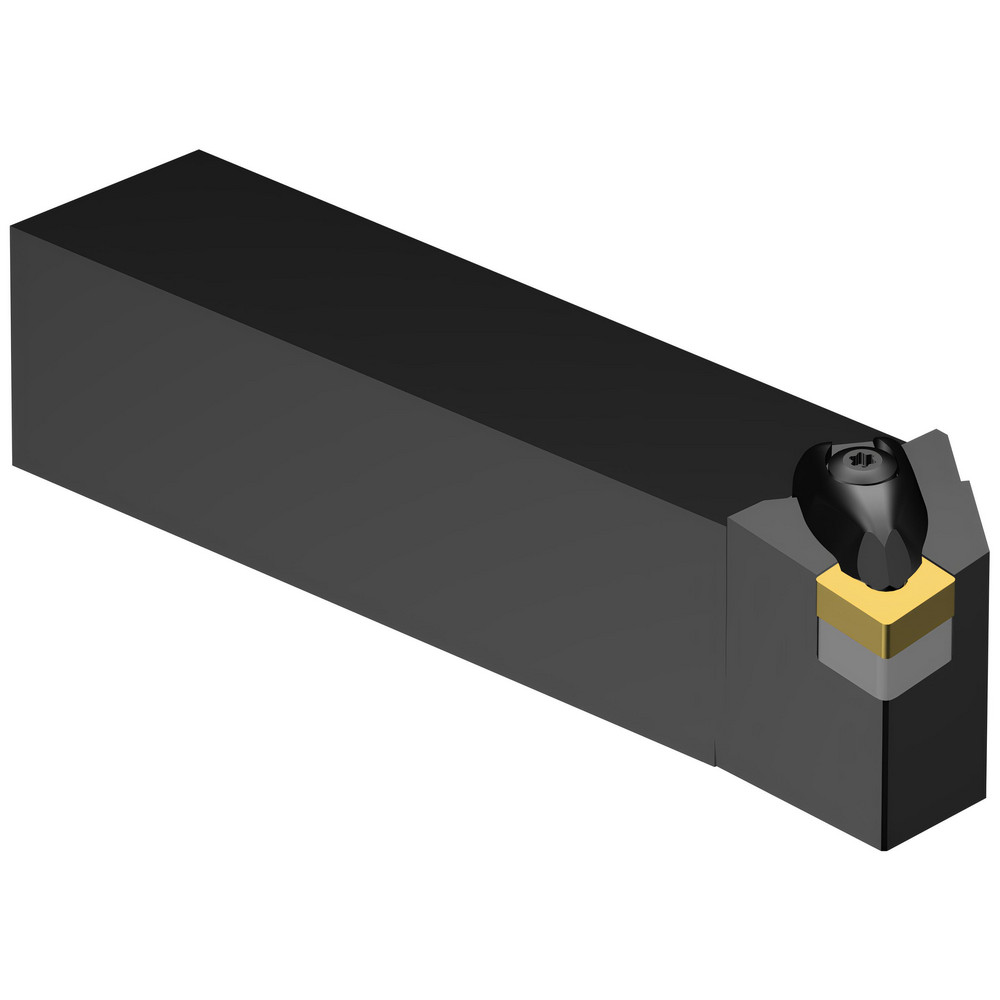

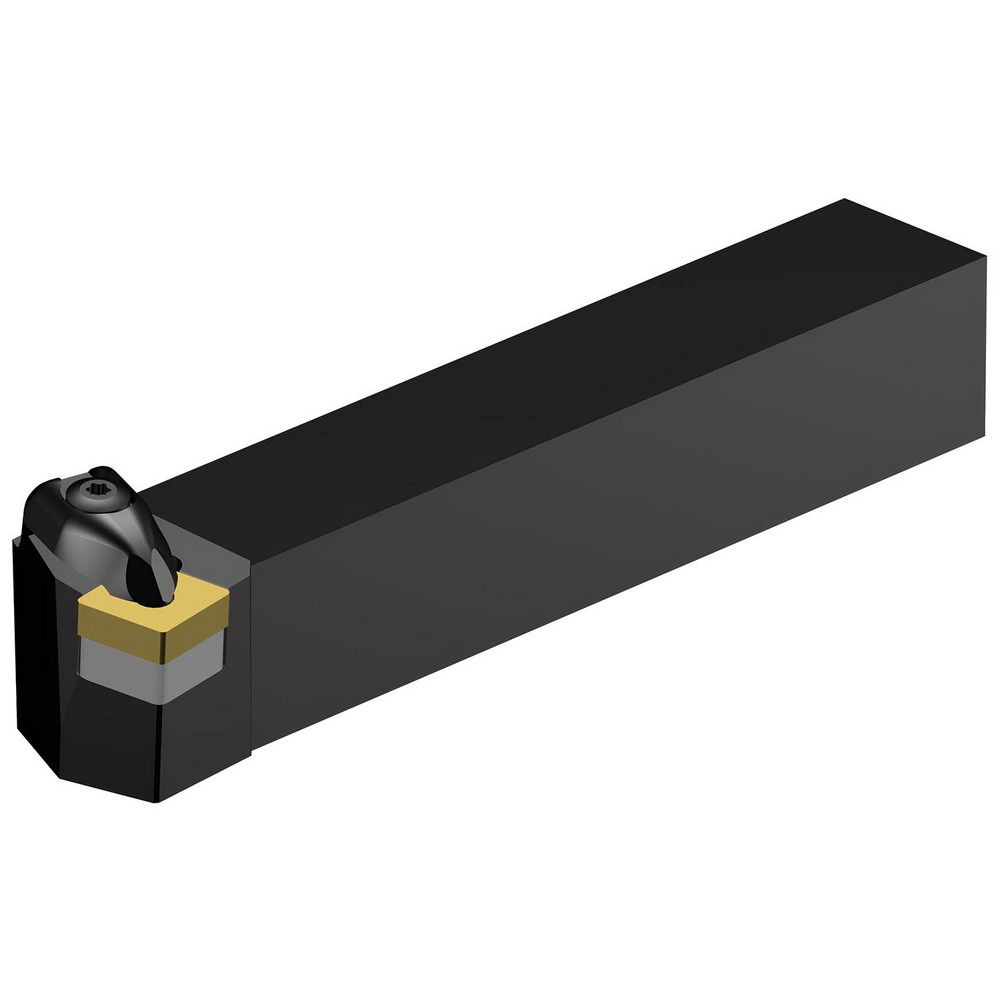

1" Shank

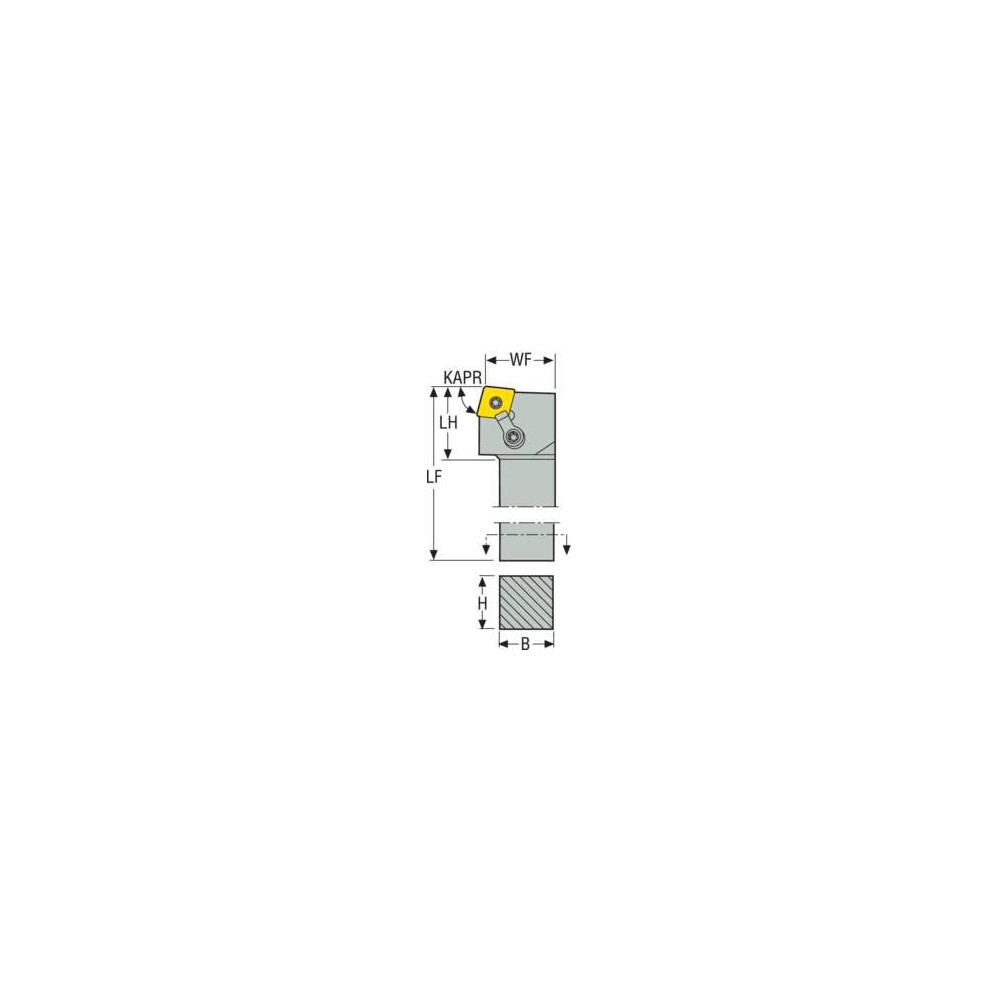

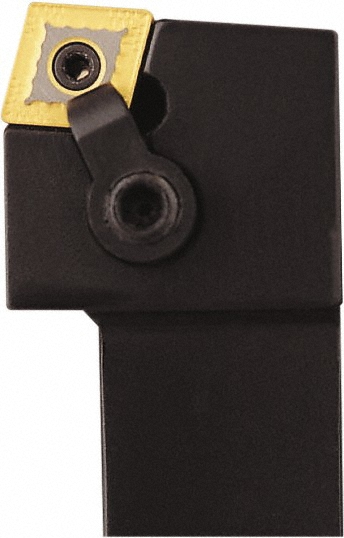

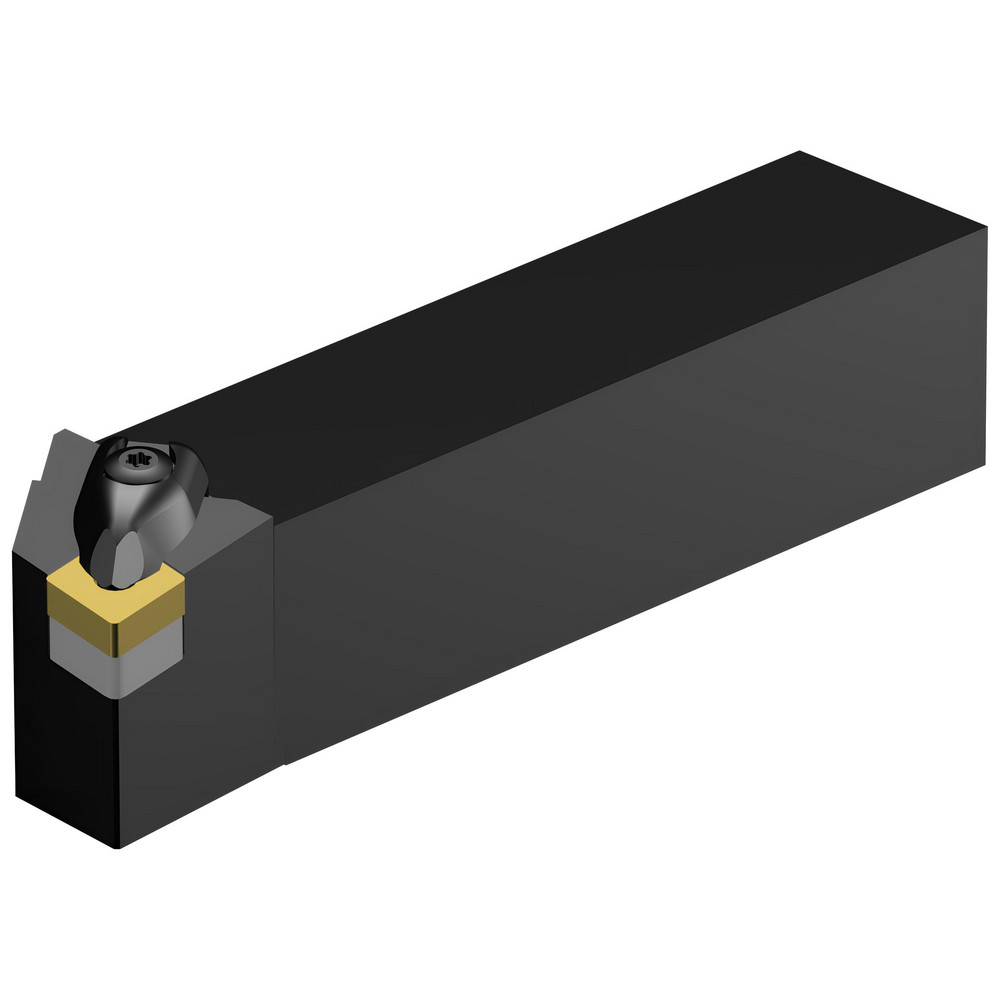

| Toolholder Style | MCRN |
|---|---|
| Hand of Holder | Left Hand |

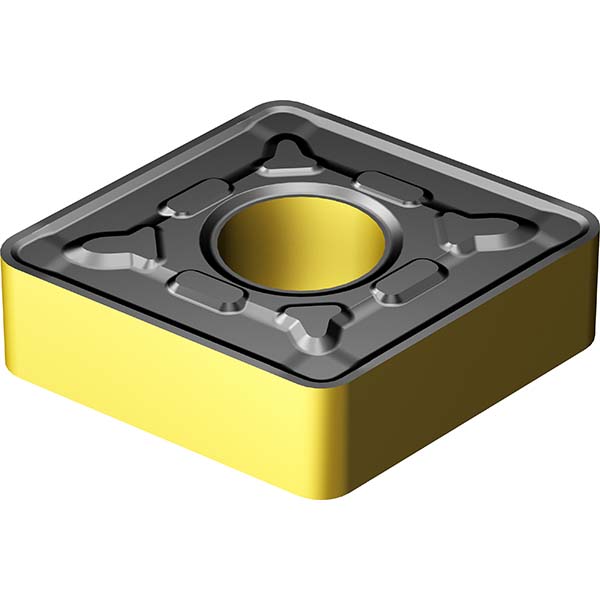

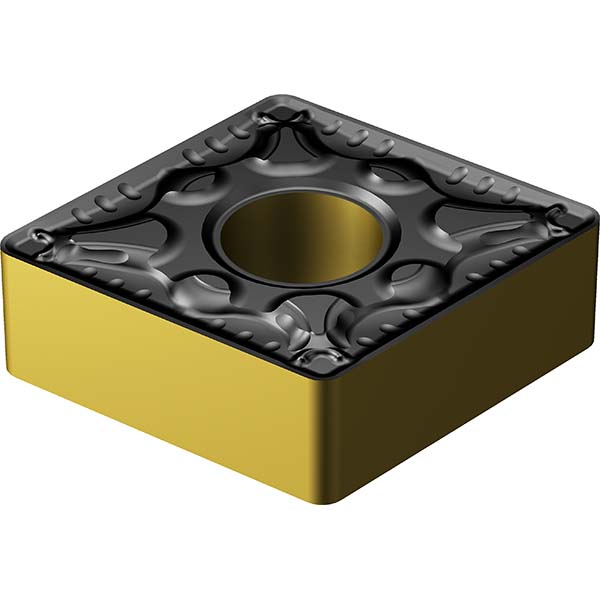

| Insert Compatibility | CNMG 432 |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | CN43 |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Multi-Directional Turning (MDT) |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.2400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 76736602 |
