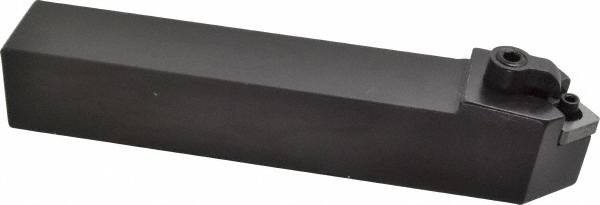

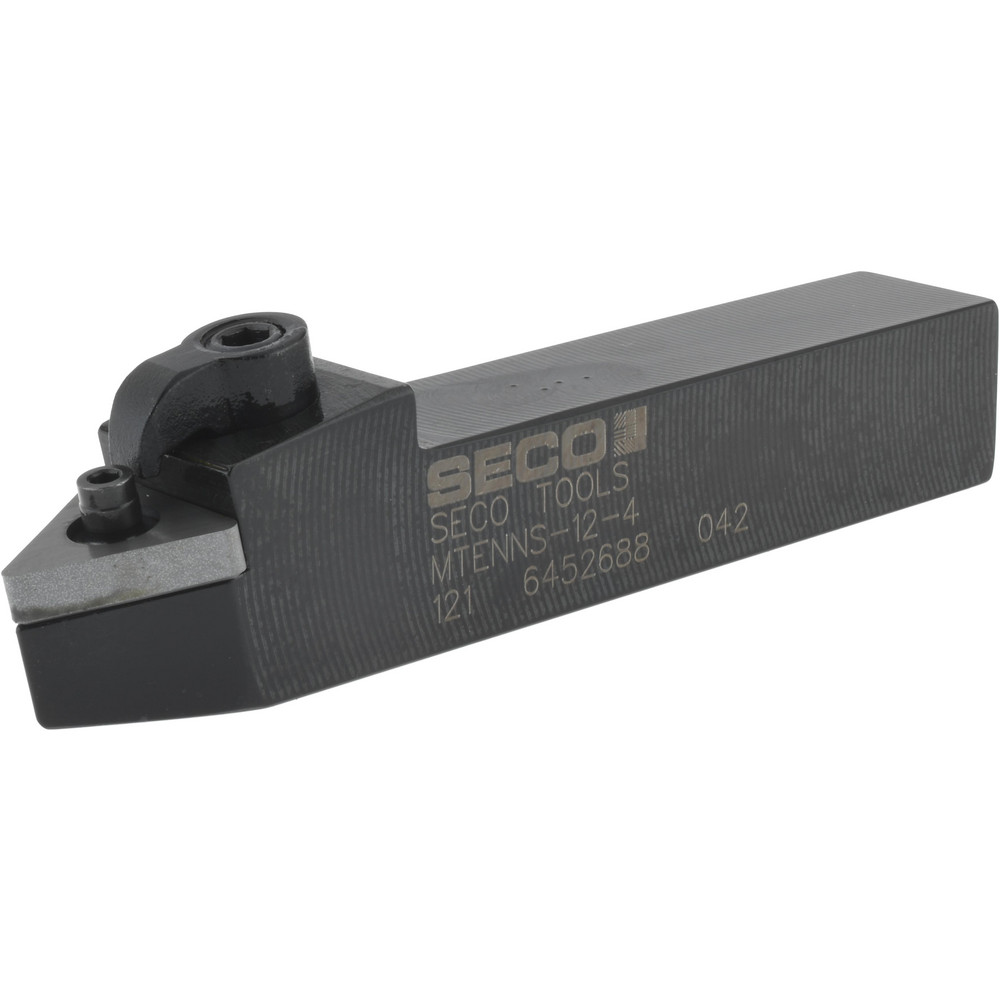

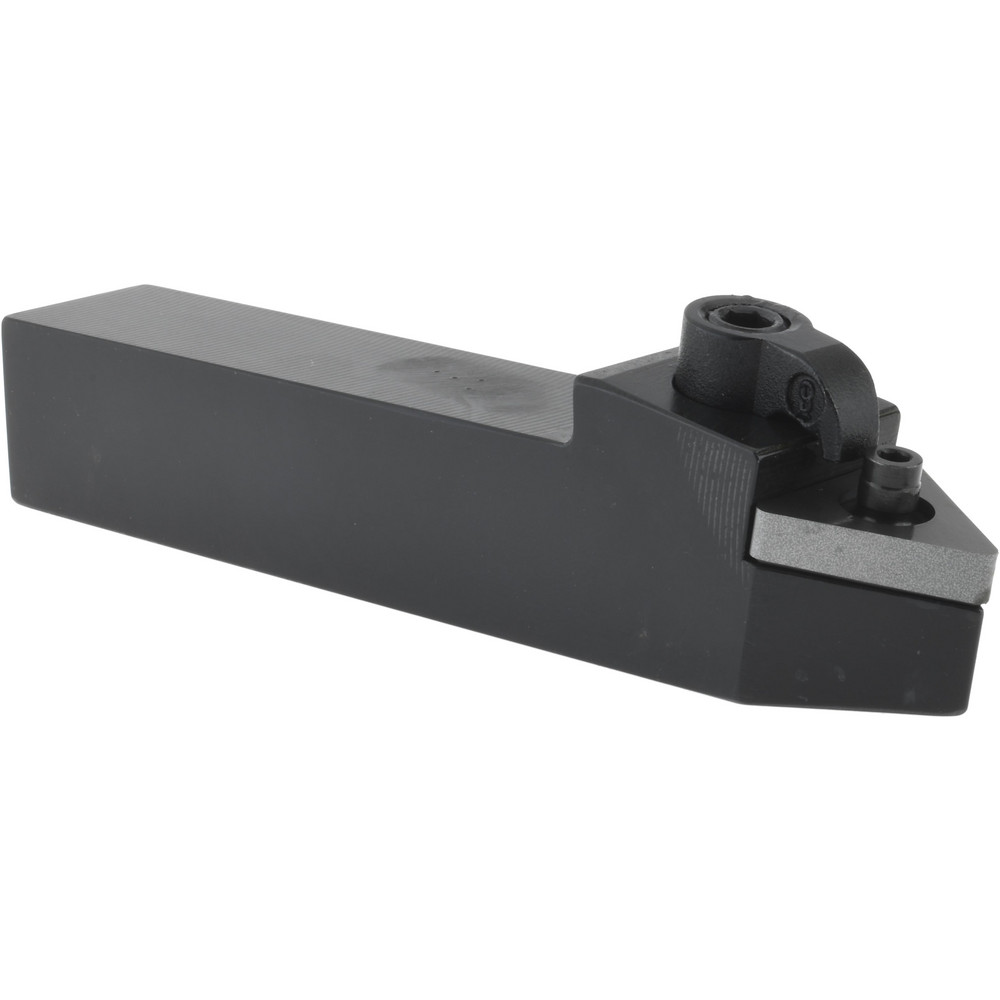

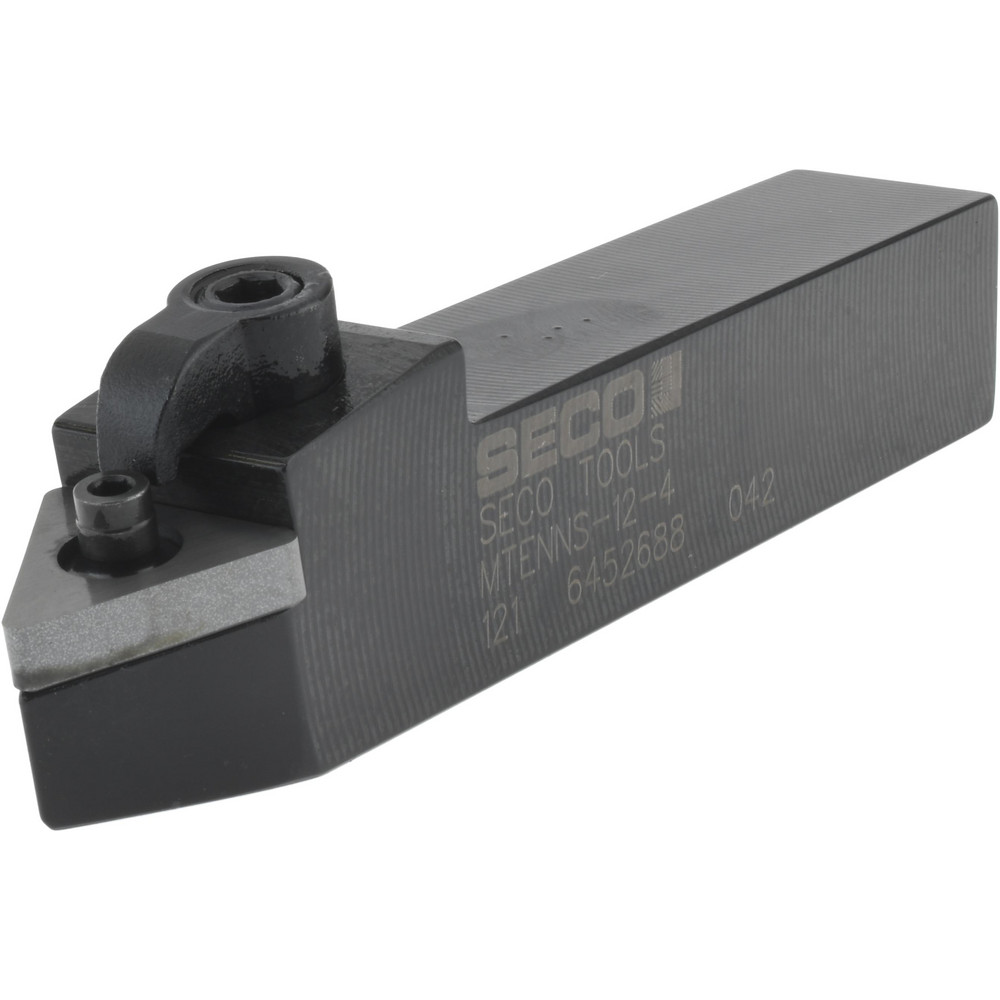

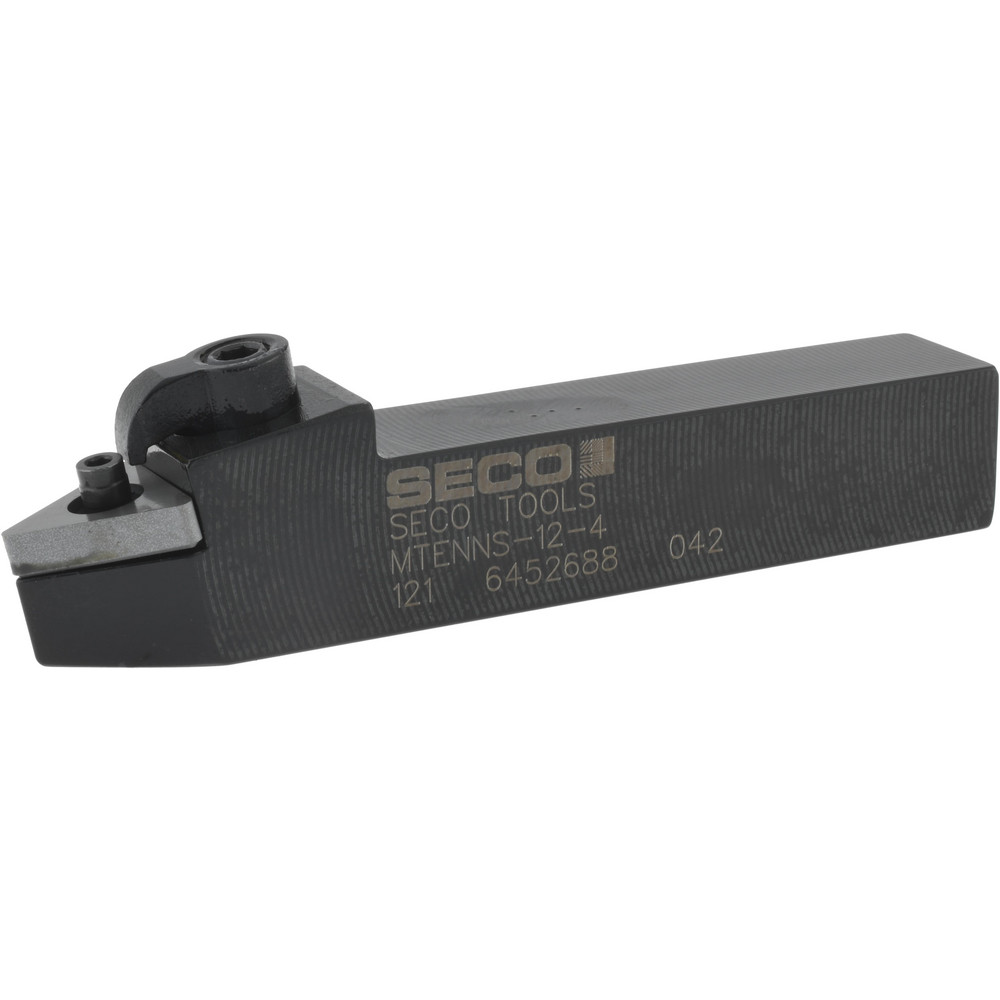

3/4 x 3/4" Shank, 4-1/2" OAL
| Toolholder Style | MTEN |
|---|---|
| Hand of Holder | Neutral |
| Insert Compatibility | TN..43. |
| Insert Holding Method | Pin; Clamp |
| Shank Width (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | TN43 |
| Rake Angle | -10;0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Multiple Lock |
| Overall Length (Inch) | 4-1/2 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.5000 |
| Back of Bar to Cutting Edge (Inch) | 3/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | MTENNS124 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 57123606 |
