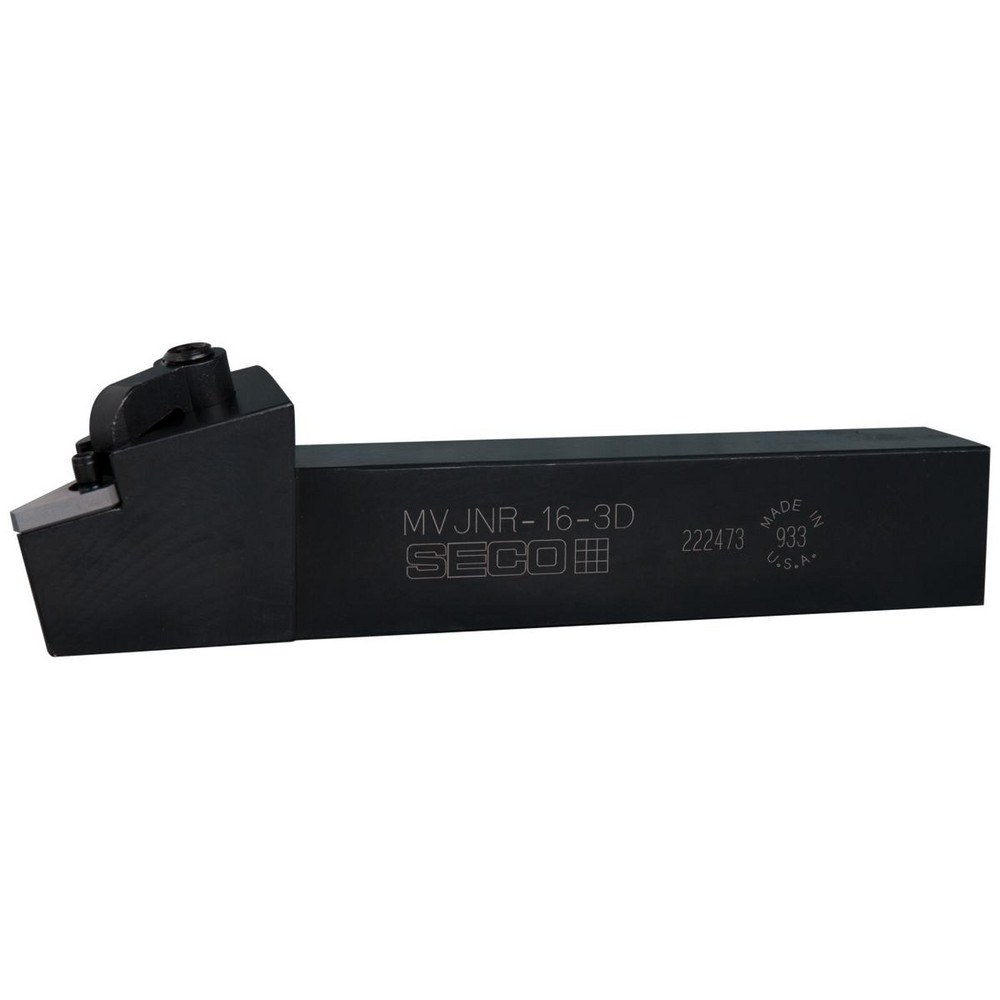

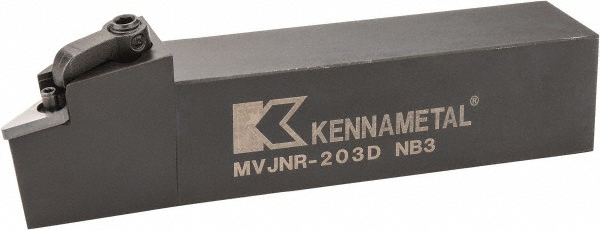

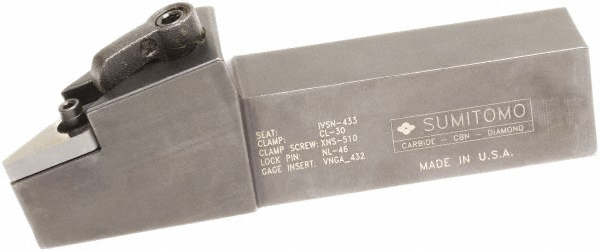

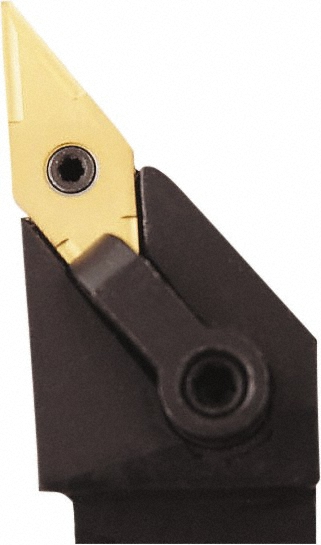

1 x 1" Shank, 6" OAL

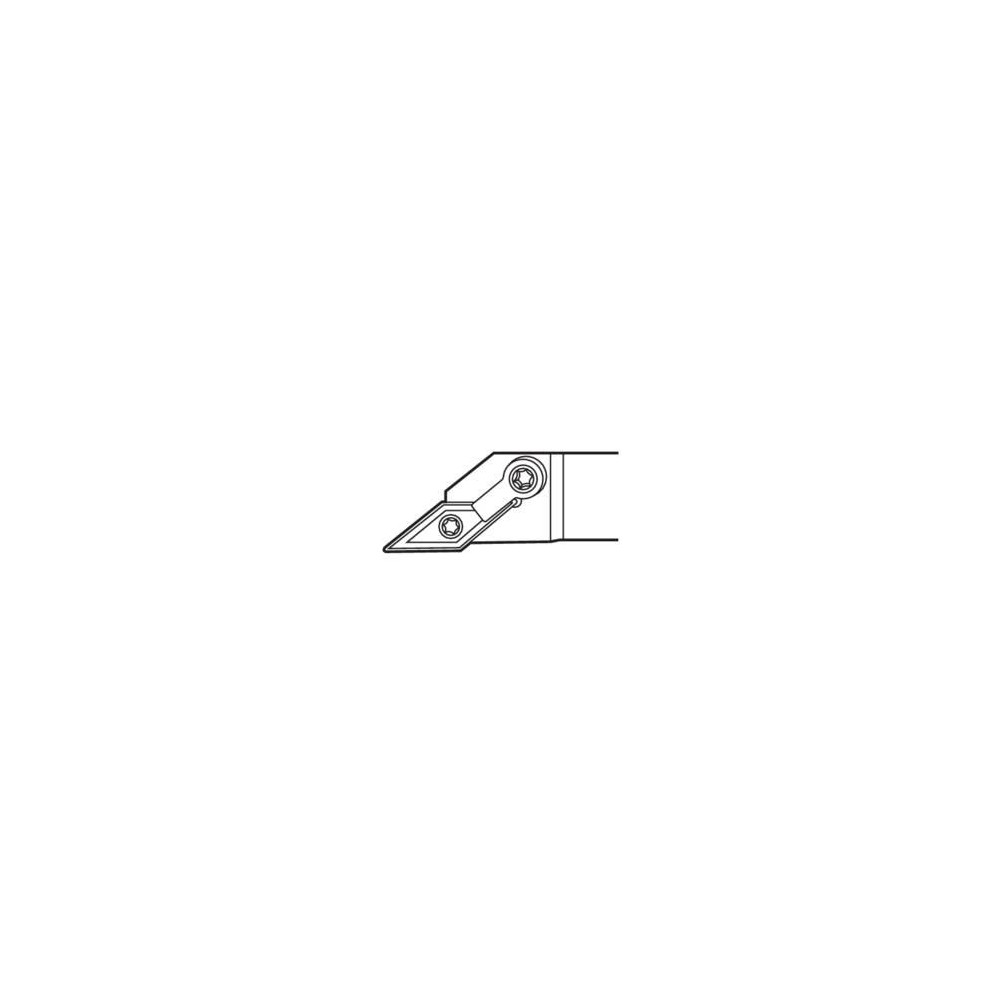

| Toolholder Style | MVJN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | VN..33.. |

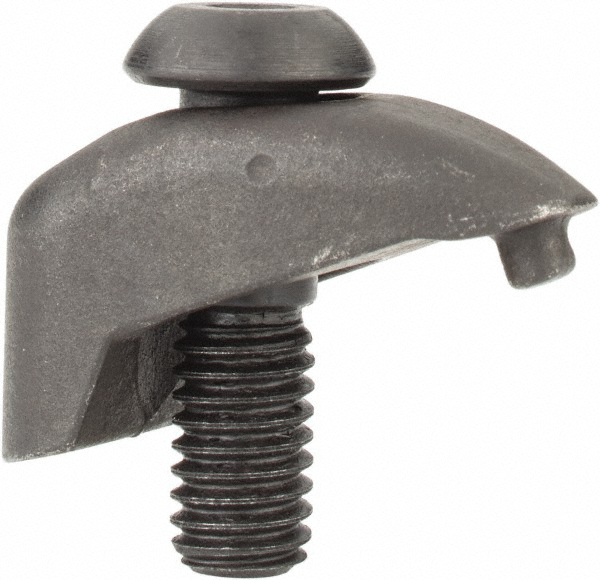

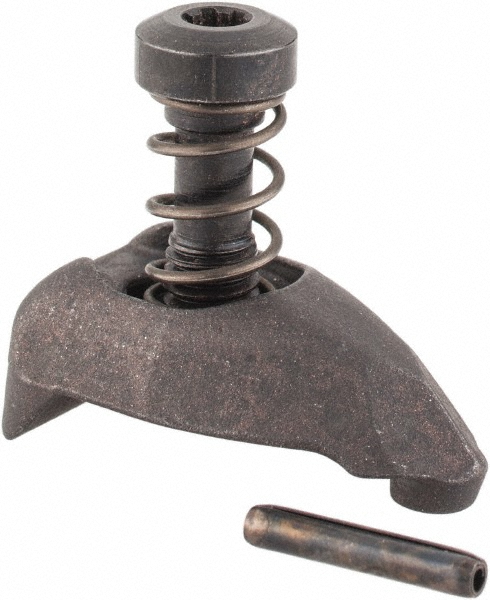

| Insert Holding Method | Pin; Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VN33 |
| Rake Angle | -12.8;-4 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Multiple Lock |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |

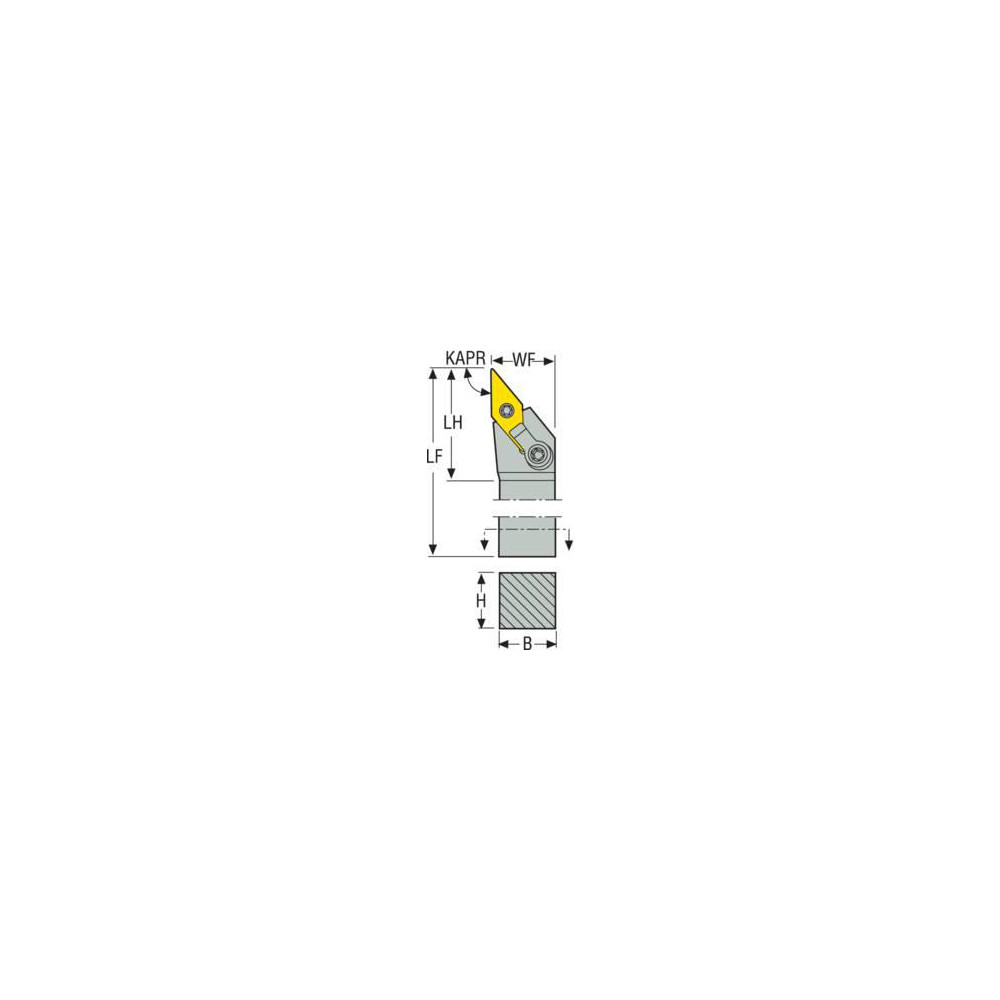

| Head Length (Decimal Inch) | 1.6600 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |

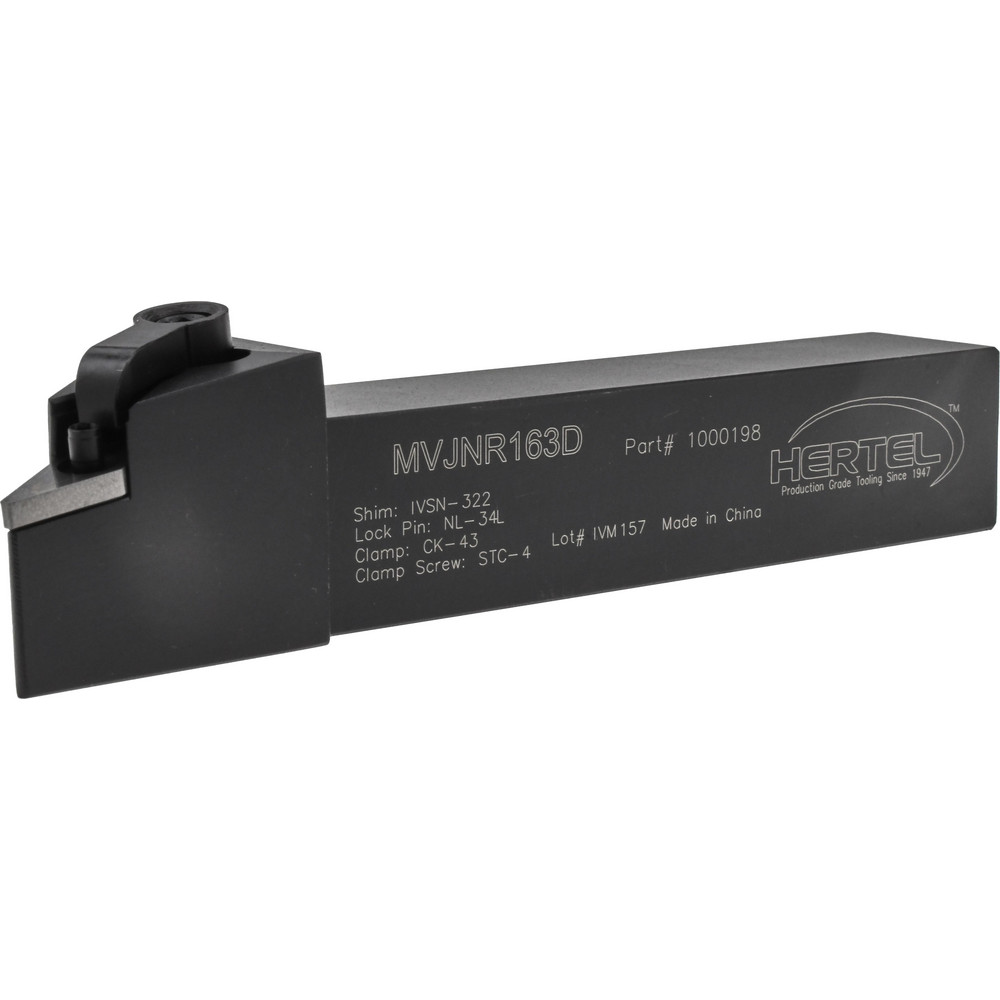

| Manufacturers Catalog Number | MVJNR163D |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 57128084 |
