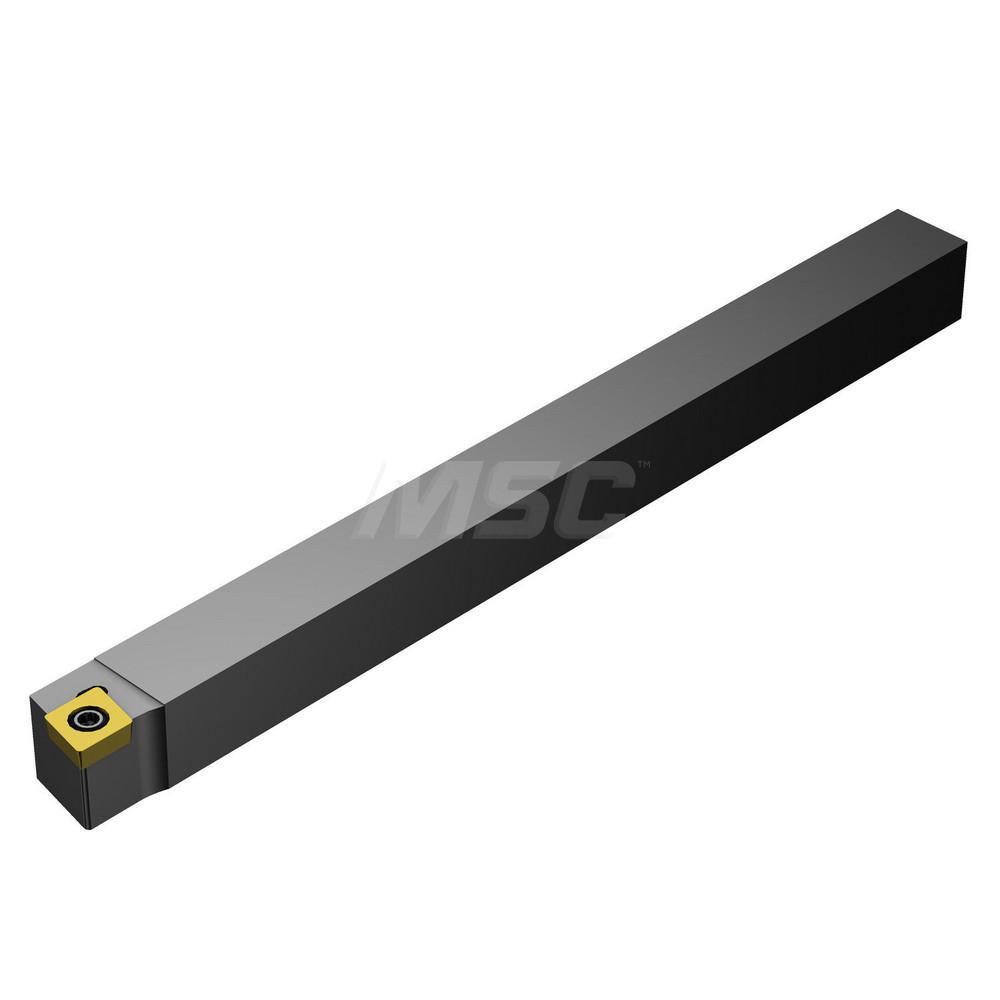

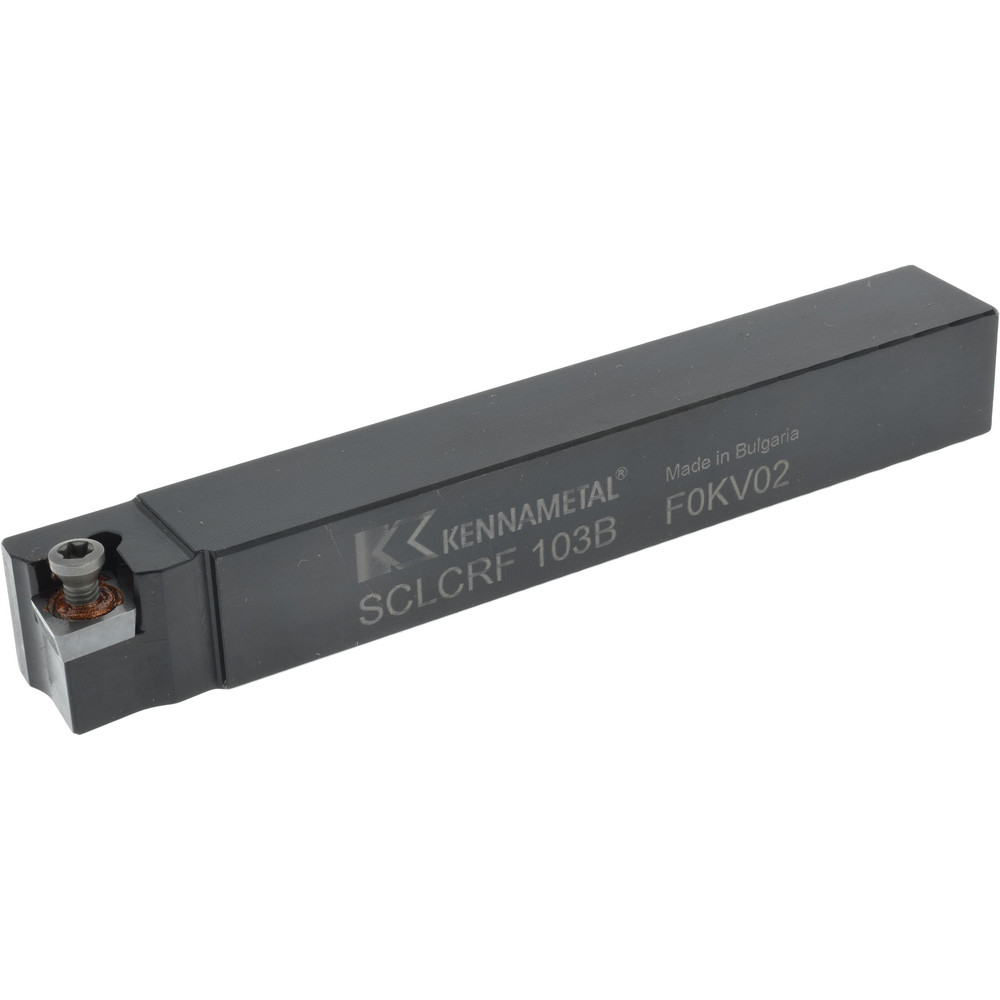

16.00 x 16.00 mm Shank, 100.00 mm OAL
| Toolholder Style | SCLC |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CC..09T3.. |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Coolant Through | No |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | Screw Lock |
| Head Length (Decimal Inch) | 0.4724 |
| Head Length (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Italy |
| MSC Number | MSC# 71233795 |
