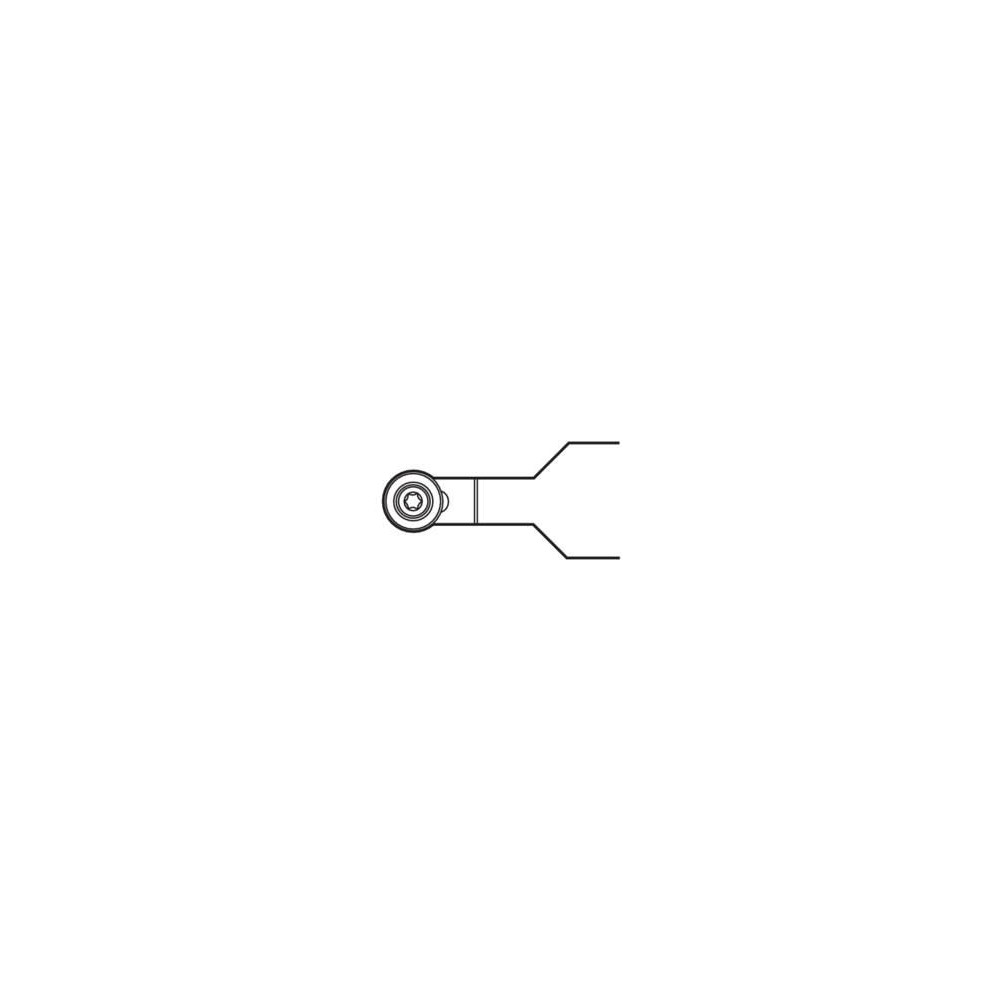

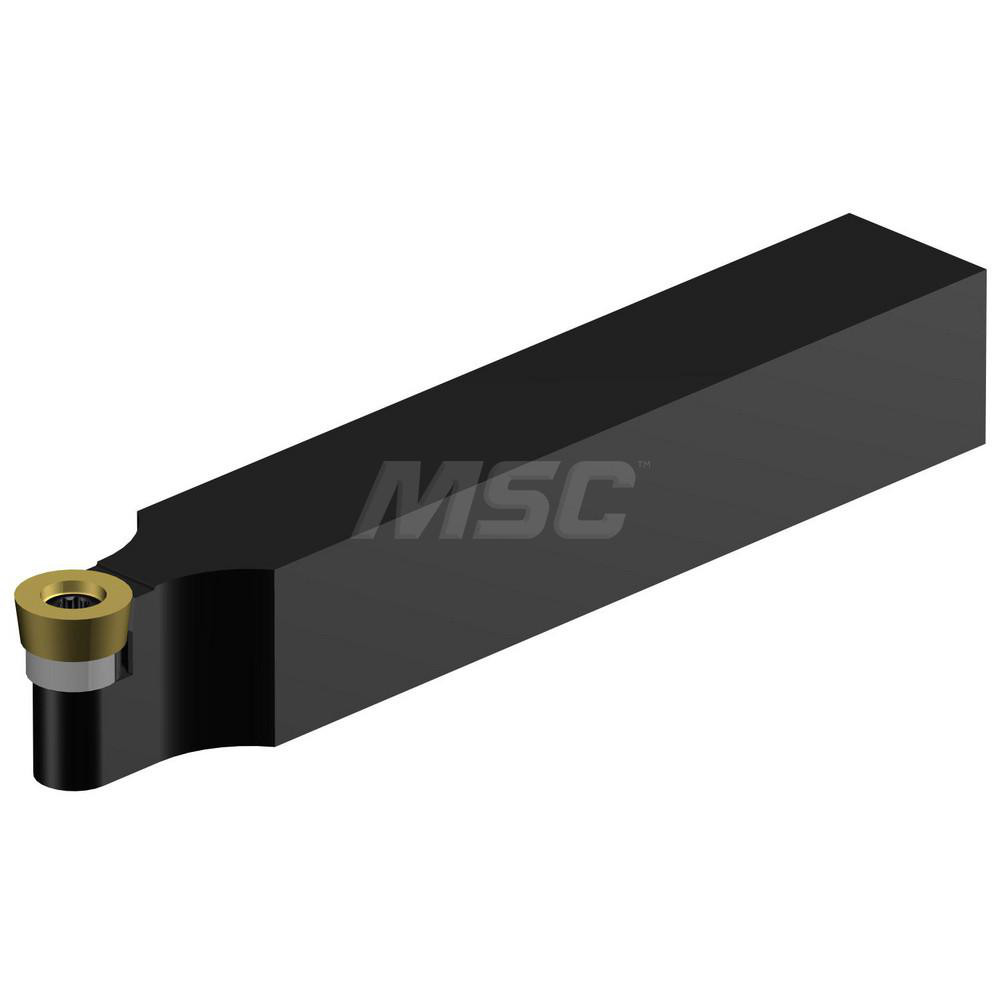

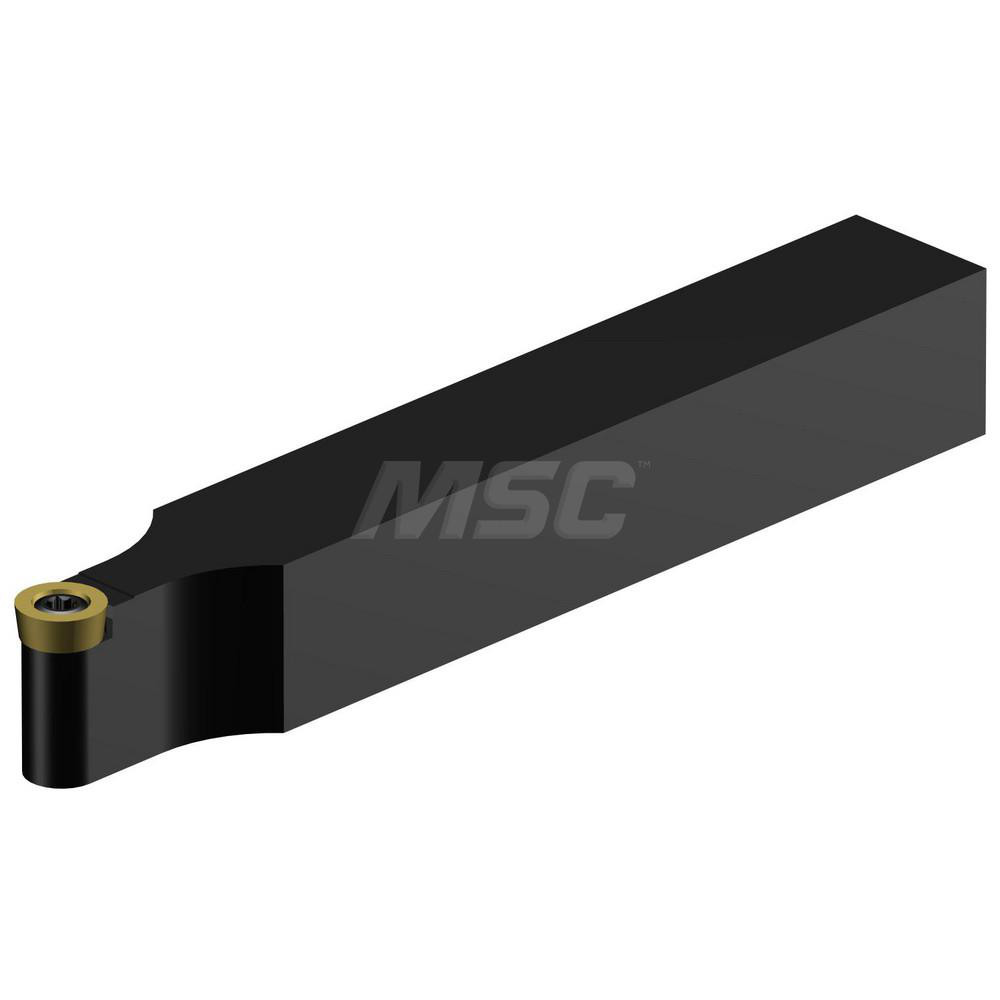

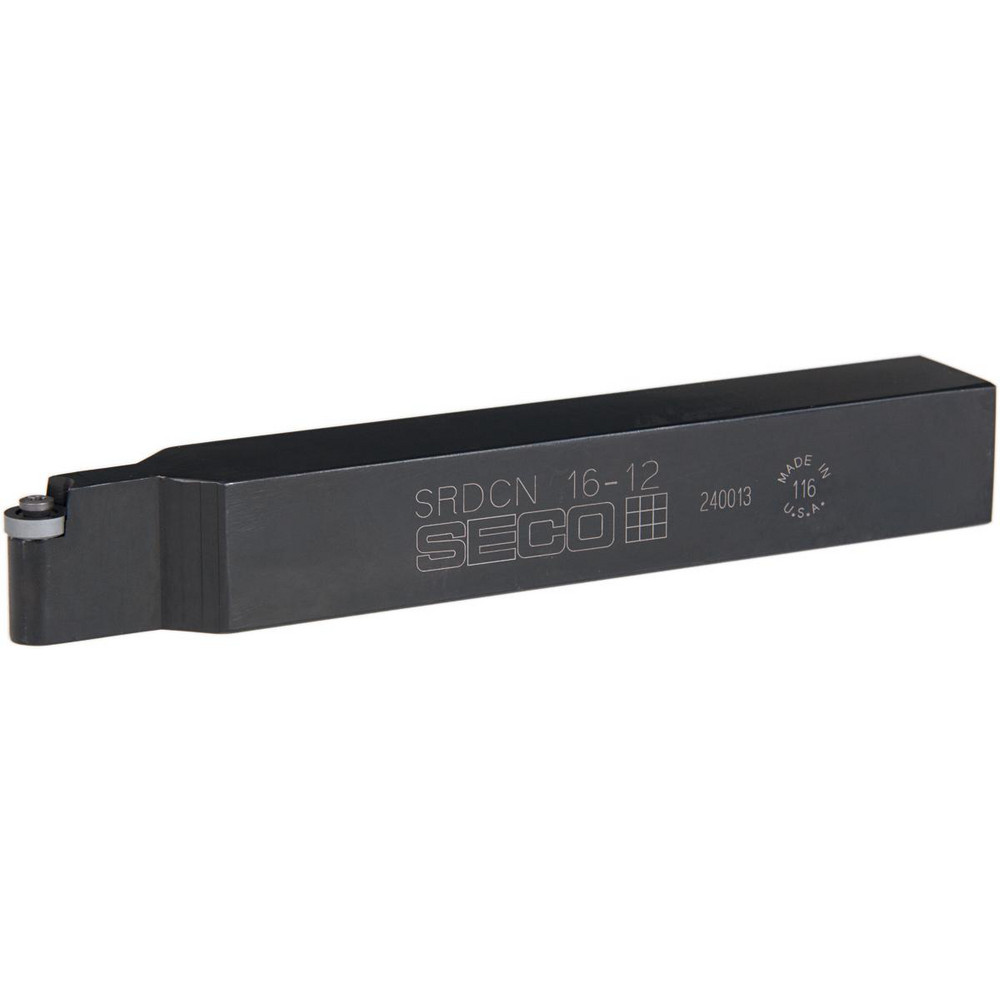

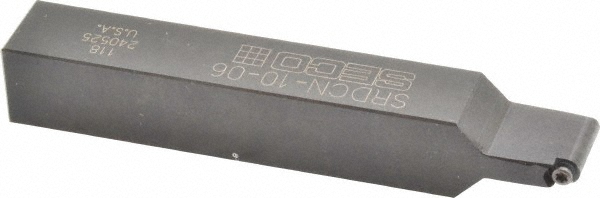

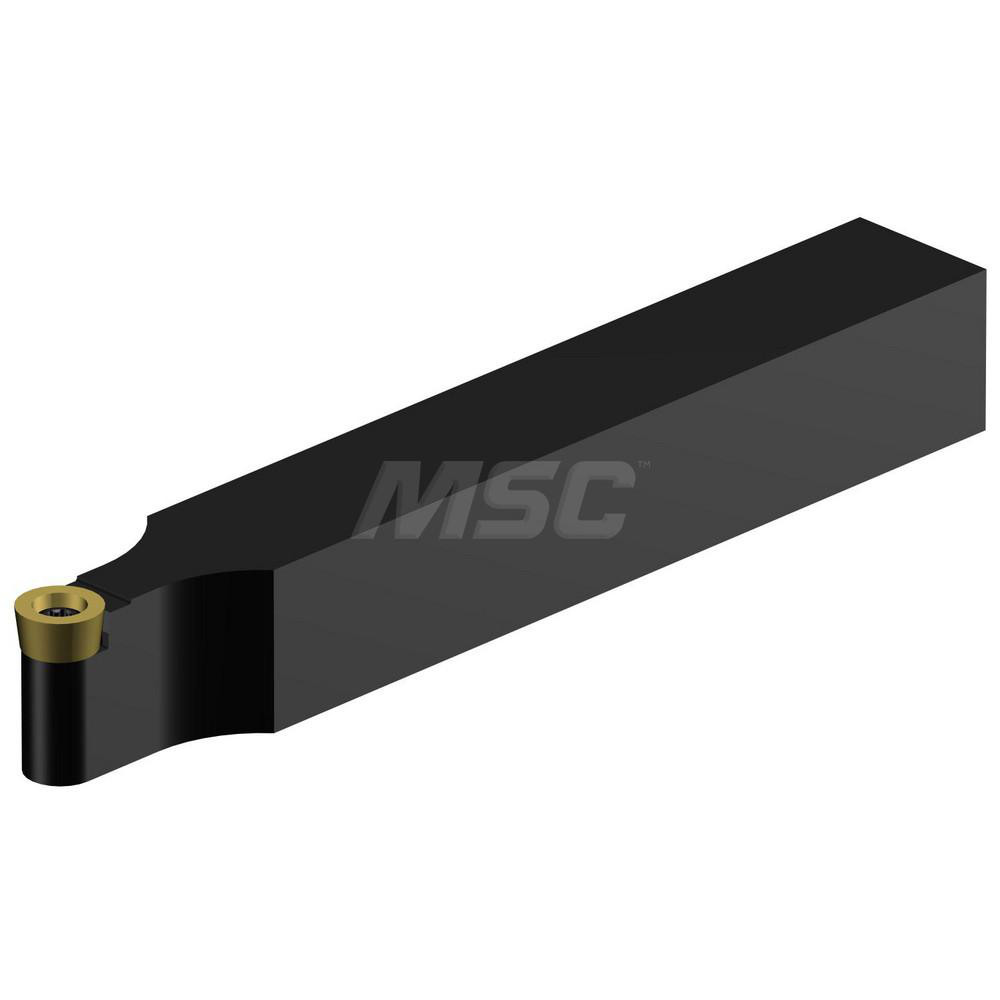

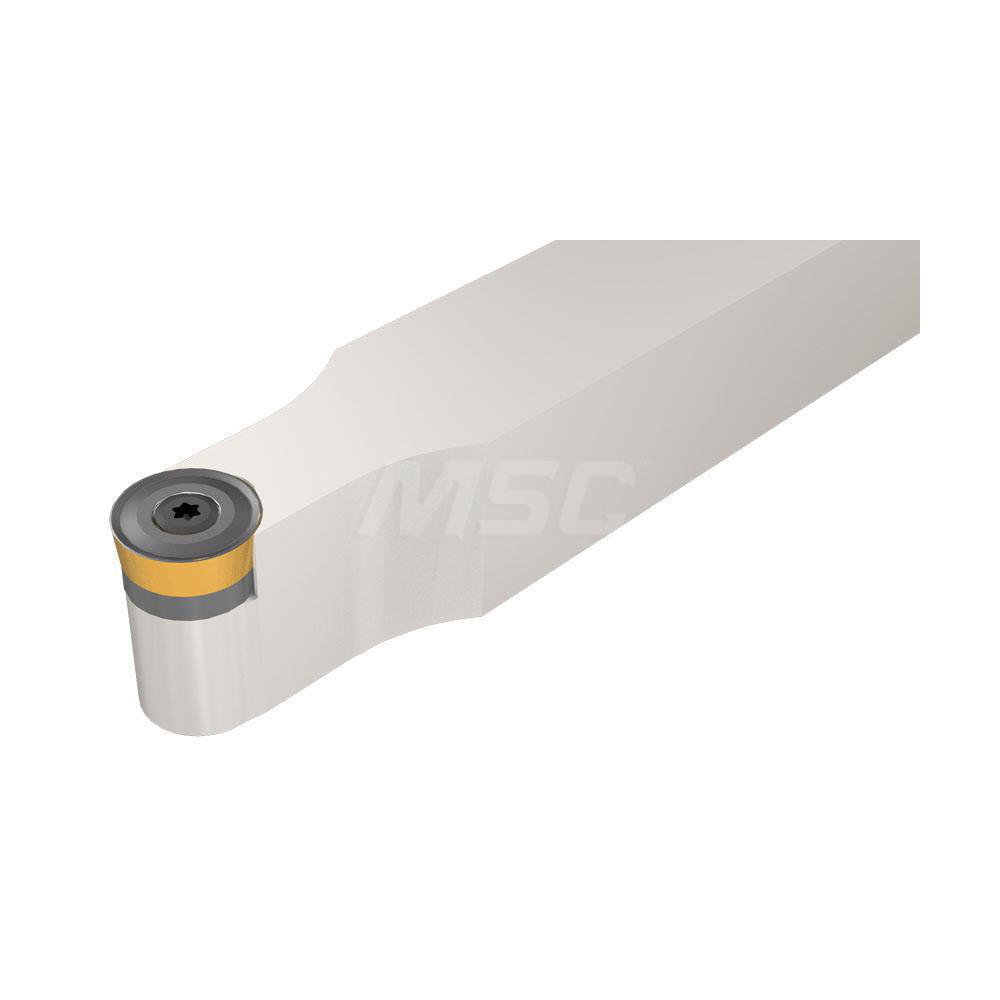

25.00 x 25.00 mm Shank, 150.00 mm OAL
| Toolholder Style | SRDC |
|---|---|
| Hand of Holder | Neutral |
| Lead Angle | 45.0 |
| Insert Compatibility | RCMT 0602 |
| Insert Holding Method | Screw |

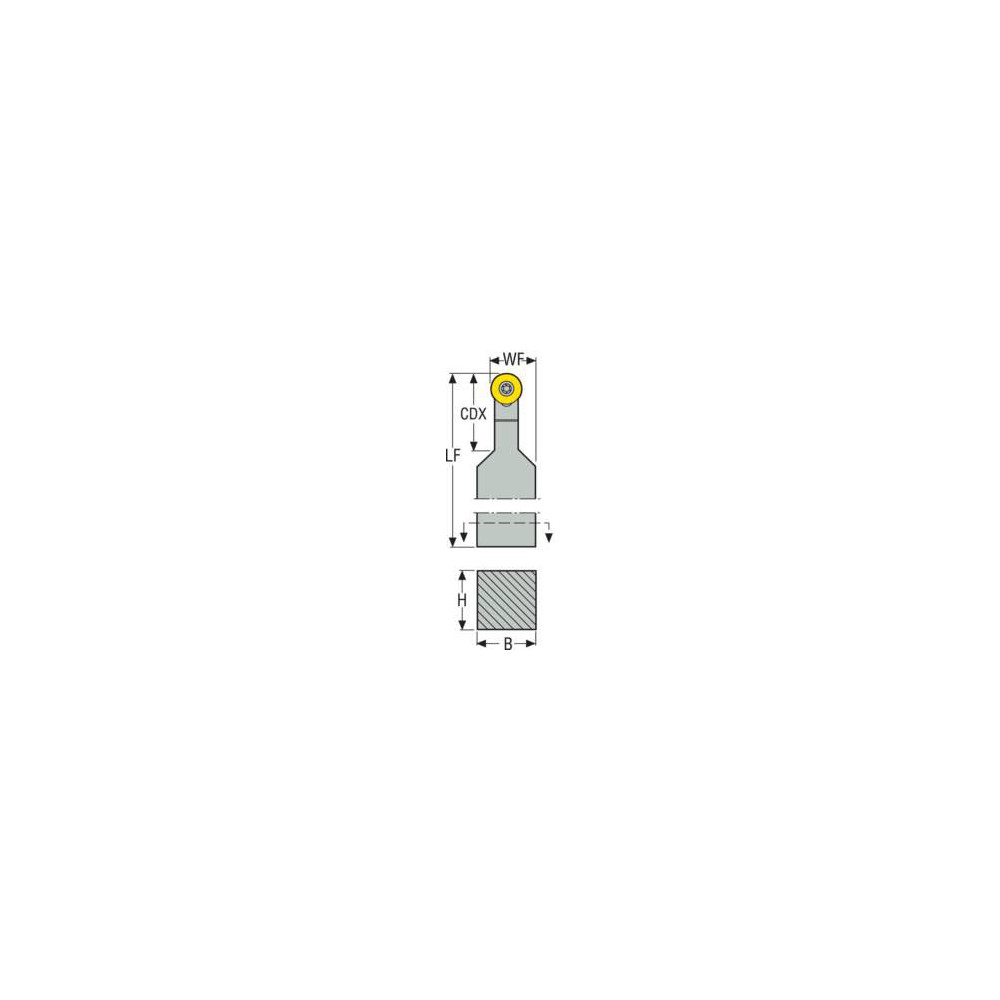

| Overall Length (Decimal Inch) | 5.9055 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | RCMT0602 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Screw Lock |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.6299 |
| Head Length (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6102 |
| Back of Bar to Cutting Edge (mm) | 15.50 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.2362 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 51014223 |
