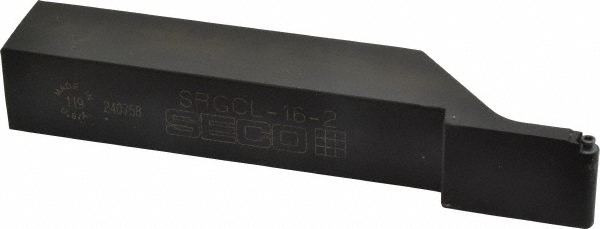

1-1/4" Shank
| Toolholder Style | SRGC |
|---|---|
| Hand of Holder | Left Hand |
| Lead Angle | 45.0 |
| Insert Compatibility | R..T 43 |
| Insert Holding Method | Screw |
| Shank Width (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | RCMM43 |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Multi-Directional Turning (MDT) |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.7500 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 76738913 |
