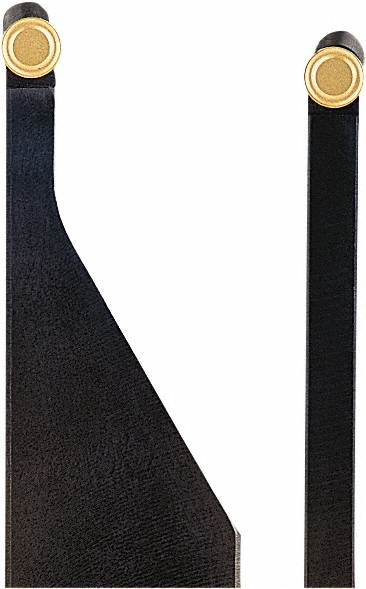

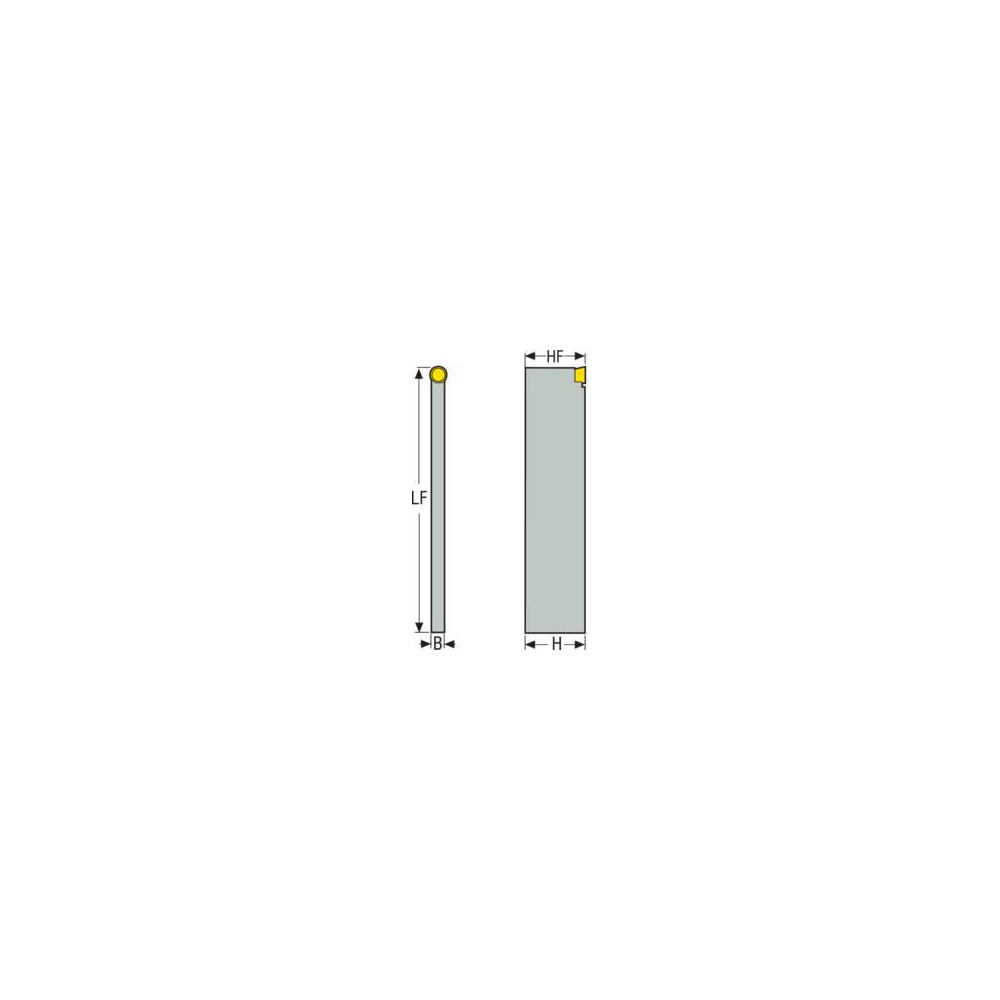

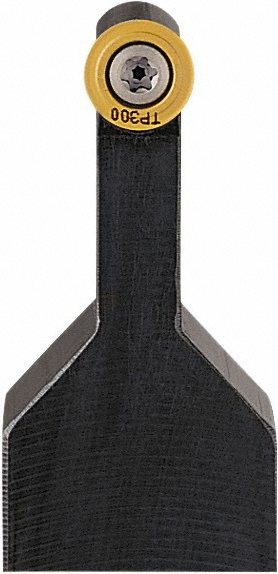

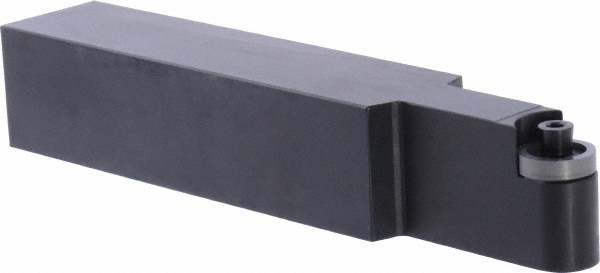

0.7500 x 0.2180" Shank, 4.0000" OAL
| Toolholder Style | TROO |
|---|---|
| Hand of Holder | Neutral |
| Lead Angle | 90.0 |
| Insert Compatibility | RCGS |
| Insert Holding Method | Pin |
| Overall Length (Decimal Inch) | 4.0000 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | RCGS2. |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.2180 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Multi-Directional Turning (MDT) |
| Overall Length (Inch) | 4 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 4.0000 |
| Head Length (mm) | 101.60 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/4 |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 76740539 |
