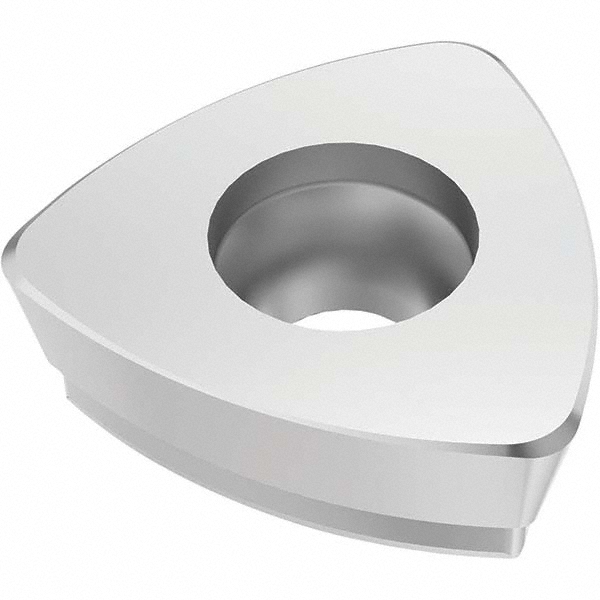

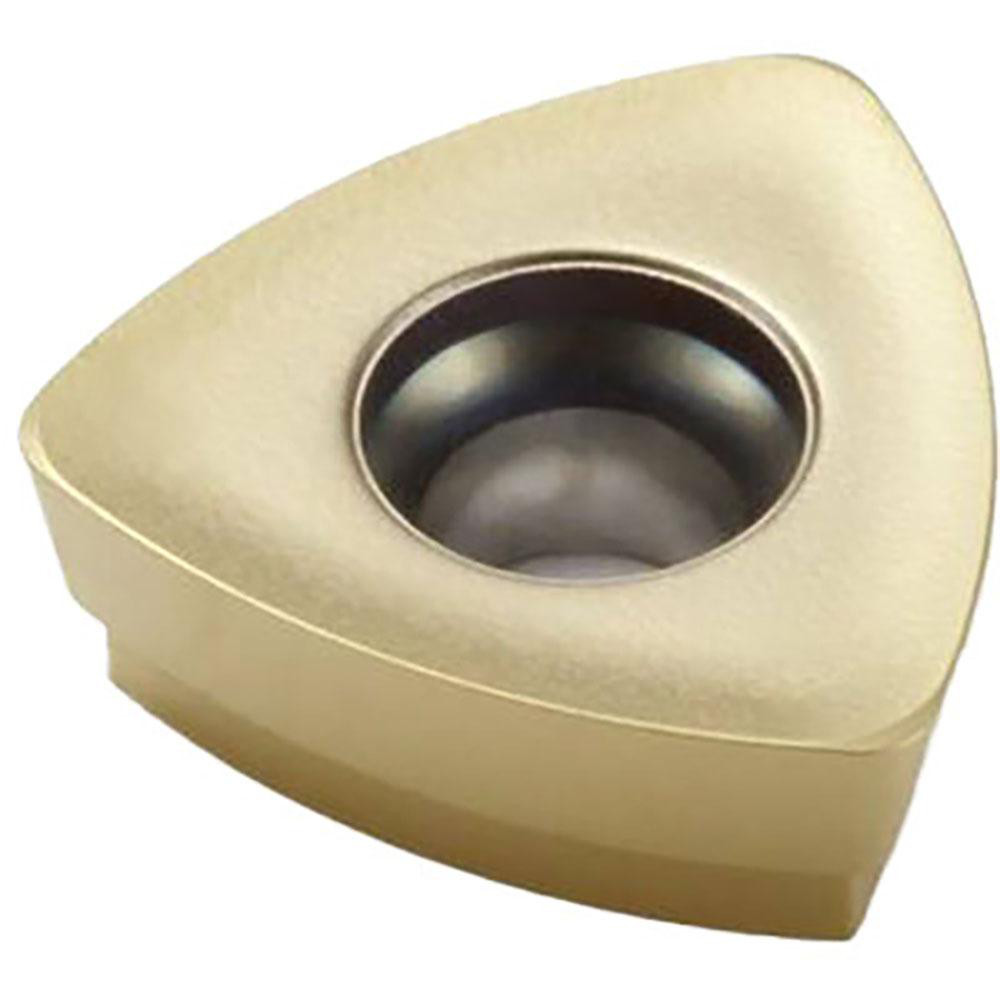

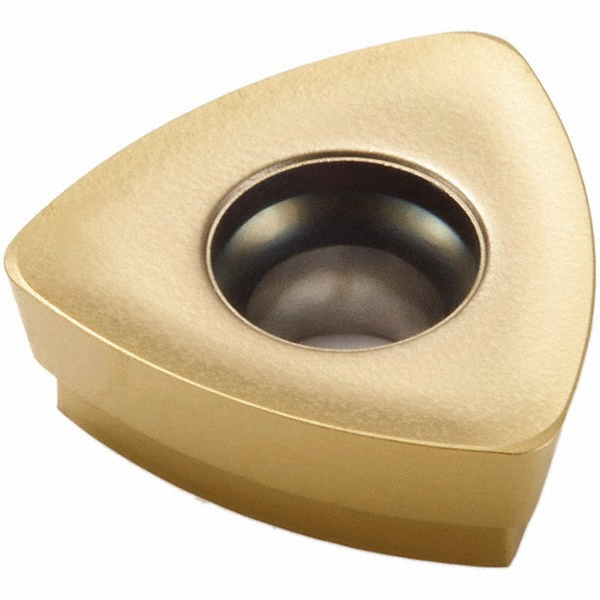

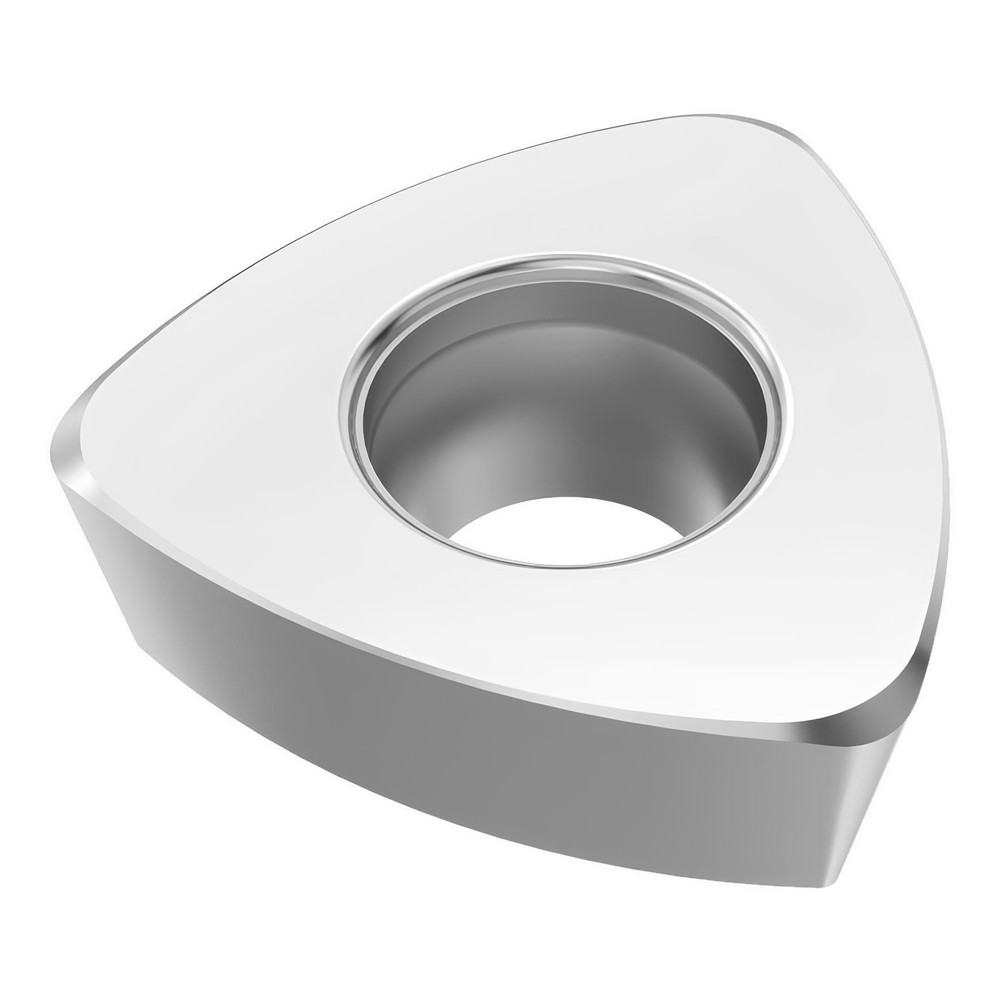

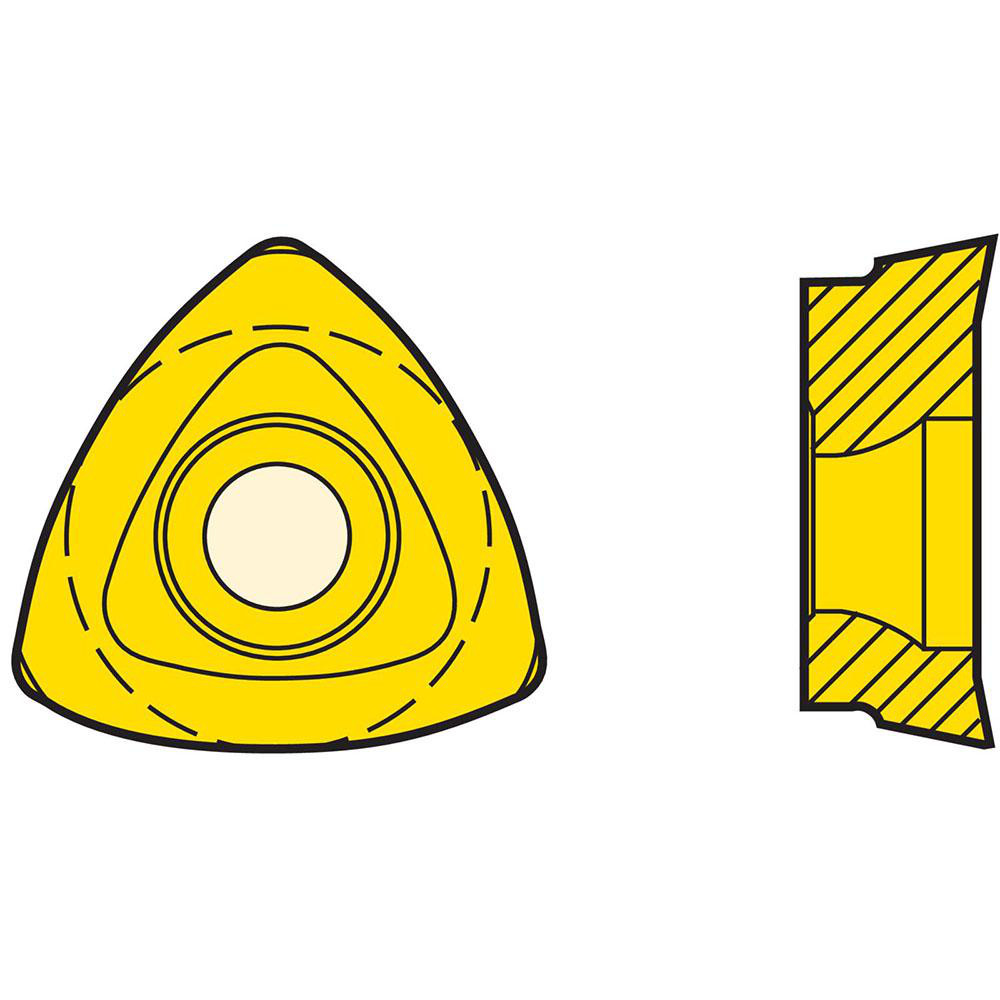

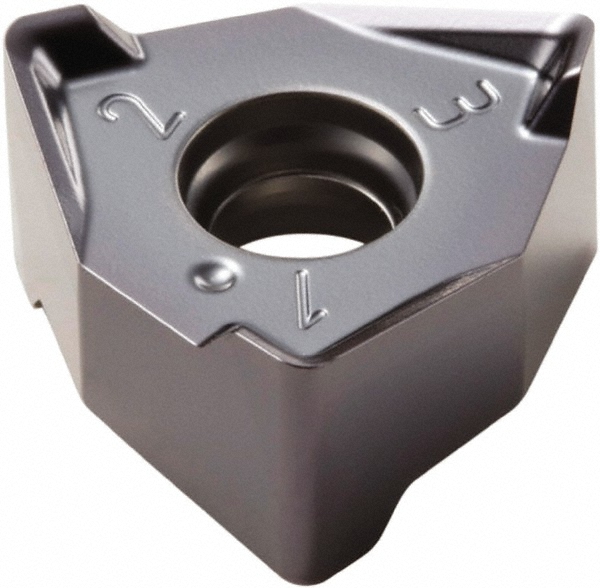

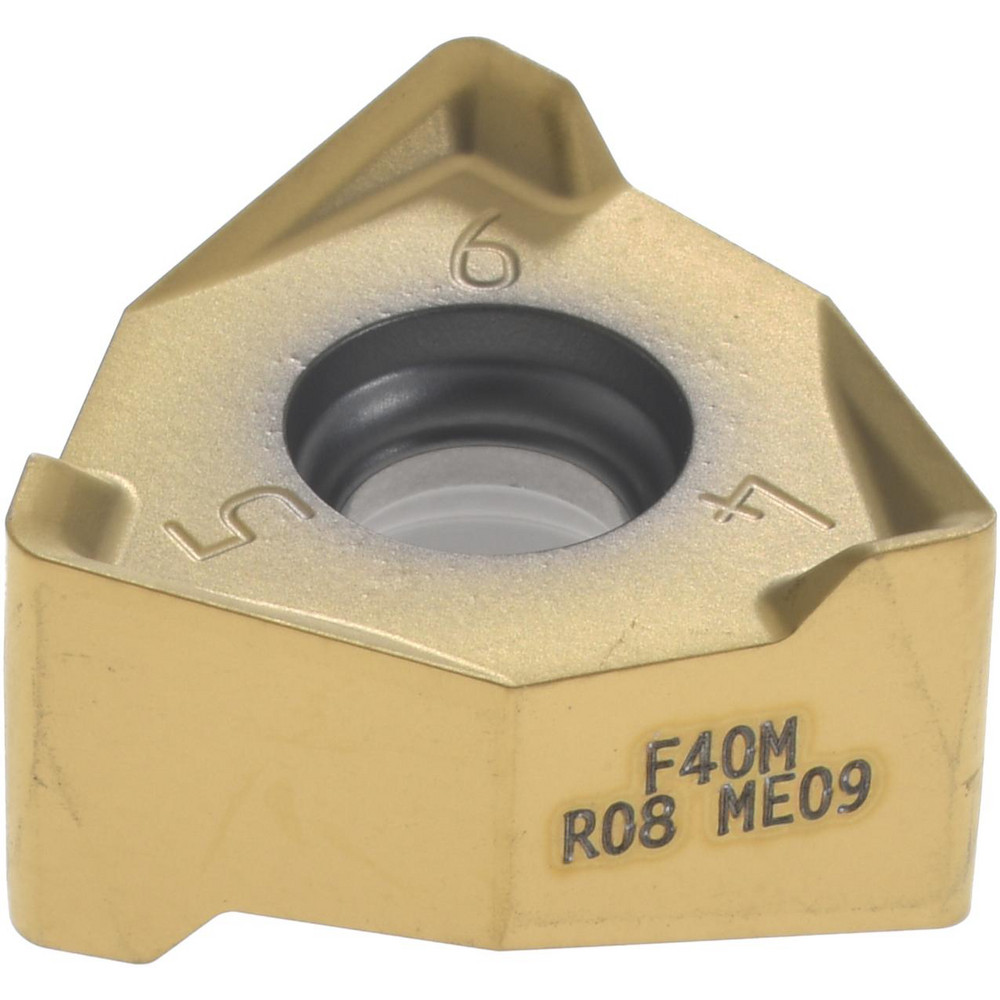

TiAlN & TiN Finish, 0.1094" Thick, 0.2780" Wide
| Insert Style | 218.19 |
|---|---|
| Insert Size | 100 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | F40M |

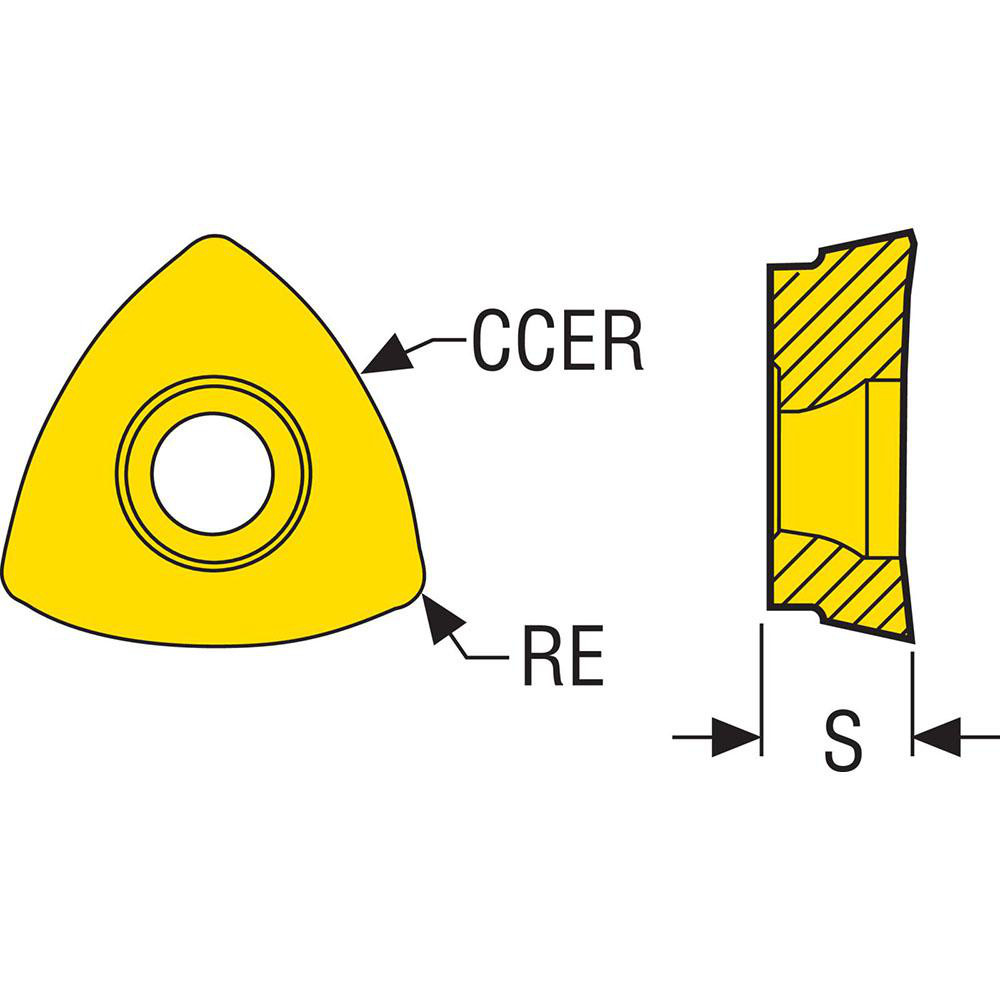

| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1094 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 12.00 |
| Insert Size Code | 100T |
| Material Grade | Fine Grain |
| Thickness (Inch) | 7/64 |
| Inscribed Circle (Decimal Inch) | 0.2780 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0290 |
| Series | 218.19-100 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | 218.19-100T-M06 |
| Iso Code | 218.19-100T-M06 |
| Standards | ISO |
| Convex Radius (Decimal Inch) | 0.3937 |
| Rake Angle | 7 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 218.19-100T-M06 |
| Cutter Series Compatibility | R218.19-20; R217.21-R100 |
| Chip Breaker | M06 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Triangle |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.2780 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2780 |
| Country of Origin | India |
| MSC Number | MSC# 84310143 |
