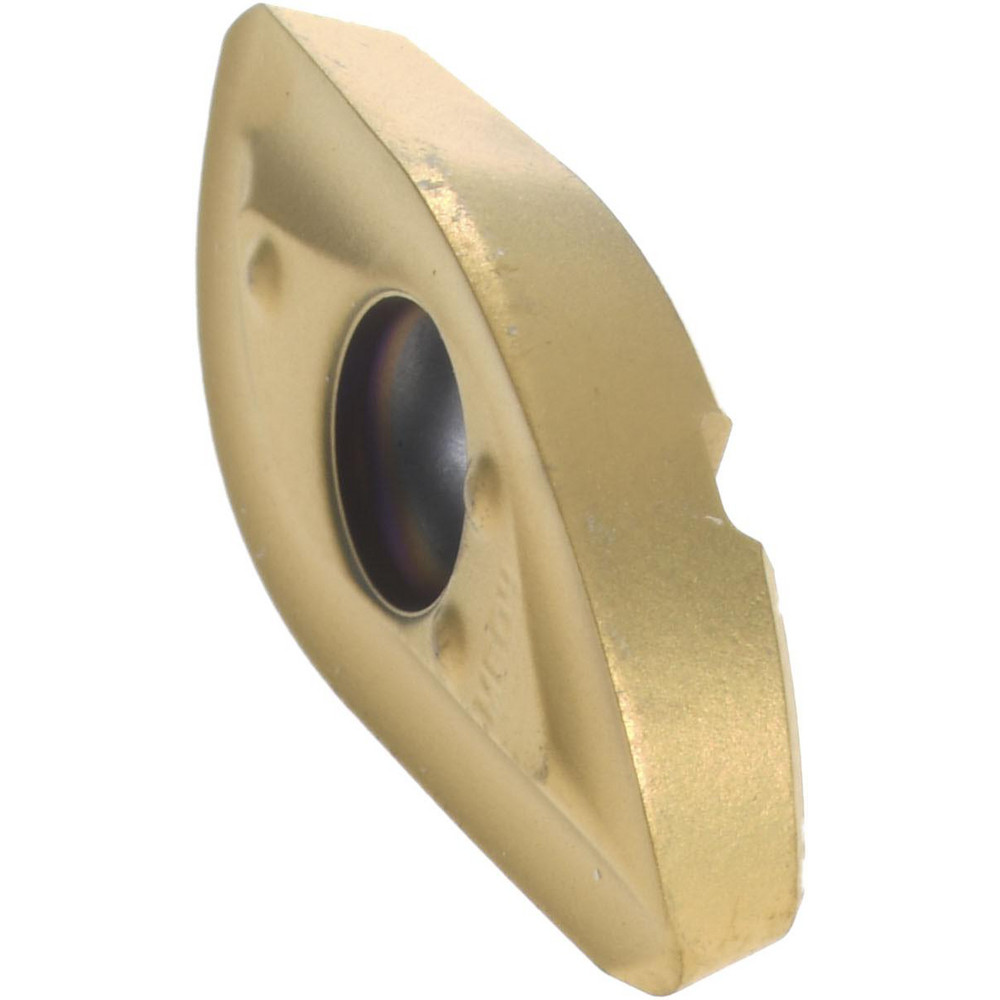

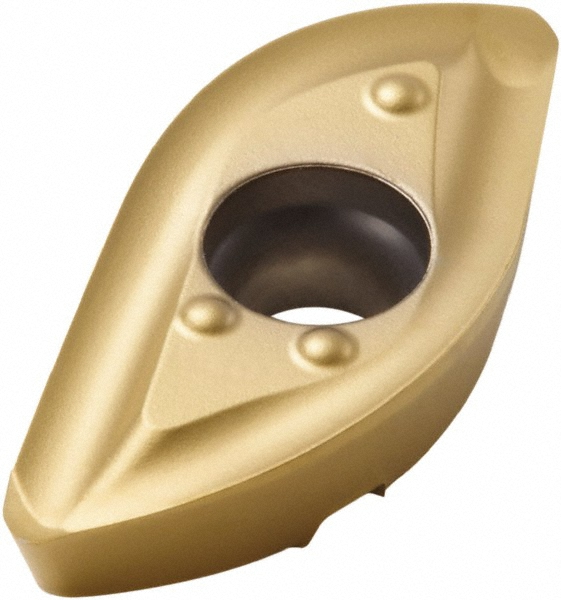

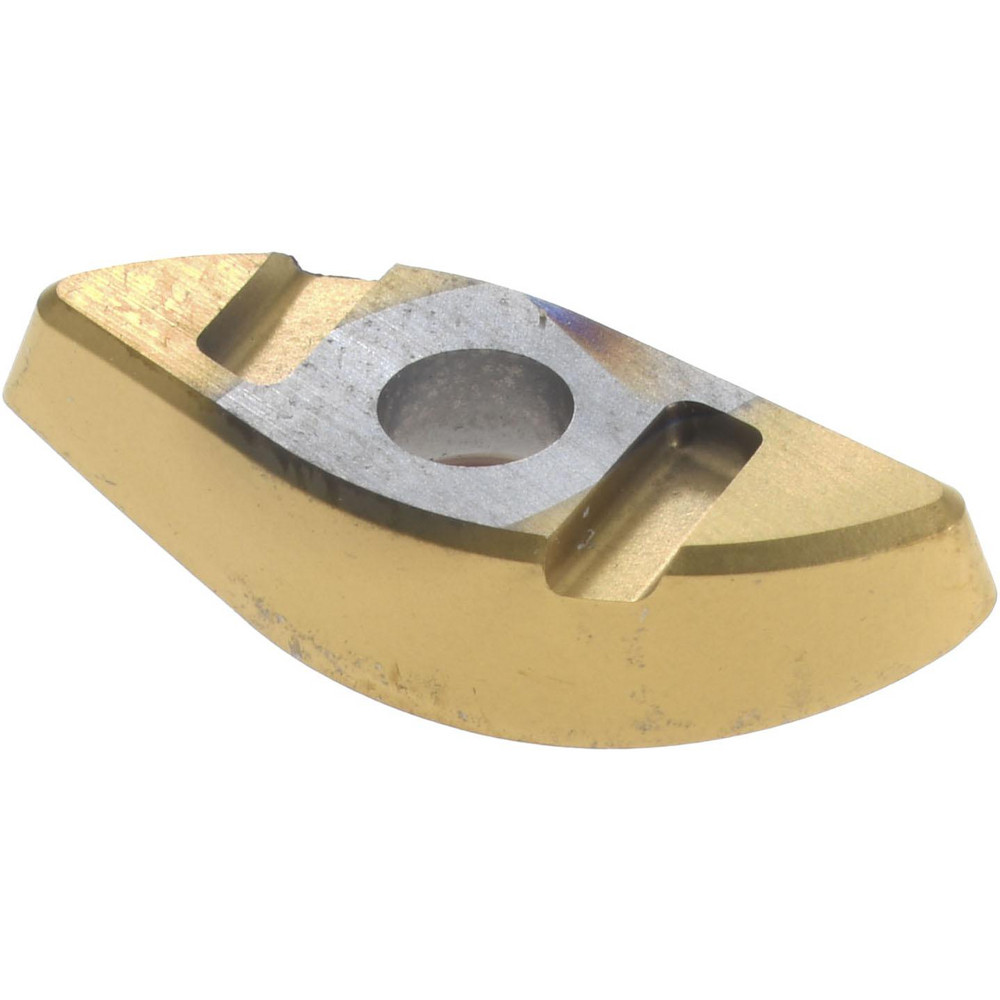

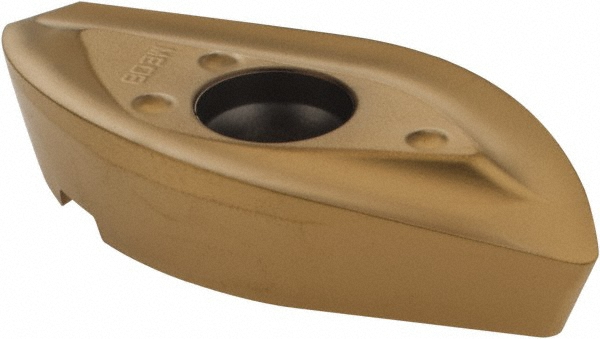

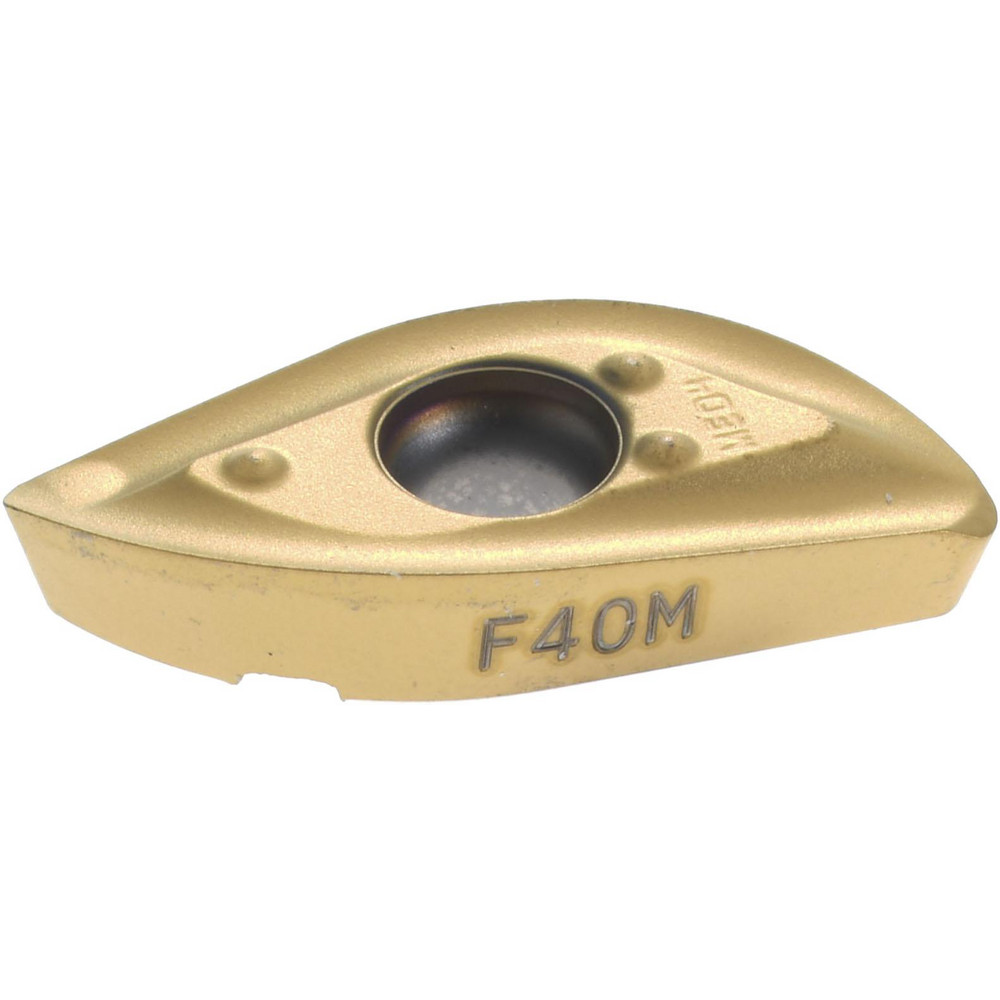

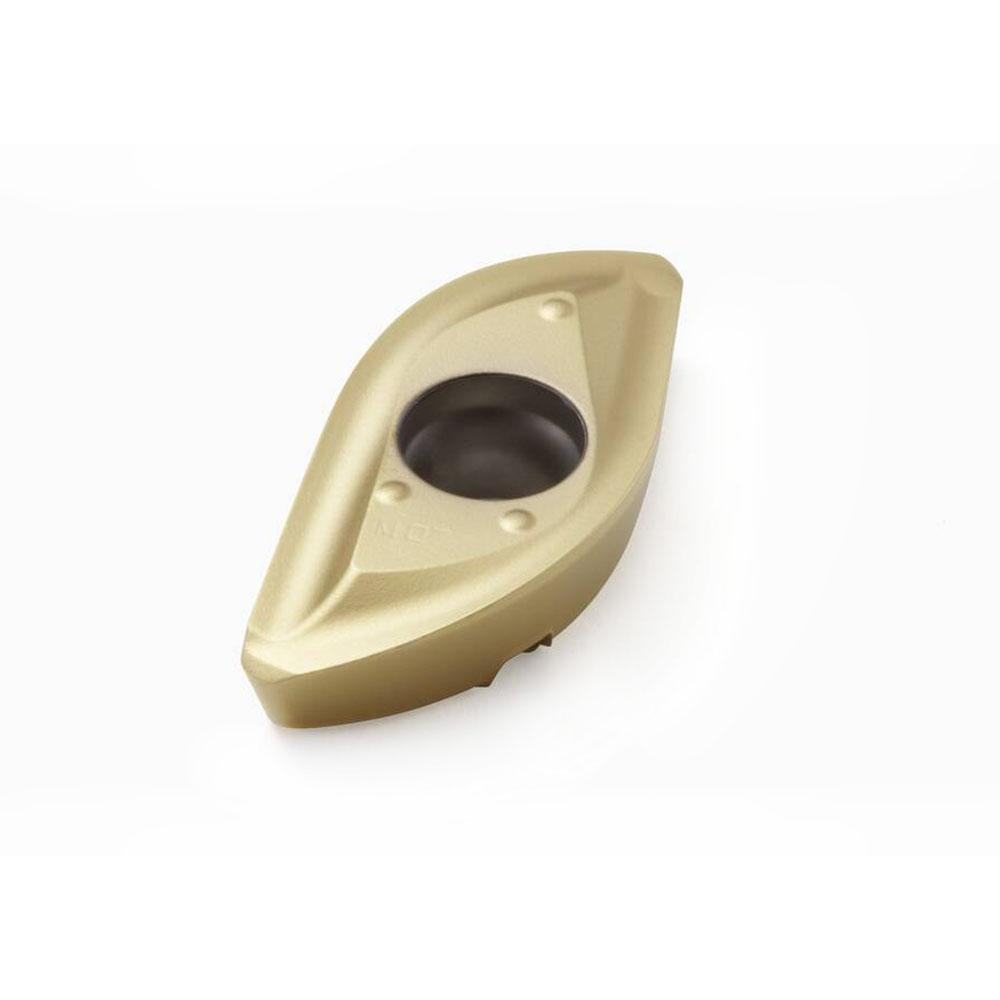

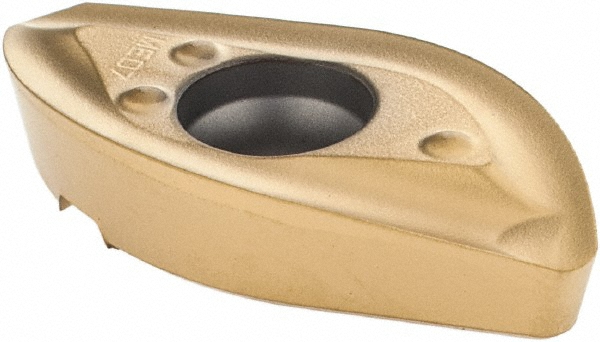

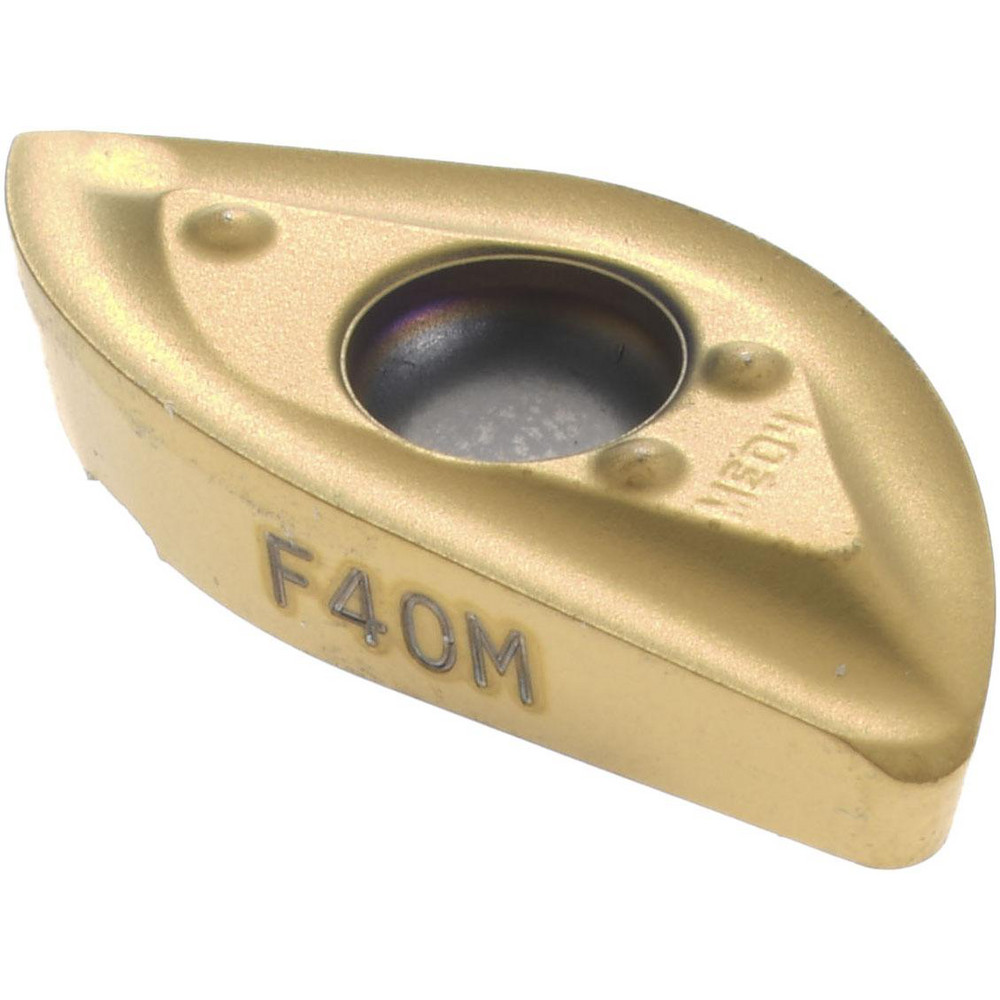

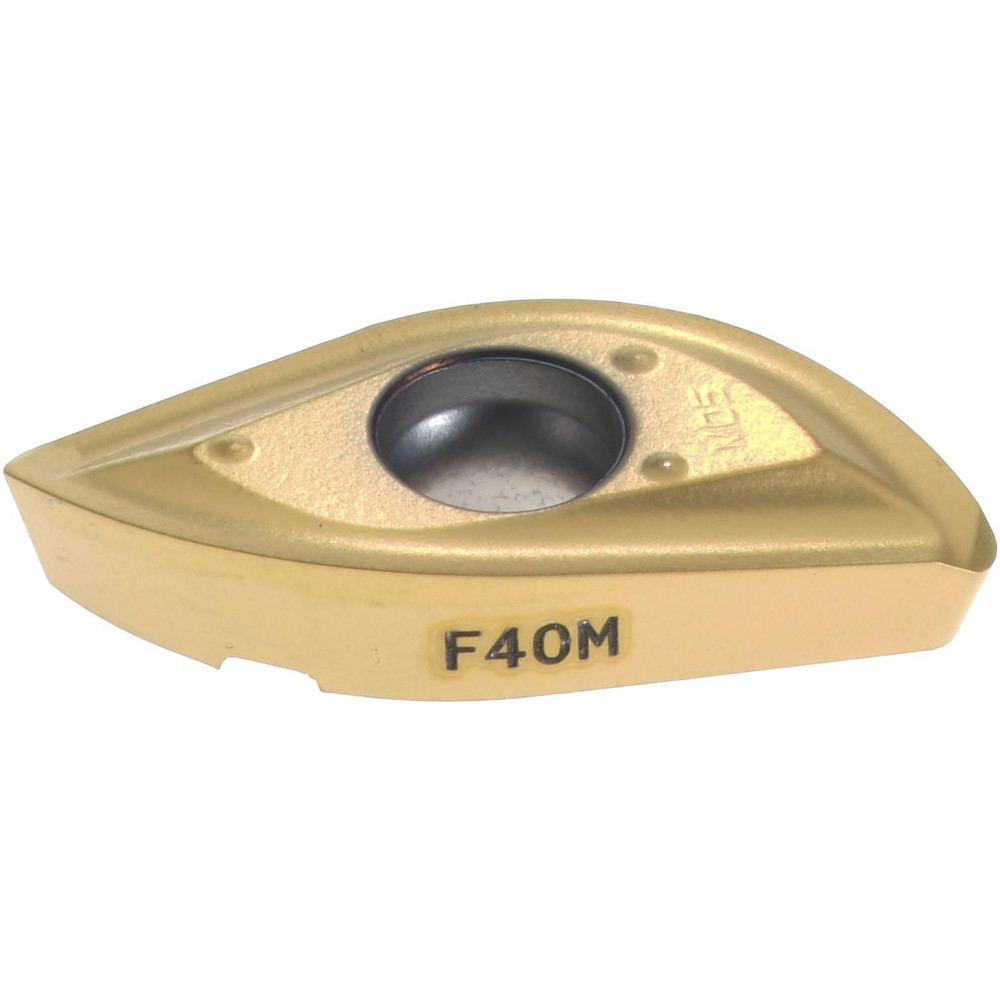

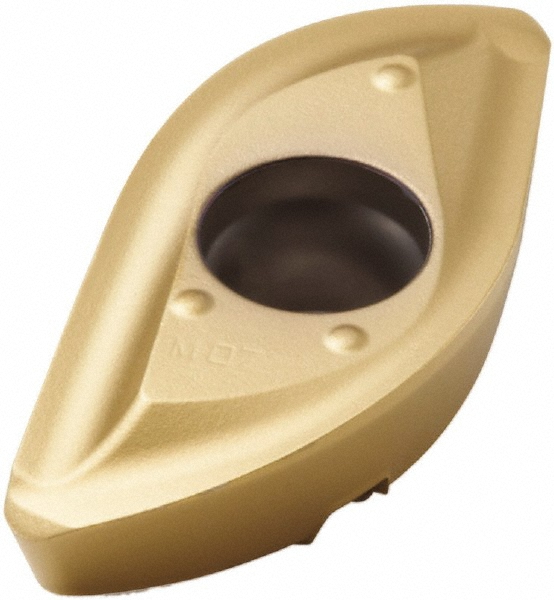

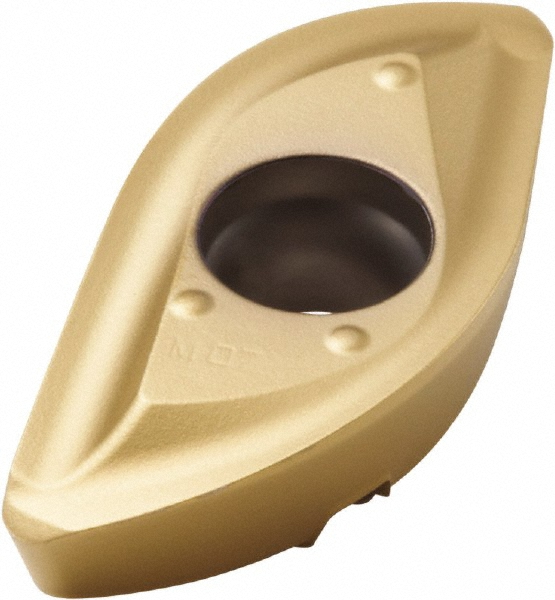

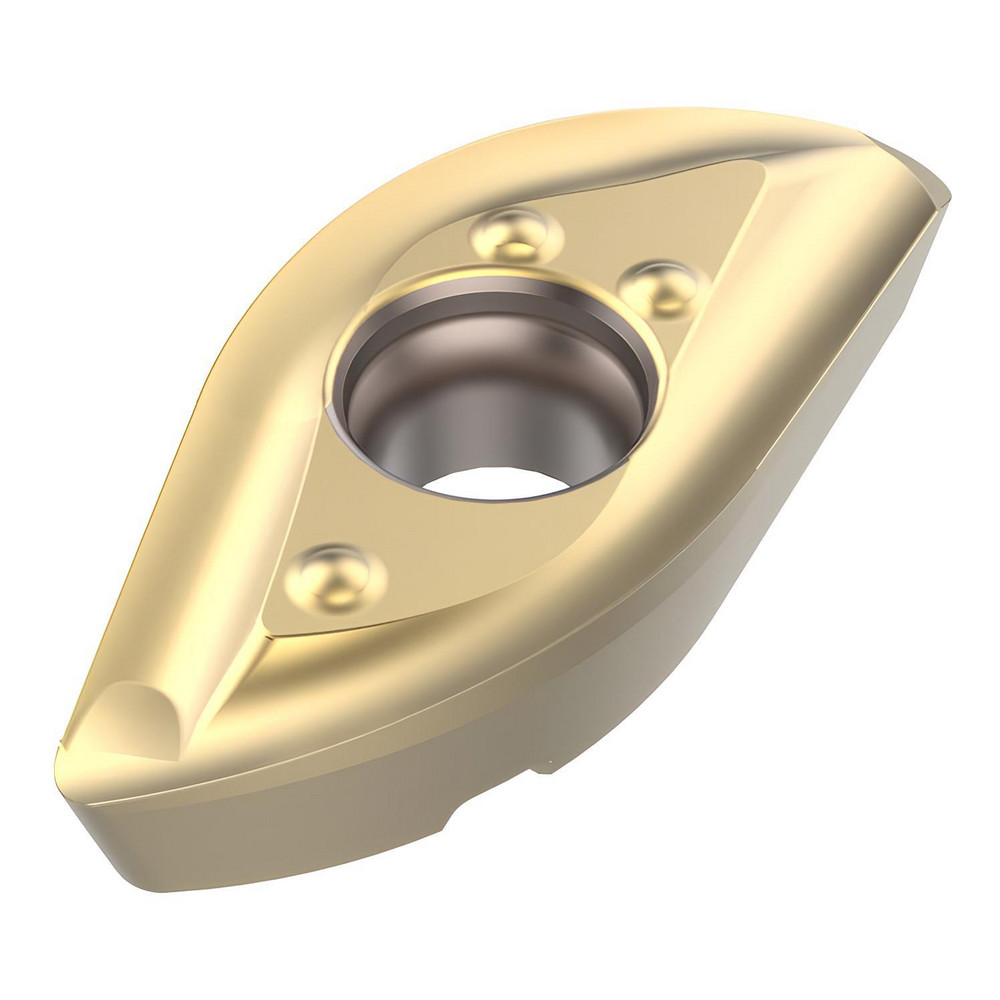

TiAlN & TiN Finish, 0.1264" Thick, 0.2709" Wide
| Insert Style | 218.20 |
|---|---|
| Insert Size | 080 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |

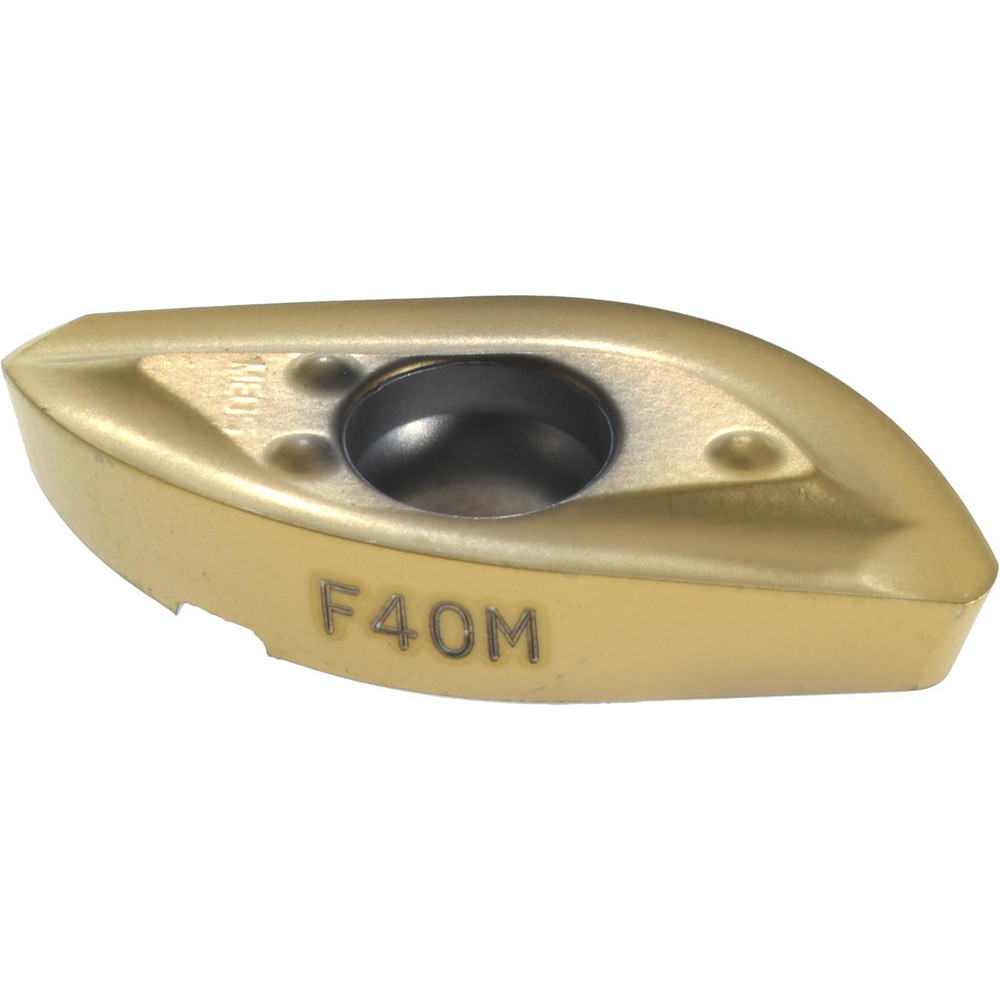

| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1264 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 080ER |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.2709 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Series | 218.20-080 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | 218.20-080ER-ME04 |
| Iso Code | 218.20-080ER-ME04 |
| Standards | ISO |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 218.20-080ER-ME04 |
| Cutter Series Compatibility | R218.20-0.625; R218.24-R080; R218.20-16 |
| Chip Breaker | ME04 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Ball Nose |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2709 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6157 |
| Country of Origin | India |
