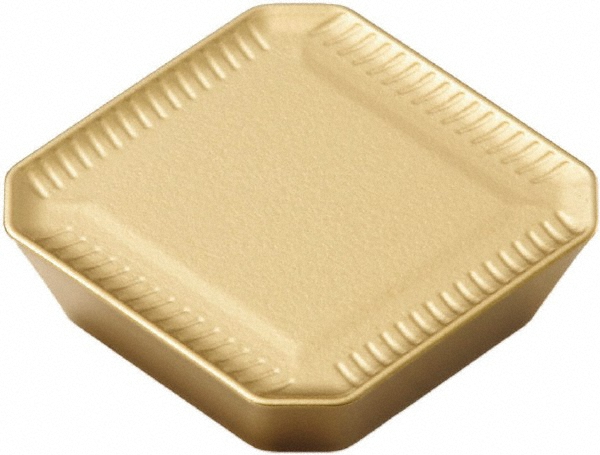

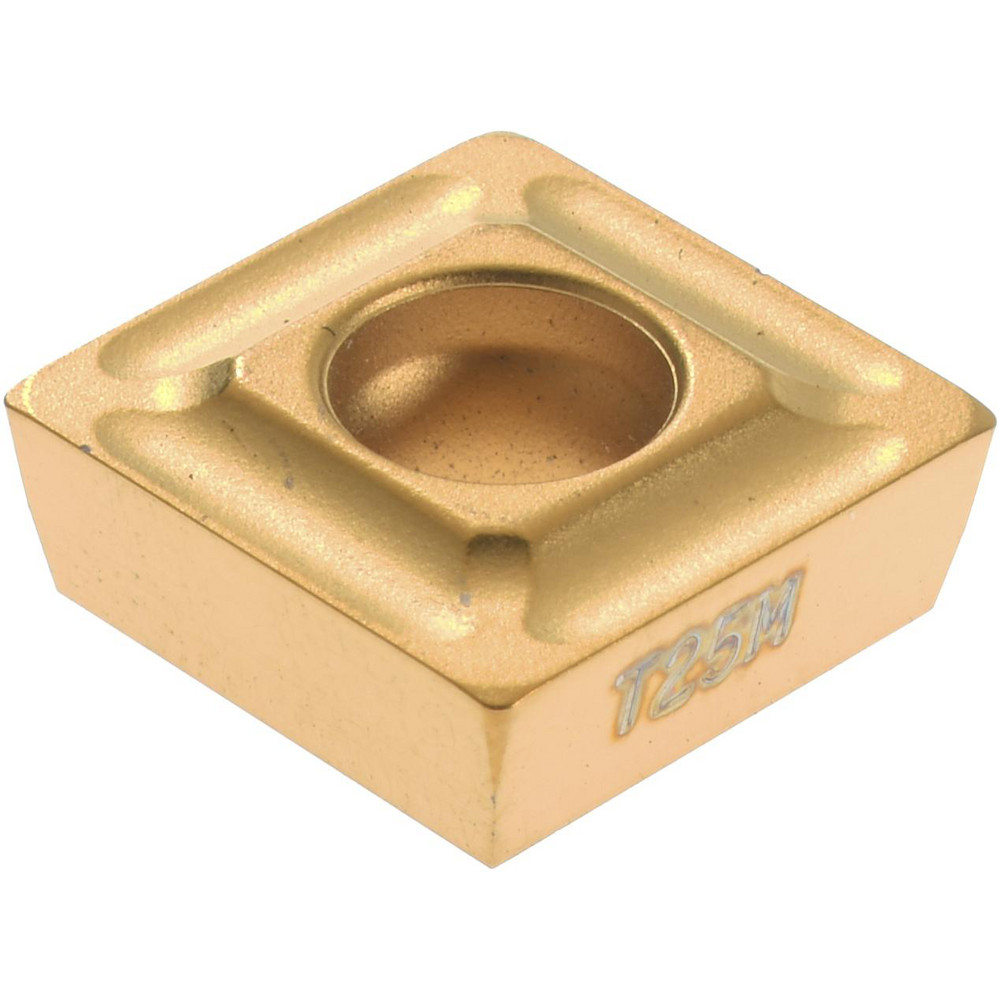

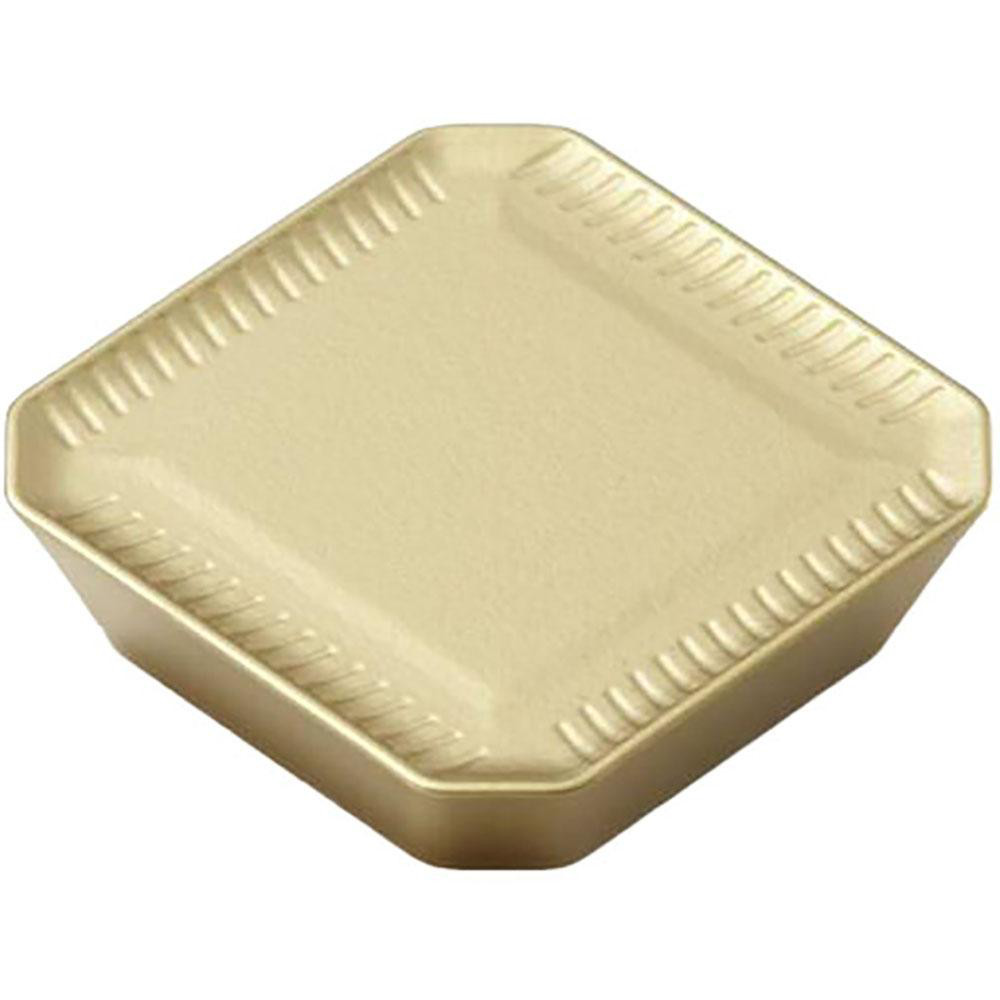

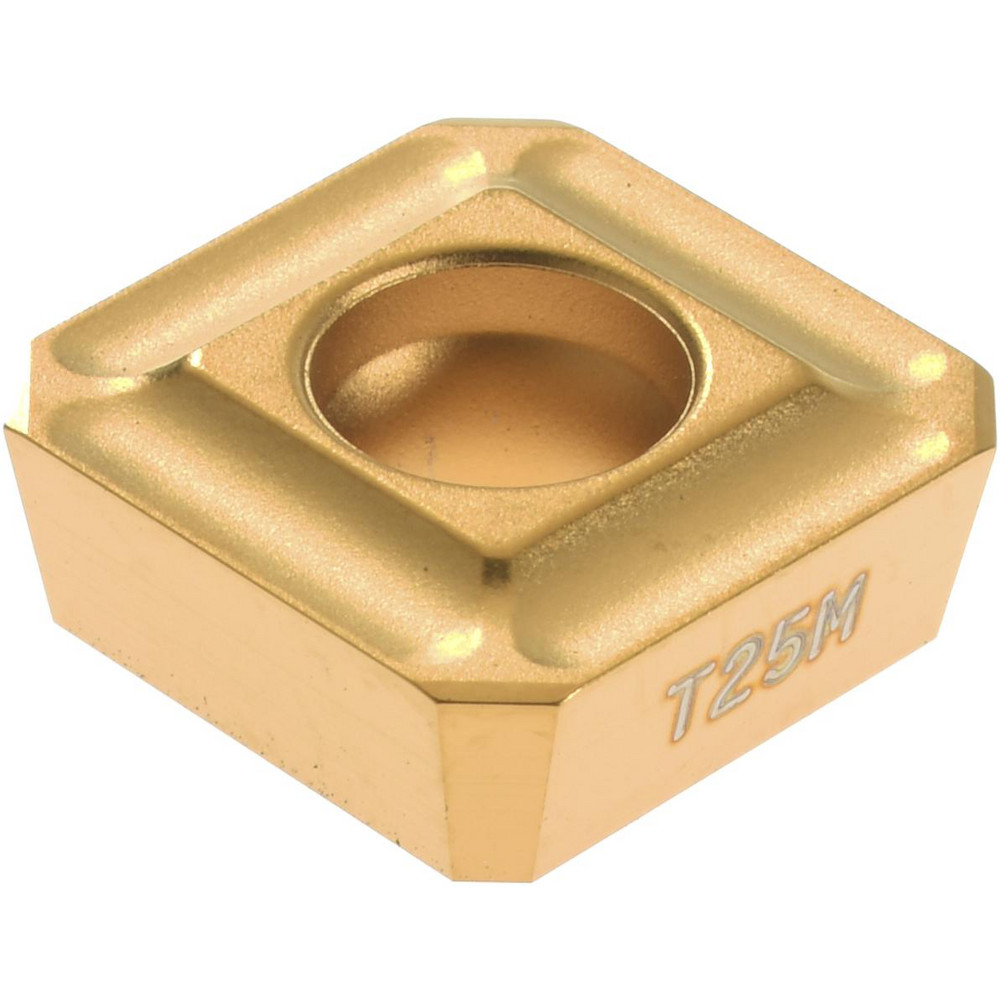

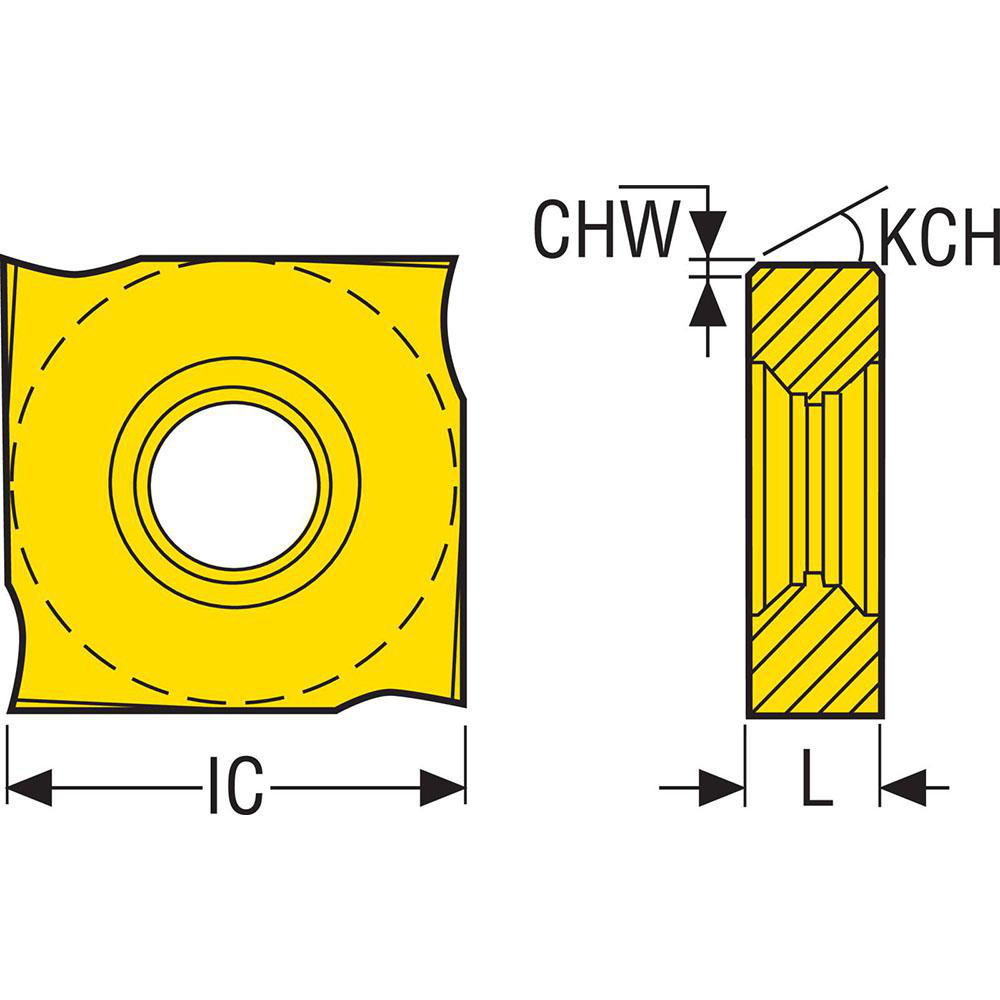

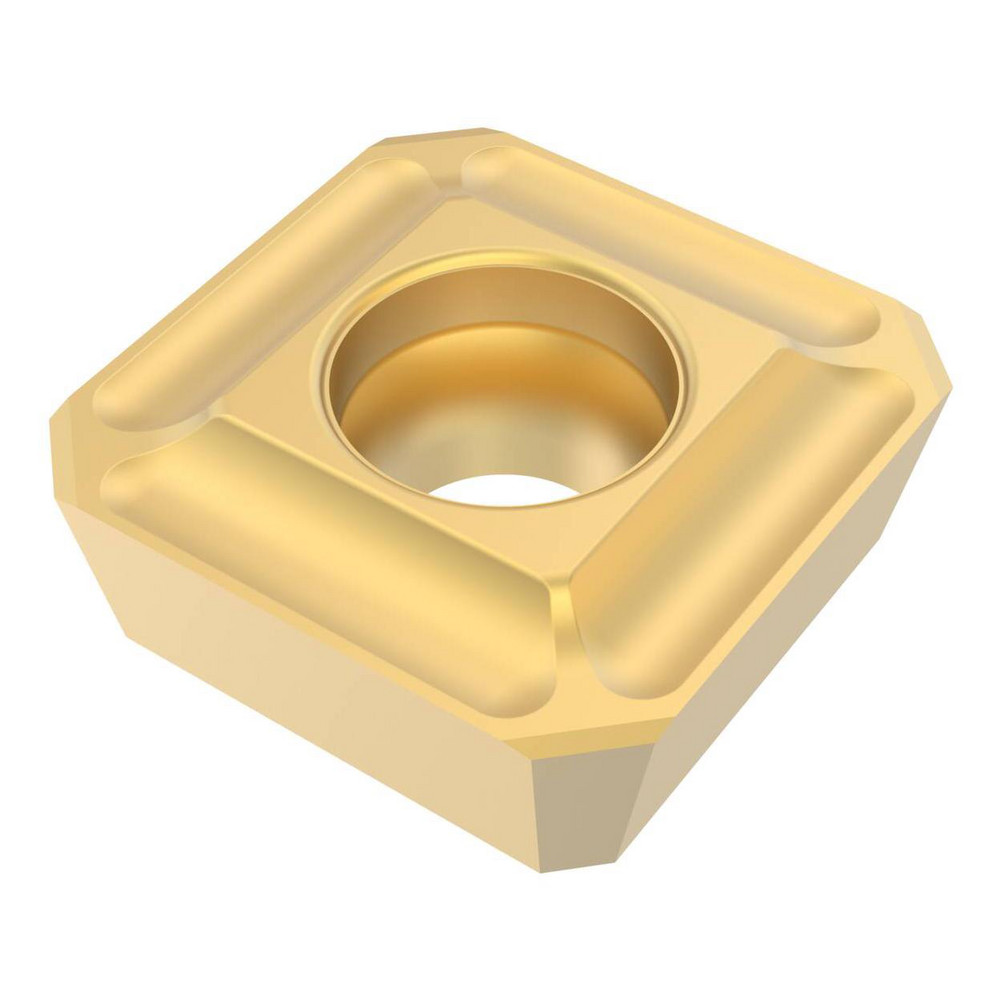

TiCN Finish, 0.2756" Thick, 0.5000" Wide
| Insert Style | 335.19 |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | T25M |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2756 |
| Coating/Finish | TiCN |
| Relief Angle | 0.00 |
| Insert Size Code | 1207 |
| Material Grade | Medium Grain |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | 335.19-12 |
| Coating Process | CVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2756 |
| Rake | Negative |
| Secondary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; M |
| Ansi Code | 335.19-1207T-MD09 |
| Iso Code | 335.19-1207T-MD09 |
| Standards | ISO |
| Rake Angle | 15 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | 335.19-1207T-MD09 |
| Cutter Series Compatibility | 335.19 |
| Chip Breaker | MD09 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 56969124 |
