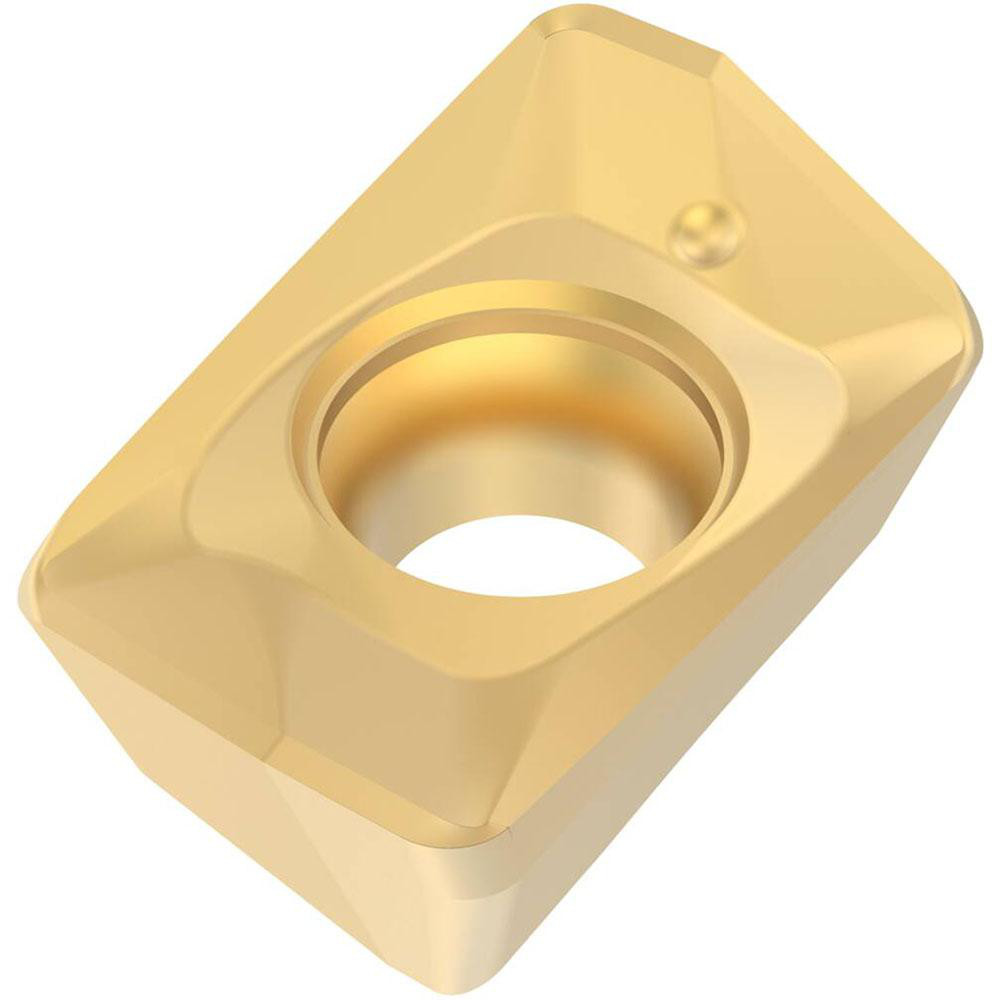

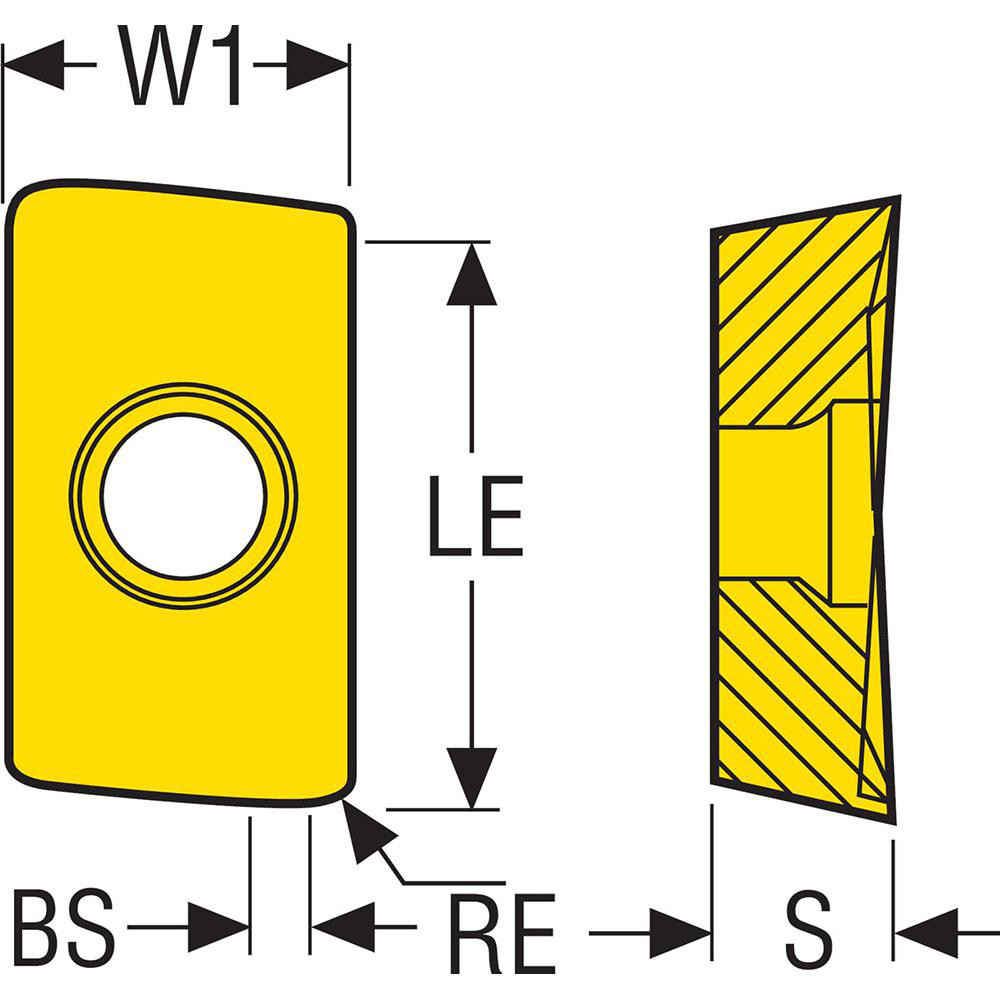

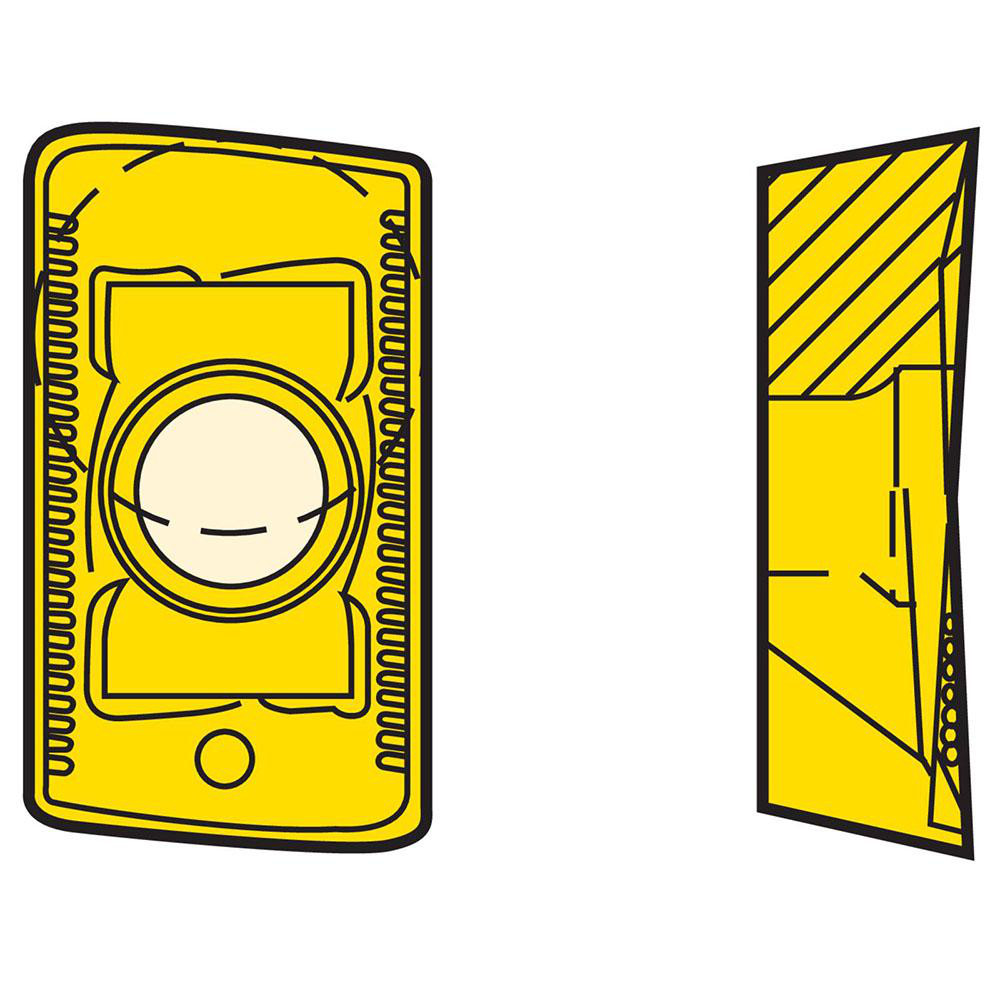

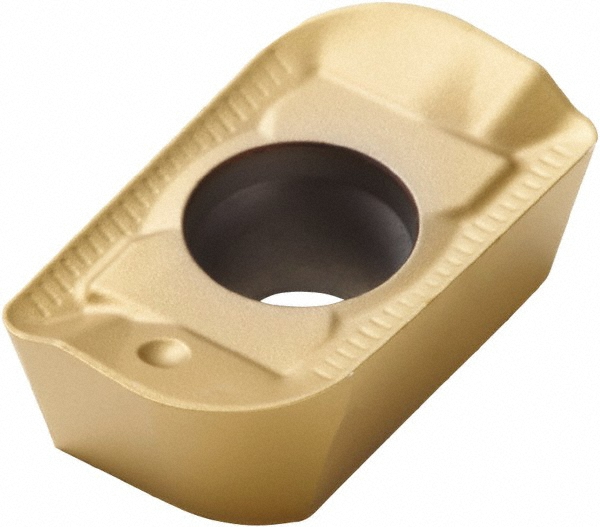

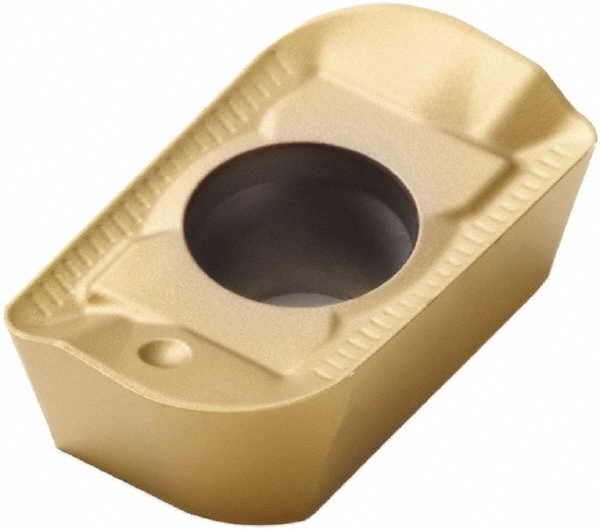

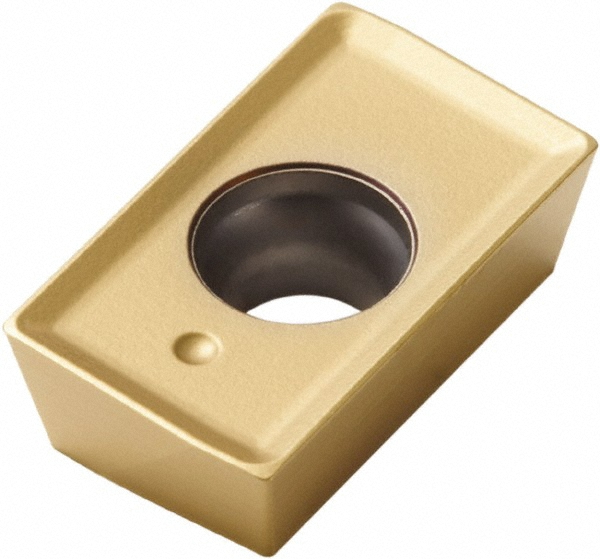

TiCN & Al2O3 Finish, 0.2232" Thick, 0.3750" Wide
| Insert Style | APKX |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |

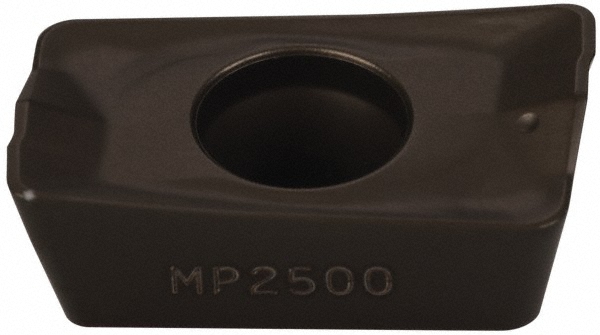

| Manufacturer Grade | MP2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2232 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 11.00 |
| Insert Size Code | 1604 |
| Material Grade | Fine Grain |
| Width (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Series | APKX-16 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6598 |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | APKX1604PDR-ME12 |
| Iso Code | APKX1604PDR-ME12 |
| Standards | ISO |
| Rake Angle | 24 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | APKX1604PDR-ME12 |
| Cutter Series Compatibility | R217.69-16; R220.69-16 |
| Chip Breaker | ME12 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6598 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 40634404 |
